MaxTrac K947241A 4" Lift Kit for 2014-2018 RAM 2500 4WD Diesel with Factory Rear Air Ride

Lift Your Air Ride RAM 2500 Without Compromising Ride Quality

The MaxTrac K947241A 4-Inch Lift Kit is designed specifically for 2014–2018 RAM 2500 4WD diesel trucks equipped with factory rear air ride. This complete suspension system delivers 4 inches of front lift and 1.5 inches of rear lift using diesel-specific front coil springs, radius arm drop brackets, dual track bar brackets, a pitman arm, sway bar brackets, bump stops, rear air bag spacers, and matched MaxTrac front and rear shocks. Built to preserve factory suspension geometry while increasing tire clearance, this kit provides the aggressive stance your truck deserves.

Key Features

Complete 4-Inch Suspension Lift

Provides a 4-inch front lift and 1.5-inch rear lift for improved ground clearance and a balanced appearance.

Designed for Factory Rear Air Ride

Includes rear air bag spacers to properly maintain factory rear air suspension operation after lifting.

Diesel-Specific Coil Springs

Heavy-duty front coil springs are engineered specifically for diesel-powered RAM 2500 trucks.

Suspension Geometry Correction

Includes radius arm drop brackets, track bar brackets, pitman arm, sway bar brackets, and bump stops to maintain proper steering, alignment, and ride quality.

MaxTrac Performance Shocks

Matched MaxTrac front and rear shocks provide improved ride control and stability for lifted applications.

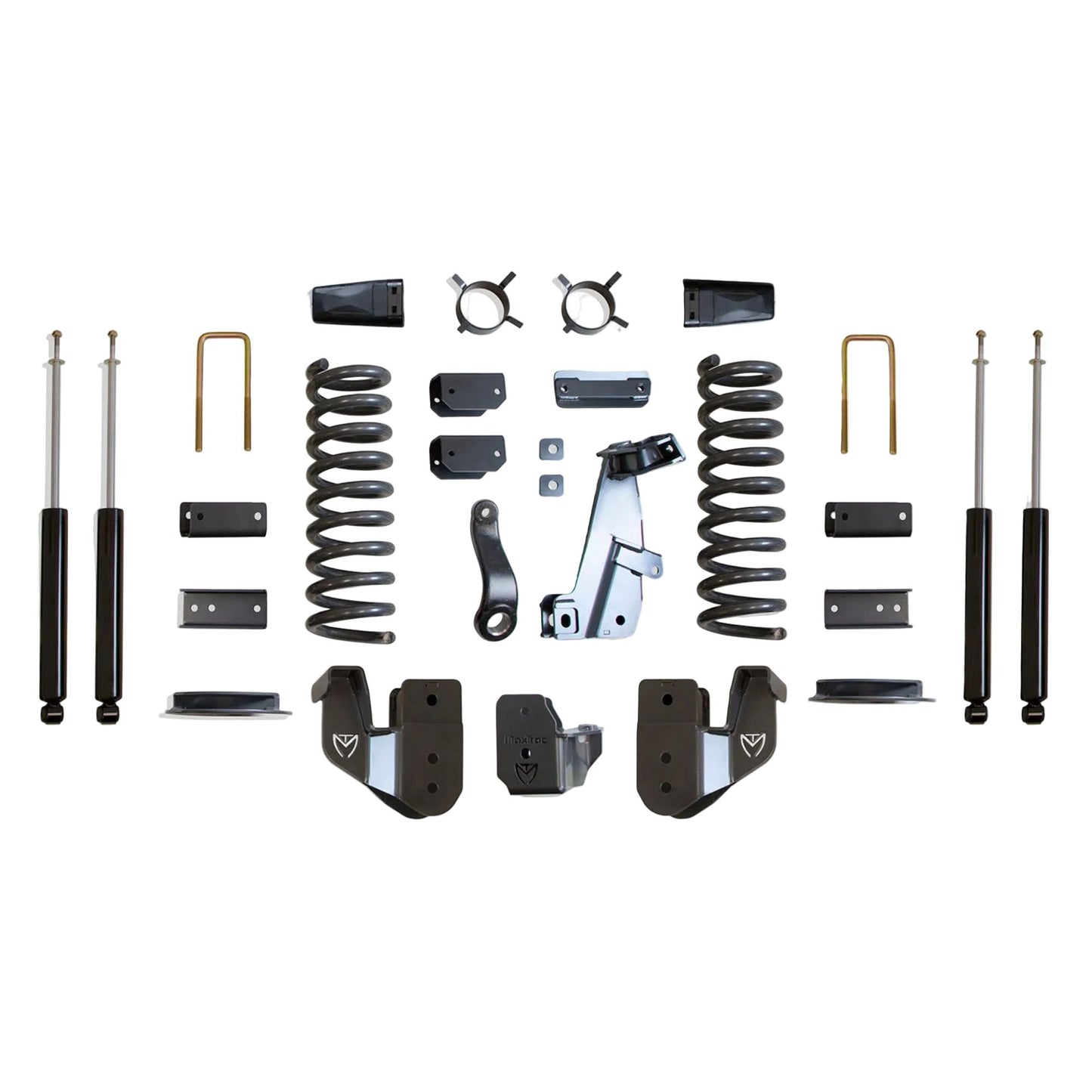

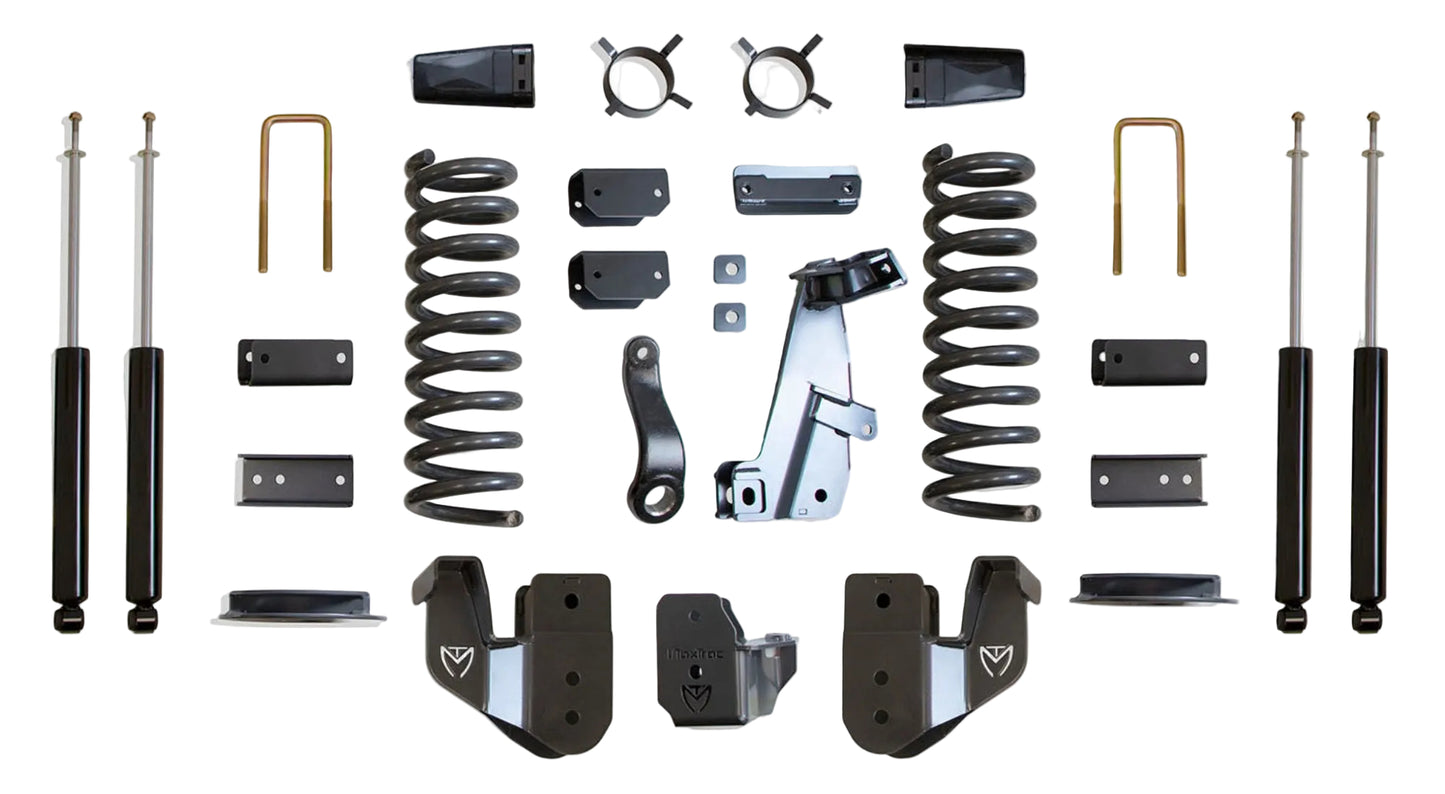

What's Included

Diesel front coil springs
Radius arm drop brackets
Track bar brackets
Pitman arm
Sway bar brackets
Bump stops
Rear air bag spacers
MaxTrac front shocks (2650SL-8, Qty. 2)
MaxTrac rear shocks (2400SL-8, Qty. 2)
Installation hardware

Vehicle Fitment

Fits

2014–2018 RAM 2500 4WD Diesel with Factory Rear Air Ride

Does Not Fit

2WD models
Power Wagon models
Cab & Chassis (Fleet) models

Important Notes

Requires 18-inch wheels or larger with 5.5 inches of backspacing or less.
Clears up to 37x12.50-inch tires on 8–9-inch wide wheels.
Minor fender trimming may be required depending on tire and wheel combination.
May fit gas-powered models, but this application has not been tested by MaxTrac.
Designed specifically for trucks equipped with factory rear air ride suspension.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Doing so may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K947241A
UPC: N/A
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 4 Inches
Rear Lift: 1.5 Inches
Lift Height: 4 Inches
Engine Compatibility: Diesel
Kit Design: Radius Arm Drop Brackets
Shock Option: MaxTrac
Front Shocks: 2650SL-8 (Qty. 2)
Rear Shocks: 2400SL-8 (Qty. 2)
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 215 lbs

Why Choose the MaxTrac K947241A?

The MaxTrac K947241A is engineered specifically for diesel-powered RAM 2500 trucks equipped with factory rear air ride. By combining geometry-correcting suspension components, air bag spacers, and matched MaxTrac shocks, it delivers excellent ride quality, improved off-road capability, and the clearance needed for larger tires.

Perfect For

2014–2018 RAM 2500 4WD Diesel
Factory rear air ride trucks
Off-road enthusiasts
Tow rigs
Daily drivers
Custom truck builds
