MaxTrac K947225L 2.5" Lift Kit with 4-Links for 2014-2026 Ram 2500 4WD Diesel

Upgrade Your Ram 2500 with Premium Forged 4-Link Suspension

Take your 2014–2026 Ram 2500 4WD diesel to the next level with the MaxTrac K947225L Lift Kit. This complete suspension system provides 2.5 inches of front lift using diesel-specific front coils, forged aluminum 4-links, an adjustable track bar, and matched MaxTrac front and rear shocks. Designed for superior strength, proper suspension geometry, and excellent ride quality, this kit clears up to 33-inch tires while giving your truck a leveled, aggressive stance.

Key Features

Complete 2.5-Inch Lift System

Provides a true 2.5-inch front lift for increased ground clearance and a leveled appearance.

Forged Aluminum 4-Link Upgrade

Replaces factory radius arms with premium forged aluminum 4-links for enhanced strength, improved suspension articulation, and a custom appearance.

Diesel-Specific Front Coil Springs

Heavy-duty lift coils are engineered specifically for the weight and suspension characteristics of diesel-powered Ram 2500 trucks.

Adjustable Track Bar

Centers the front axle after lifting to improve steering response and alignment.

MaxTrac Front & Rear Shocks

Includes four matched MaxTrac shocks designed to deliver excellent ride quality and suspension control.

Clears Up to 33-Inch Tires

Designed to fit 33x12.50-inch tires on 8- to 9-inch-wide wheels with the recommended wheel specifications.

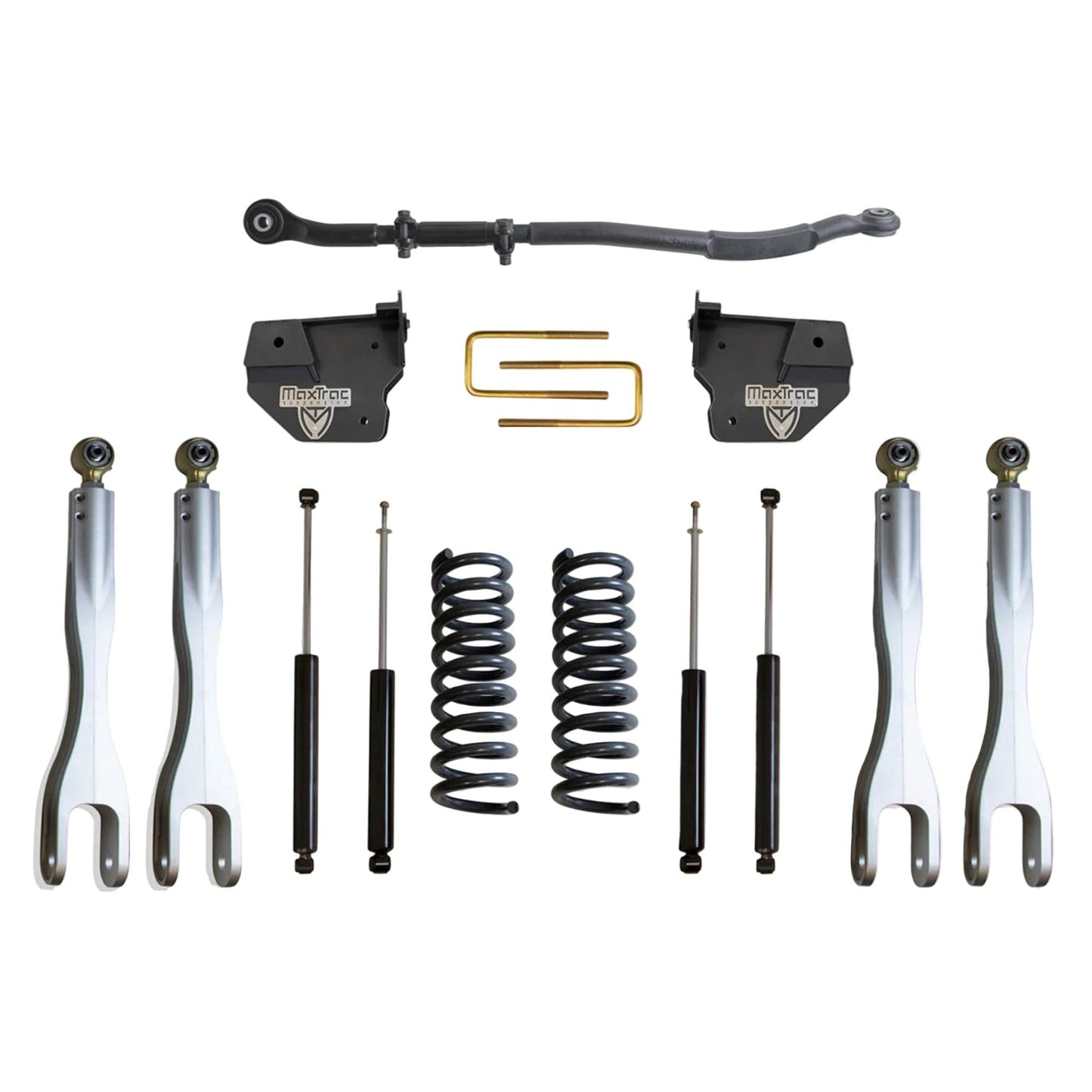

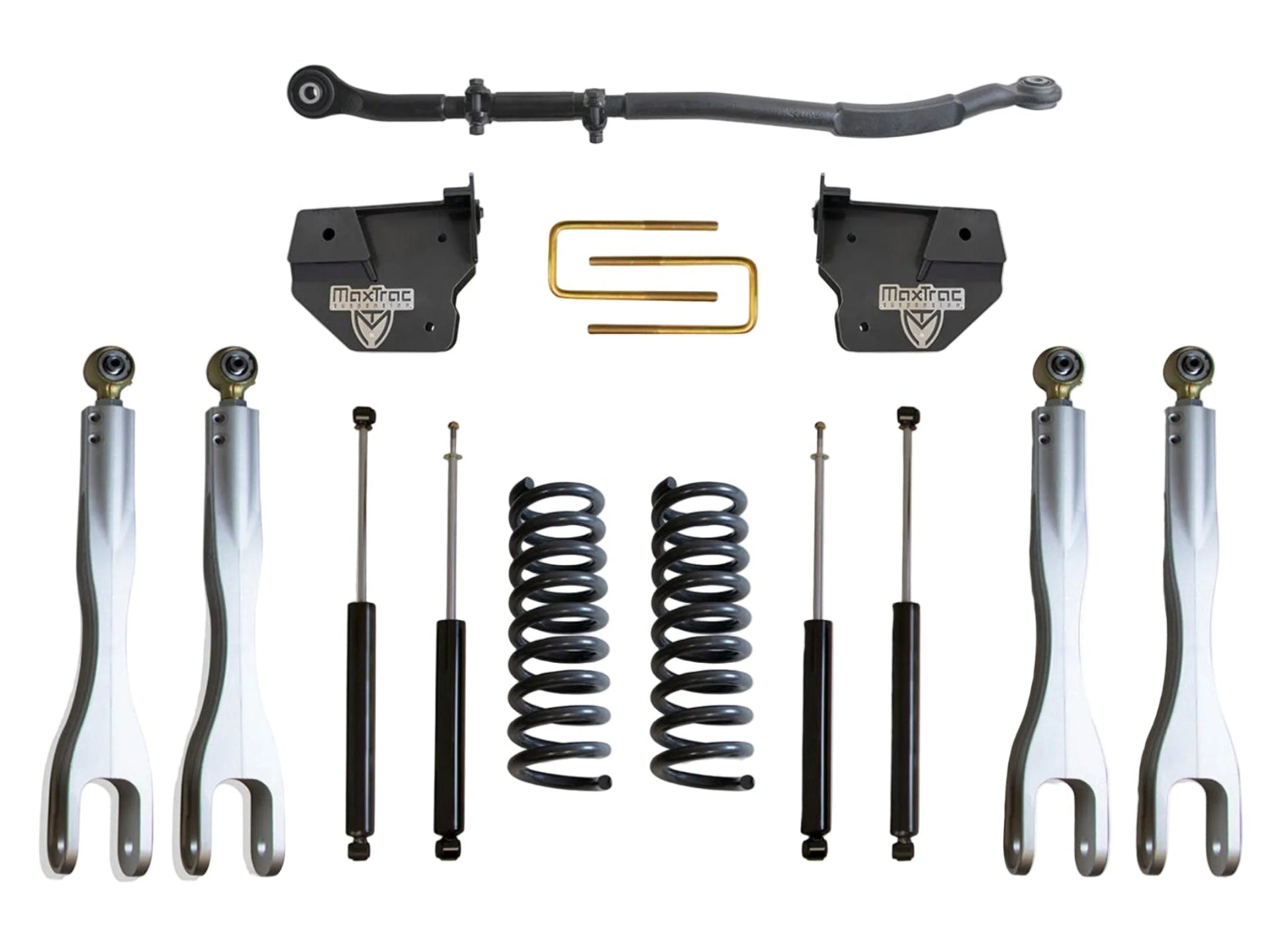

What's Included

Diesel front lift coils
Forged aluminum 4-links
Adjustable front track bar
MaxTrac front shocks (2)
MaxTrac rear shocks (2)
Installation hardware (where supplied by manufacturer)

Vehicle Fitment

Fits

2014–2026 Ram 2500 4WD Diesel

Does Not Fit

Power Wagon models
Cab & Chassis (Fleet) models

Important Notes

Requires 18-inch wheels or larger with 5.5 inches of backspacing or less.
Clears up to 33x12.50-inch tires on 8- to 9-inch-wide wheels.
Minor fender trimming may be required depending on tire and wheel combination.
Does not fit Power Wagon models.
Does not fit Cab & Chassis (Fleet) models.
May fit gas models, but has not been tested by MaxTrac.
When ordering replacement shocks separately, order quantity four, as shocks are sold individually.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Failure to follow these recommendations may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K947225L
UPC: N/A
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 2.5 Inches
Lift Height: 2.5 Inches
Engine Compatibility: Diesel
Shock Option: MaxTrac
Kit Design: Forged Aluminum 4-Links
Front Shocks: 2400SL-8 (Qty. 2)
Rear Shocks: 2400SL-8 (Qty. 2)
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 270 lbs

Why Choose the MaxTrac K947225L?

The MaxTrac K947225L combines diesel-specific lift coils with premium forged aluminum 4-links, an adjustable track bar, and four matched MaxTrac shocks to provide superior suspension performance, excellent ride quality, and the strength needed for both daily driving and off-road adventures.

Perfect For

2014–2026 Ram 2500 4WD Diesel
Daily drivers
Work trucks
33-inch tire upgrades
Off-road enthusiasts
Premium suspension builds
