MaxTrac K947225 2.5" Lift Kit for 2014-2026 Ram 2500 4WD Diesel

Level Your Ram 2500 with a Complete 2.5-Inch Suspension Lift

Upgrade your 2014–2026 Ram 2500 4WD diesel with the MaxTrac K947225 Lift Kit. This complete suspension system delivers 2.5 inches of front lift using diesel-specific front coils, radius arm drop brackets, an adjustable track bar, and matched MaxTrac front and rear shocks. Designed to maintain proper suspension geometry and ride quality, this kit provides clearance for up to 33-inch tires while giving your truck a leveled, aggressive appearance.

Key Features

Complete 2.5-Inch Lift System

Provides a true 2.5-inch front lift for improved ground clearance and a leveled stance.

Diesel-Specific Front Coil Springs

Heavy-duty front lift coils are engineered specifically for the added weight of diesel-powered Ram 2500 trucks.

Radius Arm Drop Brackets

Maintains proper suspension geometry and steering characteristics after lifting.

Adjustable Track Bar

Keeps the front axle centered to improve handling and alignment after installation.

MaxTrac Front & Rear Shocks

Includes four matched MaxTrac shocks designed for excellent ride quality and suspension control.

Clears Up to 33-Inch Tires

Accommodates 33x12.50-inch tires on 8- to 9-inch-wide wheels with the recommended wheel specifications.

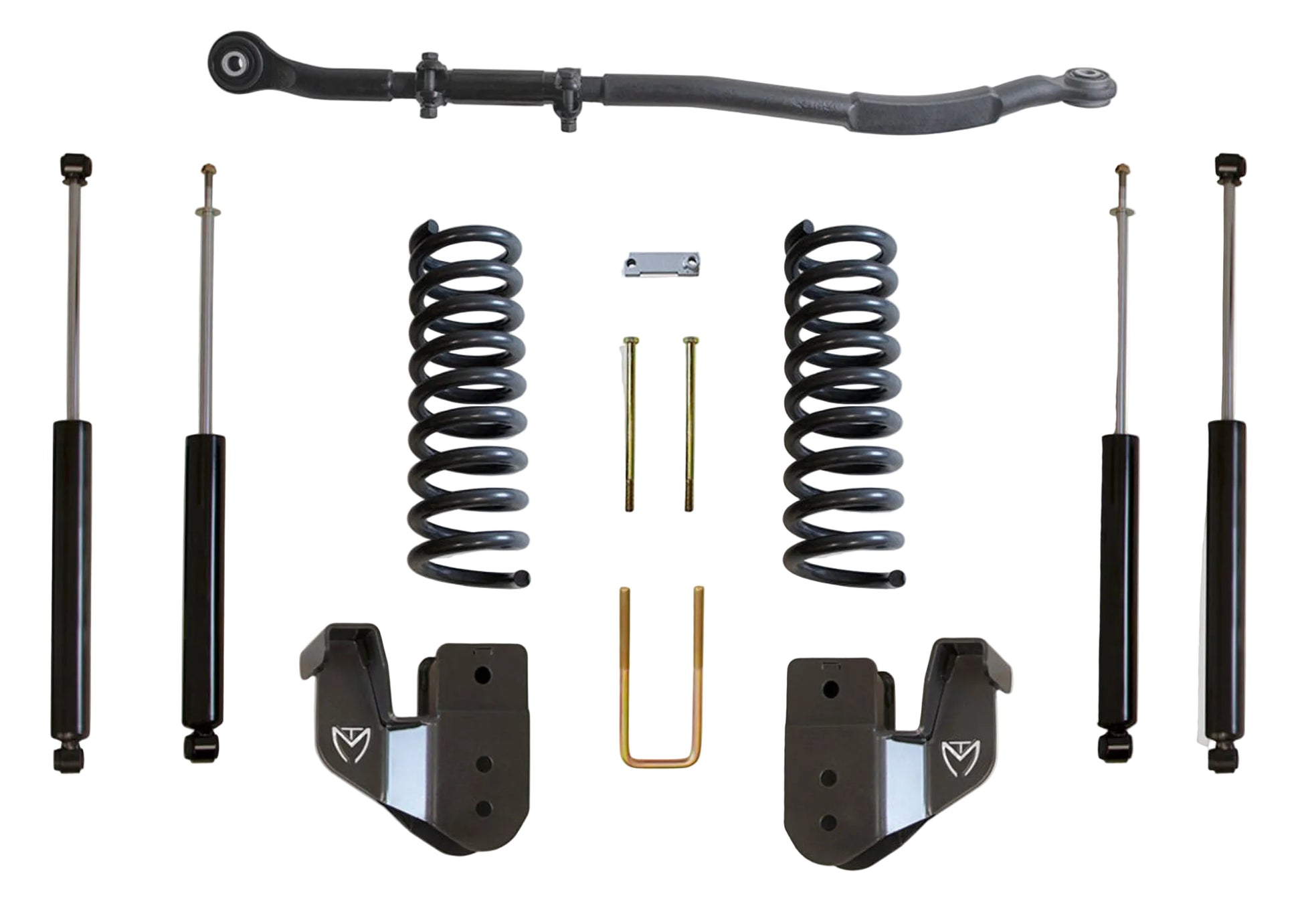

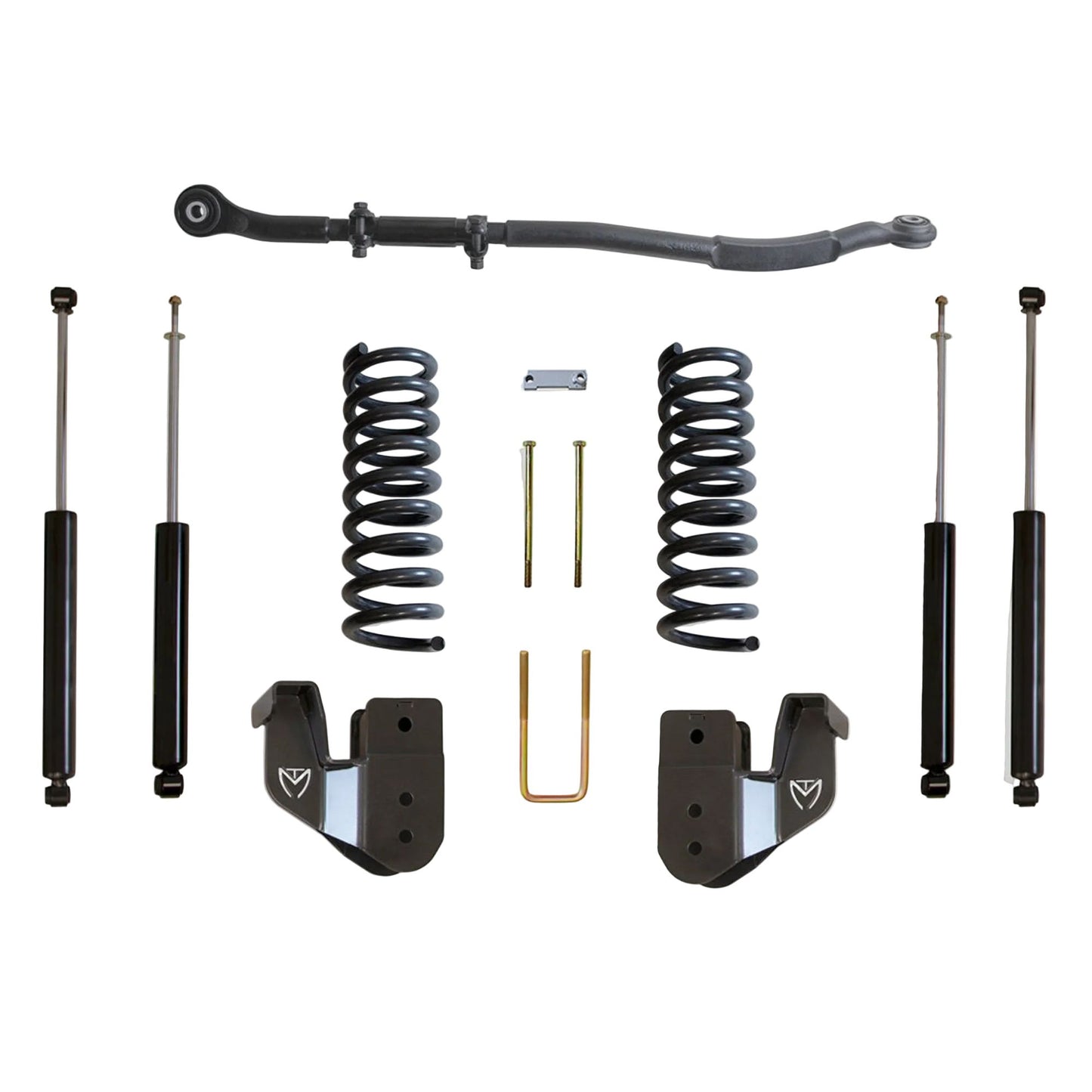

What's Included

Diesel front lift coils
Radius arm drop brackets
Adjustable front track bar
MaxTrac front shocks (2)
MaxTrac rear shocks (2)
Installation hardware (where supplied by manufacturer)

Vehicle Fitment

Fits

2014–2026 Ram 2500 4WD Diesel

Does Not Fit

Power Wagon models
Cab & Chassis (Fleet) models

Important Notes

Requires 18-inch wheels or larger with 5.5 inches of backspacing or less.
Clears up to 33x12.50-inch tires on 8- to 9-inch-wide wheels.
Minor fender trimming may be required depending on tire and wheel combination.
Does not fit Power Wagon models.
Does not fit Cab & Chassis (Fleet) models.
May fit gas models, but has not been tested by MaxTrac.
When ordering replacement shocks separately, order quantity four, as shocks are sold individually.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Failure to follow these recommendations may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K947225
UPC: N/A
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 2.5 Inches
Lift Height: 2.5 Inches
Engine Compatibility: Diesel
Shock Option: MaxTrac
Kit Design: Radius Arm Drop Brackets
Front Shocks: 2400SL-8 (Qty. 2)
Rear Shocks: 2400SL-8 (Qty. 2)
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 160 lbs

Why Choose the MaxTrac K947225?

The MaxTrac K947225 is a complete suspension solution for Ram 2500 diesel owners looking to level their truck while maintaining ride quality and proper suspension geometry. With diesel-specific coils, an adjustable track bar, radius arm drop brackets, and four matched MaxTrac shocks, this kit is built for dependable performance on and off the road.

Perfect For

2014–2026 Ram 2500 4WD Diesel
Daily drivers
Work trucks
Leveling oversized tires
Off-road enthusiasts
