MaxTrac K944385L 8" Lift Kit with 4-Links for 2023-2026 Ford F-250/F-350 4WD Diesel

Upgrade Your Super Duty with a Premium 8-Inch 4-Link Suspension System

Take your 2023–2026 Ford F-250 or F-350 Super Duty 4WD diesel to the next level with the MaxTrac K944385L 8-Inch Lift Kit. This premium suspension package delivers an 8-inch front lift and 6-inch rear lift using diesel-specific front coil springs, forged aluminum 4-link arms, a track bar bracket, sway bar brackets, bump stop extensions, pitman arm, rear lift blocks, U-bolts, and matched MaxTrac front and rear shocks. Designed to maintain proper suspension geometry while accommodating up to 40-inch tires, this kit is built for serious performance, durability, and aggressive styling.

Key Features

Complete 8-Inch Lift System

Provides an 8-inch front lift and 6-inch rear lift for maximum ground clearance and an aggressive lifted stance.

Forged Aluminum 4-Link Arms

Premium forged aluminum 4-link arms improve suspension geometry while adding exceptional strength, durability, and a clean custom appearance.

Diesel-Specific Coil Springs

Heavy-duty front coil springs are engineered specifically for diesel-powered Super Duty trucks to maintain proper ride height and load support.

Steering & Suspension Geometry Correction

Includes a track bar bracket, pitman arm, sway bar brackets, and bump stop extensions to maintain proper steering response, alignment, and suspension travel.

MaxTrac Front & Rear Shocks

Matched MaxTrac shocks are tuned specifically for 8-inch lift applications to provide excellent ride quality and stability.

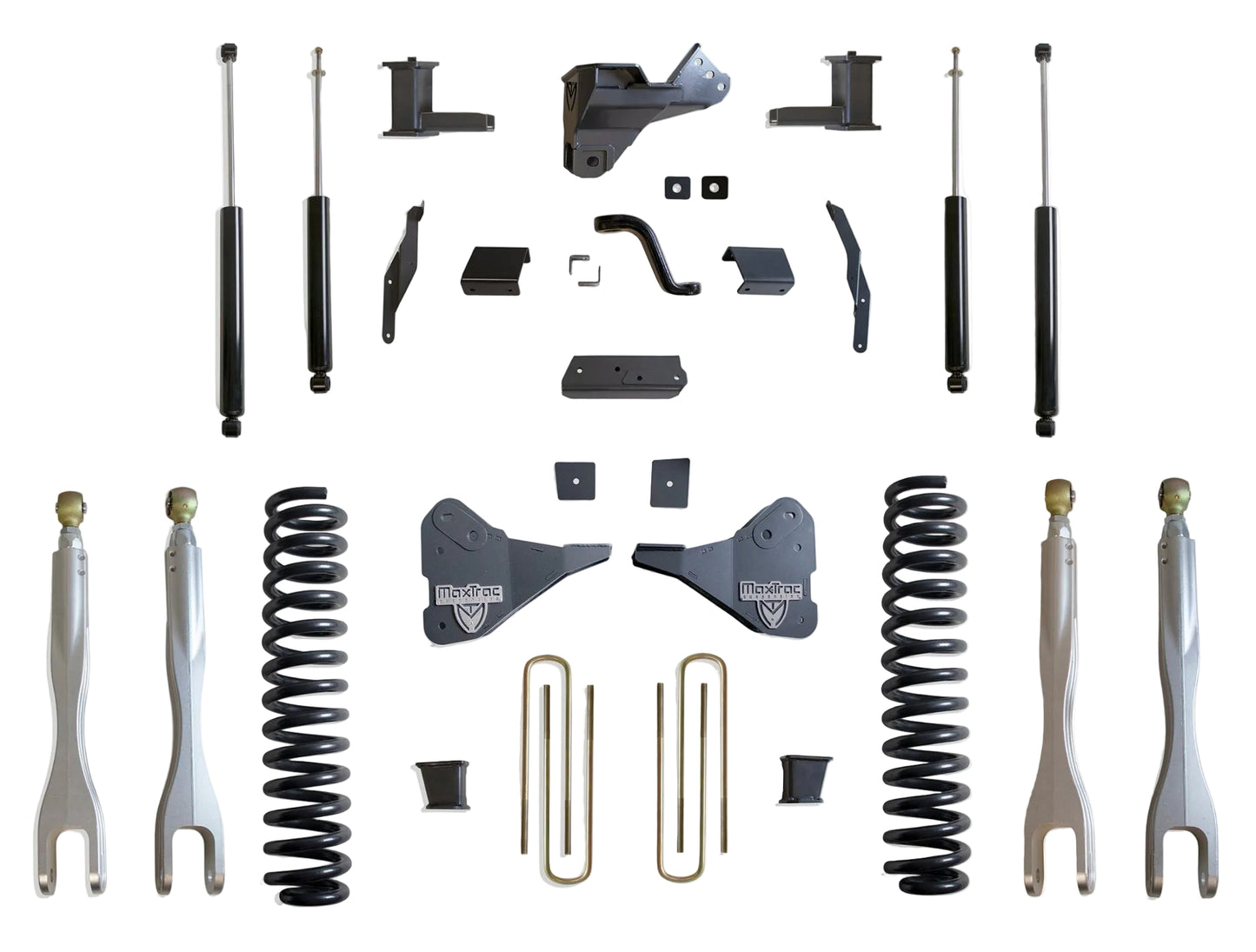

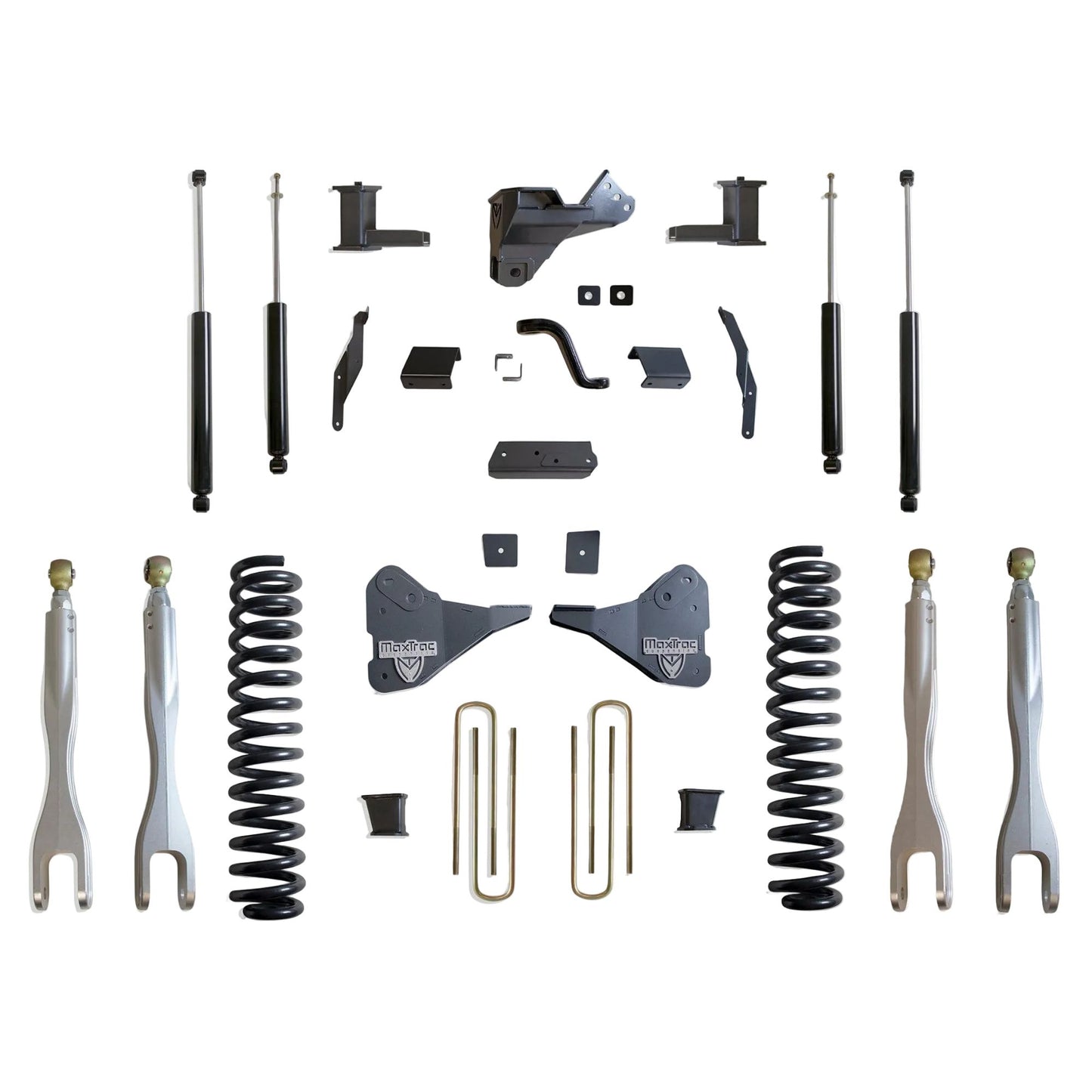

What's Included

Diesel front coil springs
Forged aluminum 4-link arms
Track bar bracket
Pitman arm
Sway bar brackets
Bump stop extensions
Rear lift blocks
U-bolts
MaxTrac front shocks (2900SL-8, Qty. 2)
MaxTrac rear shocks (3400LL-4, Qty. 2)
Installation hardware

Vehicle Fitment

Fits

2023–2026 Ford F-250 Super Duty 4WD Diesel
2023–2026 Ford F-350 Super Duty 4WD Diesel
Also fits dually models

Does Not Fit

2WD models
Models equipped with auto-leveling headlight or bed weight sensors

Important Notes

Requires 17-inch wheels or larger with 5.5 inches of backspacing or less.
Clears up to 40x13.50 tires on 8–9 inch wide wheels.
Minor fender trimming may be required depending on tire size and wheel offset.
May fit gas-powered models, but this application has not been tested by MaxTrac.
2020+ dually models require removal of the upper overload spring and spacer block.
Does not fit trucks equipped with auto-leveling headlight or bed weight sensors.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Doing so may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K944385L
UPC: N/A
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 8 Inches
Rear Lift: 6 Inches
Lift Height: 8 Inches
Engine Compatibility: Diesel
Kit Design: Forged Aluminum 4-Links
Shock Option: MaxTrac
Front Shocks: 2900SL-8 (Qty. 2)
Rear Shocks: 3400LL-4 (Qty. 2)
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 325 lbs

Why Choose the MaxTrac K944385L?

The MaxTrac K944385L combines premium forged aluminum 4-link arms with diesel-specific coil springs, steering correction components, and matched MaxTrac shocks to deliver exceptional ride quality, suspension geometry, and long-term durability. It's the ideal choice for Super Duty owners who want maximum lift without compromising performance.

Perfect For

2023–2026 Ford F-250 Super Duty 4WD Diesel
2023–2026 Ford F-350 Super Duty 4WD Diesel
Dually models
Off-road builds
Show trucks
Heavy-duty work trucks
