MaxTrac K944385 8" Lift Kit for 2023-2026 Ford F-250/F-350 4WD Diesel

Build Your Super Duty for Maximum Ground Clearance with an 8-Inch Lift

Take your 2023–2026 Ford F-250 or F-350 Super Duty 4WD diesel to new heights with the MaxTrac K944385 8-Inch Lift Kit. Engineered for serious off-road capability and an aggressive stance, this complete suspension system delivers an 8-inch front lift and 6-inch rear lift using diesel-specific front coil springs, radius arm drop brackets, a track bar bracket, sway bar brackets, bump stop extensions, pitman arm, rear lift blocks, U-bolts, and matched MaxTrac front and rear shocks. Everything is designed to maintain proper suspension geometry while providing room for up to 40-inch tires.

Key Features

Complete 8-Inch Lift System

Provides an 8-inch front lift and 6-inch rear lift for maximum ground clearance and an aggressive lifted stance.

Diesel-Specific Front Coil Springs

Heavy-duty front coil springs are designed specifically for diesel-powered Super Duty trucks to maintain proper ride height and load support.

Radius Arm Drop Brackets

Maintain proper caster angle and suspension geometry for improved handling and steering after lifting.

Steering & Suspension Geometry Correction

Includes a track bar bracket, pitman arm, sway bar brackets, and bump stop extensions to preserve factory steering characteristics and suspension travel.

MaxTrac Front & Rear Shocks

Includes matched MaxTrac shocks engineered for 8-inch lift applications to provide outstanding ride quality and stability.

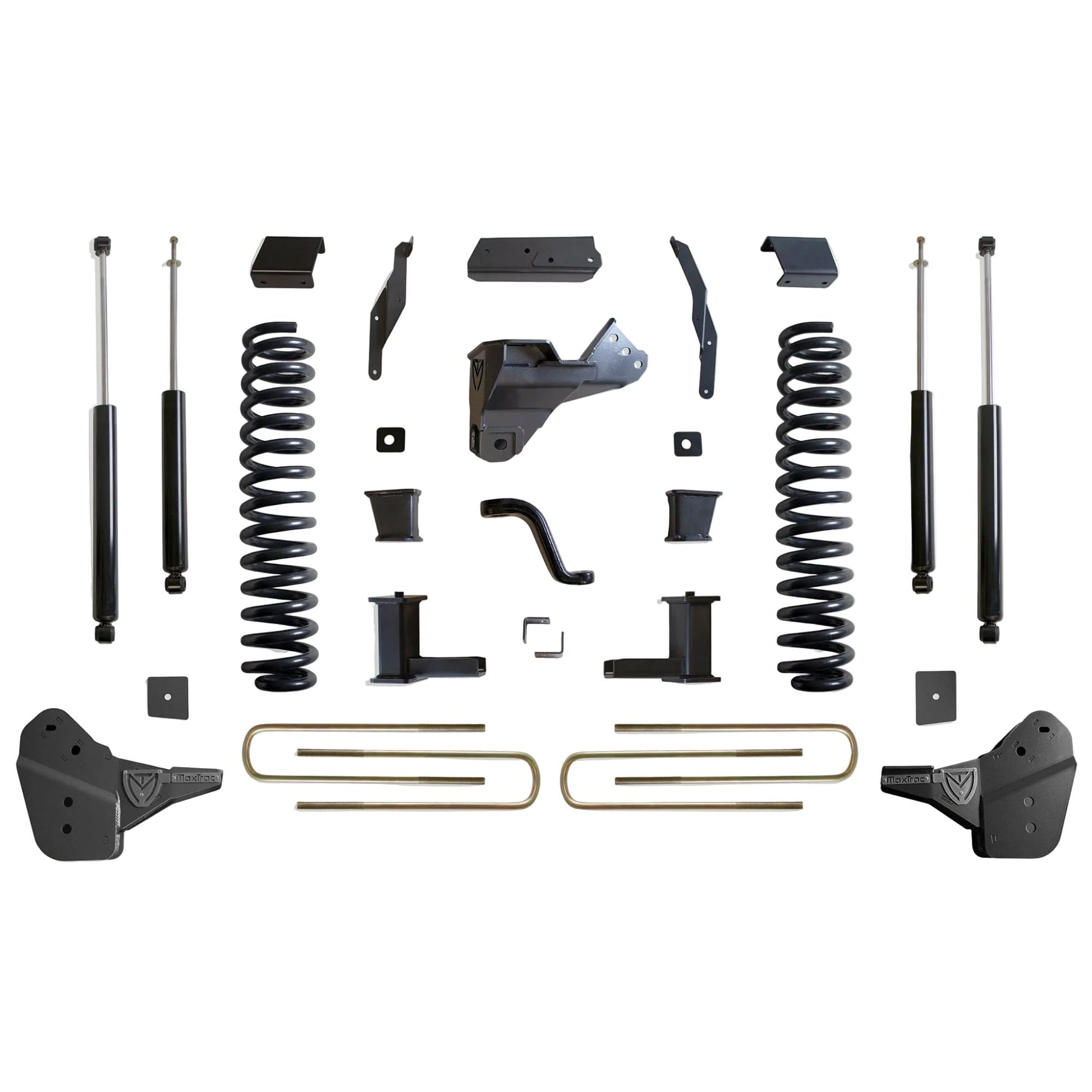

What's Included

Diesel front coil springs
Radius arm drop brackets
Track bar bracket
Pitman arm
Sway bar brackets
Bump stop extensions
Rear lift blocks
U-bolts
MaxTrac front shocks (2900SL-8, Qty. 2)
MaxTrac rear shocks (3400LL-4, Qty. 2)
Installation hardware

Vehicle Fitment

Fits

2023–2026 Ford F-250 Super Duty 4WD Diesel
2023–2026 Ford F-350 Super Duty 4WD Diesel
Also fits dually models

Does Not Fit

2WD models
Models equipped with auto-leveling headlight or bed weight sensors

Important Notes

Requires 17-inch wheels or larger with 5.5 inches of backspacing or less.
Clears up to 40x13.50 tires on 8–9 inch wide wheels.
Minor fender trimming may be required depending on tire size and wheel offset.
May fit gas-powered models, but this application has not been tested by MaxTrac.
2020+ dually models require removal of the upper overload spring and spacer block.
Does not fit trucks equipped with auto-leveling headlight or bed weight sensors.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Doing so may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K944385
UPC: N/A
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 8 Inches
Rear Lift: 6 Inches
Lift Height: 8 Inches
Engine Compatibility: Diesel
Kit Design: Radius Arm Drop Brackets
Shock Option: MaxTrac
Front Shocks: 2900SL-8 (Qty. 2)
Rear Shocks: 3400LL-4 (Qty. 2)
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 225 lbs

Why Choose the MaxTrac K944385?

The MaxTrac K944385 is a complete suspension solution for Super Duty owners looking for maximum lift without sacrificing steering geometry or ride quality. With diesel-specific coil springs, suspension correction components, and matched MaxTrac shocks, it's built to perform on the road, at the jobsite, or on the trail.

Perfect For

2023–2026 Ford F-250 Super Duty 4WD Diesel
2023–2026 Ford F-350 Super Duty 4WD Diesel
Dually models
Off-road builds
Show trucks
Heavy-duty work trucks
