MaxTrac K944362 6" Lift Kit for 2023-2026 Ford F-250/F-350 4WD Diesel

Give Your Super Duty Serious Ground Clearance with a Complete 6-Inch Lift

Upgrade your 2023–2026 Ford F-250 or F-350 Super Duty 4WD diesel with the MaxTrac K944362 6-Inch Lift Kit. Engineered for maximum performance on and off the road, this complete suspension system delivers a 6-inch front lift and 4-inch rear lift using diesel-specific coil springs, radius arm drop brackets, a track bar bracket, sway bar brackets, bump stop extensions, pitman arm, rear lift blocks, U-bolts, and matched MaxTrac front and rear shocks. The result is improved ground clearance, room for larger tires, and factory-like ride quality.

Key Features

Complete 6-Inch Lift System

Provides a 6-inch front lift and 4-inch rear lift for an aggressive stance and increased off-road capability.

Diesel-Specific Coil Springs

Heavy-duty front coil springs are engineered specifically for diesel-powered Super Duty trucks to maintain proper ride height and load support.

Radius Arm Drop Brackets

Correct suspension geometry and caster angle for improved handling and alignment after lifting.

Steering & Suspension Geometry Correction

Includes a track bar bracket, pitman arm, sway bar brackets, and bump stop extensions to maintain proper steering response and suspension travel.

MaxTrac Front & Rear Shocks

Matched MaxTrac shocks are tuned specifically for 6-inch lift applications to deliver outstanding ride quality and control.

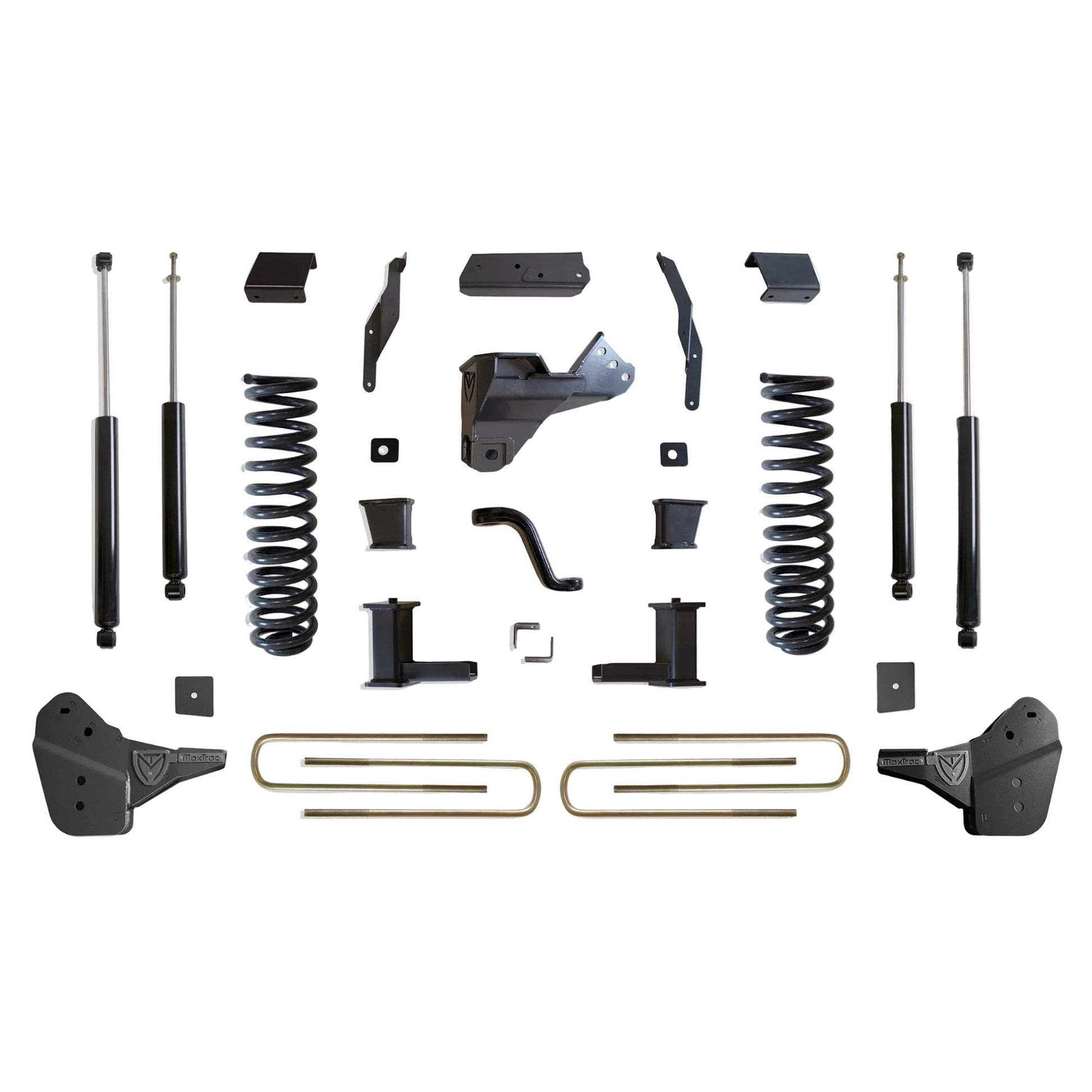

What's Included

Diesel front coil springs
Radius arm drop brackets
Track bar bracket
Pitman arm
Sway bar brackets
Bump stop extensions
Rear lift blocks
U-bolts
MaxTrac front shocks (2800SL-8, Qty. 2)
MaxTrac rear shocks (3400LL-4, Qty. 2)
Installation hardware

Vehicle Fitment

Fits

2023–2026 Ford F-250 Super Duty 4WD Diesel
2023–2026 Ford F-350 Super Duty 4WD Diesel
Also fits dually models

Does Not Fit

2WD models
Models equipped with auto-leveling headlight or bed weight sensors

Important Notes

Requires 17-inch wheels or larger with 5.5 inches of backspacing or less.
Clears up to 38x13.50 tires on 8–9 inch wide wheels.
Minor fender trimming may be required depending on tire size and wheel offset.
May fit gas-powered models, but this application has not been tested by MaxTrac.
2020+ dually models require removal of the upper overload spring and spacer block.
Does not fit trucks equipped with auto-leveling headlight or bed weight sensors.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Doing so may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K944362
UPC: N/A
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 6 Inches
Rear Lift: 4 Inches
Lift Height: 6 Inches
Engine Compatibility: Diesel
Kit Design: Radius Arm Drop Brackets
Shock Option: MaxTrac
Front Shocks: 2800SL-8 (Qty. 2)
Rear Shocks: 3400LL-4 (Qty. 2)
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 213 lbs

Why Choose the MaxTrac K944362?

The MaxTrac K944362 combines heavy-duty diesel coil springs, suspension geometry correction components, and matched MaxTrac shocks into one complete package. It's built to deliver dependable handling, improved ground clearance, and the strength needed for demanding work, towing, and off-road use.

Perfect For

2023–2026 Ford F-250 Super Duty 4WD Diesel
2023–2026 Ford F-350 Super Duty 4WD Diesel
Dually models
Off-road builds
Work trucks
Daily drivers
