MaxTrac K944341L 4" Lift Kit with 4-Links for 2023-2026 Ford F-250/F-350 4WD Diesel

Upgrade Your Super Duty with a Premium 4-Inch 4-Link Suspension System

Take your 2023–2026 Ford F-250 or F-350 Super Duty 4WD diesel to the next level with the MaxTrac K944341L 4-Inch Lift Kit. This premium suspension system delivers a 4-inch front lift and 2-inch rear lift using diesel-specific front coil springs, forged aluminum 4-link arms, a track bar bracket, sway bar brackets, bump stop extensions, pitman arm, rear lift blocks, U-bolts, and matched MaxTrac front and rear shocks. Designed for superior suspension geometry, durability, and ride quality, it's the ideal upgrade for larger tires and aggressive styling.

Key Features

Complete 4-Inch Lift System

Provides a 4-inch front lift and 2-inch rear lift for improved ground clearance and a balanced stance.

Forged Aluminum 4-Link Arms

Premium forged aluminum 4-links improve suspension geometry while adding strength, durability, and a clean appearance.

Diesel-Specific Coil Springs

Heavy-duty front coils are engineered specifically for diesel-powered Super Duty trucks to maintain proper ride height and load support.

Steering & Suspension Geometry Correction

Includes a track bar bracket, sway bar brackets, bump stop extensions, and pitman arm to maintain proper steering, suspension travel, and alignment after lifting.

MaxTrac Front & Rear Shocks

Matched MaxTrac shocks provide excellent ride comfort, stability, and control on lifted applications.

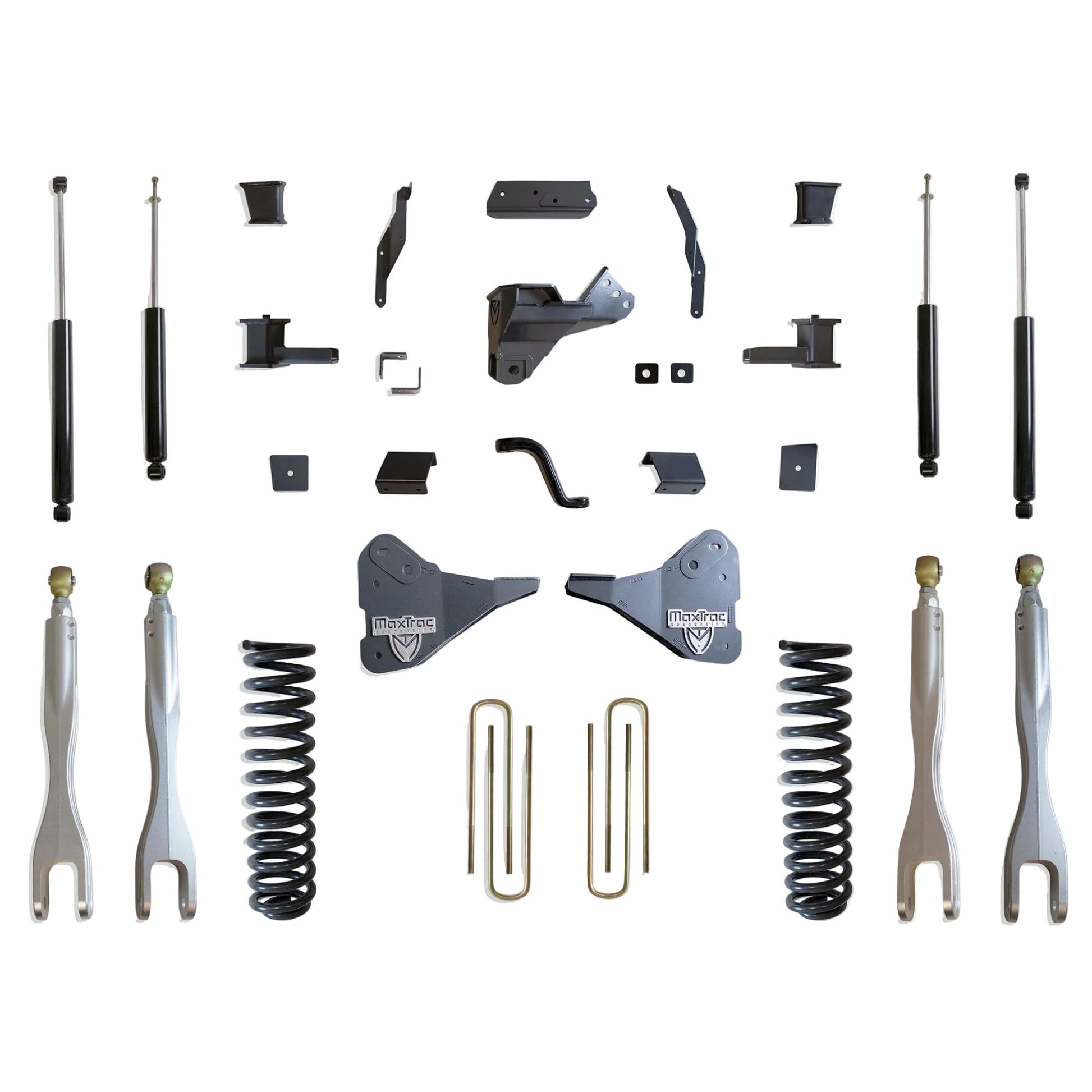

What's Included

Diesel front coil springs
Forged aluminum 4-link arms
Track bar bracket
Pitman arm
Sway bar brackets
Bump stop extensions
Rear lift blocks
U-bolts
MaxTrac front shocks (2650SL-8, Qty. 2)
MaxTrac rear shocks (3200LL-4, Qty. 2)
Installation hardware

Vehicle Fitment

Fits

2023–2026 Ford F-250 Super Duty 4WD Diesel
2023–2026 Ford F-350 Super Duty 4WD Diesel
Also fits dually models

Does Not Fit

2WD models
Models equipped with auto-leveling headlight or bed weight sensors

Important Notes

Requires 17-inch wheels or larger with 5.5 inches of backspacing or less.
Clears up to 37x13.50 tires on 8–9 inch wide wheels.
Minor fender trimming may be required depending on tire size and wheel offset.
May fit gas-powered models, but this application has not been tested by MaxTrac.
2020+ dually models require removal of the upper overload spring and spacer block.
Does not fit trucks equipped with auto-leveling headlight or bed weight sensors.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Doing so may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K944341L
UPC: N/A
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 4 Inches
Rear Lift: 2 Inches
Lift Height: 4 Inches
Engine Compatibility: Diesel
Kit Design: Forged Aluminum 4-Links
Shock Option: MaxTrac
Front Shocks: 2650SL-8 (Qty. 2)
Rear Shocks: 3200LL-4 (Qty. 2)
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 313 lbs

Why Choose the MaxTrac K944341L?

The MaxTrac K944341L combines premium forged aluminum 4-link arms with diesel-specific coils, steering correction components, and matched MaxTrac shocks to provide outstanding ride quality, improved suspension geometry, and dependable performance for lifted Super Duty trucks.

Perfect For

2023–2026 Ford F-250 Super Duty 4WD Diesel
2023–2026 Ford F-350 Super Duty 4WD Diesel
Dually models
Off-road enthusiasts
Work trucks
Daily drivers
