MaxTrac K944341 4" Lift Kit for 2023-2026 Ford F-250/F-350 4WD Diesel

Take Your Super Duty to the Next Level with a Complete 4-Inch Lift

Upgrade your 2023–2026 Ford F-250 or F-350 Super Duty 4WD diesel with the MaxTrac K944341 4-Inch Lift Kit. Designed to improve ground clearance, accommodate larger tires, and maintain excellent ride quality, this complete suspension system includes diesel-specific front coil springs, radius arm drop brackets, a track bar bracket, sway bar brackets, bump stop extensions, pitman arm, rear lift blocks, U-bolts, and matched MaxTrac front and rear shocks.

Key Features

Complete 4-Inch Lift System

Provides a 4-inch front lift and 2-inch rear lift for an aggressive stance while maintaining balanced suspension geometry.

Diesel-Specific Front Coil Springs

Heavy-duty coils are engineered specifically for diesel-powered Super Duty trucks to provide proper ride height and load capacity.

Radius Arm Drop Brackets

Maintain proper caster angle and suspension geometry for improved handling and alignment.

Steering & Suspension Geometry Correction

Includes a pitman arm, track bar bracket, sway bar brackets, and bump stop extensions to ensure proper suspension operation after lifting.

MaxTrac Front & Rear Shocks

Matched MaxTrac shocks are valved specifically for the lift height to deliver excellent ride quality and control.

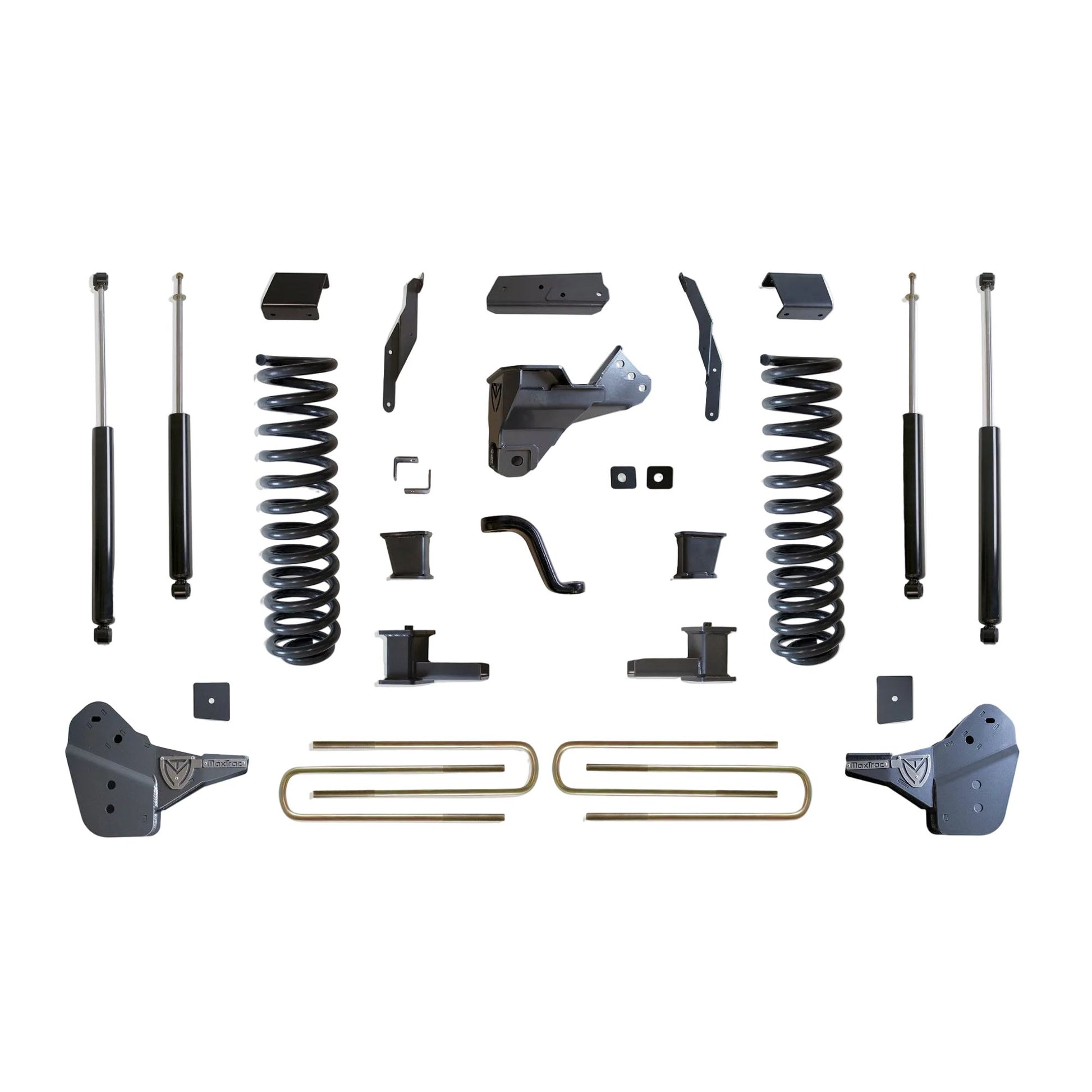

What's Included

Diesel front coil springs
Radius arm drop brackets
Track bar bracket
Pitman arm
Sway bar brackets
Bump stop extensions
Rear lift blocks
U-bolts
MaxTrac front shocks (2650SL-8, Qty. 2)
MaxTrac rear shocks (3200LL-4, Qty. 2)
Installation hardware

Vehicle Fitment

Fits

2023–2026 Ford F-250 Super Duty 4WD Diesel
2023–2026 Ford F-350 Super Duty 4WD Diesel
Also fits dually models

Does Not Fit

2WD models
Models equipped with auto-leveling headlight or bed weight sensors

Important Notes

Requires 17-inch wheels or larger with 5.5 inches of backspacing or less.
Clears up to 37x13.50 tires on 8–9 inch wide wheels.
Minor fender trimming may be required depending on tire size and wheel offset.
May fit gas-powered models, but this application has not been tested by MaxTrac.
2020+ dually models require removal of the upper overload spring and spacer block.
Does not fit trucks equipped with auto-leveling headlight or bed weight sensors.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Doing so may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K944341
UPC: N/A
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 4 Inches
Rear Lift: 2 Inches
Lift Height: 4 Inches
Engine Compatibility: Diesel
Kit Design: Radius Arm Drop Brackets
Shock Option: MaxTrac
Front Shocks: 2650SL-8 (Qty. 2)
Rear Shocks: 3200LL-4 (Qty. 2)
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 213 lbs

Why Choose the MaxTrac K944341?

The MaxTrac K944341 delivers everything needed for a properly engineered 4-inch Super Duty lift. With diesel-specific coil springs, geometry-correcting brackets, steering components, and matched MaxTrac shocks, this kit provides excellent ride quality, handling, and clearance for larger tires.

Perfect For

2023–2026 Ford F-250 Super Duty 4WD Diesel
2023–2026 Ford F-350 Super Duty 4WD Diesel
Dually models
Off-road enthusiasts
Work trucks
Daily drivers
