MaxTrac K943325L 2.5" Lift Kit with 4-Links for 2017-2022 Ford F-250/F-350 4WD Diesel

Upgrade Your Super Duty with Premium 4-Link Suspension

Give your 2017–2022 Ford F-250 or F-350 Super Duty 4WD diesel a leveled, aggressive stance with the MaxTrac K943325L Lift Kit. This premium suspension system delivers 2.5 inches of front lift using heavy-duty diesel-specific coil springs, forged aluminum 4-links, an adjustable track bar, and matched MaxTrac front and rear shocks. Designed for superior strength, improved suspension geometry, and excellent ride quality, this kit clears up to 35-inch tires while maintaining confident on- and off-road performance.

Key Features

Complete 2.5-Inch Lift System

Raises the front of your Super Duty by 2.5 inches for improved ground clearance and a leveled appearance.

Forged Aluminum 4-Link Upgrade

Includes heavy-duty forged aluminum 4-links that provide increased strength, improved suspension articulation, and a premium appearance compared to factory radius arms.

Diesel-Specific Front Coil Springs

Engineered specifically for the weight and suspension characteristics of diesel-powered Super Duty trucks.

Adjustable Track Bar

Keeps the front axle properly centered after lifting for precise steering and improved handling.

MaxTrac Front & Rear Shocks

Includes matched MaxTrac shocks designed to complement the lift height while maintaining ride comfort and control.

Clears Up to 35-Inch Tires

Accommodates 35x13.50-inch tires on 8- to 9-inch-wide wheels with the proper wheel specifications.

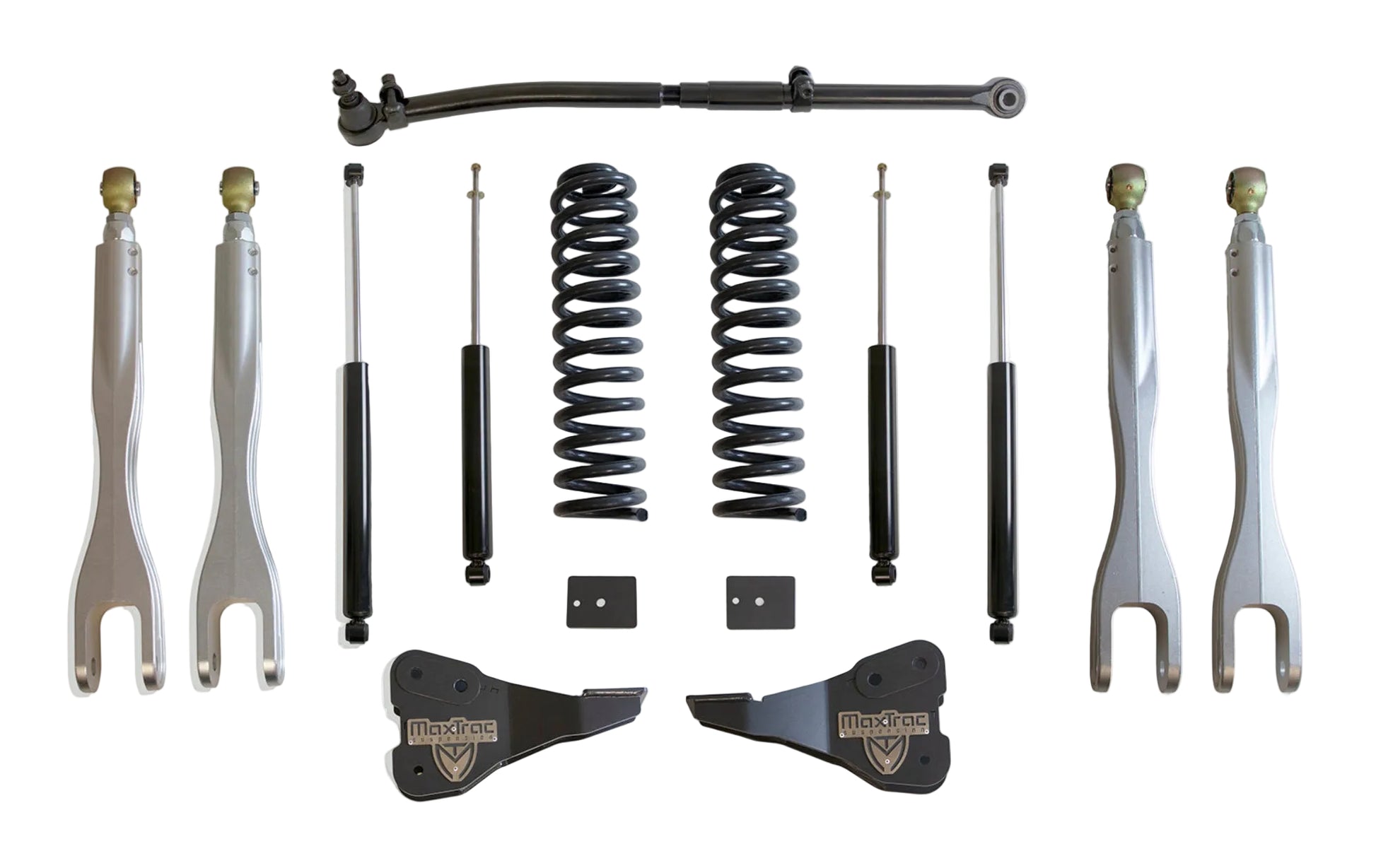

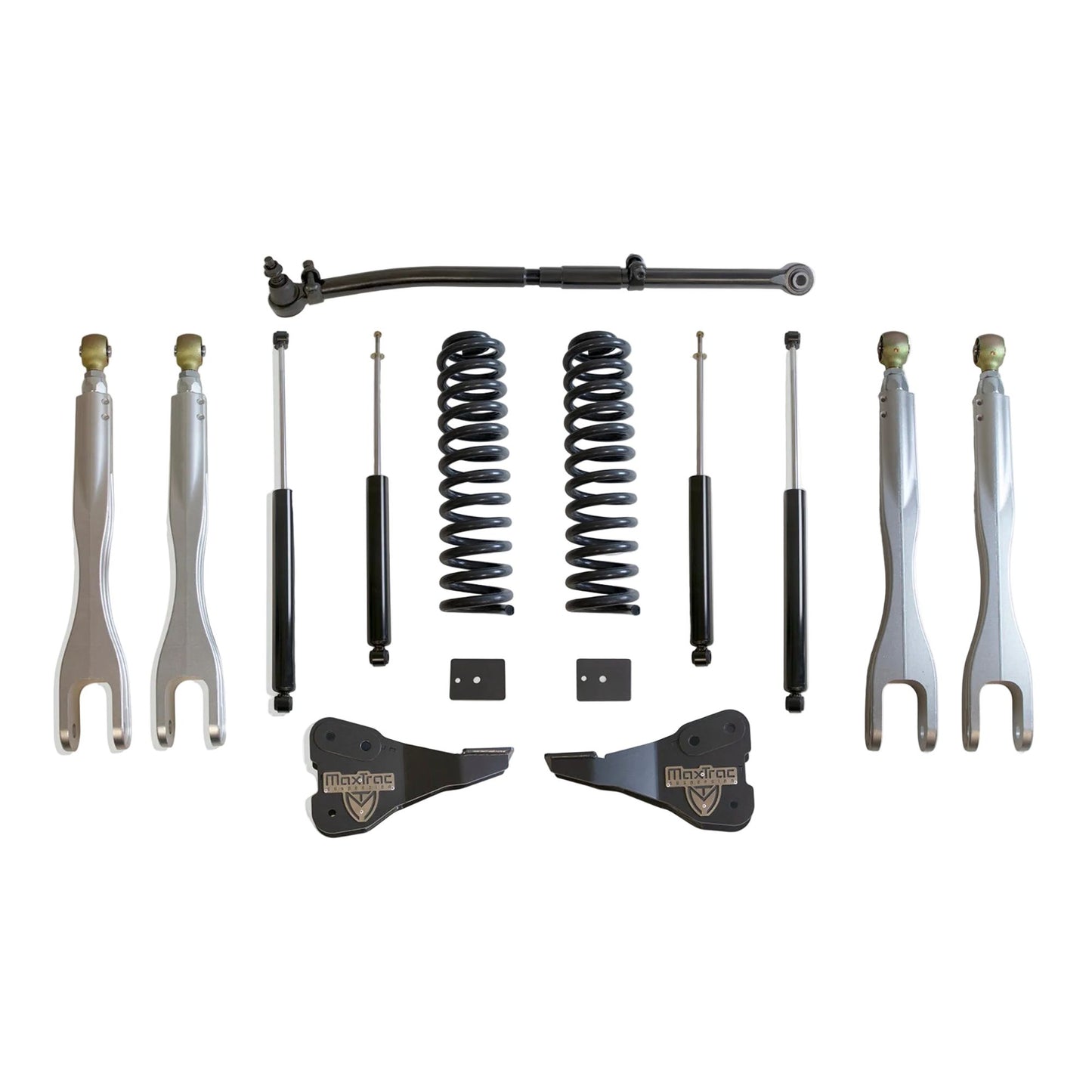

What's Included

Diesel front lift coils
Forged aluminum 4-links
Adjustable front track bar
MaxTrac front shocks (2)
MaxTrac rear shocks (2)
Installation hardware (where supplied by manufacturer)

Vehicle Fitment

Fits

2017–2022 Ford F-250 Super Duty 4WD Diesel
2017–2022 Ford F-350 Super Duty 4WD Diesel
Also fits dually models

Does Not Fit

2WD models

Important Notes

Requires 17-inch wheels or larger with 5.5 inches of backspacing or less.
Clears up to 35x13.50-inch tires on 8- to 9-inch-wide wheels.
Minor fender trimming may be required depending on tire and wheel combination.
Does not fit 2WD models.
May fit gas models, but has not been tested by MaxTrac.
Compatible with dually models.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Failure to follow these recommendations may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K943325L
UPC: N/A
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 2.5 Inches
Lift Height: 2.5 Inches
Engine Compatibility: Diesel
Shock Option: MaxTrac
Kit Design: Forged Aluminum 4-Links
Front Shocks: 2400SL-8 (Qty. 2)
Rear Shocks: 3200LL-4 (Qty. 2)
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 255 lbs

Why Choose the MaxTrac K943325L?

The MaxTrac K943325L delivers the same dependable 2.5-inch lift as the standard kit while upgrading to premium forged aluminum 4-links for improved suspension performance, durability, and appearance. Combined with diesel-specific coils, an adjustable track bar, and matched MaxTrac shocks, it provides outstanding handling both on and off the pavement.

Perfect For

2017–2022 Ford F-250 Super Duty 4WD Diesel
2017–2022 Ford F-350 Super Duty 4WD Diesel
Dually models
35-inch tire upgrades
Daily drivers
Work trucks
Off-road enthusiasts
