MaxTrac K943325 2.5" Lift Kit for 2017-2022 Ford F-250/F-350 4WD Diesel

Add 2.5 Inches of Lift Without Sacrificing Ride Quality

Upgrade your 2017–2022 Ford F-250 or F-350 Super Duty 4WD diesel with the MaxTrac K943325 Lift Kit. This complete suspension system provides 2.5 inches of front lift using heavy-duty diesel-specific coil springs, radius arm drop brackets, an adjustable track bar, and matched MaxTrac front and rear shocks. Designed to improve stance while maintaining proper suspension geometry, this kit clears up to 35-inch tires and delivers excellent on-road comfort and off-road capability.

Key Features

Complete 2.5-Inch Lift System

Provides a true 2.5-inch front lift for improved ground clearance and a leveled appearance.

Diesel-Specific Front Coil Springs

Heavy-duty front coils are engineered for the weight of diesel-powered Super Duty trucks.

Adjustable Track Bar Included

Keeps the front axle properly centered after lifting for improved steering and handling.

Radius Arm Drop Brackets

Maintains proper suspension geometry and factory-like ride quality after installation.

MaxTrac Front & Rear Shocks

Includes performance-matched MaxTrac shocks designed specifically for this lift height.

Clears Up to 35-Inch Tires

Designed to accommodate 35x13.50-inch tires on 8- to 9-inch-wide wheels with the proper wheel specifications.

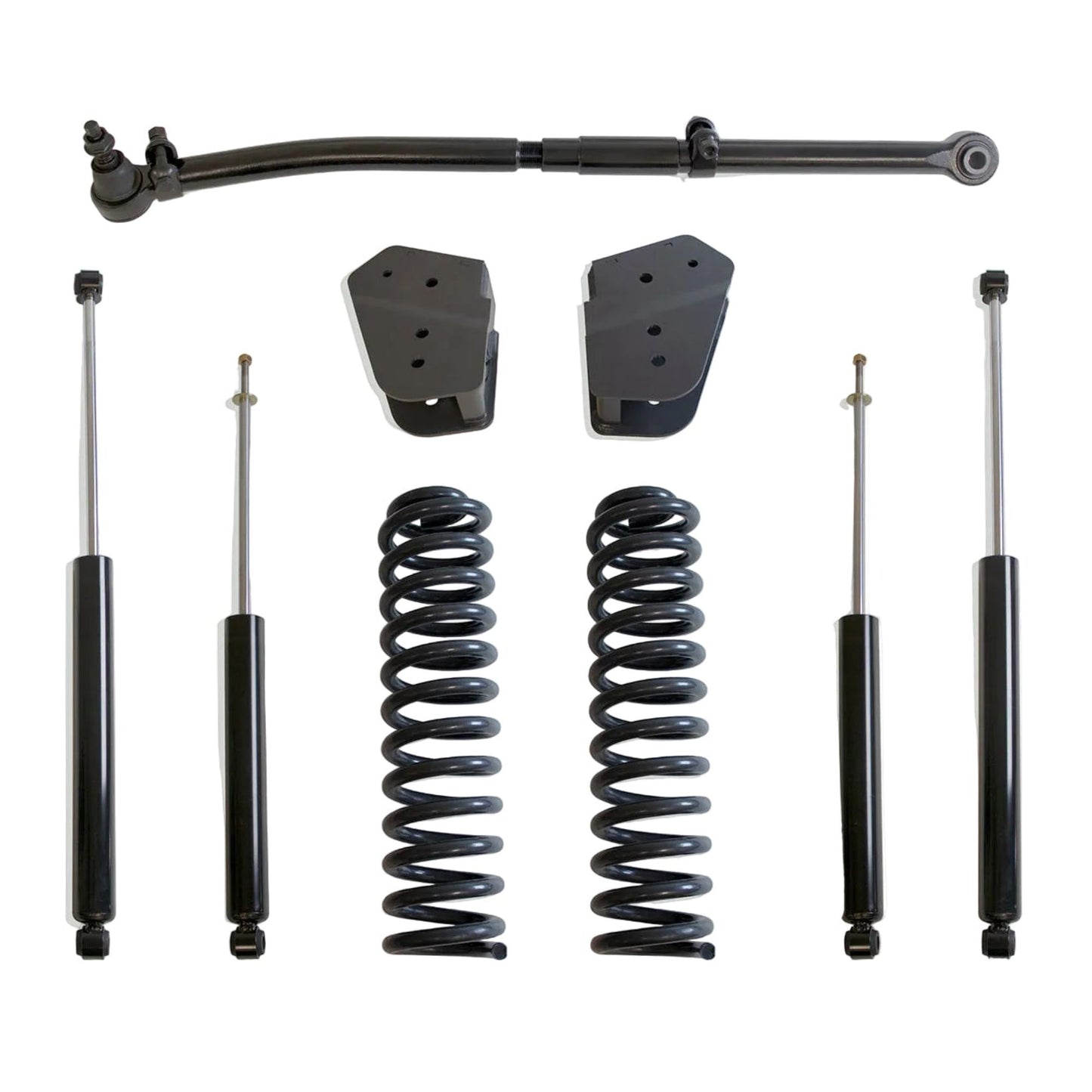

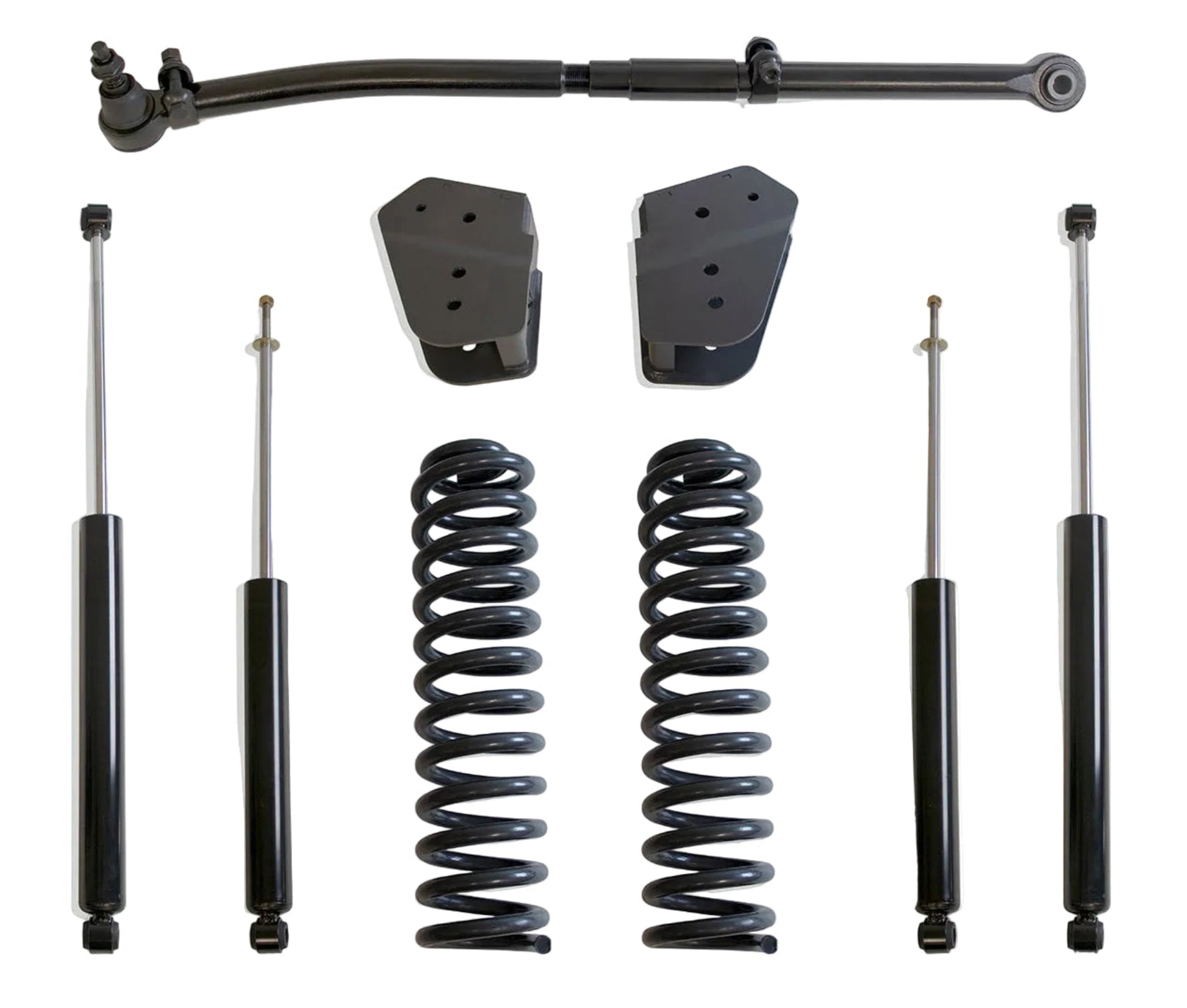

What's Included

Diesel front lift coils
Radius arm drop brackets
Adjustable front track bar
MaxTrac front shocks (2)
MaxTrac rear shocks (2)
Installation hardware (where supplied by manufacturer)

Vehicle Fitment

Fits

2017–2022 Ford F-250 Super Duty 4WD Diesel
2017–2022 Ford F-350 Super Duty 4WD Diesel
Also fits dually models

Does Not Fit

2WD models

Important Notes

Requires 17-inch wheels or larger with 5.5 inches of backspacing or less.
Clears up to 35x13.50-inch tires on 8- to 9-inch-wide wheels.
Minor fender trimming may be required depending on tire size and wheel offset.
Does not fit 2WD models.
May fit gas models, but has not been tested by MaxTrac.
Compatible with dually models.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Failure to follow these recommendations may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K943325
UPC: N/A
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 2.5 Inches
Lift Height: 2.5 Inches
Engine Compatibility: Diesel
Shock Option: MaxTrac
Kit Design: Radius Arm Drop Brackets
Front Shocks: 2400SL-8 (Qty. 2)
Rear Shocks: 3200LL-4 (Qty. 2)
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 155 lbs

Why Choose the MaxTrac K943325?

The MaxTrac K943325 is an excellent suspension upgrade for 2017–2022 Super Duty diesel trucks that need additional tire clearance without an extreme lift. With diesel-specific coils, an adjustable track bar, radius arm drop brackets, and matched MaxTrac shocks, it delivers improved stance, proper alignment, and dependable performance on and off the road.

Perfect For

2017–2022 Ford F-250 Super Duty 4WD Diesel
2017–2022 Ford F-350 Super Duty 4WD Diesel
Dually models
35-inch tire upgrades
Daily drivers
Work trucks
Light off-road use
