MaxTrac K940217 9"-10" Lift Kit for 2025-2026 Silverado/Sierra 1500 4WD

Go Big with a Complete 9"-10" GM 1500 Suspension Lift

Take your 2025–2026 Chevy Silverado 1500 or GMC Sierra 1500 4WD to an entirely different level with the MaxTrac K940217 9"-10" Lift Kit. This complete crossmember-style suspension system combines subframes, steering knuckles, MaxTrac front struts, differential drops, rear blocks, U-bolts, and rear shocks to deliver 9–10 inches of front lift and 7 inches of rear lift. It also fits Trail Boss and AT4 models, making it a serious upgrade for trucks running larger wheels and tires.

Key Features

Massive 9"-10" Front Lift

Provides 9–10 inches of front lift with a 7-inch rear lift for a dramatically taller stance and increased tire clearance.

Crossmember-Style Suspension System

Heavy-duty subframes and steering knuckles provide the foundation for the lift while the included differential drops help maintain proper 4WD driveline geometry.

MaxTrac Front Struts & Rear Shocks

Includes two 631971 front struts and two 3200LL-4 rear shocks matched to the lifted suspension.

Clears Up to 38" Tires

Designed to clear up to 38x13.50 tires on 8–9" wide wheels. Fender trimming may be necessary depending on the exact wheel and tire combination.

Trail Boss & AT4 Compatible

Fits factory-lifted Trail Boss and AT4 models. These trucks will achieve approximately 2 inches less additional lift from their factory stance.

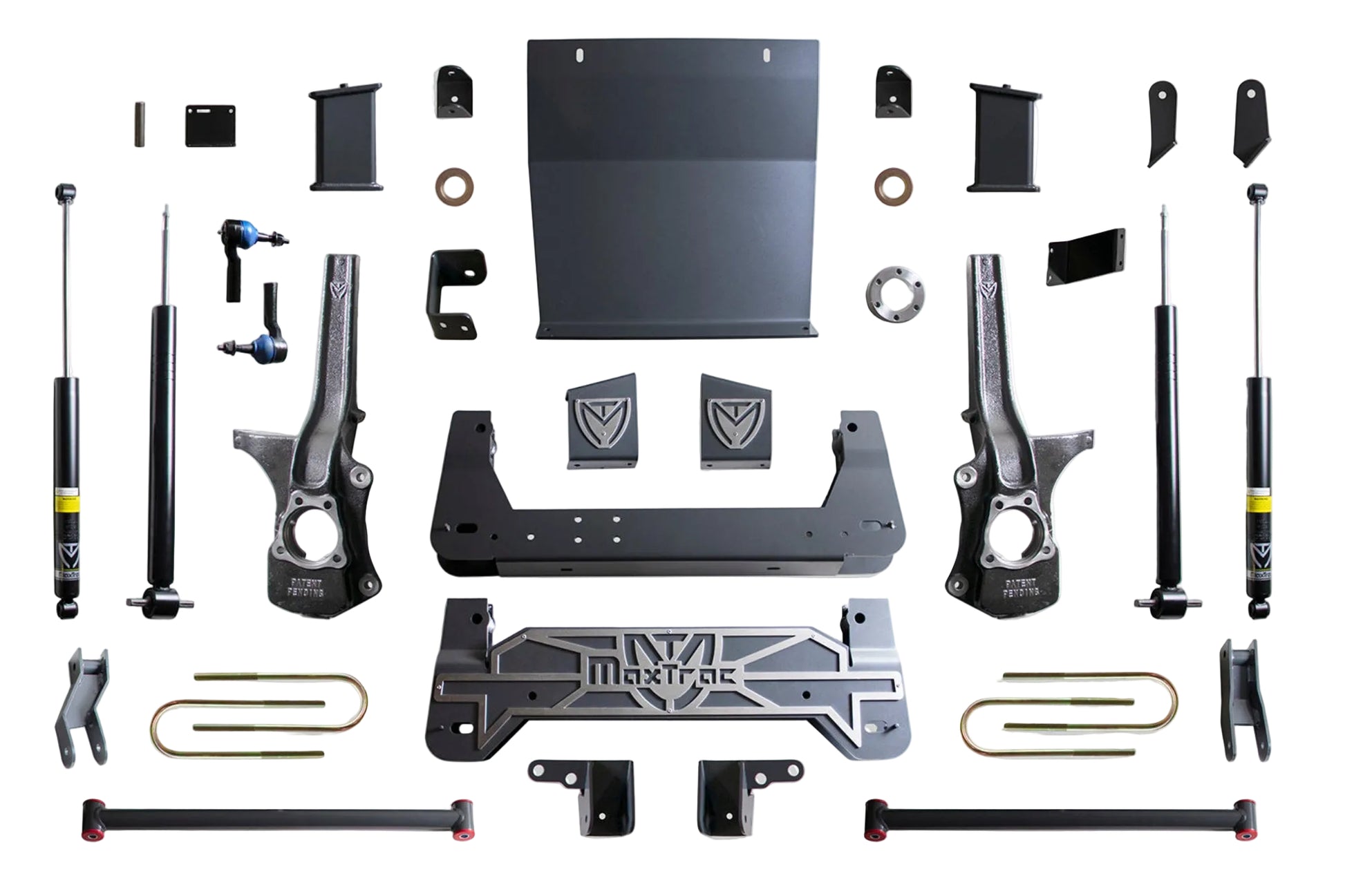

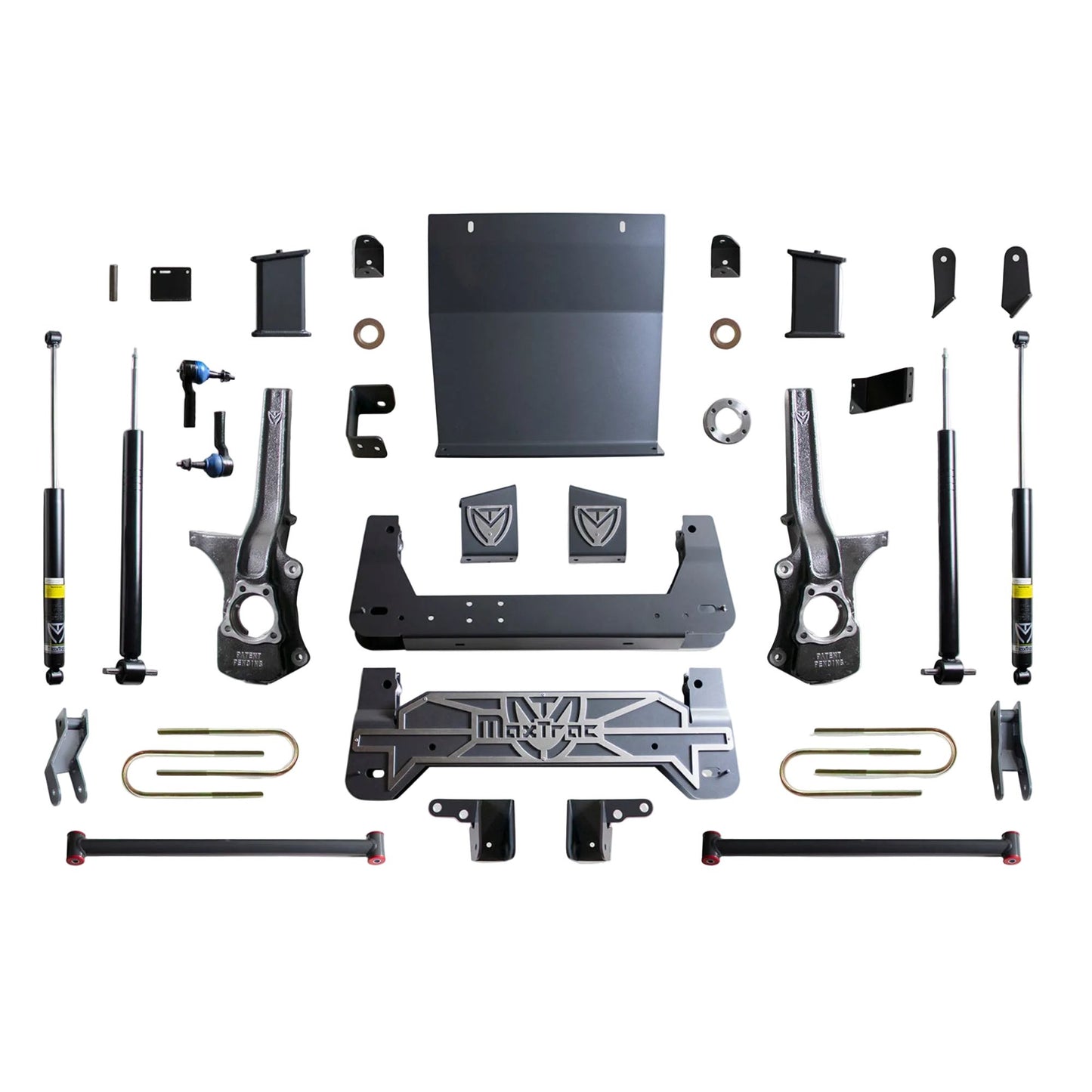

What's Included

Front subframes
Steering knuckles
MaxTrac 631971 front struts (Qty. 2)
Front differential drop components
Rear lift blocks
Rear U-bolts
MaxTrac 3200LL-4 rear shocks (Qty. 2)
Installation hardware

Vehicle Fitment

Fits

2025–2026 Chevrolet Silverado 1500 4WD
2025–2026 GMC Sierra 1500 4WD
2025–2026 Chevrolet Silverado 1500 Trail Boss 4WD
2025–2026 GMC Sierra 1500 AT4 4WD

Does Not Fit

Models equipped with Adaptive Ride Control
Models equipped with monoleaf rear springs

Important Notes

Requires 17" wheels or larger with 4-5/8" backspacing or less.
20" wheels or larger may use up to 4.75" backspacing.
Factory wheels will not fit.
Clears up to 38x13.50 tires on 8–9" wide wheels.
Trail Boss and AT4 models will yield approximately 2" less lift compared with their factory stance.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside manufacturer recommendations may void applicable warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K940217
UPC: N/A
Product Type: Suspension Lift Kit
Kit Type: Lift/Level
Front Lift: 9–10 Inches
Rear Lift: 7 Inches
Drivetrain: 4WD
Front Struts: 631971 (Qty. 2)
Rear Shocks: 3200LL-4 (Qty. 2)
Maximum Tire Size: 38x13.50
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 338 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K940217?

For Silverado and Sierra owners looking for a substantial increase in height, the K940217 combines the major suspension and driveline components into one matched package. The included subframes, steering knuckles, differential drops, struts, blocks, U-bolts, and rear shocks create a complete system capable of supporting an aggressive lifted GM 1500 build.

Perfect For

2025–2026 Silverado 1500 4WD
2025–2026 Sierra 1500 4WD
Trail Boss and AT4 builds
38-inch tire setups
High-clearance lifted trucks
Custom street and off-road builds
