MaxTrac K883532 3.5" Lift Kit for 1997-2003 Ford F-150 2WD

Give Your F-150 a Taller Stance and Room for 33" Tires

Upgrade your 1997–2003 Ford F-150 2WD with the MaxTrac K883532 3.5" Lift Kit. This complete suspension package uses front lift spindles to provide 3.5 inches of lift while rear blocks and U-bolts raise the back approximately 2 inches. Matched MaxTrac front and rear shocks complete the setup for a vehicle-specific lifted suspension system.

With the proper wheel combination, this kit provides clearance for up to 33" x 11.50" tires, giving your F-150 a more aggressive stance without stepping up to an oversized lift system.

Key Features

3.5" Front Spindle Lift

Front lift spindles provide approximately 3.5 inches of lift, increasing front ride height and creating additional tire clearance.

2" Rear Lift

Included rear blocks and U-bolts provide approximately 2 inches of rear lift to complement the raised front suspension.

Front & Rear MaxTrac Shocks

Includes 1450SL front shocks and 2650SL-2 rear shocks matched to the lifted suspension configuration.

Clears Up to 33" Tires

Designed to clear up to 33" x 11.50" tires on 8"-9" wide wheels when the recommended wheel specifications are followed.

Complete Front & Rear Package

Spindles, rear lift hardware, and four MaxTrac shocks provide the major components needed to lift both ends of your F-150.

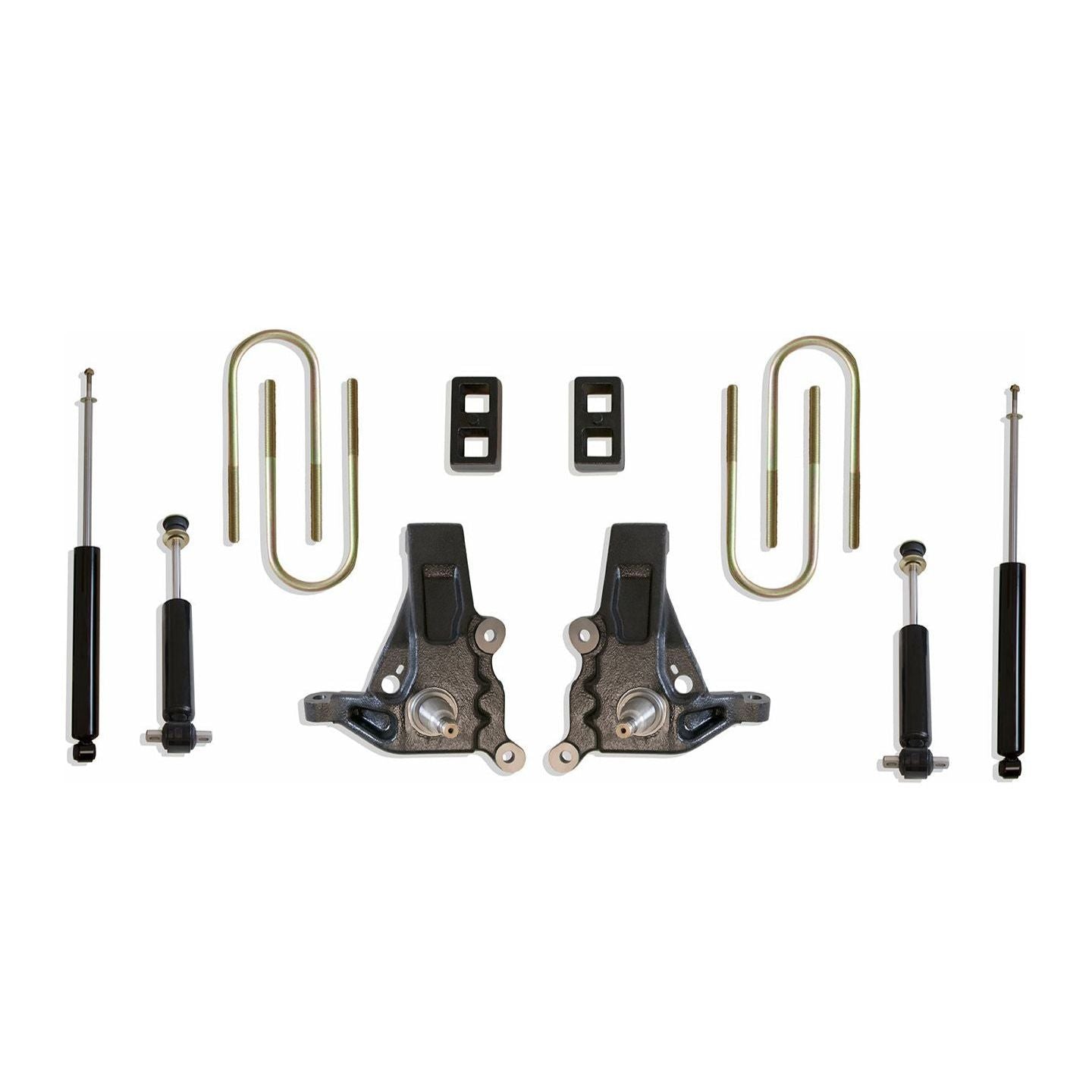

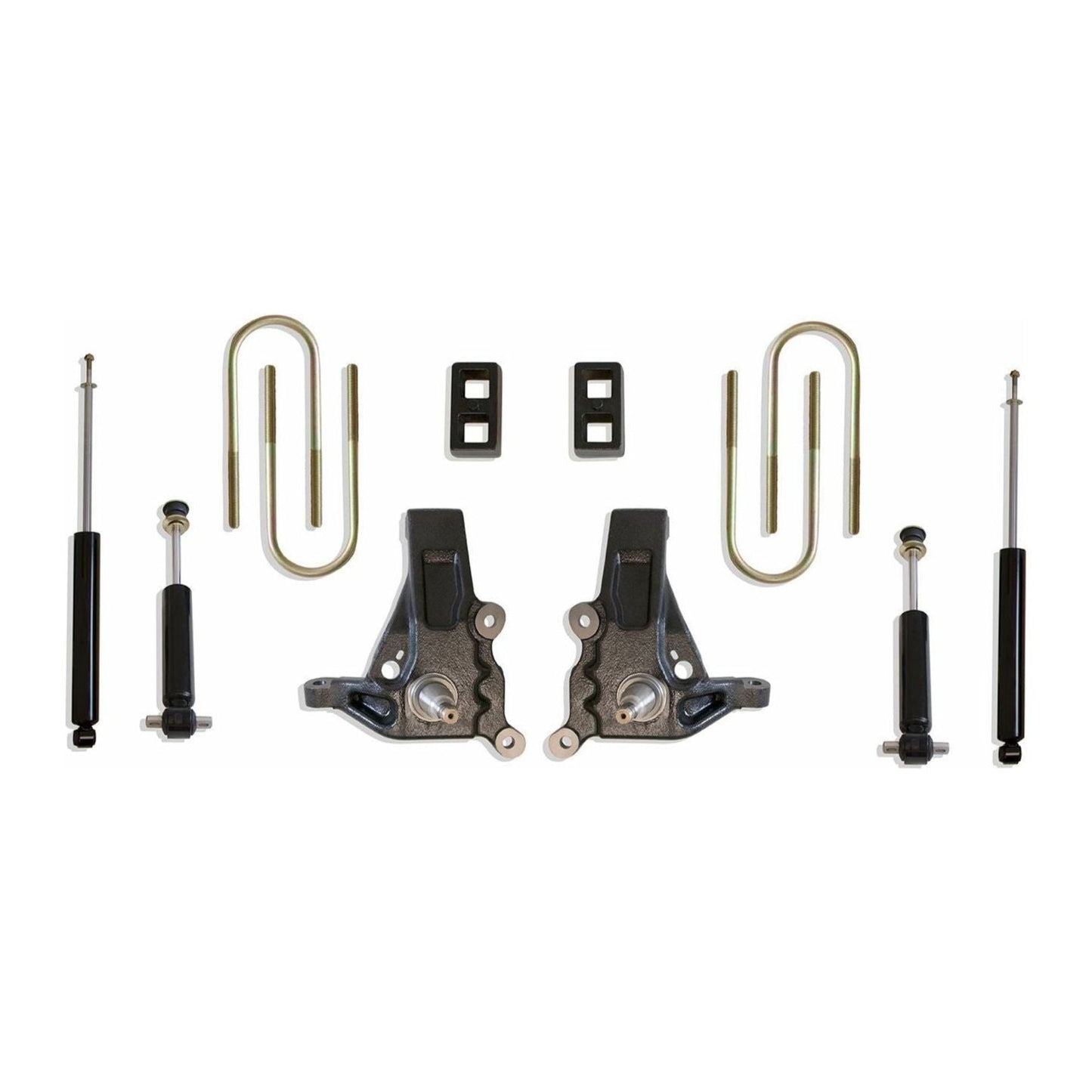

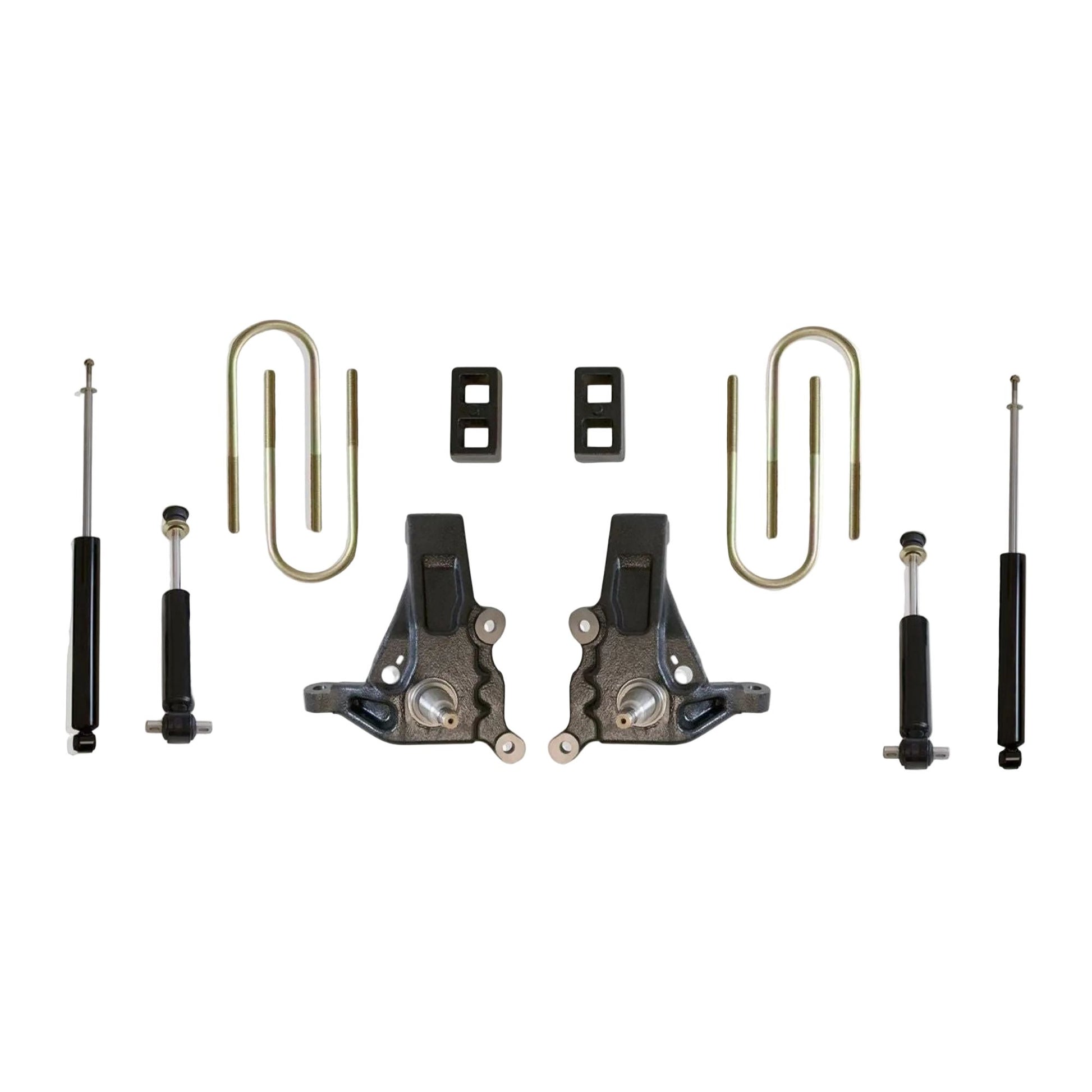

What's Included

Front lift spindles
2" rear lift blocks
Rear U-bolts
MaxTrac 1450SL front shocks (Qty. 2)
MaxTrac 2650SL-2 rear shocks (Qty. 2)

Vehicle Fitment

Fits

1997–2003 Ford F-150
2WD models

Important Notes

Requires 16" wheels or larger with 4-5/8" backspacing or less.
Clears up to 33" x 11.50" tires on 8"-9" wide wheels.
Fender trimming may be required depending on wheel and tire combination.
When ordering shocks separately, order quantity 2 because shocks are sold individually.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside manufacturer recommendations will void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K883532
UPC: N/A
Product Type: Complete Suspension Lift Kit
Kit Type: Lift / Level
Front Lift: 3.5 Inches
Rear Lift: 2 Inches
Drivetrain: 2WD
Front Components: Lift Spindles
Rear Components: Lift Blocks & U-Bolts
Front Shocks: 1450SL (Qty. 2)
Rear Shocks: 2650SL-2 (Qty. 2)
Maximum Tire Size: 33" x 11.50"
Recommended Wheel Width: 8"-9"
Minimum Wheel Diameter: 16 Inches
Maximum Backspacing: 4-5/8 Inches
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 77 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K883532?

The K883532 gives 1997–2003 2WD F-150 owners a straightforward way to gain additional height without moving to an extreme suspension lift. The 3.5" spindle lift, 2" rear blocks, and matched MaxTrac shocks work together to create a taller stance with clearance for up to 33" tires.

Perfect For

1997–2003 Ford F-150 2WD
3.5-inch F-150 lift builds
Spindle lift applications
33-inch tire setups
Street and custom truck builds
F-150 owners wanting a complete front and rear lift package
