MaxTrac K883063B 6" Lift Kit for 2001-2009 Ford Ranger 2WD

Take Your Coil-Spring Ranger Up a Full 6 Inches

Give your 2001–2009 Ford Ranger 2WD a serious increase in height with the MaxTrac K883063B 6" Lift Kit. Built specifically for coil-spring Ranger models with 11.250" front brake rotors, this complete system combines lift coils and spindles for 6 inches of front lift with 3-inch rear blocks for a balanced, aggressive stance.

Matched MaxTrac front and rear shocks are included, and the added clearance allows up to 32" x 11.50" tires when used with the recommended wheel setup.

Important: Longer aftermarket upper control arms are required for proper alignment and are not included.

Key Features

Full 6" Front Suspension Lift

The combination of lift coils and front spindles delivers a full 6 inches of front lift, providing significantly more height than a basic spindle-only system.

3" Rear Lift

Rear lift blocks and U-bolts provide approximately 3 inches of rear lift, helping create a balanced lifted stance.

MaxTrac Front & Rear Shocks

Includes 2100SL front shocks and 2650LL-9 rear shocks matched to the increased suspension height.

Clears Up to 32" Tires

Provides clearance for up to 32" x 11.50" tires on 7"-8" wide wheels. Fender trimming may be required depending on the wheel and tire combination.

Longer Upper Control Arms Required

The increased front suspension height requires longer aftermarket upper control arms for proper alignment.

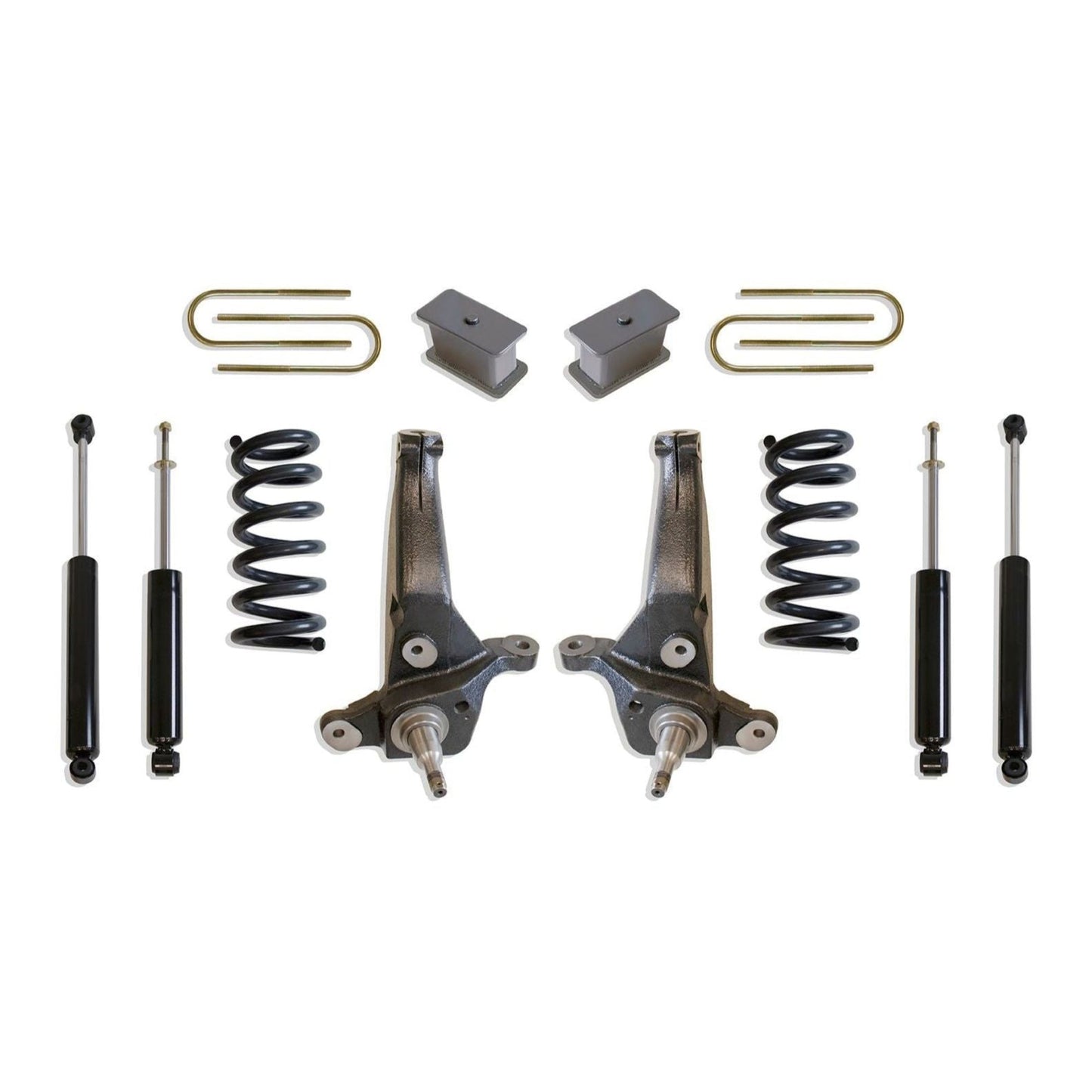

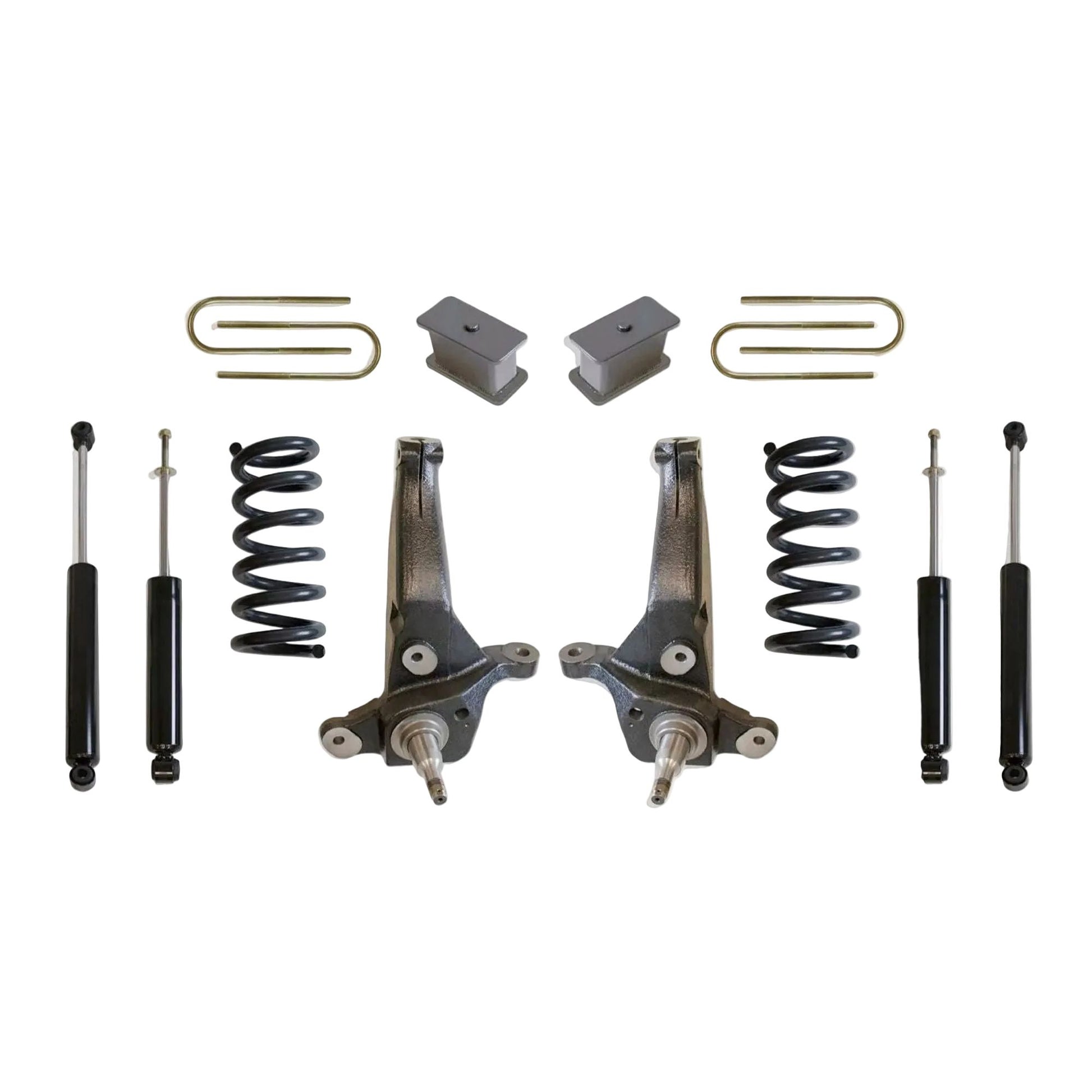

What's Included

Front lift coils
Front lift spindles
3" rear lift blocks
Rear U-bolts
MaxTrac 2100SL front shocks (Qty. 2)
MaxTrac 2650LL-9 rear shocks (Qty. 2)

Vehicle Fitment

Fits

2001–2009 Ford Ranger 2WD
Coil spring suspension models only
Models with 11.250" front brake rotors only

Important Notes

Longer aftermarket upper control arms are required to align properly and are not included.
Requires 15" wheels or larger with 3-3/4" backspacing or less.
16" wheels or larger will work with up to 4-1/2" backspacing.
Fits 2001–2009 coil spring models with 11.250" rotors only.
Clears up to 32" x 11.50" tires on 7"-8" wide wheels.
Fender trimming may be required.
When ordering shocks separately, order quantity 2 because shocks are sold individually.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside manufacturer recommendations will void applicable warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K883063B
UPC: N/A
Product Type: Complete Suspension Lift Kit
Kit Type: Lift / Level
Front Lift: 6 Inches
Rear Lift: 3 Inches
Drivetrain: 2WD
Front Suspension: Coil Spring
Front Components: Lift Coils & Lift Spindles
Rear Components: Lift Blocks & U-Bolts
Front Shocks: 2100SL (Qty. 2)
Rear Shocks: 2650LL-9 (Qty. 2)
Required Front Rotor Size: 11.250 Inches
Required Additional Component: Longer Aftermarket Upper Control Arms
Maximum Tire Size: 32" x 11.50"
Recommended Wheel Width: 7"-8"
Minimum Wheel Diameter: 15 Inches
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 120 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K883063B?

The K883063B combines lift coils, spindles, rear blocks, U-bolts, and matched MaxTrac shocks into one comprehensive Ranger lift package. With 6 inches of front lift and 3 inches in the rear, it's designed for owners looking for a much taller stance and room for larger tires while retaining a vehicle-specific suspension setup.

Perfect For

2001–2009 Ford Ranger 2WD
Coil spring Ranger models
11.250" front rotor applications
6-inch Ranger lift builds
32-inch tire setups
Rangers using aftermarket upper control arms
