MaxTrac K883063A 6" Lift Kit for 1998-2000 Ford Ranger 2WD

Build a Taller 6" Lifted Ranger

Transform your 1998–2000 Ford Ranger 2WD with the MaxTrac K883063A 6" Lift Kit. Designed specifically for coil-spring Rangers equipped with 10.250" front brake rotors, this complete suspension package combines lift coils and spindles for 6 inches of front lift with 3-inch rear blocks and matched MaxTrac shocks.

The added height provides clearance for up to 32" x 11.50" tires while delivering the aggressive stance expected from a full 6-inch Ranger lift.

Important: Longer aftermarket upper control arms are required for proper alignment and are not included with the kit.

Key Features

Full 6" Front Lift

The combination of front lift coils and spindles provides a full 6 inches of front suspension lift for a substantial increase in ride height.

3" Rear Lift

Included rear lift blocks and U-bolts provide approximately 3 inches of rear lift to complement the raised front suspension.

MaxTrac Front & Rear Shocks

Matched 2100SL front shocks and 2650LL-9 rear shocks are included to work with the increased suspension height.

Clears Up to 32" Tires

Designed to clear up to 32" x 11.50" tires on 7"-8" wide wheels. Fender trimming may be required depending on your wheel and tire combination.

Upper Control Arms Required

This 6-inch suspension setup requires longer aftermarket upper control arms to achieve proper alignment.

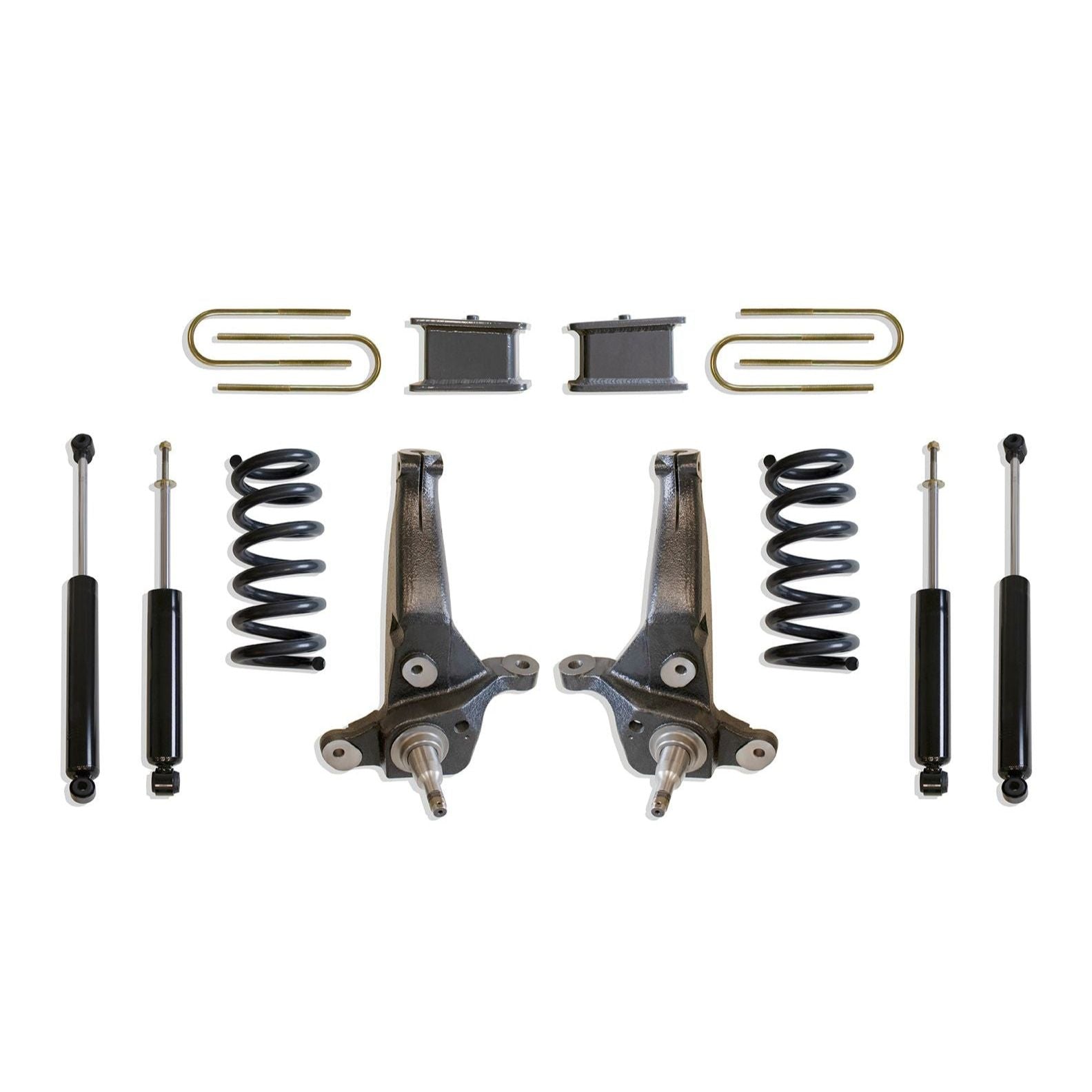

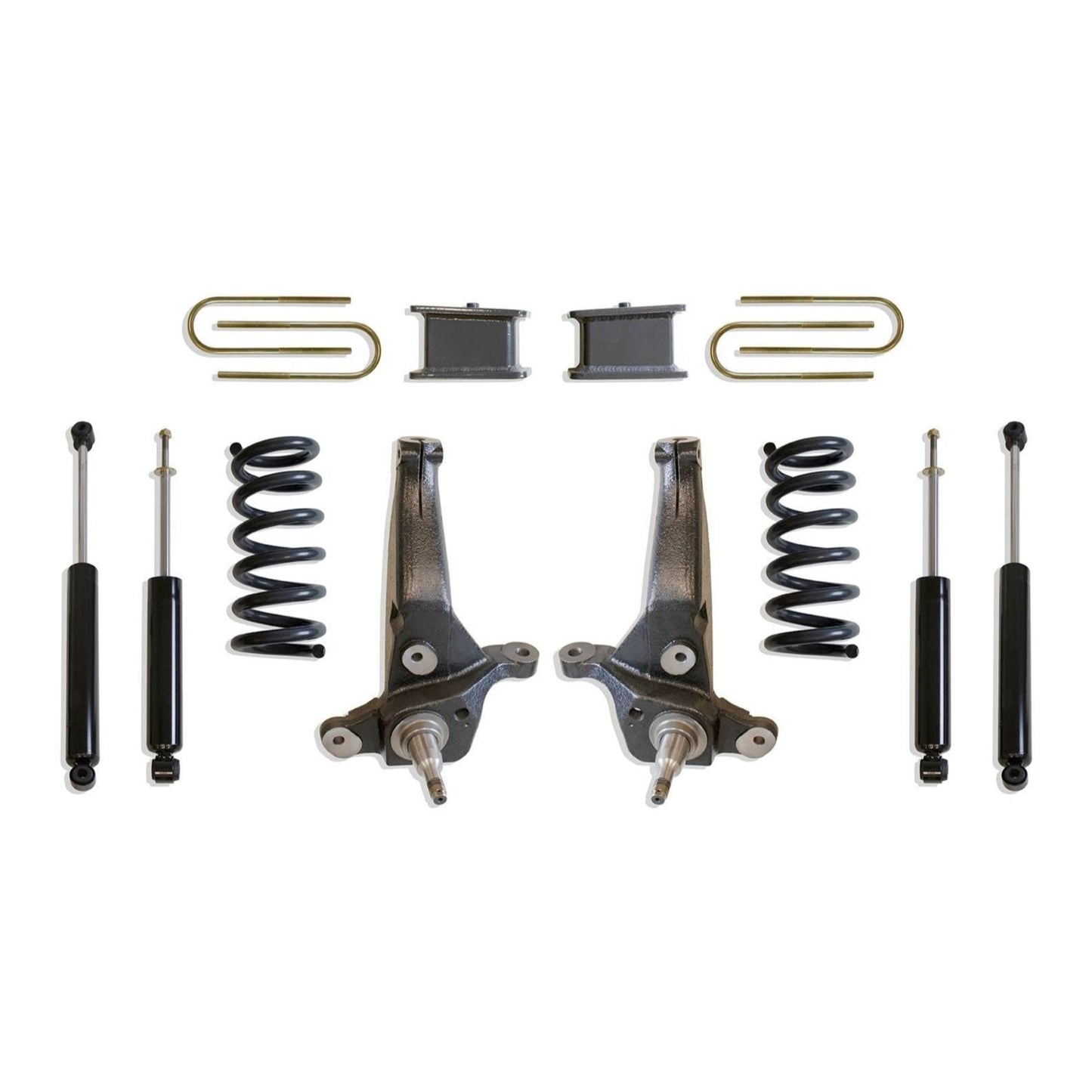

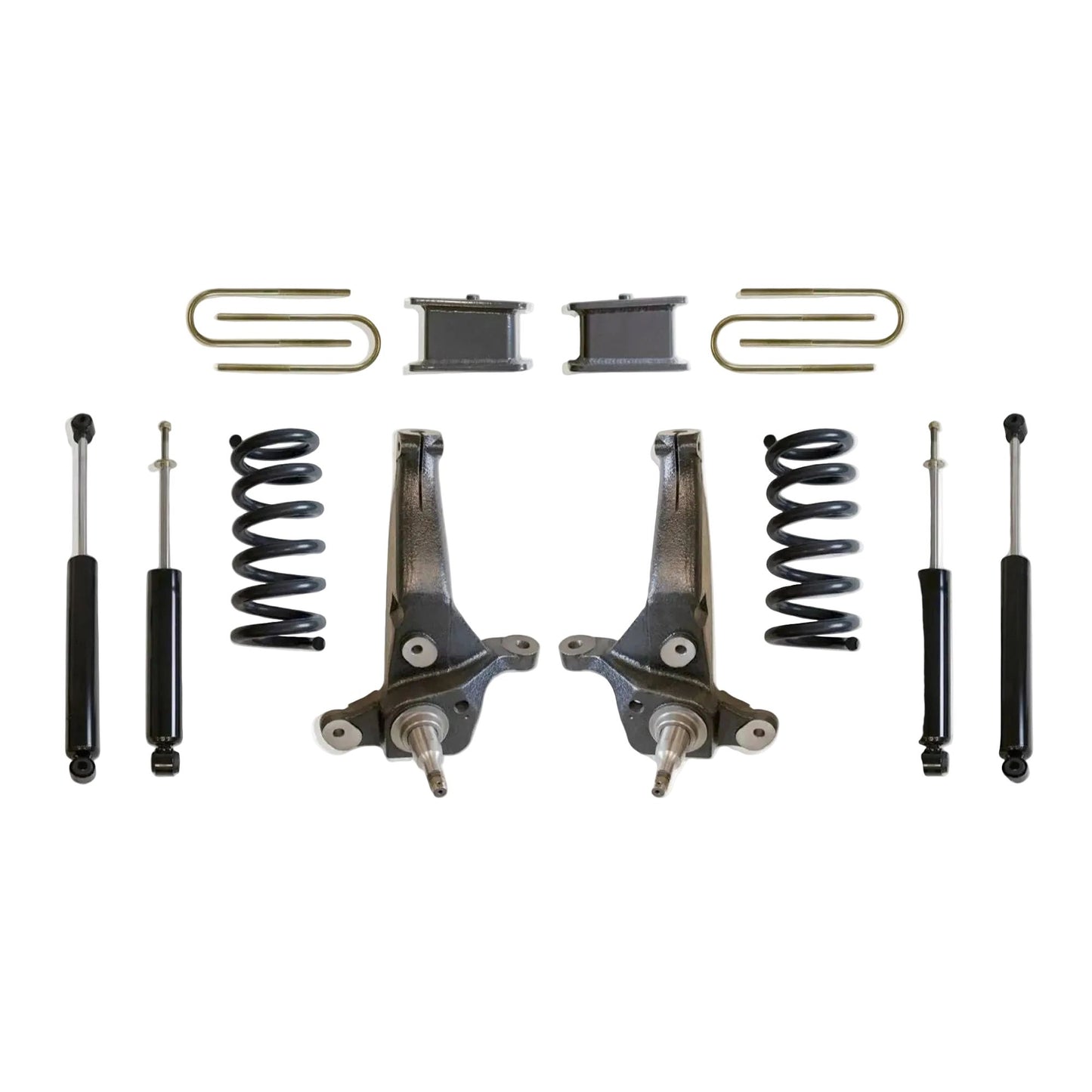

What's Included

Front lift coils
Front lift spindles
3" rear lift blocks
Rear U-bolts
MaxTrac 2100SL front shocks (Qty. 2)
MaxTrac 2650LL-9 rear shocks (Qty. 2)
Installation hardware

Vehicle Fitment

Fits

1998–2000 Ford Ranger 2WD
Coil spring suspension models only
Models equipped with 10.250" front brake rotors only

Important Notes

Longer aftermarket upper control arms are required for proper alignment.
Requires 15" wheels or larger with 3-3/4" backspacing or less.
16" wheels or larger will work with up to 4-1/2" backspacing.
Fits 1998–2000 coil spring models with 10.250" rotors only.
Clears up to 32" x 11.50" tires on 7"-8" wide wheels.
Fender trimming may be required.
When ordering replacement shocks separately, quantity 2 is required because shocks are sold individually.
MaxTrac does not recommend using wheels wider than 9" or wheels with less than 4.5" backspacing. Doing so will void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K883063A
UPC: N/A
Product Type: Complete Suspension Lift Kit
Kit Type: Lift / Level
Front Lift: 6 Inches
Rear Lift: 3 Inches
Drivetrain: 2WD
Front Suspension: Coil Spring
Front Components: Lift Coils & Lift Spindles
Rear Components: Lift Blocks & U-Bolts
Front Shocks: 2100SL (Qty. 2)
Rear Shocks: 2650LL-9 (Qty. 2)
Required Front Rotor Size: 10.250 Inches
Required Additional Component: Longer Aftermarket Upper Control Arms
Maximum Tire Size: 32" x 11.50"
Recommended Wheel Width: 7"-8"
Minimum Wheel Diameter: 15 Inches
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 120 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K883063A?

The K883063A goes beyond a basic spindle lift by combining lift spindles with front lift coils for a full 6 inches of front lift. Rear blocks, U-bolts, and matched MaxTrac shocks round out the package, making it a comprehensive option for building a noticeably taller 1998–2000 2WD Ranger.

Perfect For

1998–2000 Ford Ranger 2WD
Coil spring Ranger builds
10.250" front rotor applications
6-inch suspension lift builds
32-inch tire setups
Rangers equipped with longer aftermarket upper control arms
