MaxTrac K883053C 5"-6" Lift Kit for 2001-2009 Ford Ranger 2WD

Take Your Ranger Higher with an Adjustable 5"-6" Lift

Build a taller 2001–2009 Ford Ranger 2WD torsion bar setup with the MaxTrac K883053C 5"-6" Lift Kit. This package combines front lift spindles and torsion keys with 3-inch rear blocks, U-bolts, and matched MaxTrac front and rear shocks. The additional height provides clearance for up to 33" x 11.50" tires and gives your Ranger a much more aggressive stance.

Important: Longer aftermarket upper control arms are required to achieve proper alignment and are not listed as included with this kit.

Key Features

Adjustable 5"-6" Front Lift

A combination of lift spindles and torsion keys provides approximately 5–6 inches of front lift, allowing more height than a spindle-only Ranger setup.

3" Rear Lift

Rear lift blocks and U-bolts provide approximately 3 inches of rear lift to complement the raised front suspension.

MaxTrac Front & Rear Shocks

Includes two 2100SL front shocks and two 2650LL-9 rear shocks matched to the lifted suspension.

Clears Up to 33" Tires

Designed to clear up to 33" x 11.50" tires on 7"-8" wide wheels. Fender trimming may be required depending on wheel and tire combination.

Upper Control Arms Required

Due to the increased front lift height, longer aftermarket upper control arms are required for proper alignment.

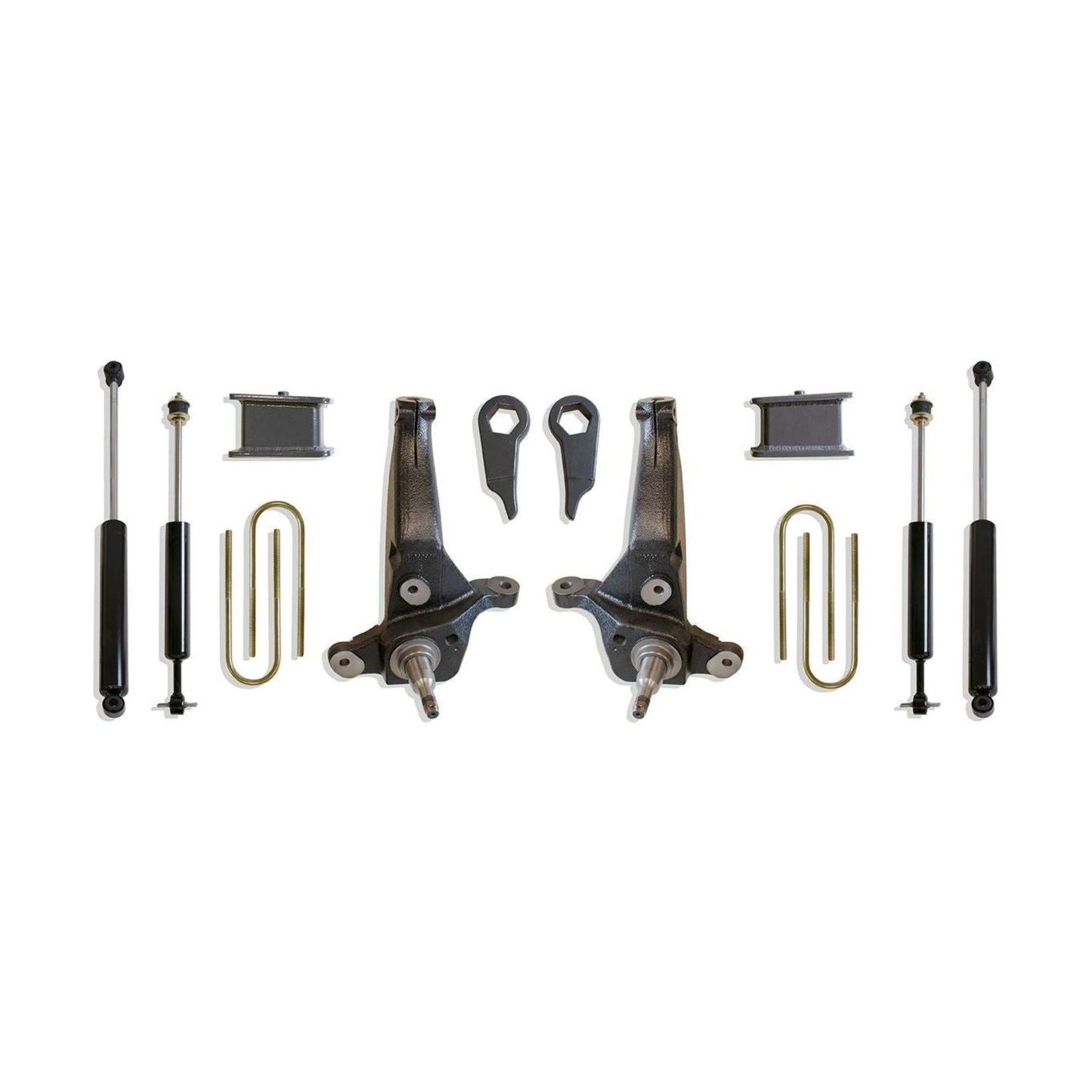

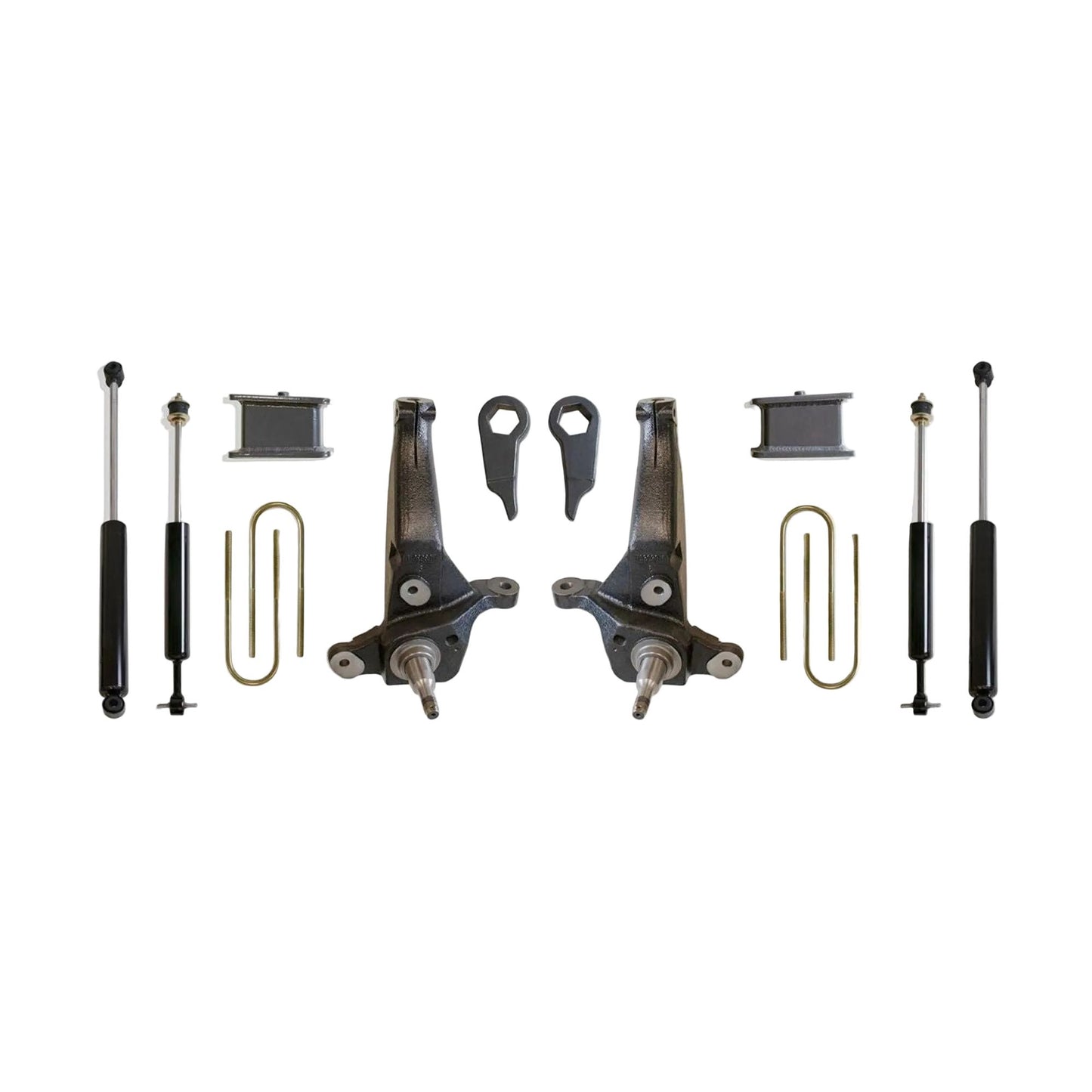

What's Included

Front lift spindles
Front torsion keys
3" rear lift blocks
Rear U-bolts
MaxTrac 2100SL front shocks (Qty. 2)
MaxTrac 2650LL-9 rear shocks (Qty. 2)
Installation hardware

Vehicle Fitment

Fits

2001–2009 Ford Ranger 2WD
Torsion bar suspension applications
Models equipped with 11.250" front brake rotors

Important Notes

Longer aftermarket upper control arms are required to align the truck properly.
Requires 15" wheels or larger with 3-3/4" backspacing or less.
16" wheels or larger can use up to 4-1/2" backspacing.
Clears up to 33" x 11.50" tires on 7"-8" wide wheels.
Fender trimming may be required.
The supplied manufacturer footnote states "coil spring model with 11.250" rotors," which conflicts with the K883053C product title and included torsion keys identifying this as a torsion bar application. Verify suspension type before ordering.
When ordering shocks separately, quantity 2 is required because shocks are sold individually.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside manufacturer recommendations will void applicable warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K883053C
UPC: N/A
Product Type: Suspension Lift Kit
Kit Type: Lift / Level
Front Lift: 5–6 Inches
Rear Lift: 3 Inches
Drivetrain: 2WD
Suspension Application: Torsion Bar
Front Components: Lift Spindles & Torsion Keys
Rear Components: Lift Blocks & U-Bolts
Front Shocks: 2100SL (Qty. 2)
Rear Shocks: 2650LL-9 (Qty. 2)
Required Additional Component: Longer Aftermarket Upper Control Arms
Maximum Tire Size: 33" x 11.50"
Recommended Wheel Width: 7"-8"
Minimum Wheel Diameter: 15 Inches
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 90 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K883053C?

For Ranger owners looking for more height than a standard 4-inch spindle system, the K883053C combines spindles and torsion keys for a 5"-6" front lift. Rear blocks, U-bolts, and matched front/rear shocks complete the suspension package, while the additional height creates room for up to 33" tires.

Perfect For

2001–2009 Ford Ranger 2WD
Torsion bar suspension builds
5"-6" Ranger lift setups
33-inch tire builds
Custom lifted mini trucks
Rangers using aftermarket upper control arms
