MaxTrac K883042C 4" Lift Kit for 2001-2009 Ford Ranger 2WD

Add 4 Inches of Lift to Your Torsion Bar Ranger

Give your 2001–2009 Ford Ranger 2WD a taller stance and extra tire clearance with the MaxTrac K883042C 4" Lift Kit. Designed specifically for torsion bar suspension models with 11.250" front brake rotors, this kit combines front lift spindles with rear lift shackles for a straightforward suspension upgrade. The result is 4 inches of front lift, approximately 1.5–2 inches of rear lift, and clearance for up to 32" tires.

Key Features

4" Front Lift Spindles

MaxTrac lift spindles provide approximately 4 inches of front lift, adding substantial height while retaining the truck's torsion bar suspension.

1.5"-2" Rear Lift Shackles

Included rear shackles raise the back approximately 1.5 to 2 inches, helping create a balanced lifted stance without using rear lift blocks.

Torsion Bar Model Specific

Engineered specifically for 2001–2009 Ranger 2WD torsion bar models equipped with 11.250" front brake rotors.

Clears Up to 32" Tires

Provides clearance for up to 32" x 10.50" tires on 7"-8" wide wheels. Fender trimming may be required depending on the wheel and tire combination.

Multiple Wheel Fitment Options

Works with 15" or larger wheels when the specified MaxTrac backspacing requirements are followed.

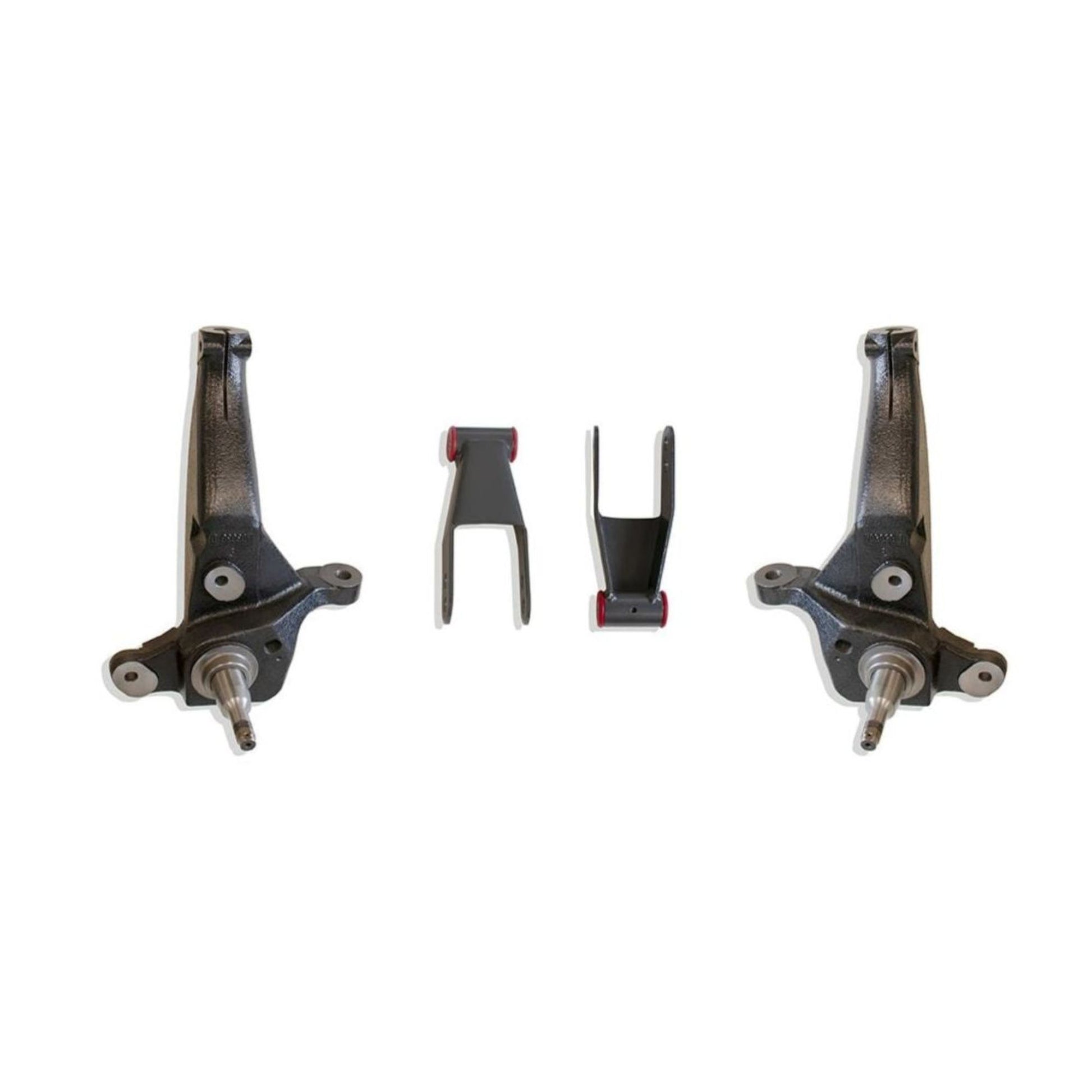

What's Included

4" front lift spindles
Rear lift shackles
Installation hardware

Vehicle Fitment

Fits

2001–2009 Ford Ranger 2WD
Torsion bar suspension models only
Models equipped with 11.250" front brake rotors only

Does Not Fit

Coil spring suspension models
2010–2011 Ranger models due to the AdvanceTrac system
Models with incompatible front brake rotor sizes

Important Notes

Requires 15" wheels or larger with 3-3/4" backspacing or less.
16" wheels or larger can use up to 4-1/2" backspacing.
Fits 2001–2009 torsion bar models with 11.250" front rotors only.
Clears up to 32" x 10.50" tires on 7"-8" wide wheels.
Fender trimming may be required.
Does not fit 2010–2011 models due to the AdvanceTrac system.
When ordering shocks separately, quantity 2 is required because shocks are sold individually.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside manufacturer recommendations will void applicable warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K883042C
UPC: N/A
Product Type: Suspension Lift Kit
Kit Type: Lift / Level
Front Lift: 4 Inches
Rear Lift: 1.5–2 Inches
Drivetrain: 2WD
Front Suspension: Torsion Bar
Front Components: Lift Spindles
Rear Components: Lift Shackles
Listed Shock Details: 2650LL-9 Rear (Qty. 2)
Required Front Rotor Size: 11.250 Inches
Maximum Tire Size: 32" x 10.50"
Recommended Wheel Width: 7"-8"
Minimum Wheel Diameter: 15 Inches
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 60 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K883042C?

Unlike the coil-spring version, the K883042C is specifically configured for torsion bar Ranger models. The spindle-based front lift adds 4 inches of height while the rear shackles provide up to 2 inches of lift, giving compatible Rangers a taller stance and room for up to 32" tires.

Perfect For

2001–2009 Ford Ranger 2WD
Torsion bar Ranger models
11.250" front rotor applications
4-inch spindle lift builds
Up to 32-inch tire setups
Lifted mini-truck builds
