MaxTrac K882471 7" Lift Kit for 2009-2024 Ram 1500 2WD 5-Lug 5.7L HEMI

Built for 5.7L HEMI Performance

Transform your 2009–2024 Ram 1500 2WD 5-lug with the MaxTrac K882471 Lift Kit. Designed specifically for 5.7L HEMI V8 models, this complete suspension system delivers a 7-inch front lift and 4.5-inch rear lift using HEMI-specific front lift coils, heavy-duty lift spindles, extended brake lines, rear lift coils, rear spacers, a track bar bracket, sway bar brackets, and matched MaxTrac front and rear shocks. Built to accommodate up to 37-inch tires, this kit provides the aggressive stance, increased ground clearance, and dependable ride quality your Ram deserves.

Key Features

Complete 7"/4.5" Suspension Lift

A complete front and rear lift system engineered to provide proper suspension geometry, increased clearance, and balanced ride quality.

5.7L HEMI-Specific Front Lift Coils

Designed specifically for the weight and suspension characteristics of 5.7L HEMI V8-equipped Ram 1500 models.

Heavy-Duty Lift Spindles

Delivers maximum front lift while maintaining factory steering geometry and suspension performance.

Complete Rear Suspension Upgrade

Includes rear lift coils, rear spacers, track bar bracket, and sway bar brackets for proper rear suspension alignment and stability.

MaxTrac Front & Rear Shocks Included

Includes (2) MaxTrac 1450SL front shocks and (2) MaxTrac 2900LL-4 rear shocks for improved ride comfort and suspension control.

Durable Powder-Coated Steel Construction

Heavy-duty steel components feature a corrosion-resistant grey powder-coated finish for years of reliable performance.

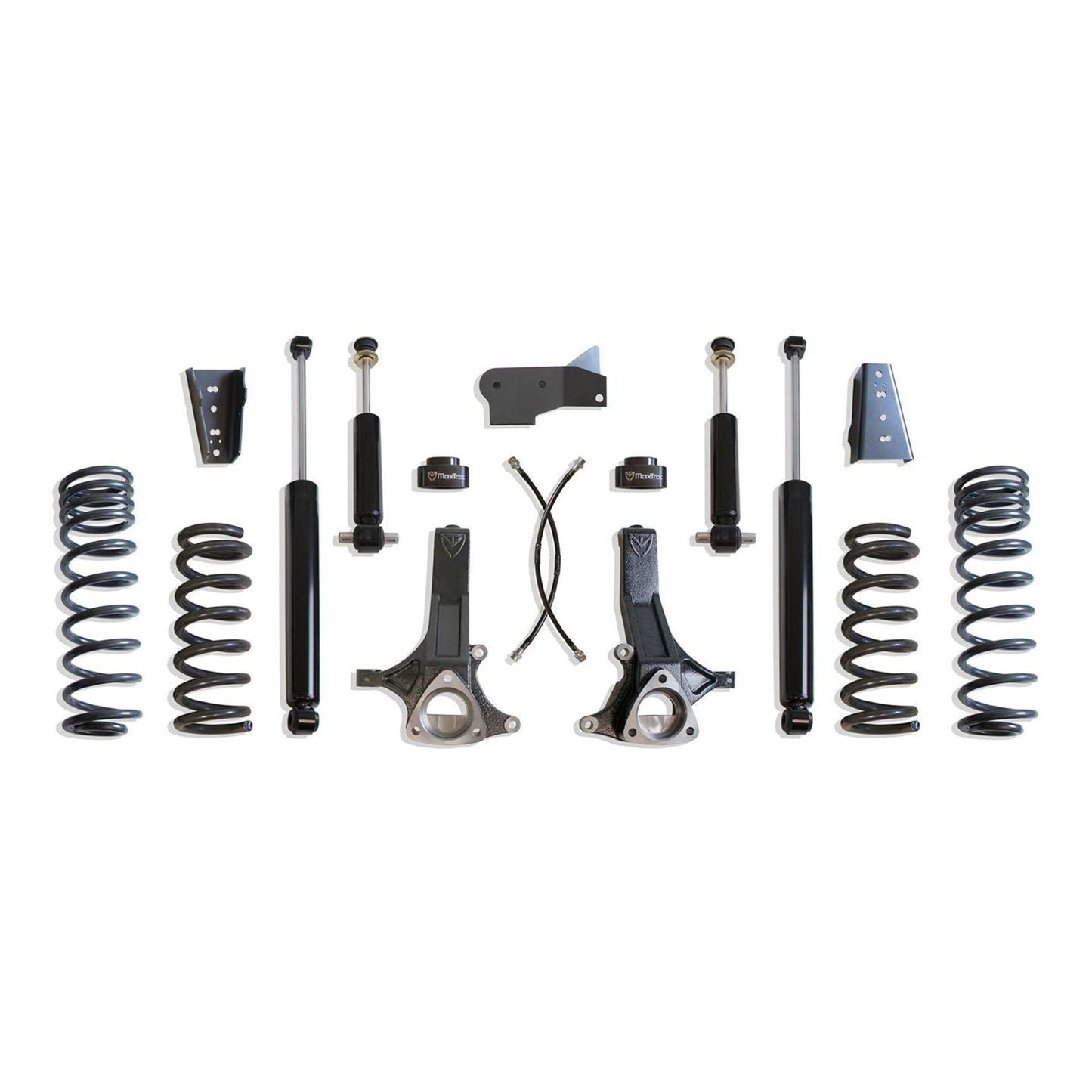

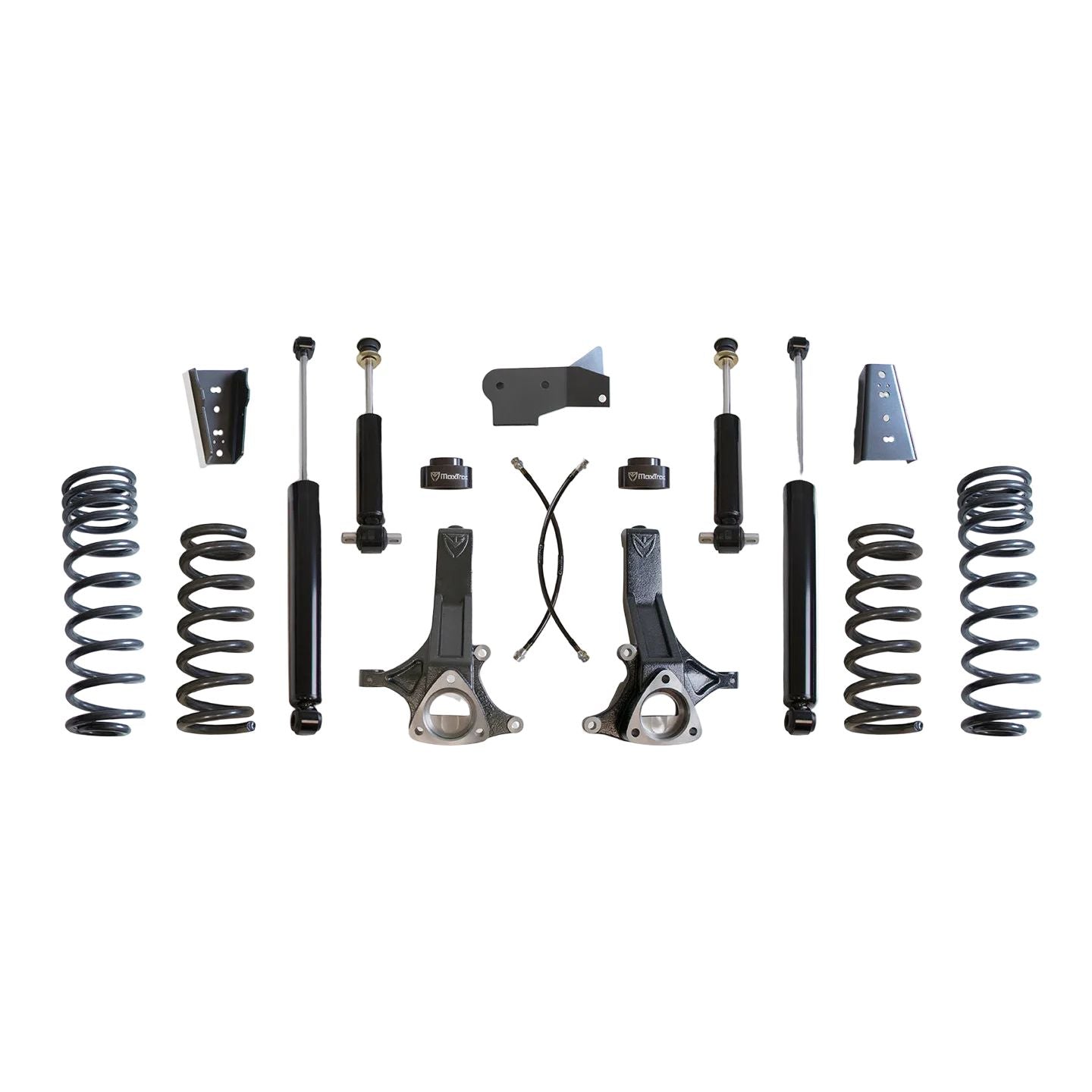

What's Included

5.7L HEMI front lift coils
Front lift spindles
Extended front brake lines
Rear lift coils
Rear lift spacers
Rear track bar bracket
Rear sway bar brackets
(2) MaxTrac 1450SL front shocks
(2) MaxTrac 2900LL-4 rear shocks
Installation hardware (where supplied by manufacturer)

Vehicle Fitment

Fits

2009–2024 Ram 1500 2WD
5-Lug 5.7L HEMI V8 models

Does Not Fit

4WD models
V6 models
4.7L V8 models
EcoDiesel models
6-Lug models

Important Notes

Requires 17-inch wheels or larger with 5.75 inches of backspacing or less.
Compatible with factory 17-inch or larger wheels.
Clears up to 37x12.50 tires on 8-inch to 9-inch wide wheels.
Minor fender trimming may be required depending on wheel and tire combination.
Fits 5.7L HEMI V8 models only.
Models equipped with a 2-piece driveshaft require MaxTrac Carrier Bearing Kit #612400.
Replacement shocks are sold individually if purchased separately. Order a quantity of two for both the front and rear.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Failure to follow these recommendations may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K882471
UPC: N/A
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 7 Inches
Rear Lift: 4.5 Inches
Engine Compatibility: 5.7L HEMI V8 Gas
Front Shock Details: (2) MaxTrac 1450SL Front Shocks
Rear Shock Details: (2) MaxTrac 2900LL-4 Rear Shocks
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 165 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K882471?

Engineered specifically for 5.7L HEMI-powered Ram 1500 trucks, the K882471 combines HEMI-specific lift coils, premium MaxTrac shocks, and heavy-duty suspension components into one complete system. Whether you're building a capable off-road truck or simply want a more aggressive stance, this kit delivers the clearance, durability, and performance expected from MaxTrac Suspension.

Perfect For

2009–2024 Ram 1500 2WD 5.7L HEMI owners
37-inch tire upgrades
Daily driven trucks
Off-road enthusiasts
Custom truck builds
Complete suspension lift installations
