MaxTrac K882470 7" Lift Kit for 2009-2024 Ram 1500 2WD 5-Lug 4.7L V8

Built Specifically for 4.7L V8 Ram 1500 Trucks

Upgrade your 2009–2024 Ram 1500 2WD 5-lug with the MaxTrac K882470 Lift Kit. Engineered specifically for 4.7L V8 models, this complete suspension system delivers a 7-inch front lift and 4.5-inch rear lift using 4.7L-specific front lift coils, heavy-duty lift spindles, extended brake lines, rear lift coils, rear spacers, a track bar bracket, sway bar brackets, and matched MaxTrac front and rear shocks. The result is outstanding ground clearance, room for up to 37-inch tires, and the rugged stance your Ram deserves.

Key Features

Complete 7"/4.5" Suspension Lift

Complete front and rear suspension package engineered to provide proper lift height, improved ground clearance, and dependable performance.

4.7L V8-Specific Front Lift Coils

Designed specifically for the weight and suspension characteristics of 4.7L V8-equipped Ram 1500 models.

Heavy-Duty Lift Spindles

Provides increased ride height while maintaining factory steering geometry and suspension performance.

Complete Rear Suspension Upgrade

Includes rear lift coils, rear spacers, track bar bracket, and sway bar brackets to properly support and align the rear suspension.

MaxTrac Front & Rear Shocks Included

Includes (2) MaxTrac 1450SL front shocks and (2) MaxTrac 2900LL-4 rear shocks for excellent ride quality and suspension control.

Durable Powder-Coated Steel Construction

Manufactured from heavy-duty steel with a corrosion-resistant grey powder-coated finish for long-lasting durability.

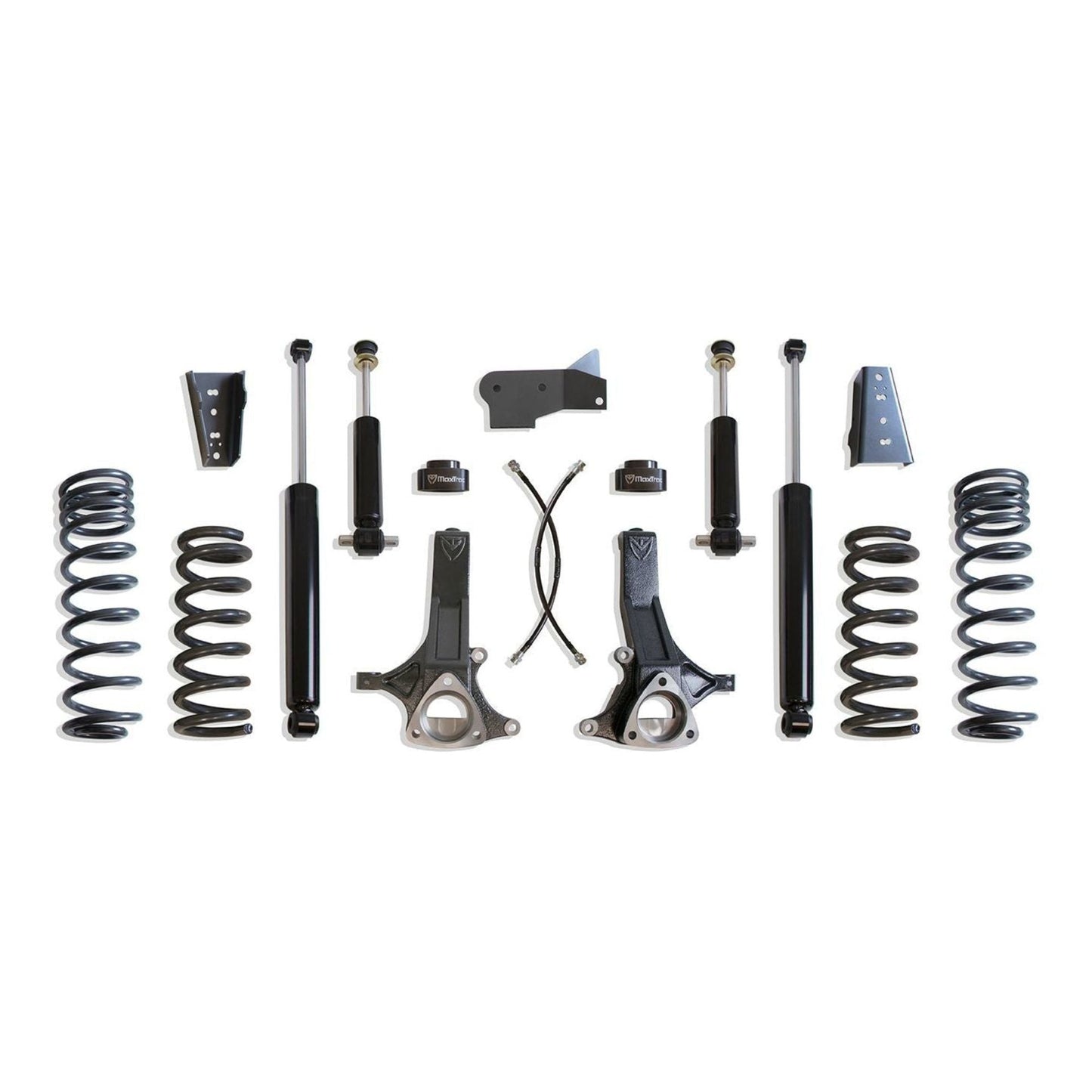

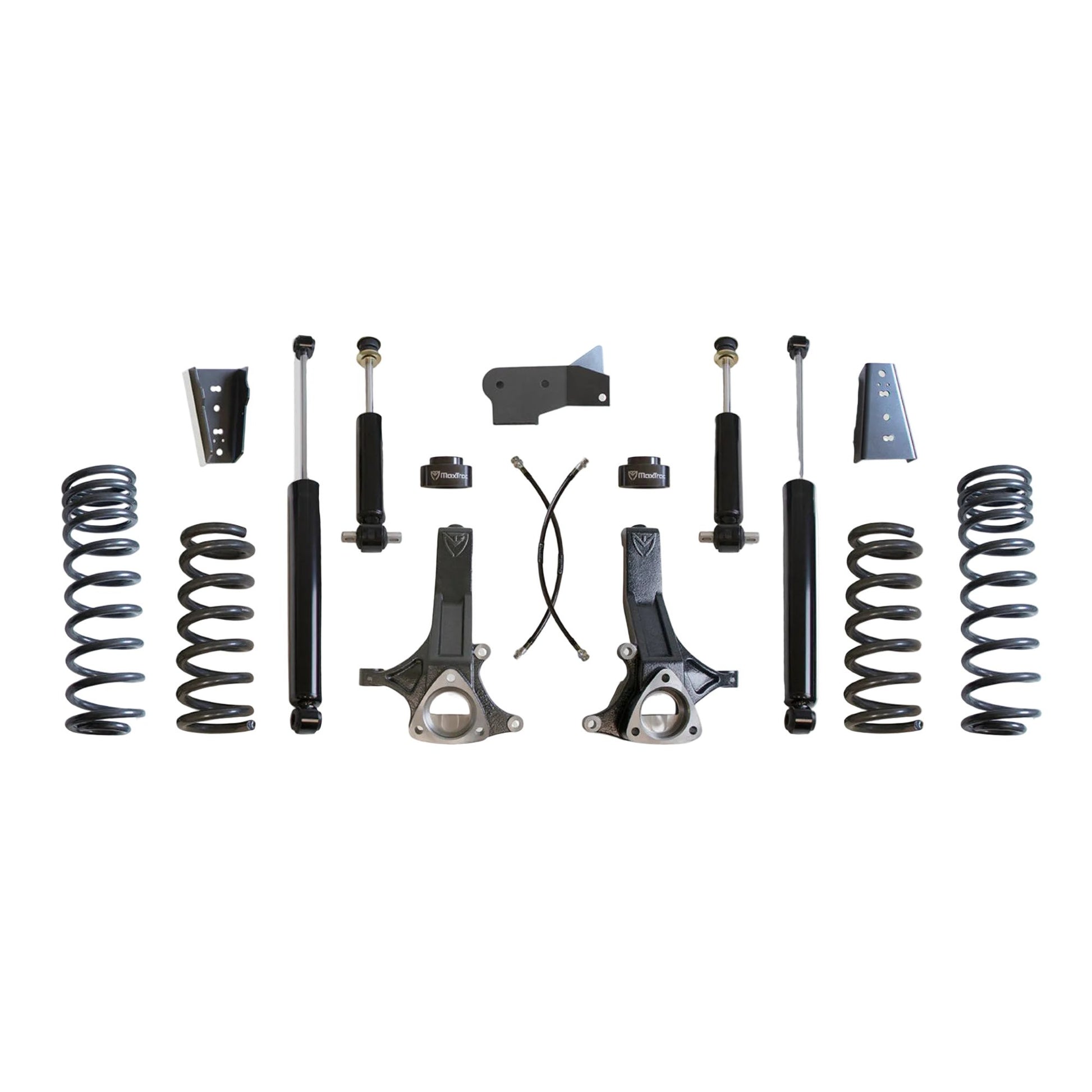

What's Included

4.7L V8 front lift coils
Front lift spindles
Extended front brake lines
Rear lift coils
Rear lift spacers
Rear track bar bracket
Rear sway bar brackets
(2) MaxTrac 1450SL front shocks
(2) MaxTrac 2900LL-4 rear shocks
Installation hardware (where supplied by manufacturer)

Vehicle Fitment

Fits

2009–2024 Ram 1500 2WD
5-Lug 4.7L V8 models

Does Not Fit

4WD models
V6 models
EcoDiesel models
5.7L HEMI models
6-Lug models

Important Notes

Requires 17-inch wheels or larger with 5.75 inches of backspacing or less.
Compatible with factory 17-inch or larger wheels.
Clears up to 37x12.50 tires on 8-inch to 9-inch wide wheels.
Minor fender trimming may be required depending on wheel and tire combination.
Fits 4.7L V8 models only.
Models equipped with a 2-piece driveshaft require MaxTrac Carrier Bearing Kit #612400.
Replacement shocks are sold individually if purchased separately. Order a quantity of two for both the front and rear.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Failure to follow these recommendations may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K882470
UPC: N/A
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 7 Inches
Rear Lift: 4.5 Inches
Engine Compatibility: 4.7L V8 Gas
Front Shock Details: (2) MaxTrac 1450SL Front Shocks
Rear Shock Details: (2) MaxTrac 2900LL-4 Rear Shocks
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 165 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K882470?

Purpose-built for 4.7L V8-equipped Ram 1500 trucks, the K882470 combines application-specific lift coils, premium MaxTrac shocks, heavy-duty lift spindles, and complete rear suspension components into one easy-to-install package. It's an excellent choice for owners looking to fit 37-inch tires while maintaining dependable handling and ride quality.

Perfect For

2009–2024 Ram 1500 2WD 4.7L owners
37-inch tire upgrades
Daily driven trucks
Off-road enthusiasts
Custom truck builds
Complete suspension lift installations
