MaxTrac K882470 7"/4.5" Lift Kit w/Shocks Fits 2009–2018 Ram 1500 2WD Classic 5-Lug 4.7L V8

Give your Ram a commanding presence with the MaxTrac K882470 lift kit. Designed for 2009–2018 Ram 1500 2WD Classic 5-lug models equipped with the 4.7L V8, this system delivers a 7-inch front lift and 4.5-inch rear lift for maximum stance, clearance, and performance.

Engineered with heavy-duty components and proper suspension geometry, this kit provides the strength needed for larger tires while maintaining a smooth, controlled ride.

Fitment
2009–2018 Dodge Ram 1500 2WD Classic 5-lug 4.7L V8 gas

Requires 17-inch wheels or larger with 5.75-inch backspacing or less

Features
Provides 7-inch front lift and 4.5-inch rear lift for aggressive stance
Improves ground clearance for larger tire fitment
Includes ductile iron lift spindles with corrosion-resistant coating
Front lift coils provide proper support and ride quality
Rear lift coils and spacers provide stable rear lift and balanced stance
Extended brake lines and brackets maintain proper suspension geometry
Includes front and rear shocks for smooth, controlled ride
Maintains near factory ride quality with bolt-on installation
No cutting or welding required

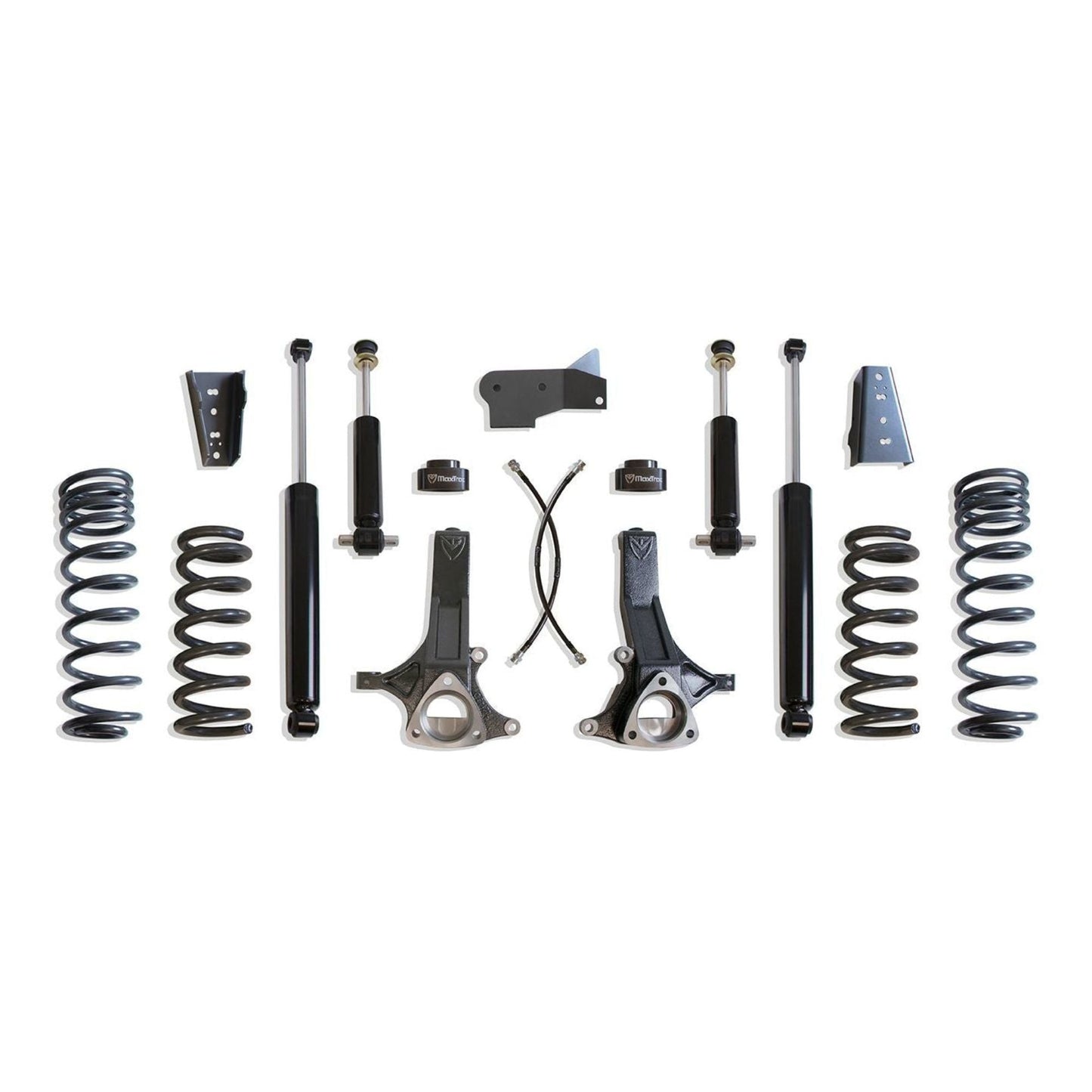

What’s Included
Lift spindles part number 702145
Front lift coil springs part number 872170
Rear lift coils and coil spacers
Track bar bracket and sway bar brackets
Extended brake lines
Two MaxTrac front shocks 1450SL
Two MaxTrac rear shocks 2900LL-4

Important Notes
Designed for 4.7L V8 gas models only
Requires 17-inch or larger wheels with proper backspacing
Allows fitment of up to 37 by 12.50 inch tires depending on wheel setup and trimming
Models with 2-piece driveshaft require carrier bearing kit part number 612400
Not recommended for wheels wider than 9 inches or with less than 4.5 inches backspacing
Professional alignment is recommended after installation

Specifications
Lift Height 7 inches front 4.5 inches rear
Material ductile iron and steel
Finish coated for corrosion resistance
Part Number K882470
