MaxTrac K882465 6.5" Lift Kit for 2009-2024 Ram 1500 2WD 5-Lug V6

Purpose-Built Lift Kit for V6 Ram 1500 Trucks

Give your 2009–2024 Ram 1500 2WD V6 a commanding stance with the MaxTrac K882465 Lift Kit. Engineered specifically for V6 gas-powered 5-lug models, this complete suspension system delivers a 6.5-inch front lift and 4.5-inch rear lift using front lift spacers, heavy-duty lift spindles, extended brake lines, rear lift coils, rear spacers, a track bar bracket, sway bar brackets, and matched MaxTrac front and rear shocks. The result is impressive ground clearance, room for up to 37-inch tires, and the dependable ride quality MaxTrac is known for.

Key Features

Complete 6.5"/4.5" Suspension Lift

Complete front and rear suspension system designed to provide proper lift height, balanced stance, and dependable performance.

V6-Specific Suspension Design

Engineered specifically for V6 gas models to achieve the correct ride height and suspension geometry.

Heavy-Duty Lift Spindles

Lift spindles provide additional front height while maintaining factory steering geometry and handling characteristics.

Rear Coil & Spacer System

Includes rear lift coils and rear spacers for proper rear suspension height and improved load support.

MaxTrac Front & Rear Shocks Included

Includes (2) MaxTrac 1450SL front shocks and (2) MaxTrac 2900LL-4 rear shocks for excellent ride quality and suspension control.

Heavy-Duty Powder-Coated Construction

Manufactured from premium steel with a durable grey powder-coated finish for long-lasting corrosion resistance.

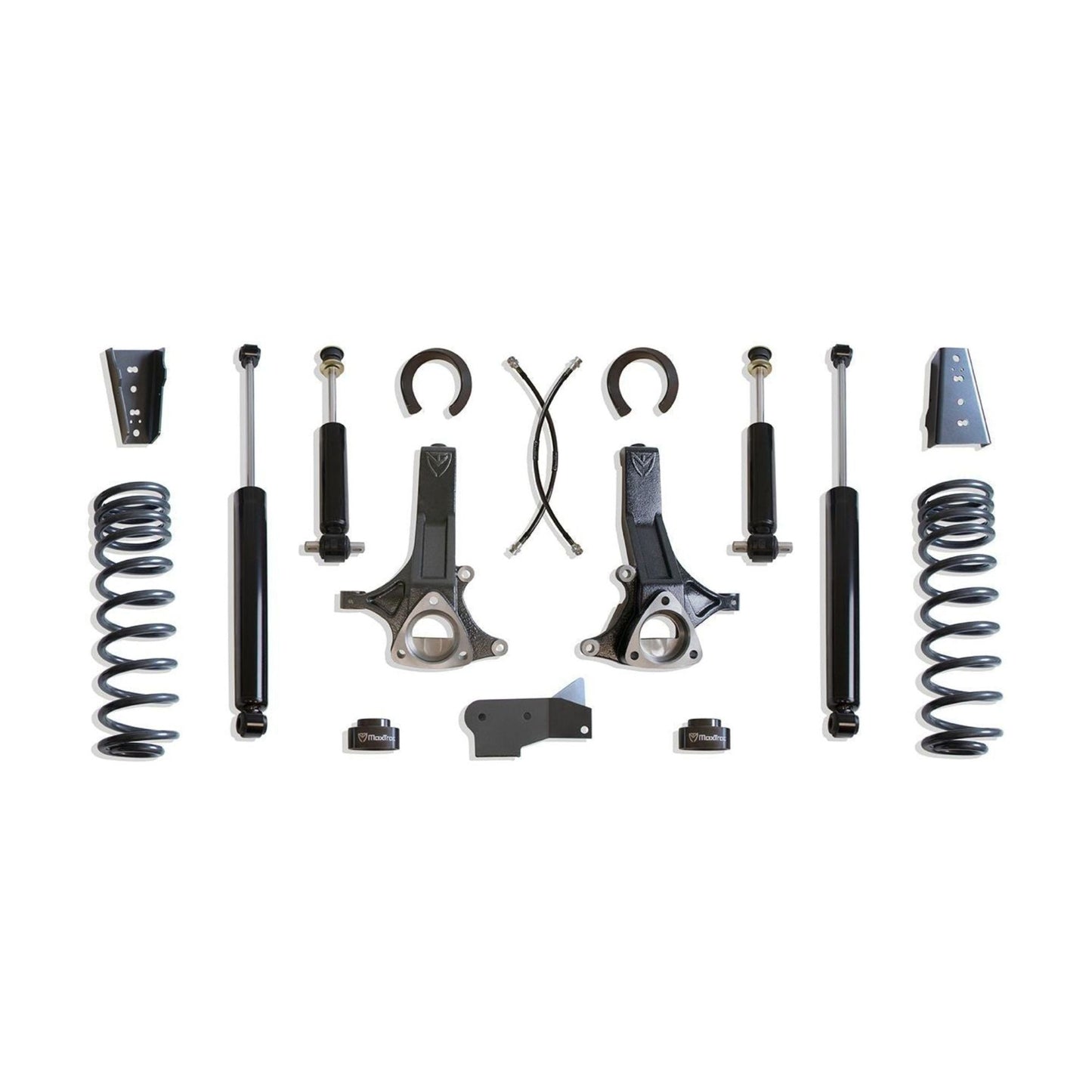

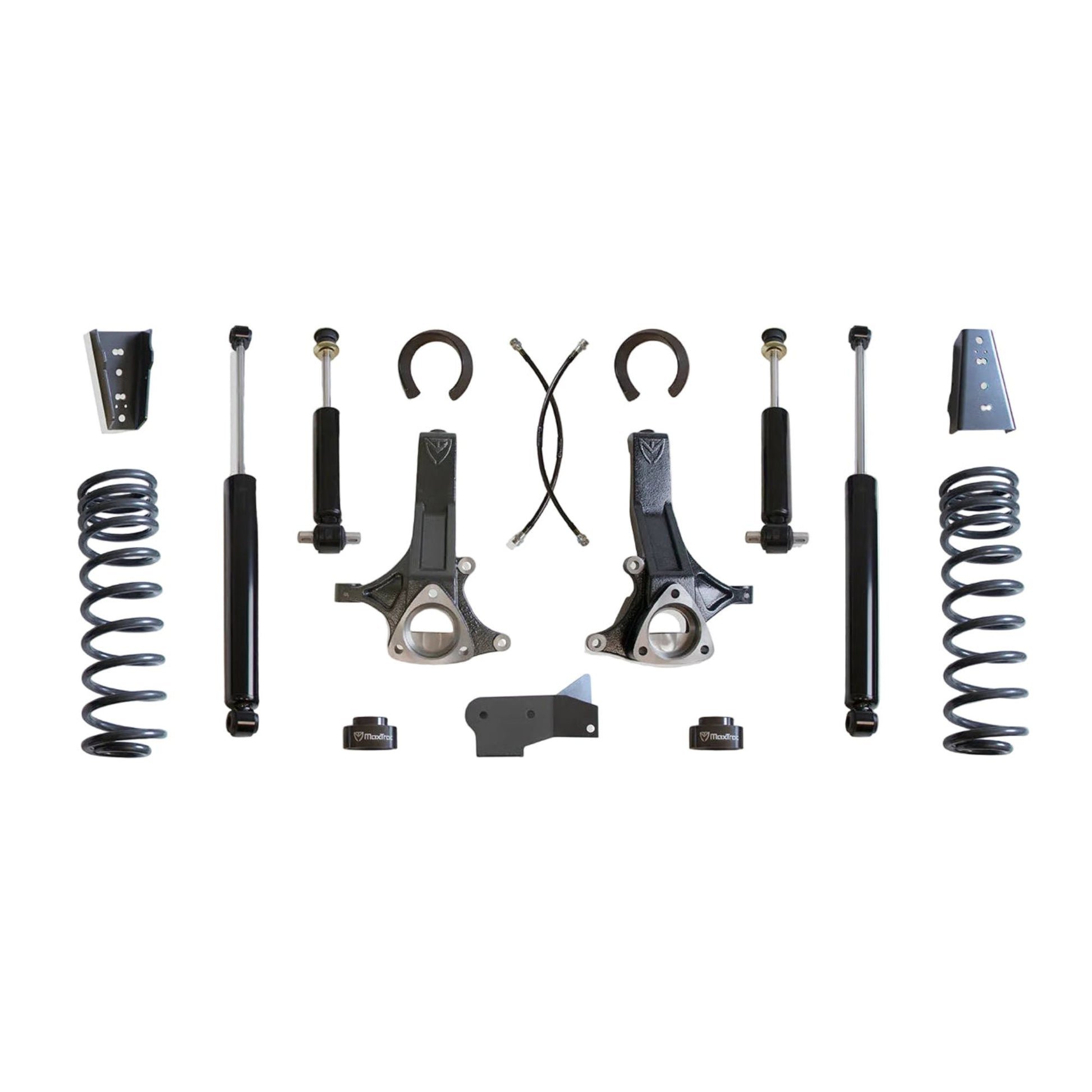

What's Included

Front lift spacers
Front lift spindles
Extended front brake lines
Rear lift coils
Rear lift spacers
Rear track bar bracket
Rear sway bar brackets
(2) MaxTrac 1450SL front shocks
(2) MaxTrac 2900LL-4 rear shocks
Installation hardware (where supplied by manufacturer)

Vehicle Fitment

Fits

2009–2024 Ram 1500 2WD
5-Lug V6 Gas models

Does Not Fit

4WD models
V8 models
EcoDiesel models
6-Lug models

Important Notes

Requires 17-inch wheels or larger with 5.75 inches of backspacing or less.
Compatible with factory 17-inch or larger wheels.
Clears up to 37x12.50 tires on 8-inch to 9-inch wide wheels.
Minor fender trimming may be required depending on wheel and tire combination.
Fits V6 gas models only.
Models equipped with a 2-piece driveshaft require MaxTrac Carrier Bearing Kit #612400.
Replacement shocks are sold individually if purchased separately. Order a quantity of two for both the front and rear.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Failure to follow these recommendations may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K882465
UPC: N/A
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 6.5 Inches
Rear Lift: 4.5 Inches
Engine Compatibility: V6 Gas
Front Shock Details: (2) MaxTrac 1450SL Front Shocks
Rear Shock Details: (2) MaxTrac 2900LL-4 Rear Shocks
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 134 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K882465?

The MaxTrac K882465 is designed specifically for V6-powered Ram 1500 trucks, providing the correct spring rate and suspension geometry without compromise. With premium MaxTrac shocks, heavy-duty lift spindles, rear lift coils, and all required mounting components, this complete kit delivers the clearance, performance, and aggressive appearance needed for both daily driving and off-road adventures.

Perfect For

2009–2024 Ram 1500 2WD V6 owners
37-inch tire upgrades
Daily driven trucks
Off-road enthusiasts
Street truck builds
Complete suspension lift upgrades
