MaxTrac K882464S 6.5"/4" Value Lift Kit w/Shocks Fits 2009–2018 Ram 1500 2WD Classic 5-Lug

Upgrade your Ram with the MaxTrac K882464S value lift kit. Designed for 2009–2018 Ram 1500 2WD Classic 5-lug models, this system delivers a 6.5-inch front lift and 4-inch rear lift using a cost-effective combination of spindles and spacers for an aggressive stance without the added cost of replacement coils.

Built with durable components and engineered for proper suspension geometry, this kit provides the clearance needed for larger tires while maintaining a smooth, controlled ride.

Fitment
2009–2018 Dodge Ram 1500 2WD Classic 5-lug

Requires 17-inch wheels or larger with 5.75-inch backspacing or less

Features
Provides 6.5-inch front lift and 4-inch rear lift for aggressive stance
Value design uses front and rear spacers for added height at lower cost
Includes ductile iron lift spindles with corrosion-resistant coating
Improves ground clearance for larger tire fitment
Extended brake lines and brackets maintain proper suspension geometry
Includes front and rear shocks for smooth, controlled ride
Maintains near factory ride quality with bolt-on installation
No cutting or welding required

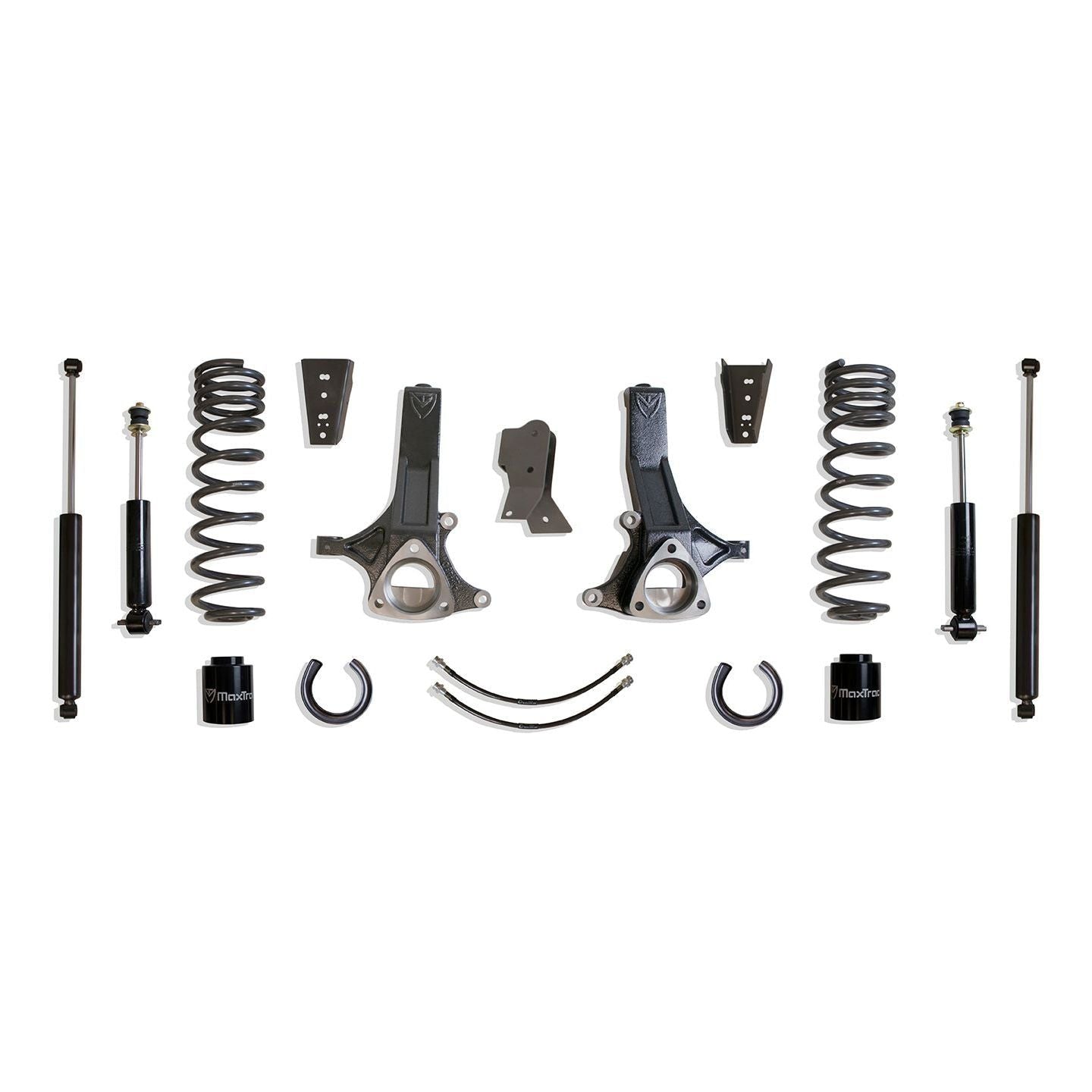

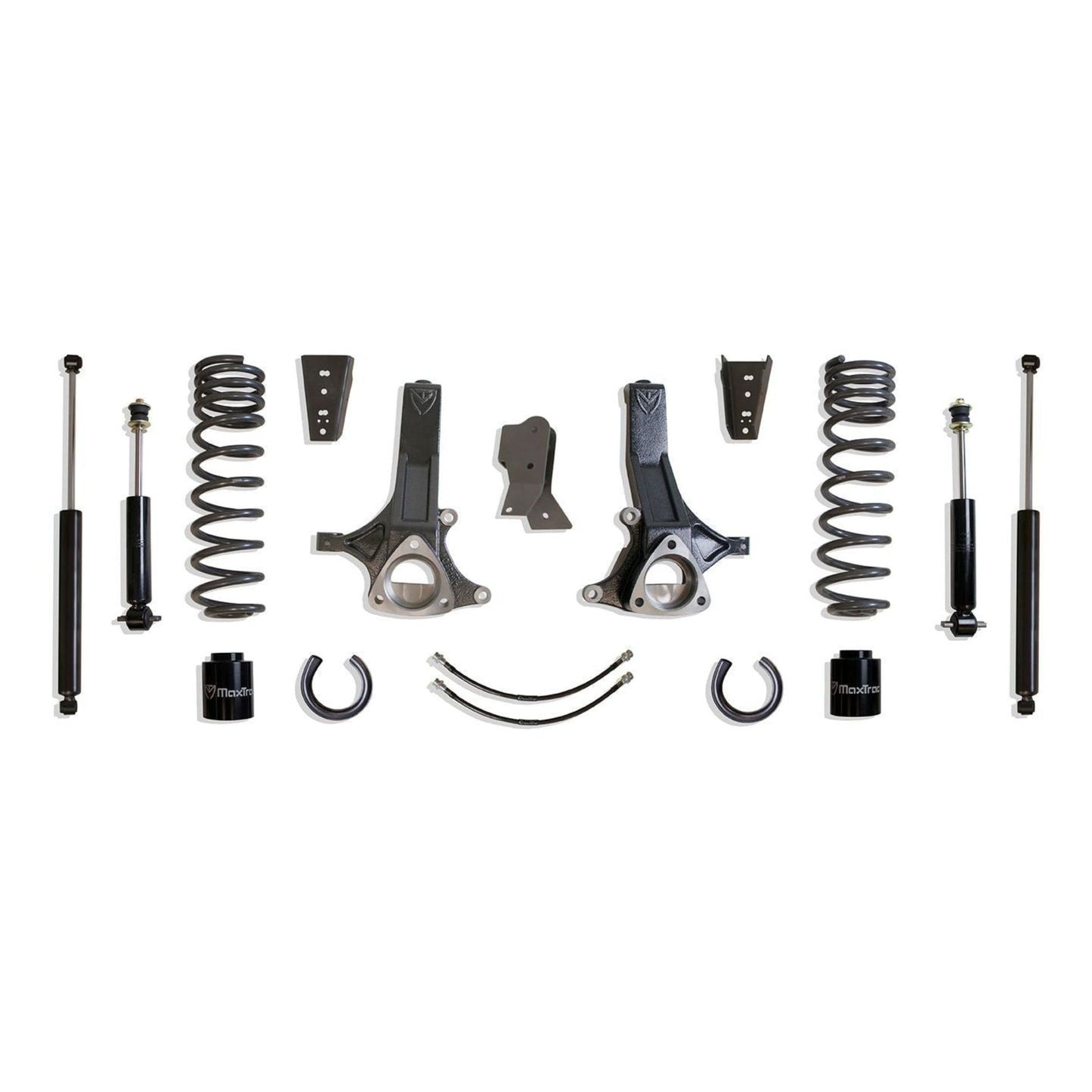

What’s Included
Lift spindles part number 702145
Front lift spacers
Rear coil spacers
Track bar bracket and sway bar brackets
Extended brake lines
Two MaxTrac front shocks 1450SL
Two MaxTrac rear shocks 2900LL-4

Important Notes
Requires 17-inch or larger wheels with proper backspacing
Allows fitment of up to 37 by 12.50 inch tires depending on wheel setup and trimming
Models with 2-piece driveshaft require carrier bearing kit part number 612400
Not recommended for wheels wider than 9 inches or with less than 4.5 inches backspacing
Professional alignment is recommended after installation

Specifications
Lift Height 6.5 inches front 4 inches rear
Material ductile iron and steel
Finish coated for corrosion resistance
Part Number K882464S
