MaxTrac K882464 6.5" Lift Kit for 2009-2024 Ram 1500 2WD 5-Lug EcoDiesel

Built Specifically for Your EcoDiesel Ram

Take your 2009–2024 Ram 1500 2WD EcoDiesel to the next level with the MaxTrac K882464 Lift Kit. Engineered specifically for EcoDiesel-powered 5-lug models, this complete suspension package delivers a 6.5-inch front lift and 4.5-inch rear lift using EcoDiesel-specific front lift coils, heavy-duty lift spindles, extended brake lines, rear lift coils, lift spacers, a track bar bracket, sway bar brackets, and matched MaxTrac front and rear shocks. The result is outstanding ground clearance, room for up to 37-inch tires, and a bold, aggressive stance.

Key Features

Complete 6.5"/4.5" Suspension Lift

Everything needed to properly lift your Ram 1500 with components engineered to work together for dependable ride quality and performance.

EcoDiesel-Specific Front Lift Coils

Front lift coils are designed specifically for the weight and suspension characteristics of EcoDiesel-equipped trucks for proper ride height and handling.

Heavy-Duty Lift Spindles

Provides increased ride height while maintaining factory steering geometry and suspension performance.

Complete Rear Suspension Components

Includes rear lift coils, lift spacers, track bar bracket, and sway bar brackets to properly level and support the rear suspension.

MaxTrac Front & Rear Shocks Included

Includes (2) MaxTrac 1450SL front shocks and (2) MaxTrac 2900LL-4 rear shocks for improved ride control and suspension performance.

Heavy-Duty Powder-Coated Steel

Constructed from premium steel with a durable grey powder-coated finish for long-lasting corrosion resistance.

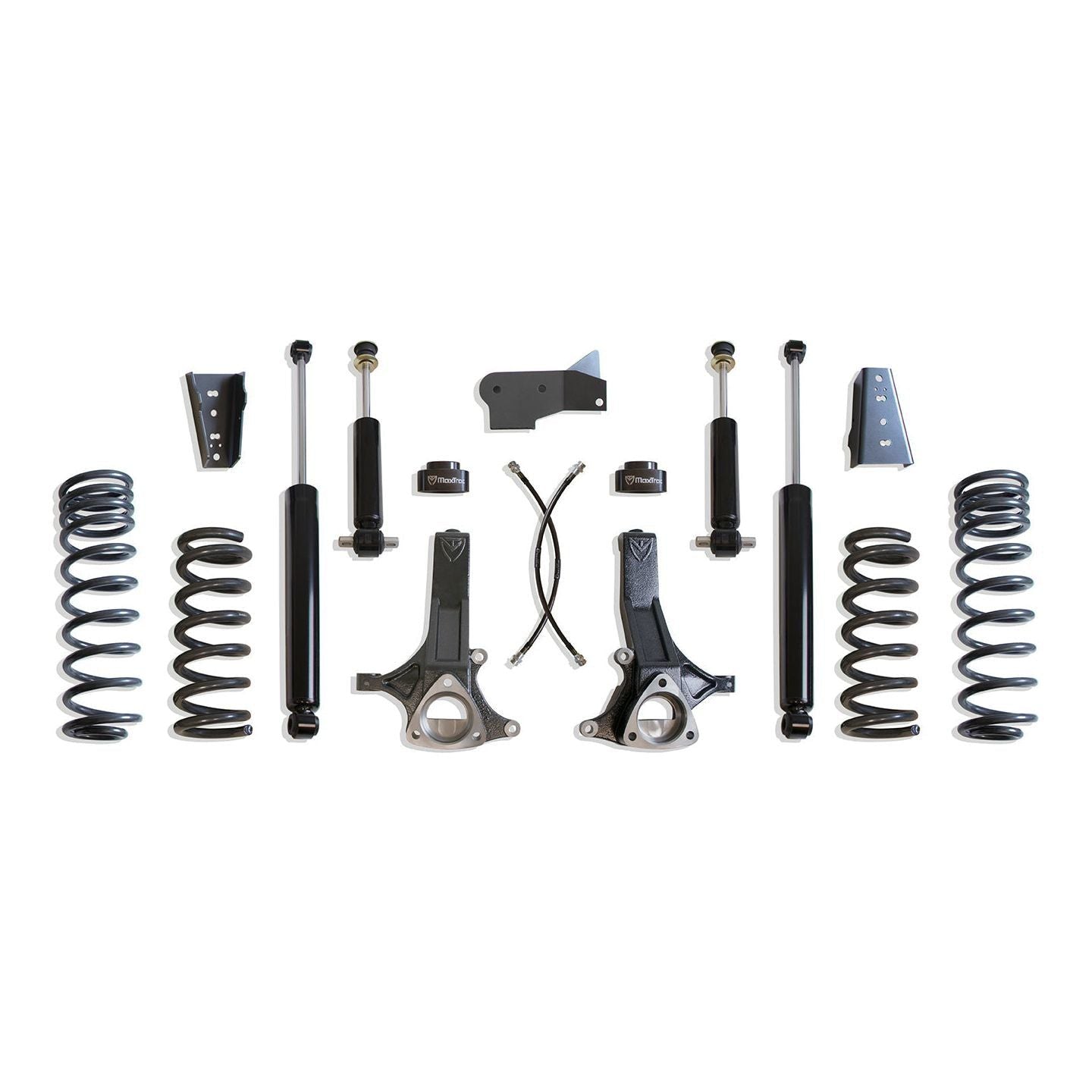

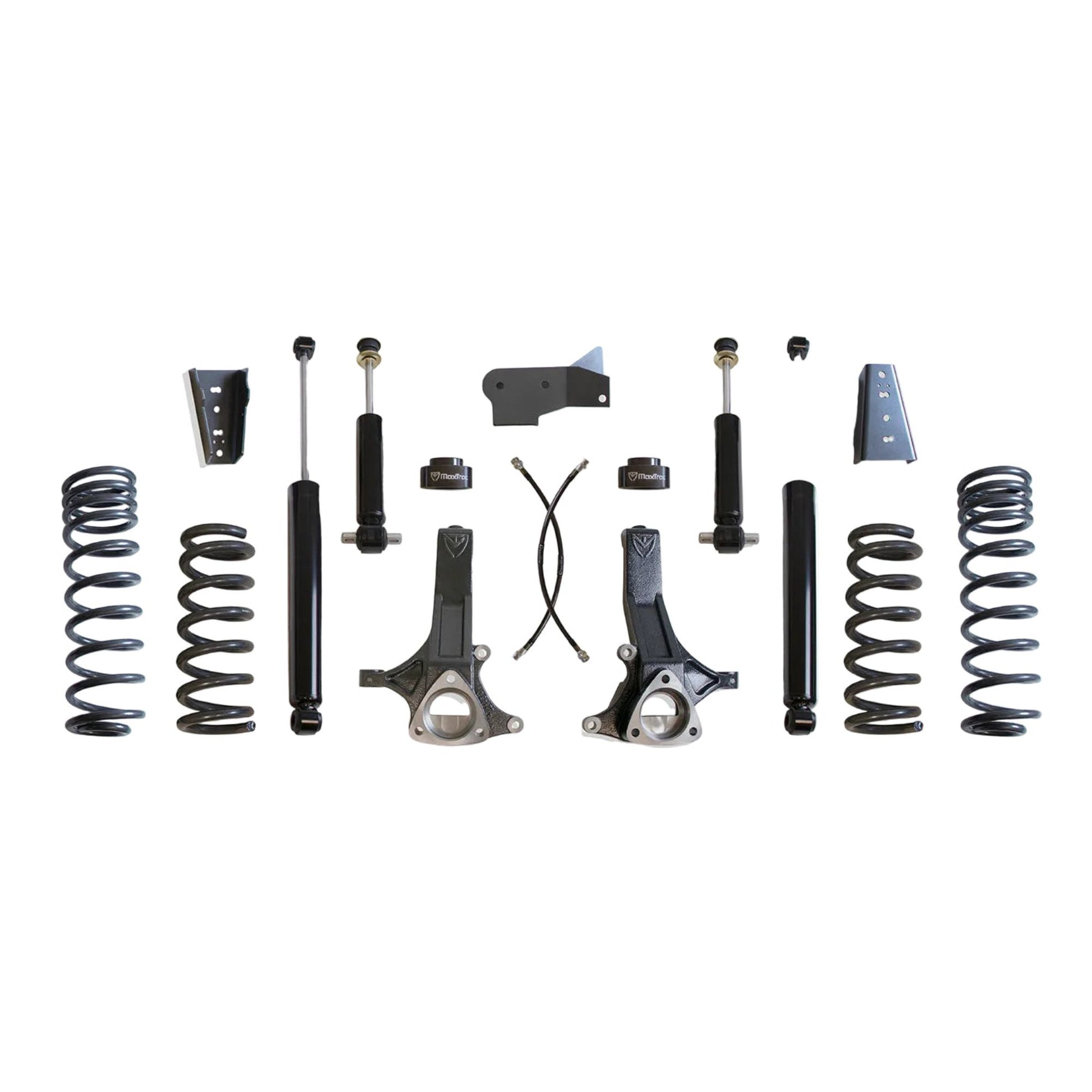

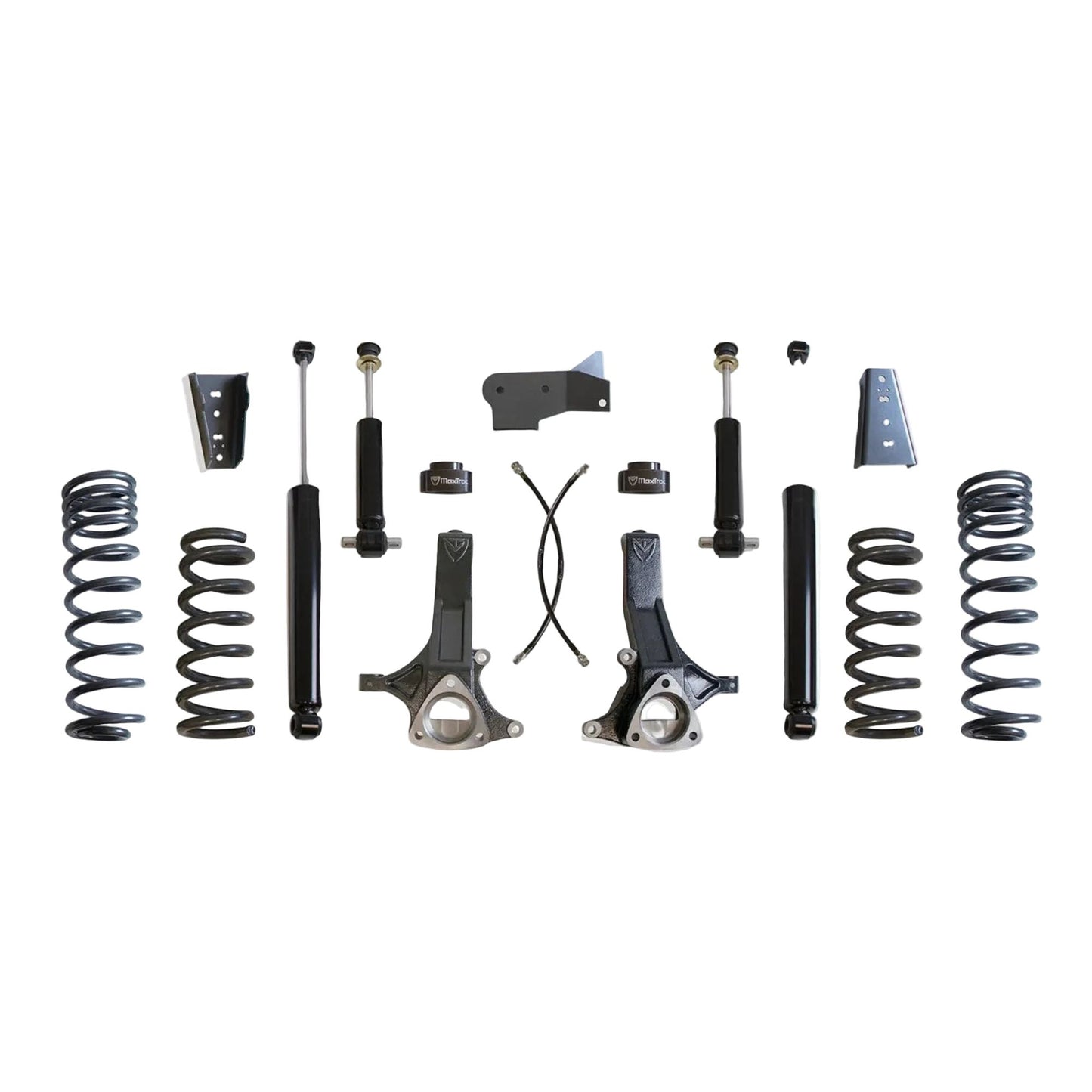

What's Included

EcoDiesel front lift coils
Front lift spindles
Extended front brake lines
Rear lift coils
Rear lift spacers
Rear track bar bracket
Rear sway bar brackets
(2) MaxTrac 1450SL front shocks
(2) MaxTrac 2900LL-4 rear shocks
Installation hardware (where supplied by manufacturer)

Vehicle Fitment

Fits

2009–2024 Ram 1500 2WD
5-Lug EcoDiesel models only

Does Not Fit

4WD models
Gas engine models
6-Lug models

Important Notes

Requires 17-inch wheels or larger with 5.75 inches of backspacing or less.
Compatible with factory 17-inch or larger wheels.
Clears up to 37x12.50 tires on 8-inch to 9-inch wide wheels.
Minor fender trimming may be required depending on wheel and tire combination.
Fits EcoDiesel models only.
Models equipped with a 2-piece driveshaft require MaxTrac Carrier Bearing Kit #612400.
Replacement shocks are sold individually if purchased separately. Order a quantity of two for both the front and rear.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Failure to follow these recommendations may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K882464
UPC: N/A
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 6.5 Inches
Rear Lift: 4.5 Inches
Engine Compatibility: EcoDiesel
Front Shock Details: (2) MaxTrac 1450SL Front Shocks
Rear Shock Details: (2) MaxTrac 2900LL-4 Rear Shocks
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 165 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K882464?

Designed exclusively for 2WD EcoDiesel Ram 1500 trucks, the K882464 delivers a complete suspension solution with application-specific lift coils, premium MaxTrac shocks, and heavy-duty suspension components. Whether you're building an off-road-ready truck or simply want a commanding stance with larger tires, this kit is engineered to deliver dependable performance and durability.

Perfect For

2009–2024 Ram 1500 EcoDiesel owners
37-inch tire upgrades
Daily driven lifted trucks
Off-road enthusiasts
Custom truck builds
Complete suspension lift upgrades
