MaxTrac K882443 4.5" Lift Kit for 2009-2024 Ram 1500 2WD 5-Lug

Get More Ground Clearance Without Compromising Ride Quality

Give your 2009–2024 Ram 1500 2WD a bold new stance with the MaxTrac K882443 Lift Kit. Designed for 5-lug Ram 1500 models with gas or diesel engines, this complete suspension system delivers a 4.5-inch front lift and 3-inch rear lift using heavy-duty lift spindles, extended front brake lines, rear lift coils, a rear track bar bracket, sway bar brackets, and matched MaxTrac rear shocks. The result is improved ground clearance, larger tire capability, and factory-inspired handling.

Key Features

Complete 4.5"/3" Lift System

Everything needed to properly lift your Ram 1500 with components engineered to work together for dependable performance.

Heavy-Duty Lift Spindles

Provides 4.5 inches of front lift while maintaining proper steering geometry and suspension travel.

Rear Suspension Upgrade

Includes rear lift coils, track bar bracket, and sway bar brackets to maintain proper rear suspension alignment and handling.

MaxTrac Rear Shocks Included

Comes with (2) MaxTrac 2800LL-4 rear shocks designed to complement the lifted suspension for improved ride quality.

Durable Powder-Coated Construction

Manufactured from heavy-duty steel with a corrosion-resistant grey powder-coated finish for long-lasting durability.

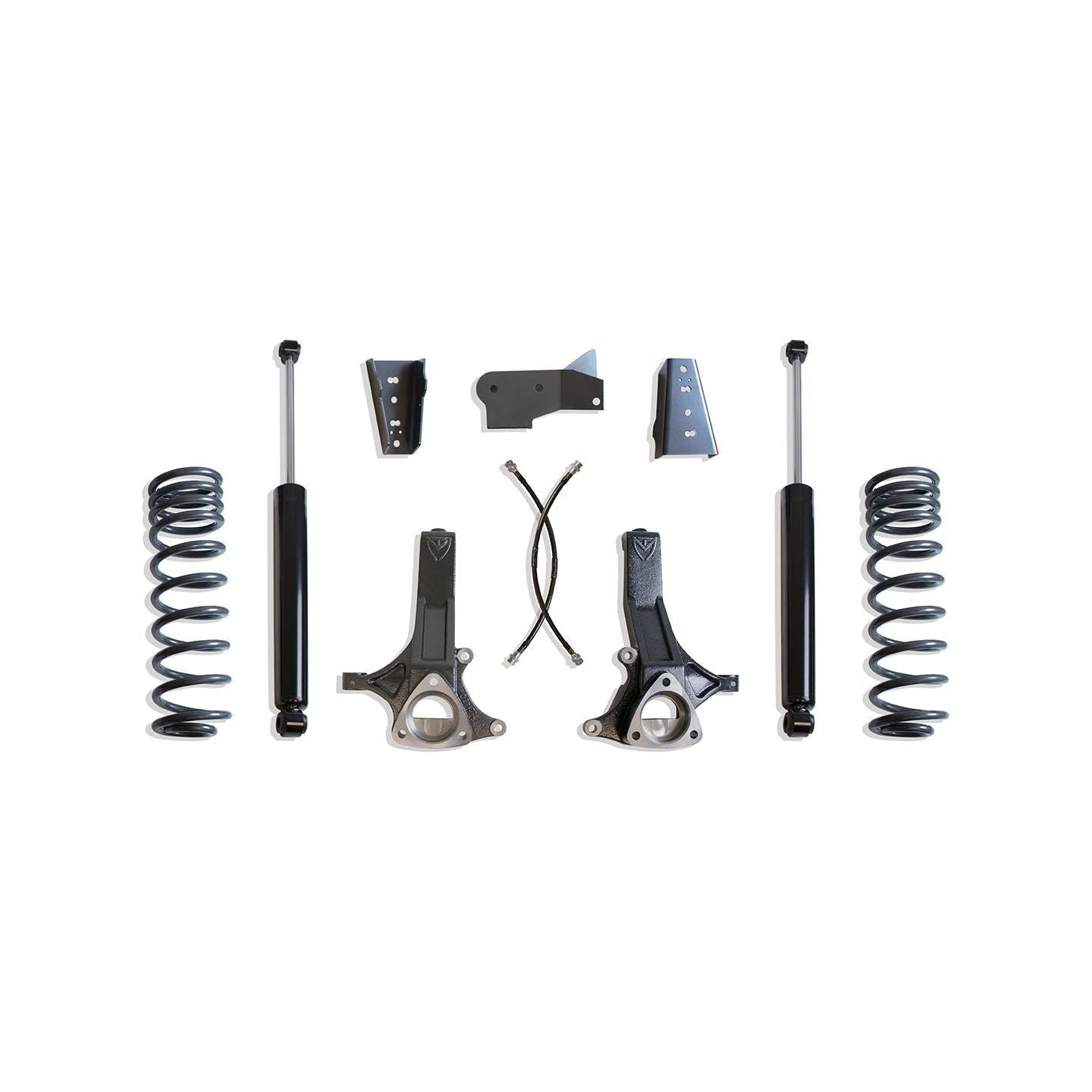

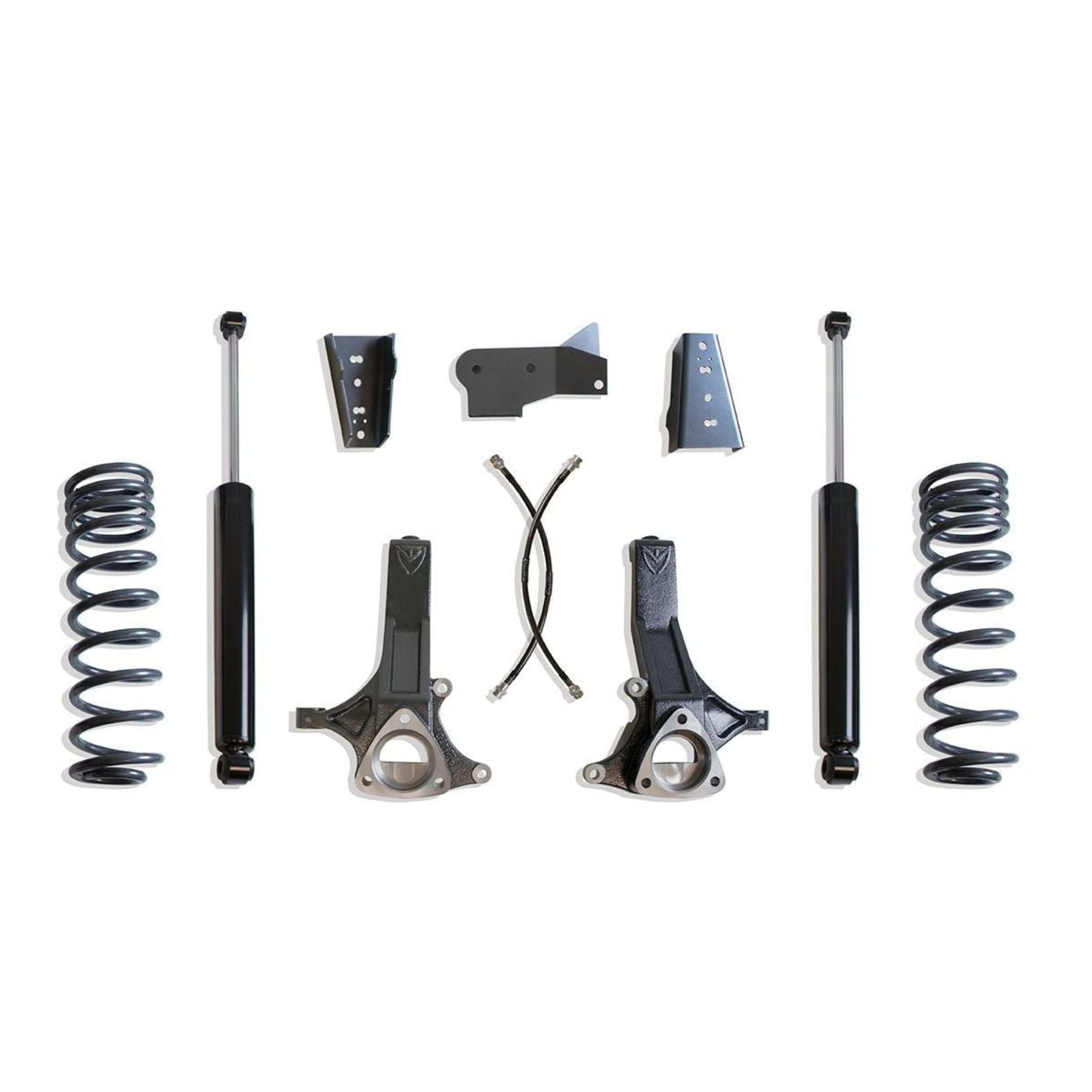

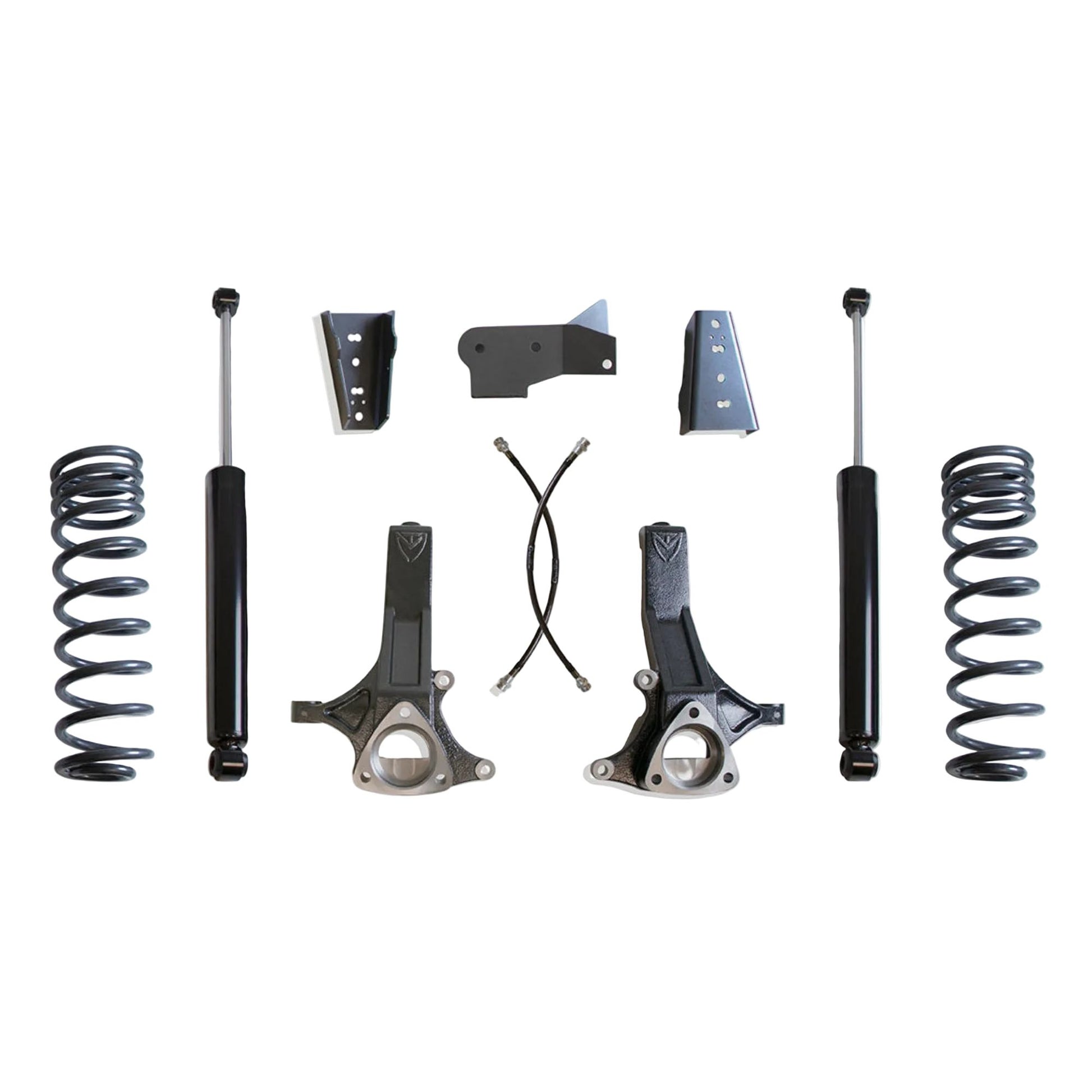

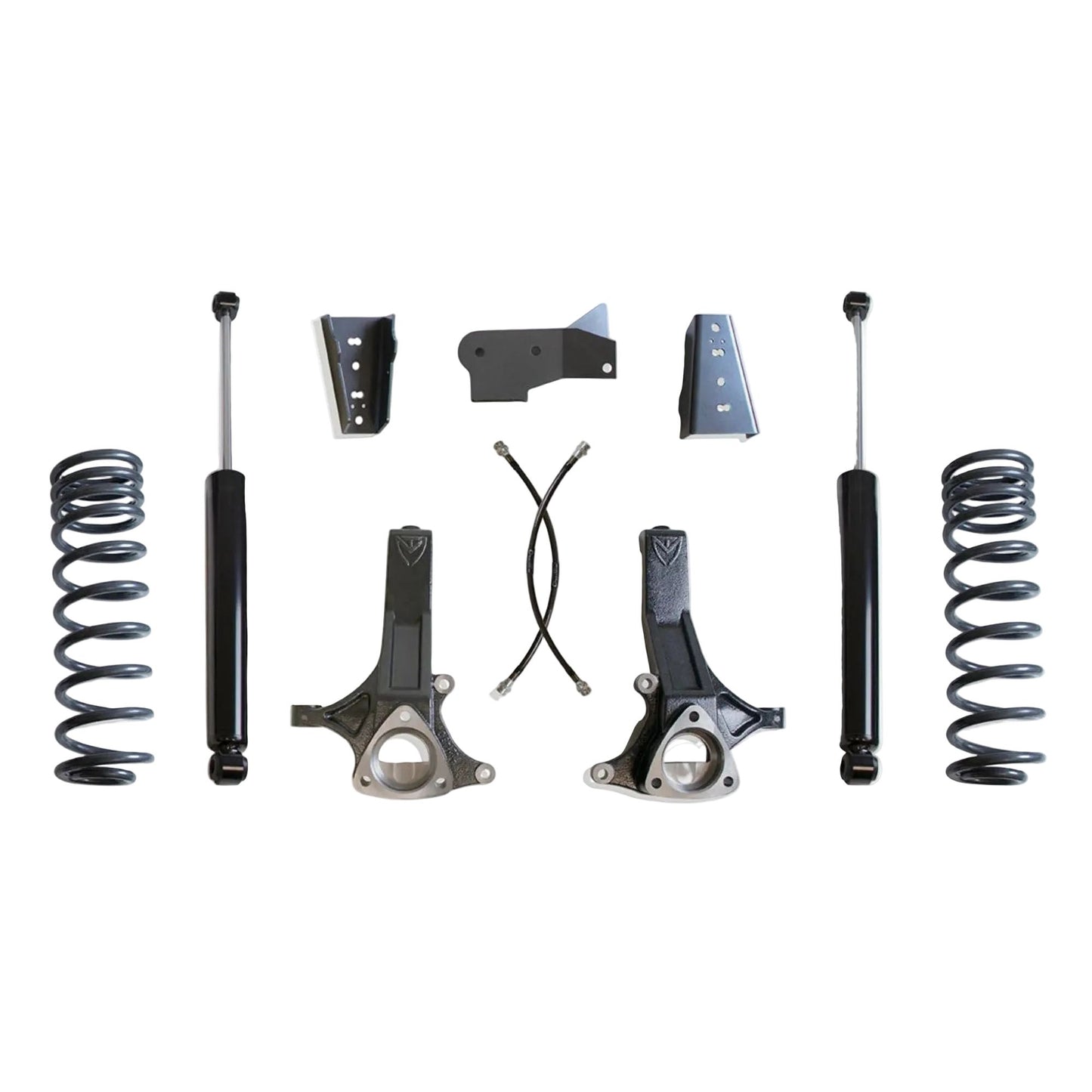

What's Included

Front lift spindles
Extended front brake lines
Rear lift coils
Rear track bar bracket
Rear sway bar brackets
(2) MaxTrac 2800LL-4 rear shocks
Installation hardware (where supplied by manufacturer)

Vehicle Fitment

Fits

2009–2024 Ram 1500 2WD
5-Lug models
Gas and Diesel engines

Does Not Fit

4WD models
6-Lug Ram models

Important Notes

Requires 17-inch wheels or larger with 5.75 inches of backspacing or less.
Compatible with factory 17-inch or larger wheels.
Clears up to 35x12.50 tires on 8-inch to 9-inch wide wheels.
Minor fender trimming may be required depending on wheel and tire combination.
Models equipped with a 2-piece driveshaft require MaxTrac Carrier Bearing Kit #612400.
Replacement rear shocks are sold individually if purchased separately. Order a quantity of two.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Failure to follow these recommendations may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K882443
UPC: N/A
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 4.5 Inches
Rear Lift: 3 Inches
Engine Compatibility: Gas & Diesel
Front Shock Details: Uses Factory Front Shocks
Rear Shock Details: (2) MaxTrac 2800LL-4 Rear Shocks
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 117 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K882443?

The MaxTrac K882443 is engineered specifically for 2WD 5-lug Ram 1500 trucks, combining premium suspension components with a straightforward installation. Whether you're looking to fit larger tires or give your truck a more aggressive appearance, this complete kit delivers the performance and reliability expected from MaxTrac Suspension.

Perfect For

2009–2024 Ram 1500 2WD owners
35-inch tire upgrades
Daily drivers
Off-road enthusiasts
Street trucks
Complete suspension lift upgrades
