MaxTrac K882262DXL 6.5"/2.5" Lift Kit for 2003-2008 Ram 3500 2WD Diesel Dually

Lift Your Ram 3500 Dually with Heavy-Duty Suspension Performance

Transform your 2003–2008 Ram 3500 2WD diesel dually with the MaxTrac K882262DXL Lift Kit. This complete suspension system delivers 6.5 inches of front lift and 2.5 inches of rear lift using diesel lift coils, lift spindles, extended brake lines, lift blocks, heavy-duty 4.125" x 16.5" U-bolts, and matched MaxTrac front and rear shocks. Designed specifically for diesel dually applications, this kit provides clearance for larger tires while maintaining excellent ride quality.

Key Features

Complete 6.5"/2.5" Lift System

Raises the front 6.5 inches and the rear 2.5 inches for an aggressive stance and improved ground clearance.

Built for Diesel Dually Models

Designed specifically for Ram 3500 2WD diesel dually trucks using heavy-duty rear suspension components.

Heavy-Duty Lift Spindles

Maintains factory suspension geometry while providing substantial front lift.

Extended Brake Lines Included

Extended front brake lines help maintain safe brake hose routing throughout suspension travel.

Heavy-Duty Dually U-Bolts

Includes 4.125-inch wide x 16.5-inch long U-bolts designed for dually rear axles and overload spring applications.

Clears Up to 34-Inch Tires

Designed to clear 34x11.50-inch tires on 8- to 9-inch-wide wheels.

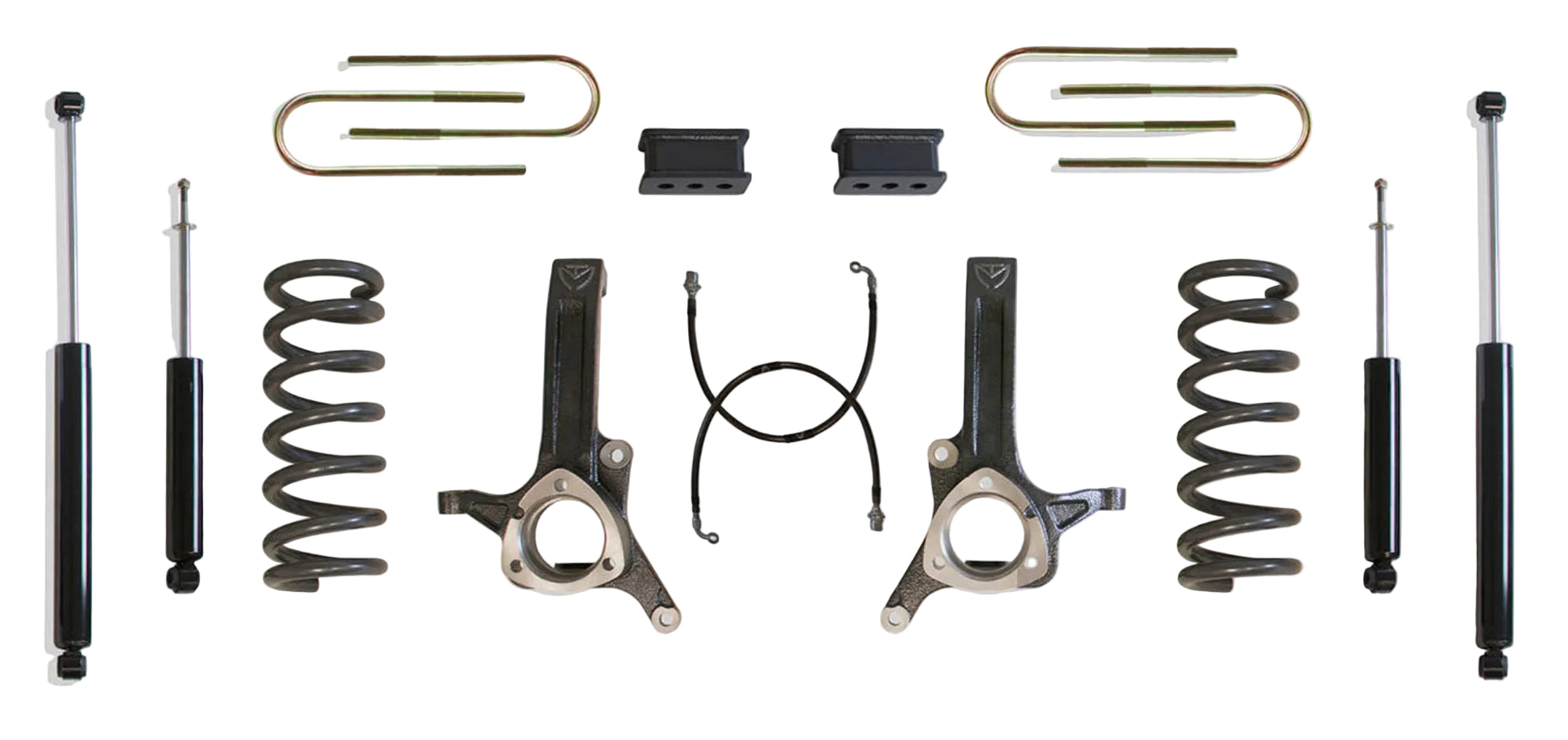

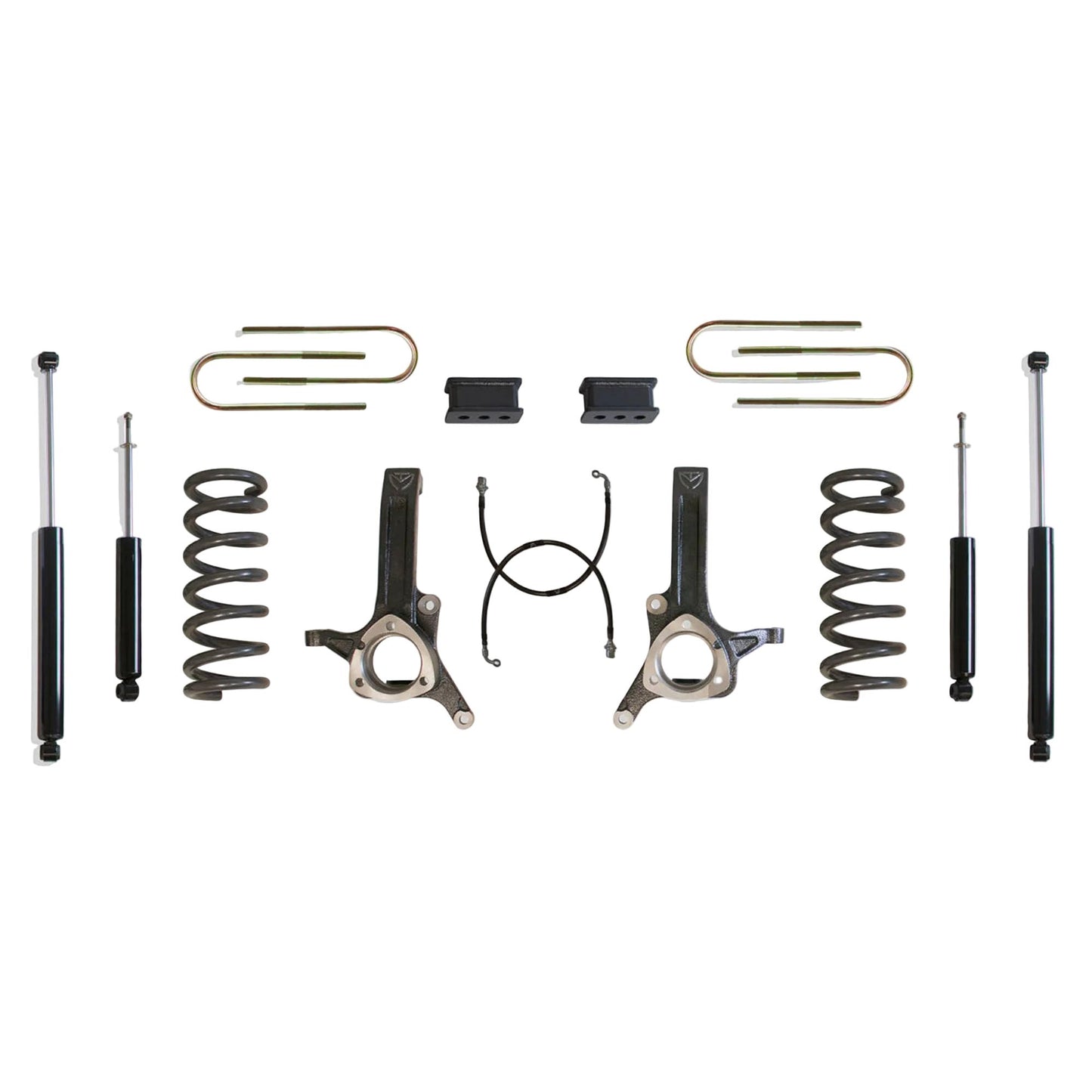

What's Included

Diesel front lift coils
Front lift spindles
Extended front brake lines
Rear lift blocks
4.125" x 16.5" heavy-duty U-bolts
MaxTrac front shocks (2)
MaxTrac rear shocks (2)
Installation hardware (where supplied by manufacturer)

Vehicle Fitment

Fits

2003–2008 Ram 3500 2WD Diesel Dually

Does Not Fit

4WD models
Gas engine models

Important Notes

Requires 17-inch wheels or larger with 4.75 inches of backspacing or less.
Factory wheels will not fit.
Clears up to 34x11.50-inch tires on 8- to 9-inch-wide wheels.
Factory dually wheels and factory-size tires will fit dually applications.
Includes 4.125-inch wide x 16.5-inch long U-bolts for dually models or trucks equipped with overload springs.
Minor fender trimming may be required.
When ordering replacement shocks separately, order quantity two of each shock, as shocks are sold individually.
With lift coils installed, the upper control arm may contact the coil bucket at full droop, creating a "bang" sound.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Failure to follow these recommendations may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K882262DXL
UPC: N/A
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 6.5 Inches
Rear Lift: 2.5 Inches
Engine Compatibility: Diesel
U-Bolt Size: 4.125" x 16.5" (Dually)
Front Shocks: 1800SL-6 (Qty. 2)
Rear Shocks: 2900LL-4 (Qty. 2)
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 139 lbs

Why Choose the MaxTrac K882262DXL?

Built specifically for diesel-powered Ram 3500 dually trucks, the MaxTrac K882262DXL combines heavy-duty lift components with extended brake lines, dually-specific U-bolts, and matched MaxTrac shocks to provide reliable performance, improved ground clearance, and excellent ride quality.

Perfect For

2003–2008 Ram 3500 2WD Diesel Dually
Dually work trucks
34-inch tire upgrades
Towing applications
Off-road builds
