MaxTrac K882170 7" Lift Kit for 2002-2008 Ram 1500 2WD 4.7L V8

Lift Your Ram 1500 for Maximum Ground Clearance and 37-Inch Tires

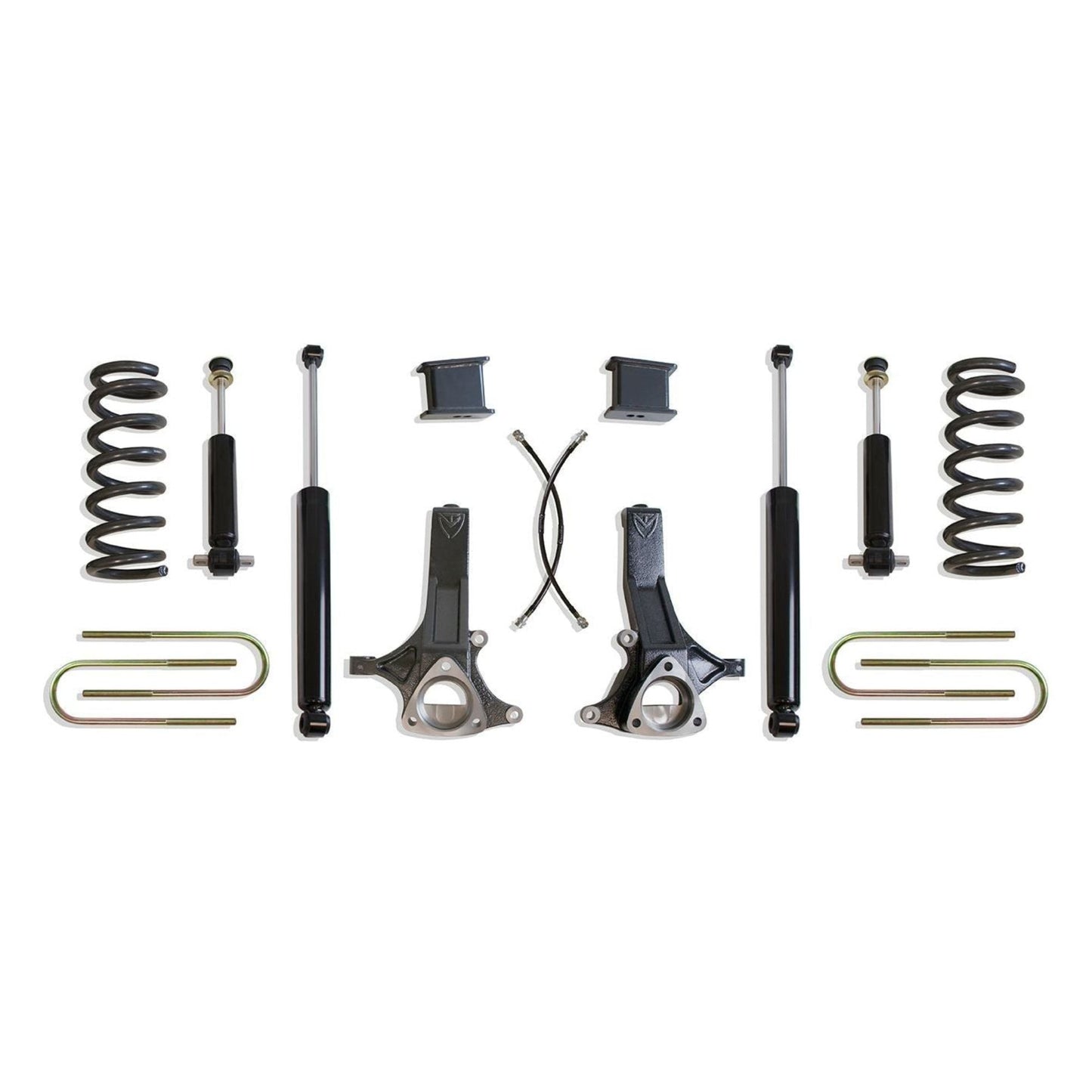

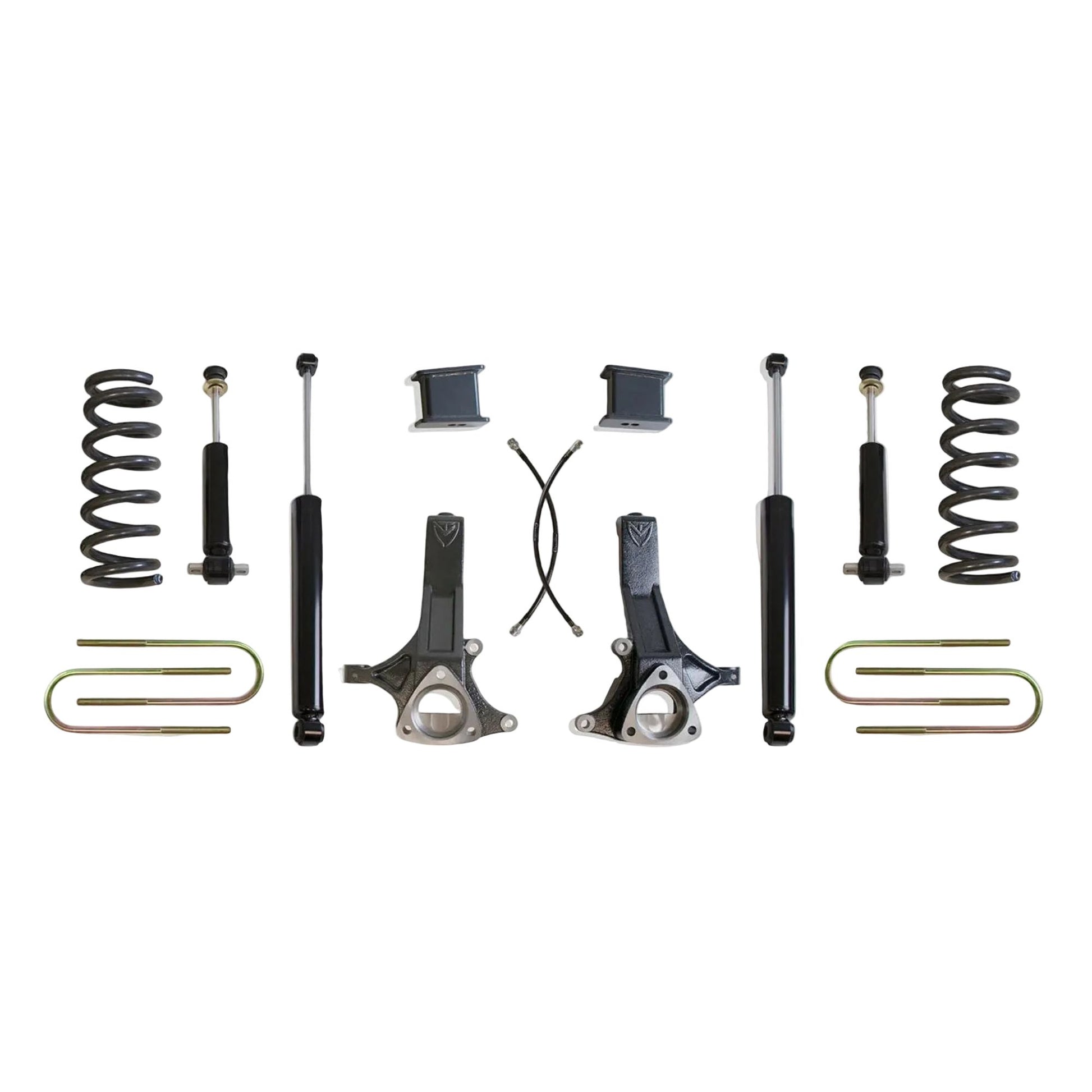

Upgrade your 2002–2008 Ram 1500 2WD with the MaxTrac K882170 Lift Kit. Designed specifically for 4.7L V8-equipped trucks, this complete suspension system delivers a 7-inch front lift and 4-inch rear lift using front lift coils, heavy-duty lift spindles, rear lift blocks, U-bolts, and matched MaxTrac front and rear shocks. Built for both aggressive styling and dependable performance, this kit provides the clearance needed to run up to 37-inch tires.

Key Features

Complete 7"/4" Lift System

Everything needed to lift your Ram 1500 with components engineered to work together for proper ride height and suspension performance.

4.7L V8 Lift Coils

Includes front lift coils specifically designed for 4.7L V8-equipped Ram 1500 models.

Heavy-Duty Lift Spindles

Provides substantial front lift while maintaining proper steering geometry and suspension travel.

Matched MaxTrac Shocks

Includes (2) MaxTrac 1450SL front shocks and (2) MaxTrac 2900LL-4 rear shocks for improved ride quality and suspension control.

Durable Steel Construction

Manufactured from heavy-duty steel with a grey powder-coated finish for long-lasting durability and corrosion resistance.

What's Included

4.7L V8 front lift coils
Lift spindles
Rear lift blocks
Rear U-bolts
(2) MaxTrac 1450SL front shocks
(2) MaxTrac 2900LL-4 rear shocks
Brake line brackets/extended brake line components as applicable
Installation hardware (where supplied by manufacturer)

Vehicle Fitment

Fits

2002–2008 Dodge Ram 1500 2WD
4.7L V8 models only

Does Not Fit

4WD models
Models equipped with engines other than the 4.7L V8

Important Notes

Requires 17-inch wheels or larger with 5.75 inches of backspacing or less.
2002–2005 models use the supplied brake line brackets instead of the extended brake lines.
Compatible with factory 17-inch or larger wheels.
Clears tires up to 37x12.50 on 8-inch to 9-inch wide wheels.
Minor fender trimming may be required depending on wheel and tire combination.
Fits 4.7L V8 models only.
Replacement shocks are sold individually if purchased separately—order a quantity of two for both the front and rear.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Failure to follow these recommendations may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K882170
UPC: N/A
Product Type: Lift Kit
Kit Type: Lift/Level
Front Lift: 7 Inches
Rear Lift: 4 Inches
Front Shock Details: (2) 1450SL Front Shocks
Rear Shock Details: (2) 2900LL-4 Rear Shocks
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 142 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K882170?

The MaxTrac K882170 is engineered specifically for 4.7L V8-powered Ram 1500 2WD trucks, delivering the height, durability, and suspension performance needed for larger tires and a commanding stance. With premium lift components and matched MaxTrac shocks included, this complete kit is ready for both street and off-road adventures.

Perfect For

Off-road enthusiasts
37-inch tire upgrades
Daily driven lifted trucks
Custom Ram builds
2WD suspension upgrades
Complete bolt-on lift installations
