MaxTrac K882145 4.5"/2" Lift Kit for 2002-2008 Ram 1500 2WD

Build a Taller Ram 1500 with Room for Up to 35" Tires

Add height and a more aggressive stance to your 2002–2008 Dodge Ram 1500 2WD with the MaxTrac K882145 4.5"/2" Lift Kit. This spindle-based suspension package provides approximately 4.5 inches of front lift and 2 inches of rear lift while retaining compatibility with stock 17-inch or larger wheels. Rear blocks, U-bolts, and matched MaxTrac shocks complete the setup.

Key Features

4.5" Front Spindle Lift

MaxTrac lift spindles provide approximately 4.5 inches of front lift, adding substantial height and clearance without relying on a basic spacer-only setup.

2" Rear Lift

Rear lift blocks and U-bolts raise the back approximately 2 inches to complement the taller front suspension.

MaxTrac Rear Shocks

Includes two 2650LL-4 MaxTrac rear shocks designed to work with the increased rear suspension height.

Clears Up to 35" Tires

Designed to clear up to 35" x 12.50" tires on 8"-9" wide wheels, giving your Ram room for a considerably larger tire setup.

Stock Wheel Compatible

The kit can be used with stock 17-inch or larger wheels, making it possible to lift your truck without automatically requiring aftermarket wheels.

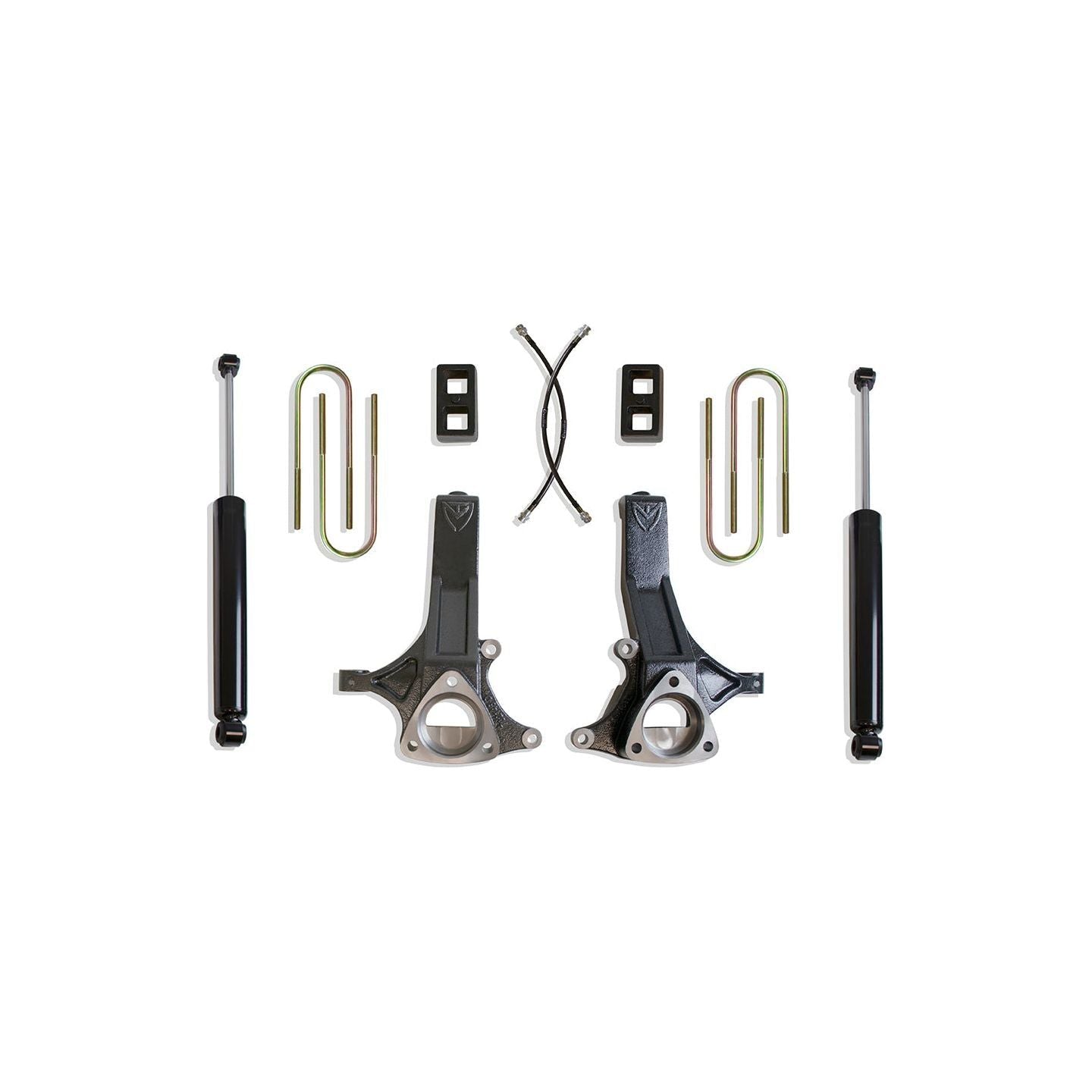

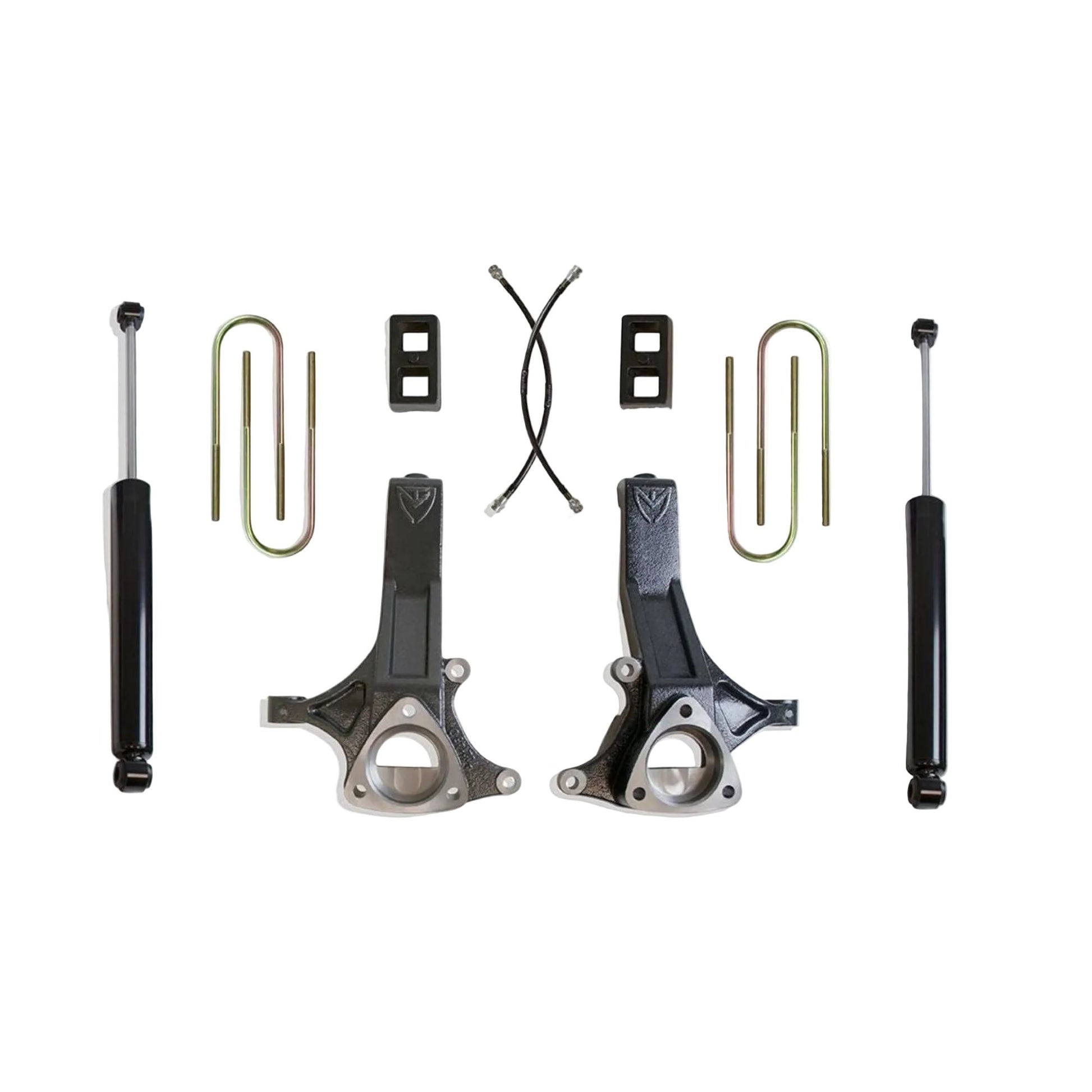

What's Included

4.5" front lift spindles
Rear lift blocks
Rear U-bolts
MaxTrac 2650LL-4 rear shocks (Qty. 2)
Brake line components/brackets as applicable
Installation hardware

Vehicle Fitment

Fits

2002–2008 Dodge Ram 1500 2WD

Important Notes

Requires 17" wheels or larger with 5-3/4" backspacing or less.
Can be used with stock 17" or larger wheels.
2002–2005 models use the provided brake line bracket instead of the extended brake lines.
Clears up to 35" x 12.50" tires on 8"-9" wide wheels.
Fender trimming may be required depending on wheel and tire setup.
When ordering shocks separately, quantity 2 is required because shocks are sold individually.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these recommendations will void manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K882145
UPC: N/A
Product Type: Suspension Lift Kit
Kit Type: Lift / Level
Front Lift: 4.5 Inches
Rear Lift: 2 Inches
Drivetrain: 2WD
Front Components: Lift Spindles
Rear Components: Lift Blocks & U-Bolts
Rear Shocks: 2650LL-4 (Qty. 2)
Maximum Tire Size: 35" x 12.50"
Recommended Wheel Width: 8"-9"
Minimum Wheel Diameter: 17 Inches
Maximum Backspacing: 5.75 Inches
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 92 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K882145?

For 2WD Ram owners looking for significant height without moving to a more complicated suspension system, the K882145 combines a 4.5-inch spindle lift with a 2-inch rear lift. Stock wheel compatibility and clearance for up to 35" tires make it a strong choice for both street-driven and custom truck builds.

Perfect For

2002–2008 Ram 1500 2WD
4.5-inch spindle lift builds
35-inch tire setups
Stock 17-inch or larger wheels
Custom lifted Ram trucks
Street and show truck builds
