MaxTrac K881753 5"/3" Lift Kit for 2016-2018 Silverado Sierra 1500 2WD

Step Up Your GM 1500 with a 5-Inch Front Lift

Give your 2016–2018 Chevy Silverado or GMC Sierra 1500 2WD a taller stance and added tire clearance with the MaxTrac K881753 5"/3" Lift Kit. Engineered specifically for trucks with stamped steel control arms, this spindle-based system delivers 5 inches of front lift and 3 inches of rear lift while including extended brake lines and matched MaxTrac rear shocks.

Key Features

5" Front Spindle Lift

MaxTrac lift spindles raise the front approximately 5 inches, providing substantial height without relying on a spacer-only front setup.

3" Rear Lift

Rear lift blocks and U-bolts provide approximately 3 inches of rear lift for a balanced front-to-rear stance.

Extended Brake Lines

Extended brake lines are included to accommodate the increased front suspension height.

MaxTrac Rear Shocks

Includes two 2900LL-4 MaxTrac rear shocks matched to the lifted rear suspension.

Clears Up to 33" Tires

Designed to clear up to 33" x 11.50" tires on 8"-9" wide wheels. Fender trimming may be required depending on your wheel and tire combination.

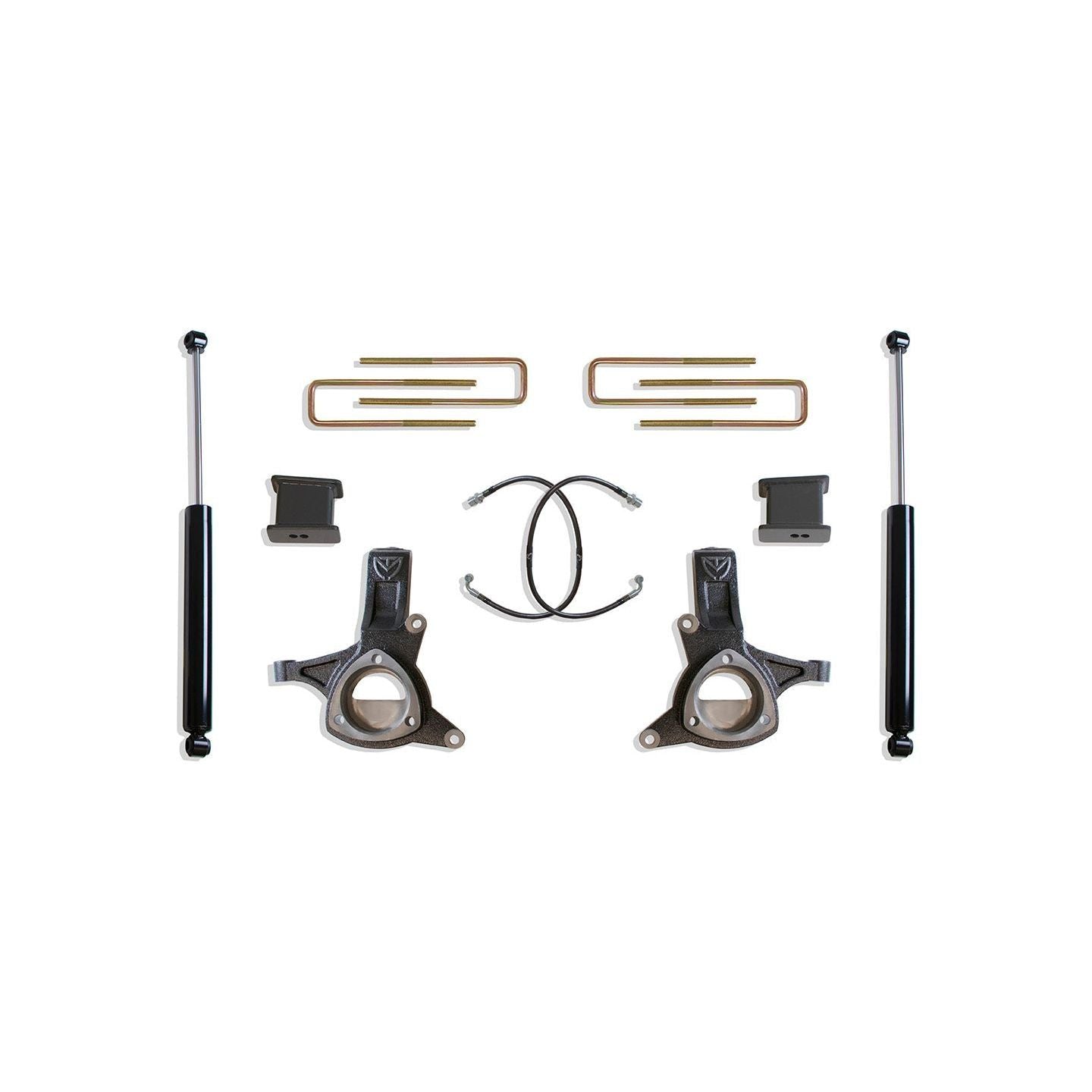

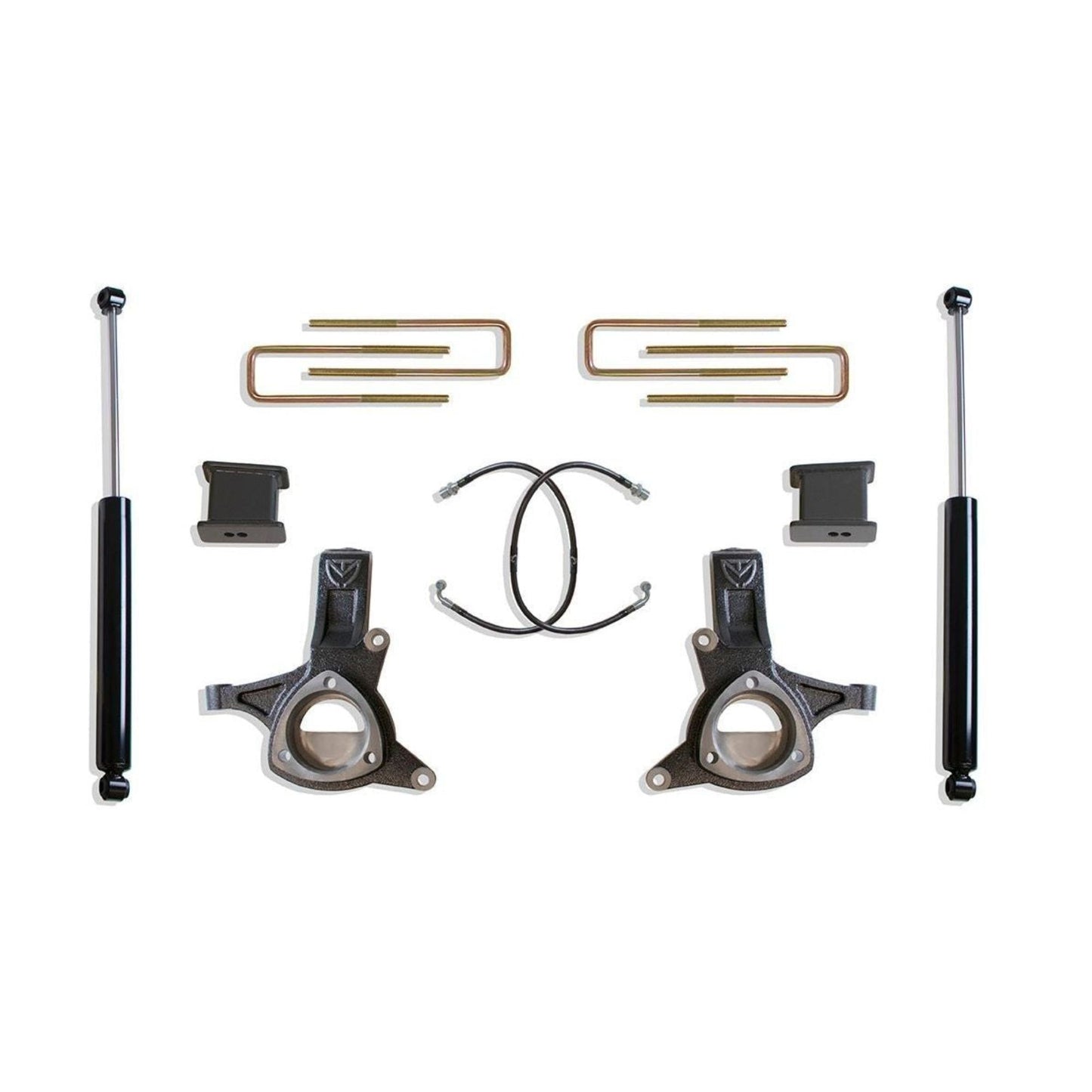

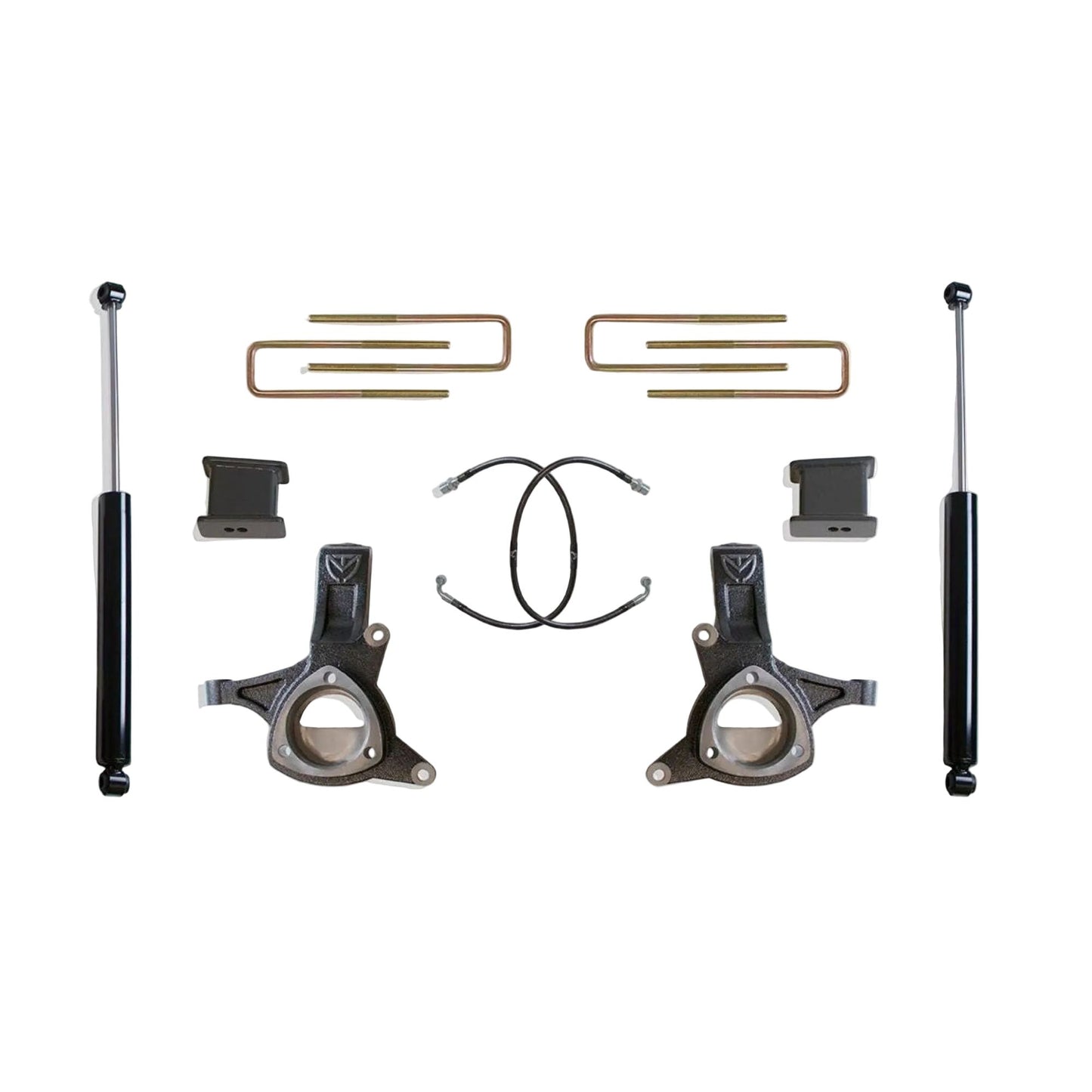

What's Included

5" front lift spindles
Extended brake lines
3" rear lift blocks
Rear U-bolts
MaxTrac 2900LL-4 rear shocks (Qty. 2)
Installation hardware

Vehicle Fitment

Fits

2016–2018 Chevrolet Silverado 1500 2WD with stamped steel control arms
2016–2018 GMC Sierra 1500 2WD with stamped steel control arms

MagneRide Models

MagneRide-equipped trucks require MaxTrac 541500 and 8317MR.
The included 2900LL-4 rear shocks cannot be used on MagneRide models.

Important Notes

Requires 17" wheels or larger with 4-3/4" backspacing or less.
20" wheels or larger can use up to 5-3/4" backspacing.
Clears up to 33" x 11.50" tires on 8"-9" wide wheels.
Fender trimming may be required.
Fits stamped steel control arm models only.
MagneRide models require parts 541500 and 8317MR, and the included rear shocks cannot be used.
When ordering shocks separately, quantity 2 is required because they are sold individually.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these recommendations will void manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K881753
UPC: N/A
Product Type: Suspension Lift Kit
Kit Type: Lift / Level
Front Lift: 5 Inches
Rear Lift: 3 Inches
Drivetrain: 2WD
Control Arm Type: Stamped Steel
Front Components: Lift Spindles & Extended Brake Lines
Rear Components: Lift Blocks & U-Bolts
Rear Shocks: 2900LL-4 (Qty. 2)
Maximum Tire Size: 33" x 11.50"
Recommended Wheel Width: 8"-9"
Minimum Wheel Diameter: 17 Inches
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 71 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K881753?

Designed around stamped steel control arm GM trucks, the K881753 combines a substantial 5-inch spindle lift with a 3-inch rear setup. The included brake lines, blocks, U-bolts, and rear shocks make it a comprehensive package for transforming the stance of your 2WD Silverado or Sierra.

Perfect For

2016–2018 Silverado 1500 2WD
2016–2018 Sierra 1500 2WD
Stamped steel control arm trucks
5-inch spindle lift builds
33-inch tire setups
Custom lifted GM trucks
