MaxTrac K881675MR 7" Lift Kit for 2015-2020 GM SUV 2WD MagneRide

Lift Your MagneRide-Equipped GM SUV Without Leaving Key Components Behind

Give your 2015–2020 GM full-size SUV 2WD a taller, more aggressive stance with the MaxTrac K881675MR 7" Lift Kit. Designed specifically for models equipped with MagneRide suspension, this complete package delivers 7 inches of front lift and 5 inches of rear lift. It combines front lift spindles and strut spacers with rear spacers, sensor brackets, extended brake lines, shock extenders, and supporting suspension hardware for a properly matched setup.

Key Features

7" Front & 5" Rear Lift

Raises the front 7 inches and rear 5 inches for increased ground clearance, a commanding stance, and room for larger wheels and tires.

Designed for MagneRide Models

Unlike standard lift packages, the K881675MR is specifically configured for GM SUVs equipped with factory MagneRide suspension.

Spindle & Strut Spacer Front Lift

Front lift spindles and strut spacers work together to achieve the increased front ride height.

MagneRide Sensor Brackets Included

Includes the necessary sensor brackets to accommodate the factory MagneRide system after lifting the vehicle.

Complete Rear Suspension Components

Rear spacers, a track bar bracket, bump stop extensions, shock extenders, and sway bar end links help accommodate the 5-inch rear lift.

Clears Up to 35" Tires

Provides clearance for up to 35x12.50 tires on 8–9" wide wheels when the required wheel specifications are followed.

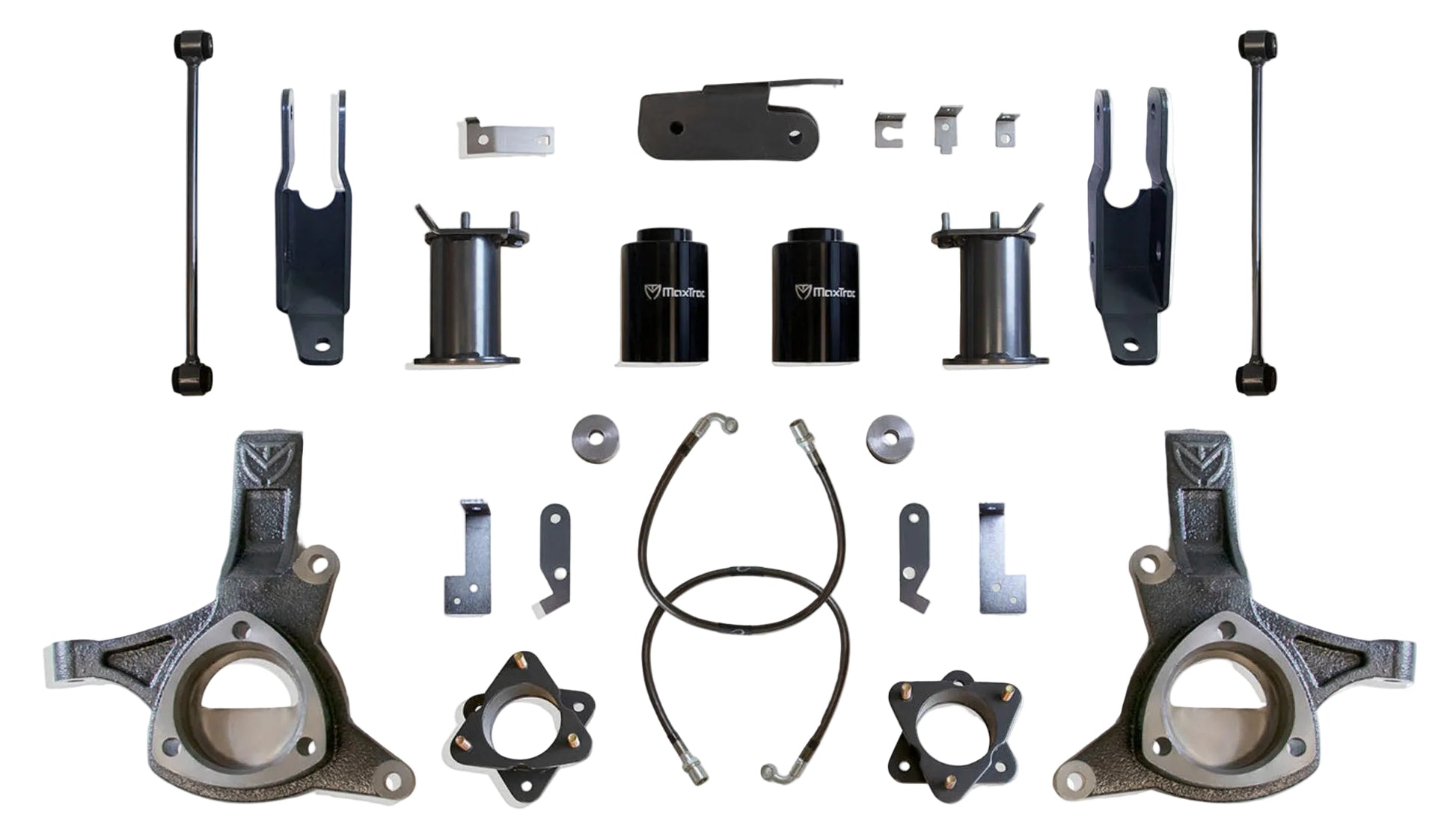

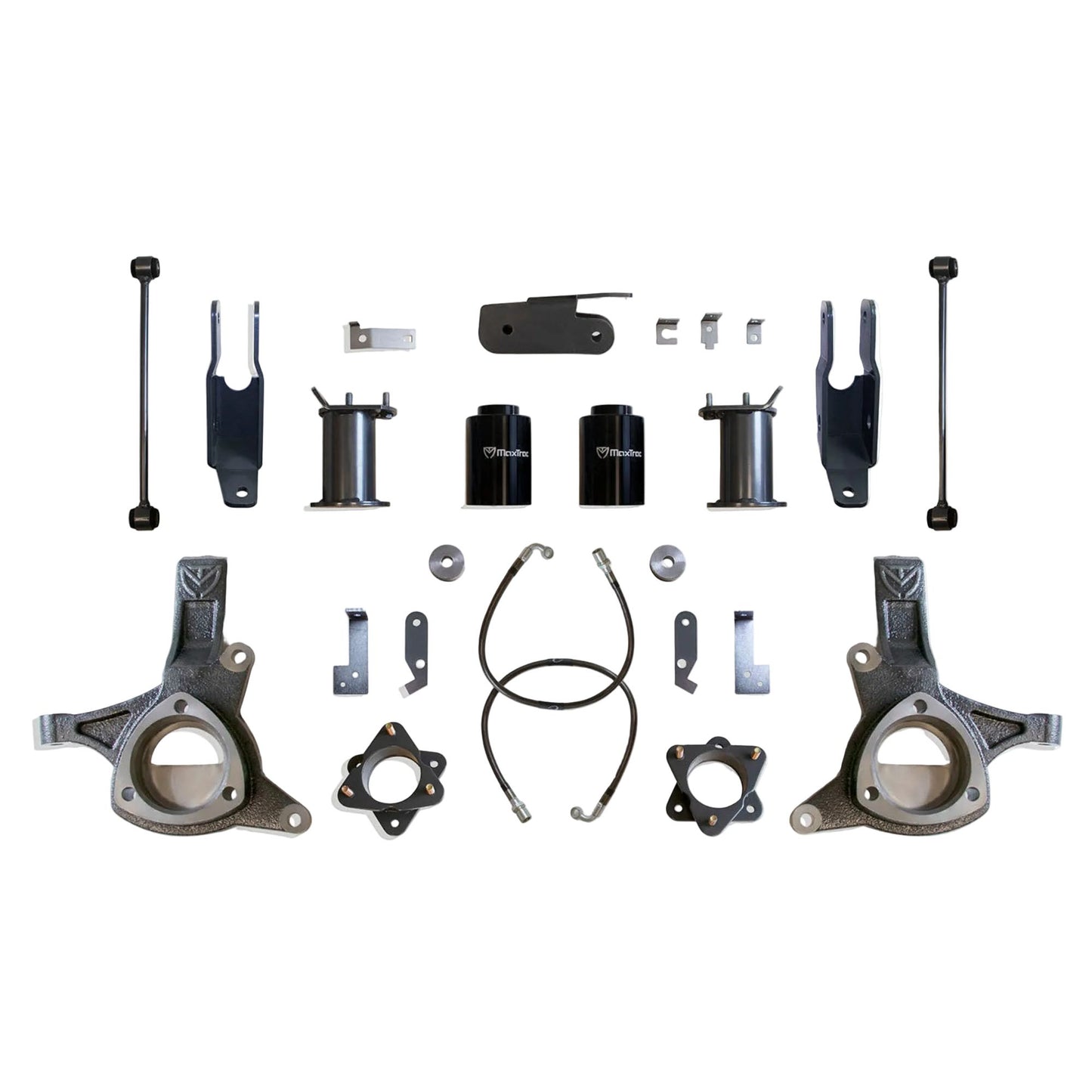

What's Included

Front lift spindles
Front strut spacers
Extended brake lines
Rear lift spacers
Rear track bar bracket
Bump stop extensions
Rear shock extenders
MagneRide sensor brackets
Sway bar end links
Installation hardware

Vehicle Fitment

Fits

2015–2020 GM full-size SUV 2WD models equipped with MagneRide suspension
Don't have Magneride? Click Here

Important Notes

Designed specifically for models equipped with MagneRide suspension.
Requires 17" wheels or larger with 4.75" backspacing or less.
Clears up to 35x12.50 tires on 8–9" wide wheels.
Fender trimming may be required depending on the wheel and tire combination.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications will void manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K881675MR
UPC: N/A
Product Type: Suspension Lift Kit
Kit Type: Lift/Level
Front Lift: 7 Inches
Rear Lift: 5 Inches
Drivetrain: 2WD
Suspension Type: MagneRide
Maximum Tire Size: 35x12.50
Recommended Wheel Width: 8–9 Inches
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 77 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K881675MR?

The K881675MR is built specifically around the needs of MagneRide-equipped GM SUVs. With lift spindles, strut spacers, sensor brackets, extended brake lines, rear suspension components, and shock extenders included, it provides a comprehensive solution for achieving a substantial lift while accommodating the factory suspension system.

Perfect For

2015–2020 GM full-size SUVs
2WD MagneRide models
35-inch tire setups
Custom lifted SUVs
Street and off-road builds
High-clearance suspension setups
