MaxTrac K881053 GM SUV 2WD 5"/3" Lift Kit

Give Your GM SUV a Taller Stance with a Complete Lift System

Build a properly matched 5" front and 3" rear lift into your 2000–2006 GM SUV 2WD with the MaxTrac K881053 Lift Kit. This complete suspension package combines front lift spindles, torsion keys, front shock extenders, rear coil spacers, a track bar bracket, and rear shock extenders to raise both ends of the vehicle while addressing the supporting suspension geometry.
With the correct wheel setup, the K881053 can clear up to a 33" x 11.50" tire on an 8"-9" wide wheel, giving Tahoe, Suburban, Yukon, and Yukon XL owners additional ground clearance and a noticeably taller stance without piecing together the major lift components separately.

Key Features

5" Front Suspension Lift

Combines lift spindles and torsion keys to achieve approximately 5" of front lift on compatible 2WD GM SUV applications.

3" Rear Coil Spacer Lift

Rear 3" coil spacers raise the back of the SUV to complement the taller front suspension while retaining the coil-spring design.

Front Shock Extenders

Included front shock extenders accommodate the increased suspension height without requiring separate extended front shocks as part of this package.

Rear Shock Extenders

MaxTrac rear shock extenders are included to account for the 3" increase in rear suspension height.

Track Bar Relocation Bracket

The supplied rear track bar bracket helps compensate for the change in suspension geometry created by the rear lift.

Clears Up to 33" Tires

With the specified wheel configuration, the kit can clear up to 33" x 11.50" tires on 8"-9" wide wheels. Fender trimming may still be required.

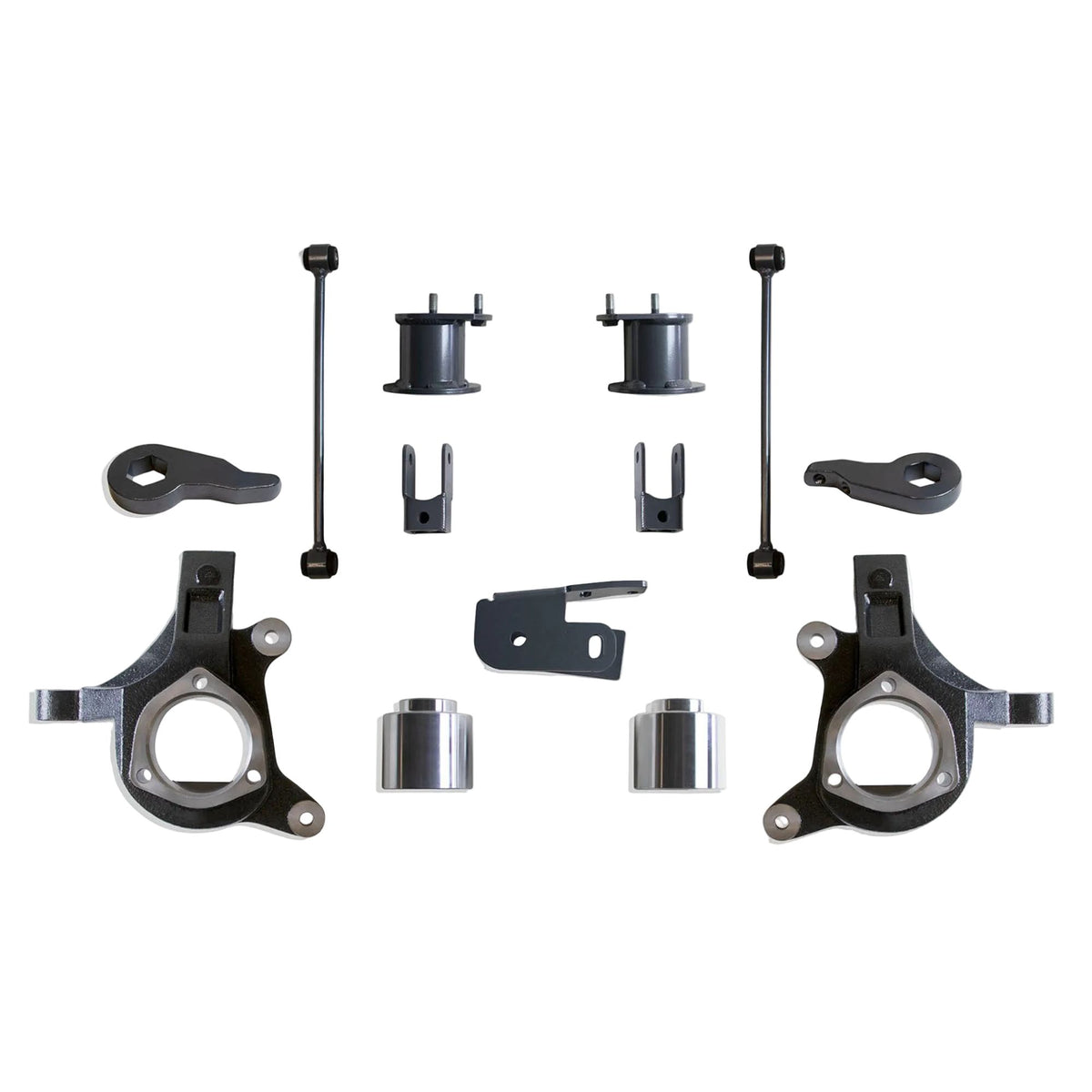

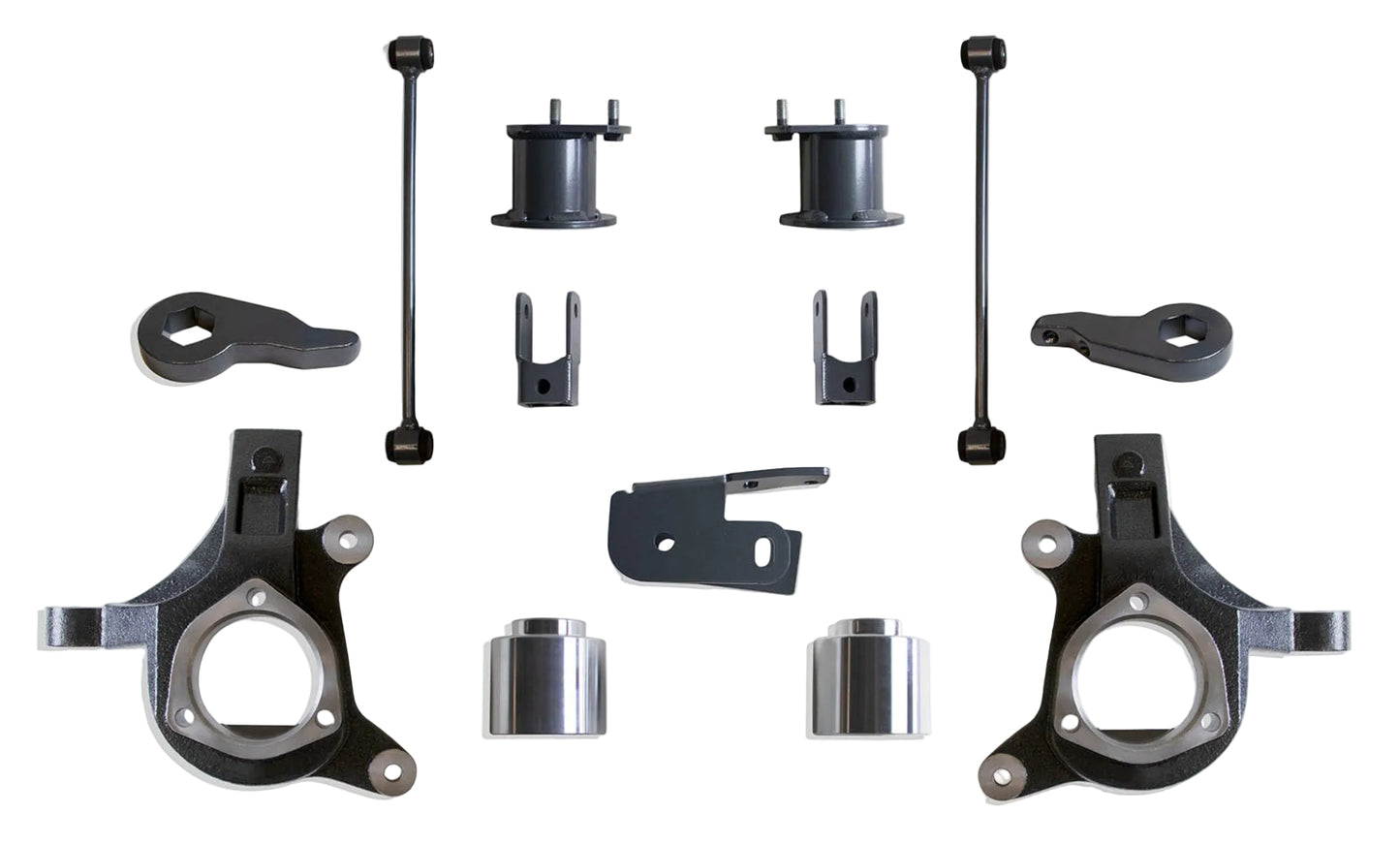

What's Included

Front lift spindles
Front torsion keys
Front shock extenders
3" rear lift coil spacers
Rear track bar bracket
Rear shock extenders
Required installation hardware as supplied by MaxTrac

Vehicle Fitment

Fits

2000–2006 Chevrolet Tahoe 2WD
2000–2006 Chevrolet Suburban 1500 2WD
2000–2006 GMC Yukon 2WD
2000–2006 GMC Yukon XL 1500 2WD

Does Not Fit

Models equipped with AutoRide suspension

Important Notes

Requires 17" wheels or larger with 4-5/8" backspacing or less.
20" wheels or larger can use up to 5-3/4" backspacing.
Factory 20" wheels or larger will fit.
Clears up to a 33" x 11.50" tire on an 8"-9" wide wheel.
Fender trimming may be required depending on wheel offset, tire dimensions, and vehicle configuration.
Does not fit AutoRide-equipped models.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these recommendations may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K881053
UPC: N/A
Tariff: N/A
Kit Type: Lift / Level
Product Type: Complete Suspension Lift Kit
Position: Front & Rear
Front Lift: 5"
Rear Lift: 3"
Drivetrain: 2WD
Lift Spindles: Included
Torsion Keys: Included
Front Shock Extenders: Included
Rear Coil Spacers: Included
Track Bar Bracket: Included
Rear Shock Extenders: Included
Maximum Tire Size: Up to 33" x 11.50"
Recommended Wheel Width: 8"-9"
Minimum Wheel Diameter: 17"
17" Wheel Backspacing: 4-5/8" or Less
20"+ Wheel Backspacing: Up to 5-3/4"
AutoRide Compatible: No
Material: Steel
Color: Grey
Finish: Grey Powder Coat
Sold As: Kit
Weight: 86 lbs
Multiple Box Item: Yes
Unit of Measure: IN

Why Choose MaxTrac K881053?

The MaxTrac K881053 combines the major front and rear components needed to create a balanced lifted stance on a 2000–2006 GM SUV 2WD. Instead of relying solely on spacers, the front uses lift spindles and torsion keys, while shock extenders accommodate the increased suspension height.
At the rear, coil spacers, a track bar bracket, and shock extenders work together to deliver the 3" lift. The result is a complete 5"/3" suspension package capable of accommodating up to 33" tires when the correct wheel specifications are followed.

Perfect For

Tahoe 2WD lift builds
Suburban 1500 suspension upgrades
Yukon lifted street trucks
Yukon XL 1500 projects
33" tire setups
5"/3" GM SUV lift applications
