MaxTrac K333524 2"/4" Lowering Kit for 1997-2003 Ford F-150 2WD

Get the Classic F-150 Street-Truck Stance

Bring your 1997–2003 Ford F-150 2WD down to a cleaner, more aggressive ride height with the MaxTrac K333524 2"/4" Lowering Kit. This complete setup combines front lowering coils, rear hangers and shackles, plus matched MaxTrac shocks at all four corners. The result is approximately a 2-inch front and 4-inch rear drop for reduced wheel gap and a balanced lowered profile.

Key Features

2" Front Lowering Coils

Front coils provide approximately 2 inches of drop on the intended extended/crew cab 5.4L V8 application.

4" Rear Drop

Matched rear hangers and shackles lower the rear approximately 4 inches for a classic 2/4 stance.

Front & Rear MaxTrac Shocks

Includes 1300SL-1 front shocks and 2150SL-2 rear shocks to complement the lowered suspension.

Lightning Model Compatible

This V8 lowering package will also fit compatible Ford F-150 Lightning models.

Complete Lowering Package

Coils, hangers, shackles, and shocks are combined into one convenient suspension kit.

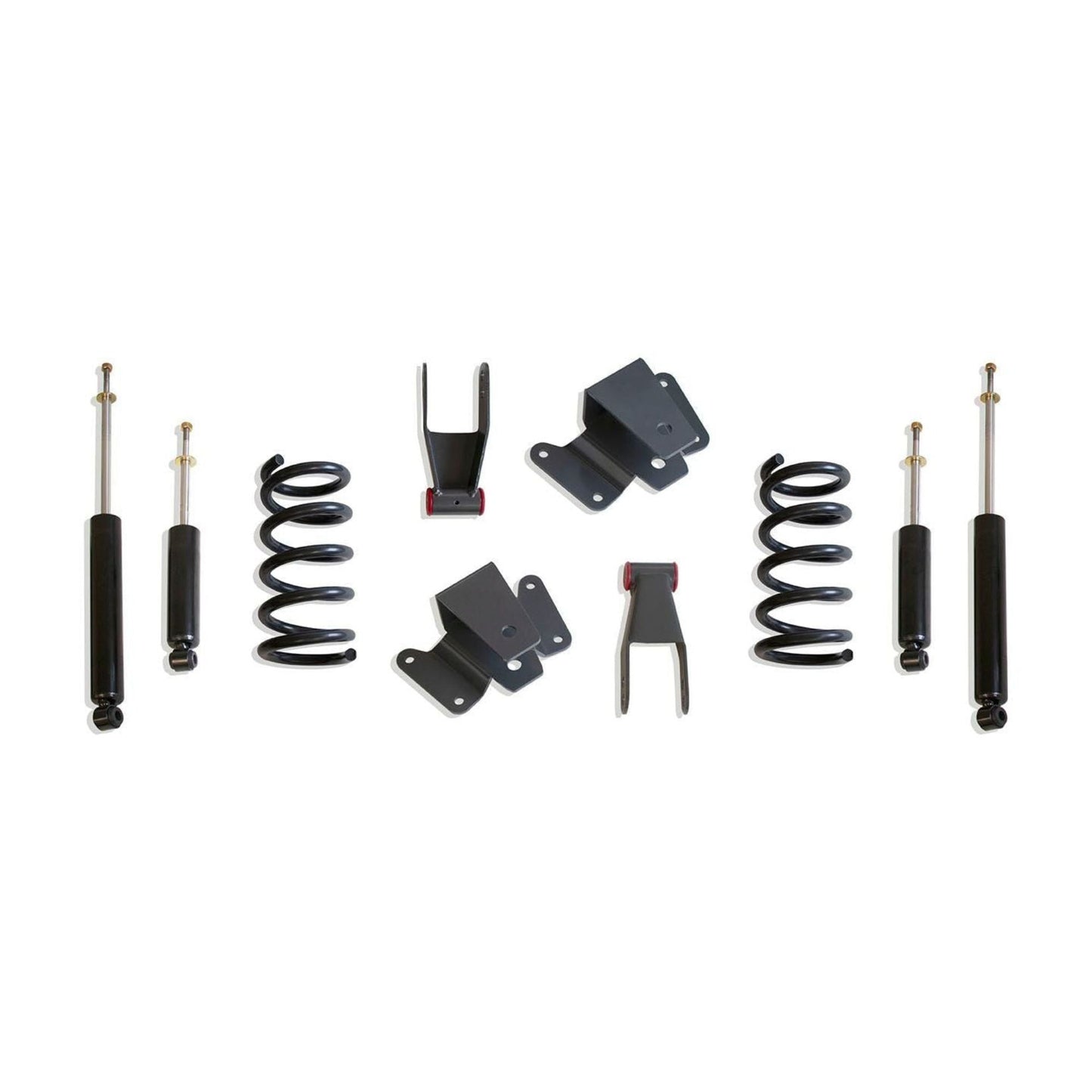

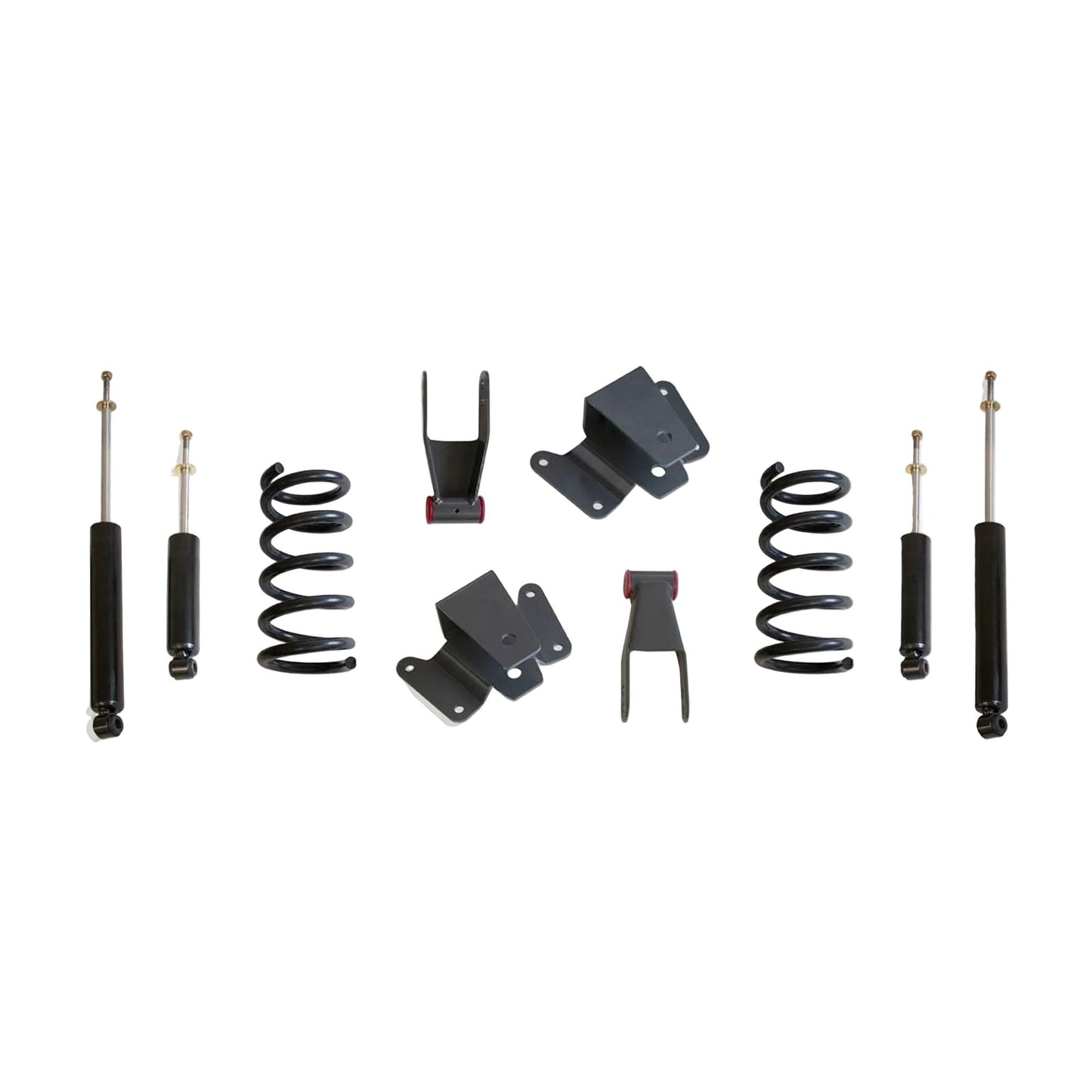

What's Included

2" front lowering coils
Rear lowering hangers
Rear lowering shackles
MaxTrac 1300SL-1 front shocks (Qty. 2)
MaxTrac 2150SL-2 rear shocks (Qty. 2)
Installation hardware

Vehicle Fitment

Fits

1997–2003 Ford F-150 2WD
Ford F-150 Lightning models within the applicable year range

Important Notes

Front coils were designed around extended/crew cab models with the 5.4L V8.
Single-cab trucks with a smaller V8 or V6 engine may experience less than the advertised 2-inch front drop.
When ordering shocks separately, quantity 2 is required because shocks are sold individually.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these recommendations will void manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K333524
UPC: N/A
Product Type: Lowering Kit
Kit Type: Lower
Front Drop: 2 Inches
Rear Drop: 4 Inches
Drivetrain: 2WD
Front Components: Lowering Coils
Rear Components: Hangers & Shackles
Front Shocks: 1300SL-1 (Qty. 2)
Rear Shocks: 2150SL-2 (Qty. 2)
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 60 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K333524?

Rather than piecing together a lowering setup, the K333524 combines front coils, rear hangers and shackles, and matched shocks into one package. It's a straightforward way to achieve the popular 2"/4" lowered stance on compatible 1997–2003 F-150 2WD trucks.

Perfect For

1997–2003 Ford F-150 2WD
Ford F-150 Lightning
2"/4" lowered trucks
Extended and crew cab 5.4L V8 models
Street-truck builds
Custom lowered F-150s
