MaxTrac K333023 2"/3" Lowering Kit for 1998-2009 Ford Ranger 2WD

Give Your Ranger a Clean, Lower Street-Truck Stance

Bring your 1998–2009 Ford Ranger 2WD closer to the pavement with the MaxTrac K333023 2"/3" Lowering Kit. This complete suspension package combines 2-inch front lowering coils with a 3-inch rear flip setup, shackles, and matched MaxTrac front and rear shocks. It's a straightforward way to reduce wheel gap and give your Ranger a balanced, aggressive stance.

Key Features

2" Front Lowering Coils

Matched front coils provide approximately 2 inches of drop for a lower front ride height and reduced fender gap.

3" Rear Drop

The rear flip kit and shackles work together to provide approximately 3 inches of rear lowering.

Front & Rear MaxTrac Shocks

Includes two 1300SL-1 front shocks and two 2200LL-9 rear shocks matched to the lowered suspension setup.

Complete Front & Rear Package

Combines lowering coils, rear flip components, shackles, and shocks into one convenient suspension kit.

Built for Ranger 2WD

Designed specifically around the suspension configuration of 1998–2009 Ford Ranger 2WD models.

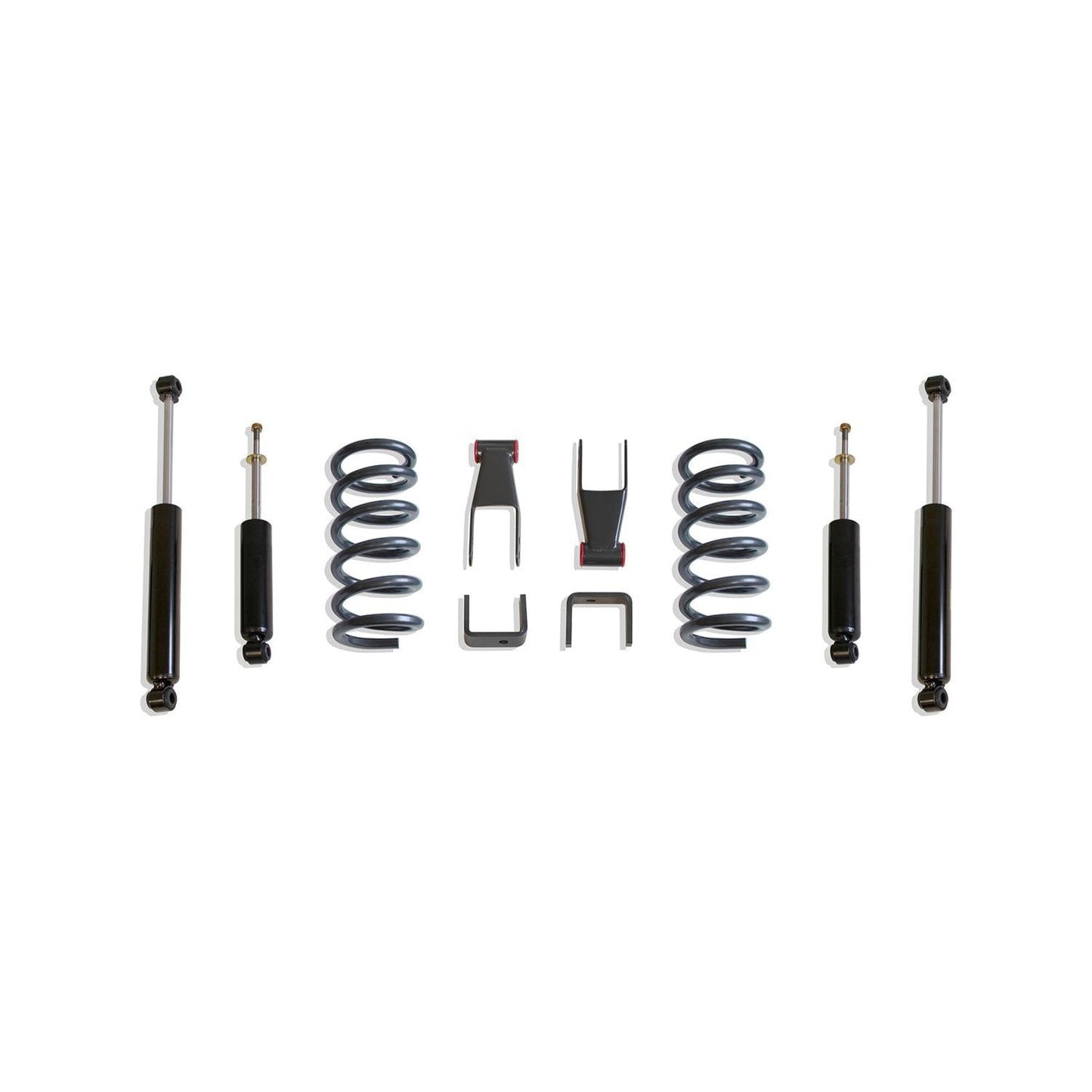

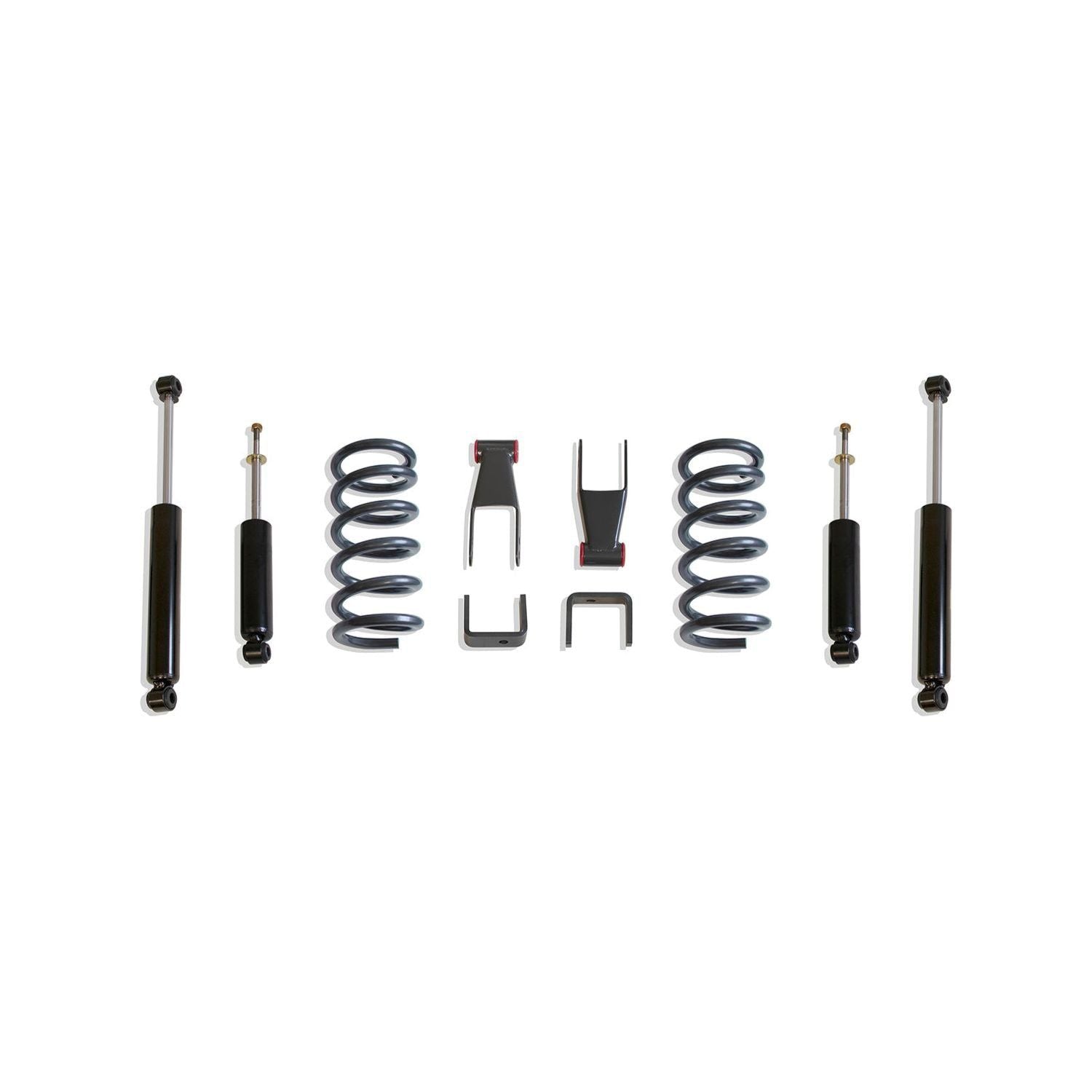

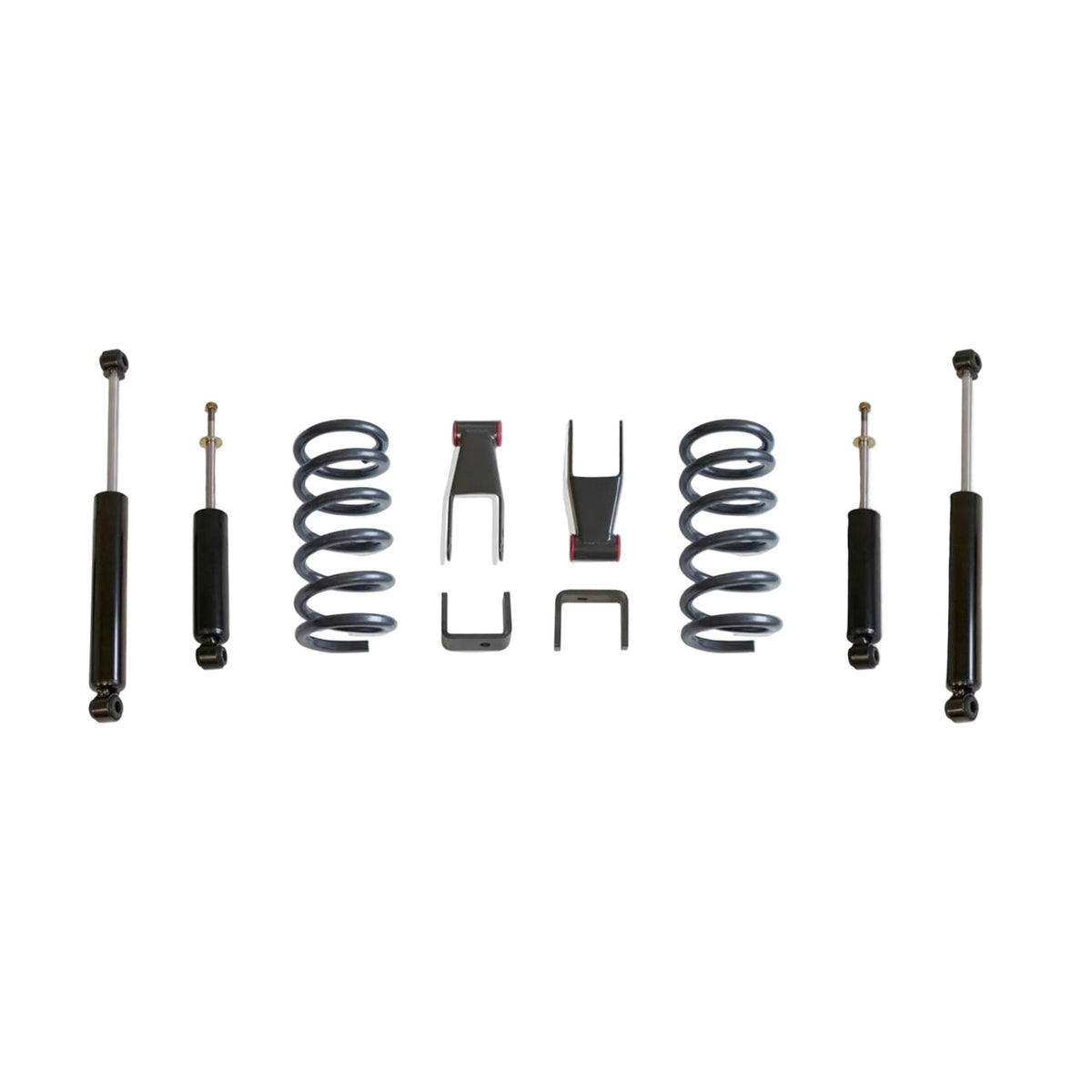

What's Included

2" front lowering coils
Rear flip kit (303050)
Rear shackles (410520)
MaxTrac 1300SL-1 front shocks (Qty. 2)
MaxTrac 2200LL-9 rear shocks (Qty. 2)
Installation hardware

Vehicle Fitment

Fits

1998–2009 Ford Ranger 2WD

Important Notes

Proper alignment may require alignment cams or aftermarket upper control arms.
When ordering shocks separately, order quantity 2 because each shock is sold individually.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these recommendations will void manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K333023
Referenced Kit Number: K333023-4
UPC: N/A
Product Type: Lowering Kit
Kit Type: Lower
Front Drop: 2 Inches
Rear Drop: 3 Inches
Drivetrain: 2WD
Front Components: Lowering Coils
Rear Components: Flip Kit & Shackles
Front Shocks: 1300SL-1 (Qty. 2)
Rear Shocks: 2200LL-9 (Qty. 2)
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 49 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K333023?

The K333023 puts the primary components for a 2"/3" Ranger drop into one matched package. Front lowering coils bring down the nose while the rear flip kit and shackles lower the back, with MaxTrac shocks included at all four corners to complete the setup.

Perfect For

1998–2009 Ford Ranger 2WD
2"/3" lowered Ranger builds
Mini-truck projects
Custom street trucks
Daily-driven lowered Rangers
Front coil and rear flip-kit setups
