MaxTrac K332924 2"/4" Lowering Kit for 2009-2024 Ram 1500 5-Lug V8

Give Your Ram 1500 a Clean 2/4 Street Truck Stance

Lower your 2009–2024 Ram 1500 5-lug V8 with the MaxTrac K332924 2"/4" Lowering Kit. This complete suspension package combines 2-inch V8-specific front lowering coils with 4-inch rear lowering coils, suspension correction components, and matched MaxTrac shocks. The result is reduced wheel gap and a more aggressive lowered profile without having to piece together the major suspension components separately.

Key Features

2" V8 Front Lowering Coils

V8-specific front coils provide approximately 2 inches of front drop for a lower, more aggressive stance.

4" Rear Lowering Coils

Rear coils are designed to provide approximately 4 inches of drop on compatible 4-door Ram 1500 models.

Track Bar Bracket

An included track bar bracket helps accommodate rear suspension geometry at the lowered ride height.

Sway Bar End Links

Matched sway bar end links are included to complement the lowered rear suspension configuration.

Front & Rear MaxTrac Shocks

Includes 1300SL-6 front shocks and 2200LL-4 rear shocks for matched damping at the new ride height.

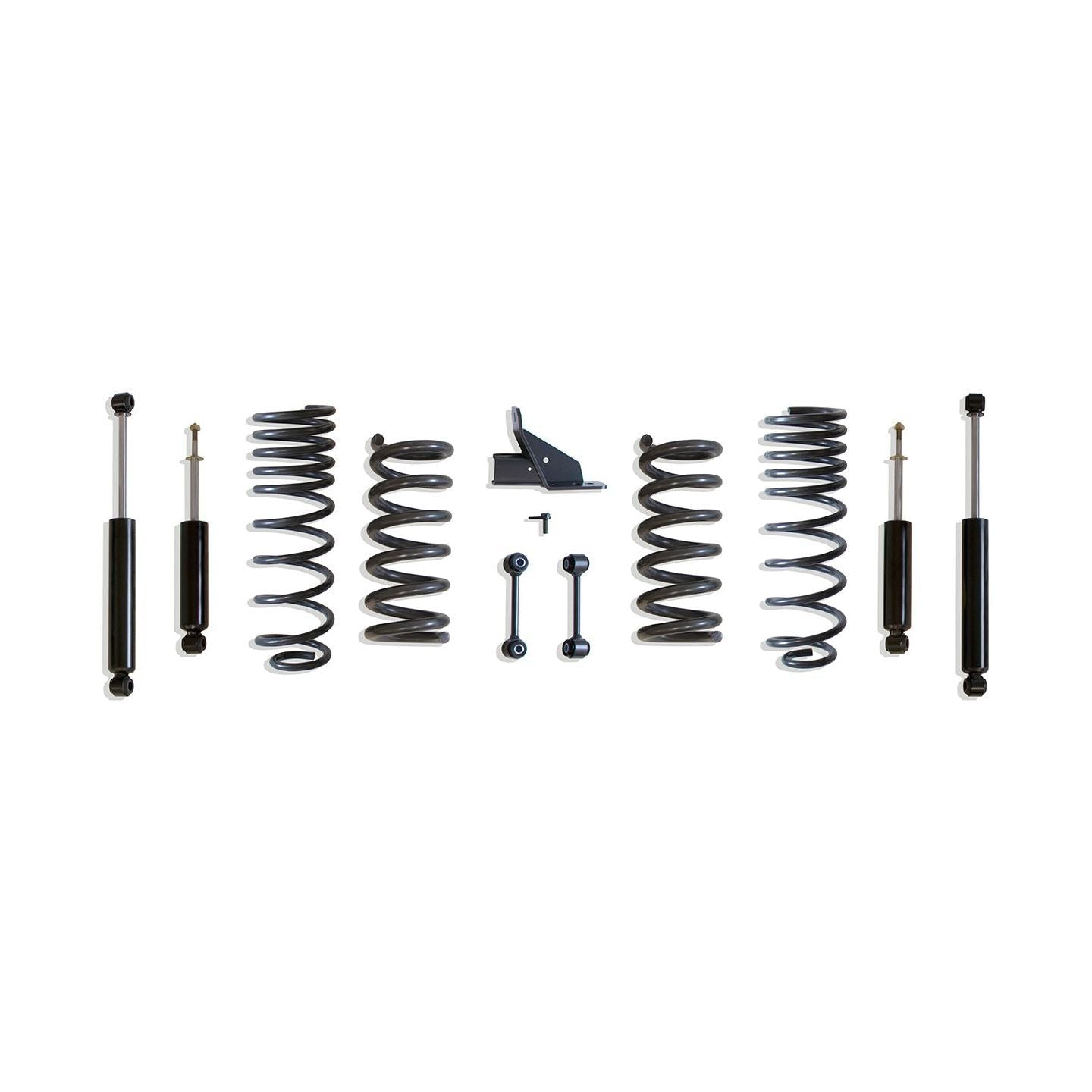

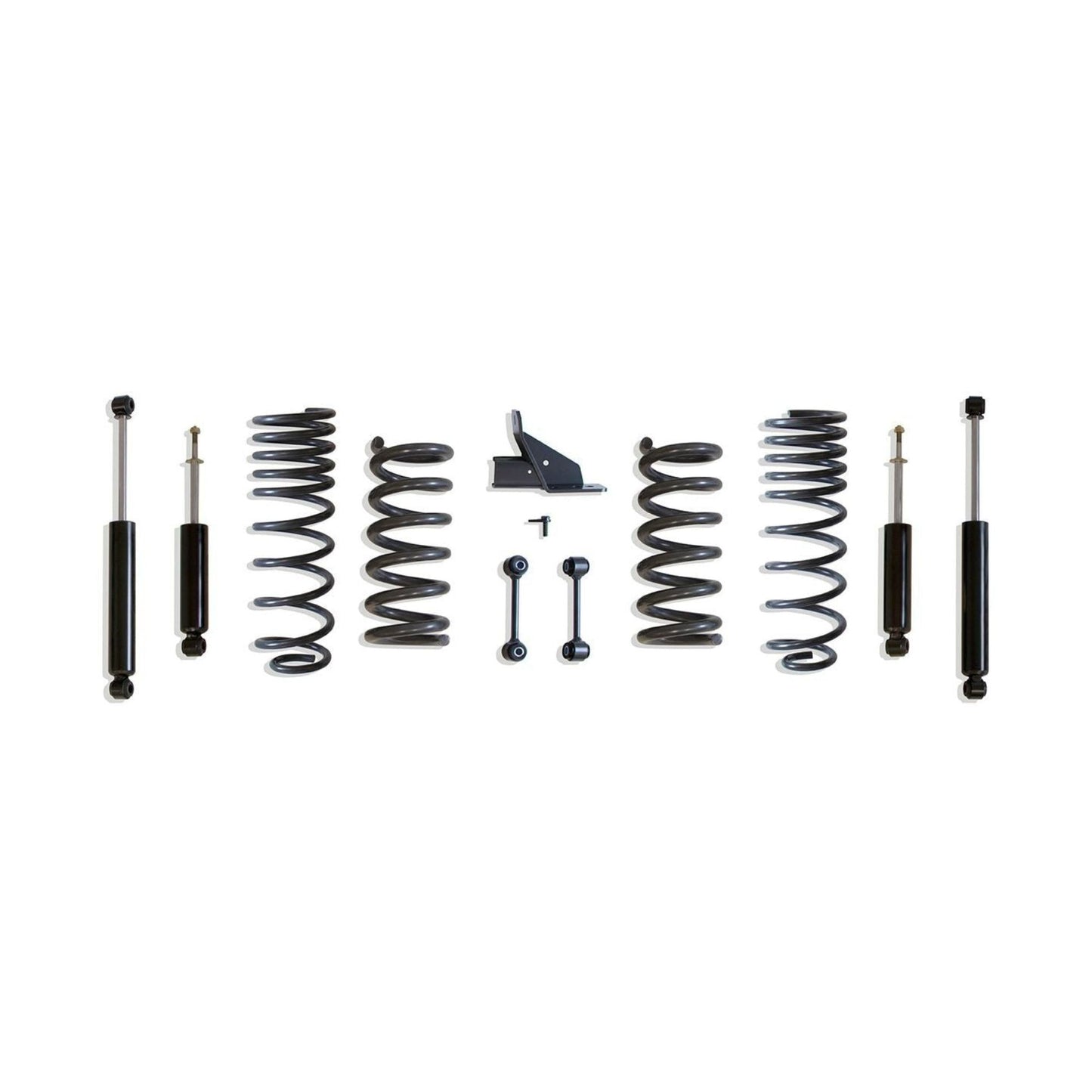

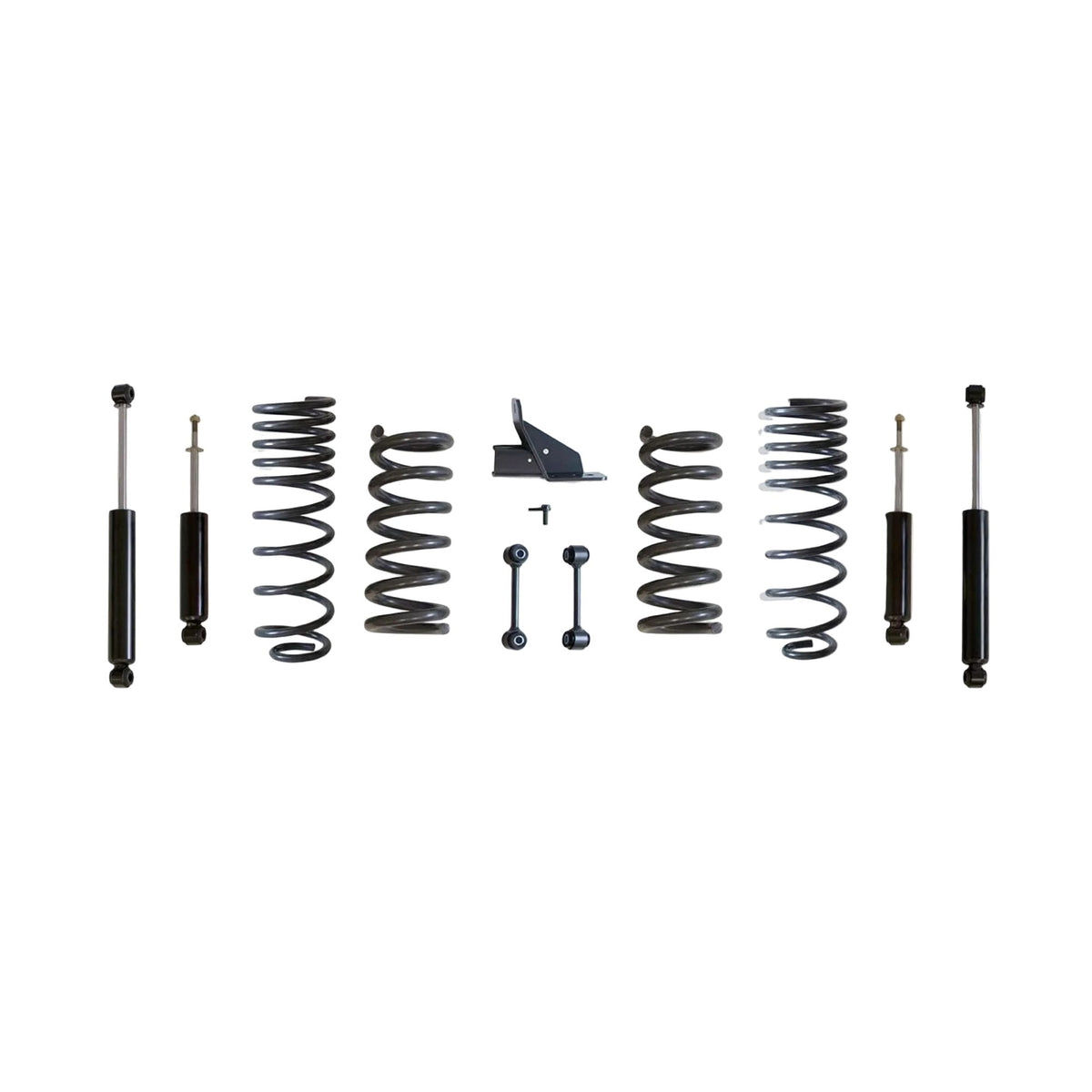

What's Included

2" V8 front lowering coils
4" rear lowering box kit (202940)
w/Track bar bracket
& Sway bar end links
MaxTrac 1300SL-6 front shocks (Qty. 2)
MaxTrac 2200LL-4 rear shocks (Qty. 2)
Installation hardware

Vehicle Fitment

Fits

2009–2024 Ram 1500 5-lug V8 models

Important Notes

Rear lowering coils are designed around 4-door models.
2-door models may not achieve the full advertised 4-inch rear drop.
This kit is designed for 5-lug Ram 1500 V8 applications.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications will void manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K332924
UPC: N/A
Product Type: Lowering Kit
Kit Type: Lower
Front Drop: 2 Inches
Rear Drop: 4 Inches
Engine: V8
Lug Configuration: 5-Lug
Front Components: Lowering Coils
Rear Components: Lowering Coils
Front Shocks: 1300SL-6 (Qty. 2)
Rear Shocks: 2200LL-4 (Qty. 2)
Additional Components: Track Bar Bracket & Sway Bar End Links
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 68 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K332924?

The K332924 combines V8-specific front lowering coils, rear drop coils, suspension correction components, and matched front and rear shocks into one package. It's a practical solution for creating a balanced 2"/4" lowered stance on a 5-lug Ram 1500 while keeping the major components matched within one system.

Perfect For

2009–2024 Ram 1500 5-lug V8
2"/4" suspension drops
Lowered street trucks
4-door Ram builds
Custom wheel setups
Daily-driven lowered Rams
