MaxTrac K332923 2"/3" Lowering Kit for 2009-2024 Ram 1500 2WD 4-Door V8

Achieve a Clean 2"/3" Drop for Your Ram 1500

Upgrade the look and handling of your 2009–2024 Ram 1500 2WD with the MaxTrac K332923 Lowering Kit. Designed specifically for 4-door V8 models, this complete suspension package includes matched front and rear lowering coils along with front and rear performance shocks to deliver a smooth, balanced 2-inch front and 3-inch rear drop.

Key Features

Complete 2"/3" Lowering Kit

Everything needed to properly lower your Ram 1500 with components engineered to work together.

V8-Specific Front Lowering Coils

Front coils are designed specifically for V8-equipped trucks to provide the correct ride height and spring rate.

Matched Front and Rear Shocks

Includes MaxTrac front and rear lowering shocks that are valved to complement the new ride height.

Balanced Street Performance

Provides a lowered stance while maintaining everyday drivability and improved handling characteristics.

Heavy-Duty Powder-Coated Construction

Quality steel suspension components feature a durable grey powder-coated finish for long-lasting corrosion resistance.

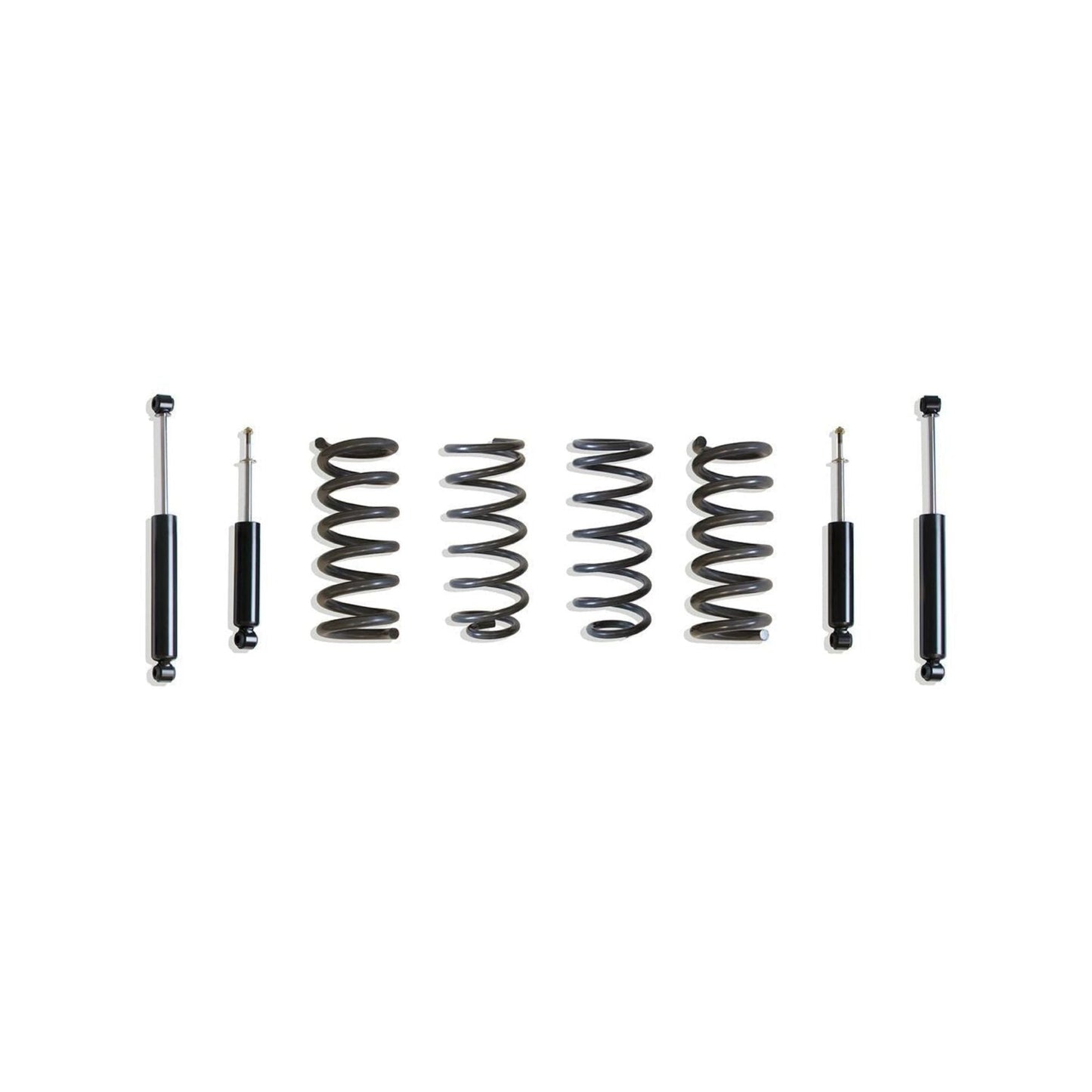

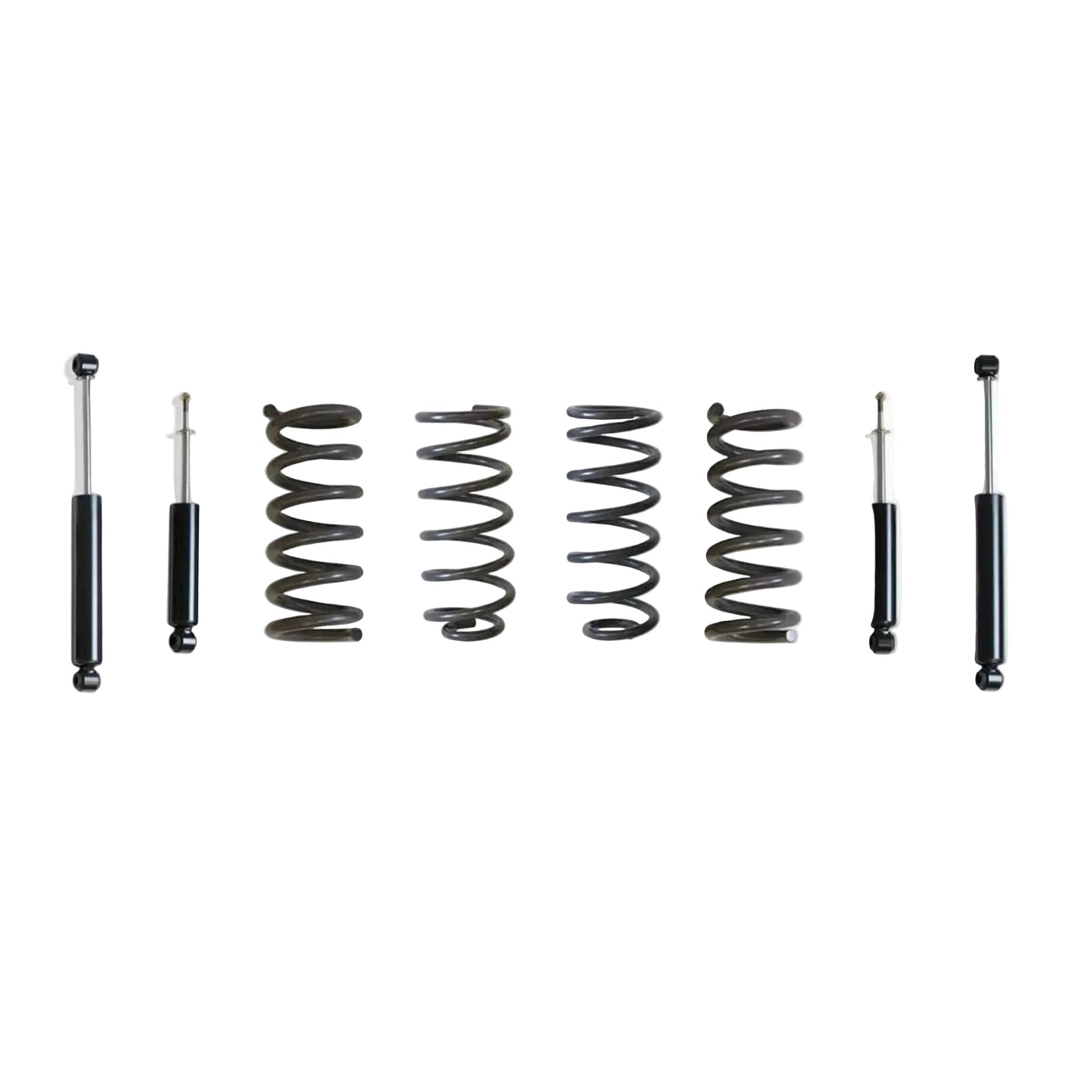

What's Included

V8 front lowering coils (252920-8)
Rear lowering coils (272930)
(2) Front lowering shocks (1300SL-6)
(2) Rear lowering shocks (2200LL-4)
Installation hardware (where supplied by manufacturer)

Vehicle Fitment

Fits

2009–2024 Ram 1500 2WD
5-Lug models
4-Door V8 models
*2-Door/Regular Cab models will be 1" less drop

Does Not Fit

4WD models
V6-equipped models

Important Notes

Designed for 4-door V8 models only.
Lowering coils are engineered around Crew Cab applications. Regular (Single) Cab models will typically achieve approximately 1 inch less rear drop.
If purchasing replacement shocks separately, front and rear shocks are sold individually—order a quantity of two for each axle.
MaxTrac does not recommend using wheels wider than 9 inches or wheels with less than 4.5 inches of backspacing. Failure to follow these recommendations may void the manufacturer's warranty.

Product Specifications

Brand: MaxTrac Suspension
Part Number: K332923
UPC: N/A
Product Type: Lowering Kit
Kit Type: Lower
Front Drop: 2 Inches
Rear Drop: 3 Inches
Front Shock Details: (2) 1300SL-6 Lowering Shocks
Rear Shock Details: (2) 2200LL-4 Lowering Shocks
Material: Steel
Finish: Grey Powdercoat
Color: Grey
Sold As: Kit
Weight: 73 lbs
Multiple Box Item: Yes

Why Choose the MaxTrac K332923?

The MaxTrac K332923 combines V8-specific lowering coils with matched performance shocks to give your Ram 1500 a clean, level stance and improved road manners. It's an ideal all-in-one solution for owners looking to lower their truck without sourcing individual suspension components.

Perfect For

Daily driven Ram 1500 trucks
Street performance builds
Custom lowered trucks
V8 owners
Complete suspension upgrades
