MaxTrac 949942E-2 Gladiator 2" Rear Lift Box

Complete the Rear Half of Your Gladiator Lift System

Finish the rear suspension portion of your 2020–2026 Jeep Gladiator lift with the MaxTrac 949942E-2 Rear Lift Box. Designed as Box 2 of 2, this package provides 2" of rear lift and includes the major rear suspension components required to complement MaxTrac's 4.5" front lift configuration.
The 949942E-2 combines rear lift coils, bump stop extensions, brake line brackets, sway bar end links, rear shock extenders, and installation hardware in one application-specific package. It is designed to be used with Part #949942E-1 to complete the corresponding front and rear MaxTrac lift system.

Key Features

2" Rear Coil Spring Lift

Included rear coil springs provide 2" of suspension lift, increasing rear ride height while maintaining a coil-spring-based suspension setup.

Rear Shock Extenders Included

The supplied rear shock extenders accommodate the increased suspension height without requiring longer replacement shocks as part of this box.

Extended Rear Sway Bar End Links

Included rear sway bar end links support the lifted suspension configuration and eliminate the need to source them separately.

Rear Bump Stop Extensions

The supplied bump stop extensions accommodate the altered rear suspension height and travel.

Brake Line Brackets

Included brake line brackets help accommodate brake line positioning with the increased rear suspension height.

Installation Hardware Included

Required hardware and miscellaneous supporting brackets are packaged with the major rear lift components.

Box 2 of 2

The 949942E-2 contains the rear suspension components only and is designed to be paired with front box 949942E-1.

What's Included

Rear 2" lift coil springs
Rear bump stop extensions
Brake line brackets
Rear sway bar end links
Rear shock extenders
Miscellaneous rear suspension brackets
Installation hardware

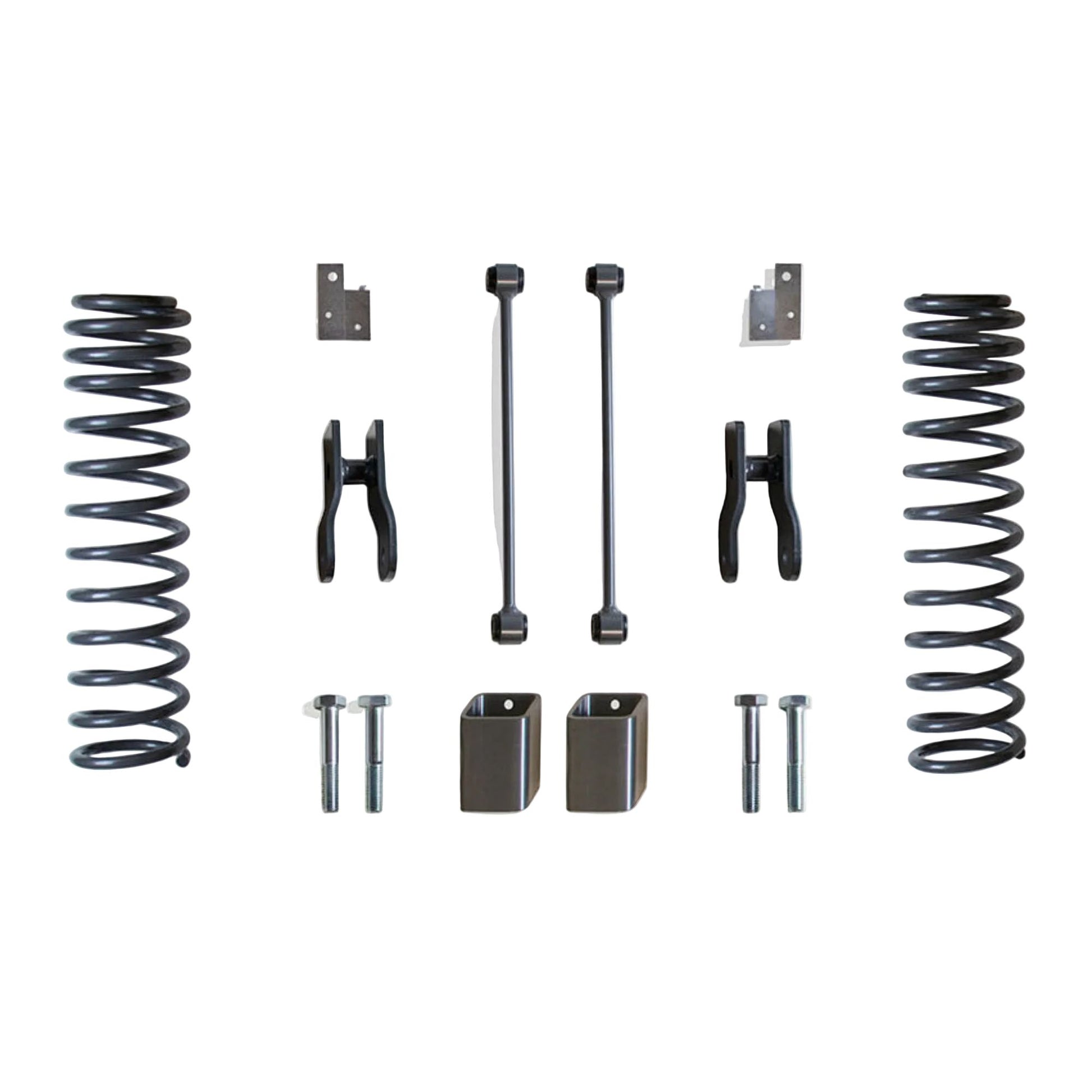

MaxTrac 949942E-2 Box 2 components

Vehicle Fitment

Fits

2020–2026 Jeep Gladiator
Compatible MaxTrac 4.5" lift system applications

Application

Box 2 of 2
Designed for use with Part #949942E-1
Associated complete kit: K949942E

Important Notes

Designed to be used in conjunction with MaxTrac Part #949942E-1.
Provides 2" of rear suspension lift.
This is Box 2 of 2 and is not a complete front and rear lift kit by itself.
Includes rear coils, bump stop extensions, brake line brackets, sway bar end links, shock extenders, miscellaneous brackets, and hardware.
MaxTrac does not recommend using wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 949942E-2
Associated Front Box: 949942E-1
Associated Complete Kit: K949942E
UPC: 706199414726
Kit Type: Lift / Level
Product Type: Rear Lift Component Box
Box: 2 of 2
Position: Rear
Rear Lift: 2"
Coil Springs: Included
Bump Stop Extensions: Included
Brake Line Brackets: Included
Sway Bar End Links: Included
Shock Extenders: Included
Installation Hardware: Included
Material: Steel
Color: Grey
Finish: Grey Powder Coat
Sold As: Combo
Weight: 55 lbs
Dimensions: 28" × 14" × 7"
Multiple Box Item: No
Unit of Measure: IN
Country of Origin: USA

Why Choose MaxTrac 949942E-2?

Rather than supplying only rear lift springs, the MaxTrac 949942E-2 combines the rear coils with the supporting components needed for the lifted suspension configuration. Sway bar end links, shock extenders, bump stop extensions, brake line brackets, and hardware are all included in the same component box.
Pairing 949942E-2 with front box #949942E-1 provides the two primary component boxes associated with the complete K949942E Gladiator suspension lift system.

Perfect For

Gladiator rear suspension lifts
2" rear coil spring applications
K949942E lift systems
949942E-1 front box combinations
Shock extender configurations
Replacement lift components
