MaxTrac 949942E-1 Gladiator 4.5" Front Lift Box

Build the Front Half of Your Gladiator 4.5" Lift System

Set up the front suspension of your 2020–2026 Jeep Gladiator with the MaxTrac 949942E-1 4.5" Front Lift Box. Designed as Box 1 of 2, this package combines the major front suspension components used in MaxTrac's 4.5" Gladiator lift system, including front lift coils, bump stop extensions, shock extenders, a front track bar, and supporting brackets.
The coil springs establish the 4.5" front lift height, while the included shock extenders accommodate the increased suspension height without supplying replacement shocks. Part #949942E-1 is designed to be paired with rear box Part #949942E-2 to complete the corresponding front and rear lift configuration.

Key Features

4.5" Front Coil Spring Lift

Included front lift coils provide the primary 4.5" suspension height increase for the Gladiator's front suspension.

Front Track Bar Included

A front track bar is included as part of the lifted suspension configuration, eliminating the need to source this major component separately.

Shock Extenders Included

The supplied front shock extenders accommodate the increased suspension height while allowing the compatible shock configuration to remain in place.

Front Bump Stop Extensions

Included bump stop extensions support the altered suspension configuration and increased lift height.

Supporting Brackets Included

Application-specific miscellaneous suspension brackets are packaged with the primary front lift components.

Box 1 of 2

The 949942E-1 contains the front lift components only and must be used with Part #949942E-2 to complete the corresponding MaxTrac lift system.

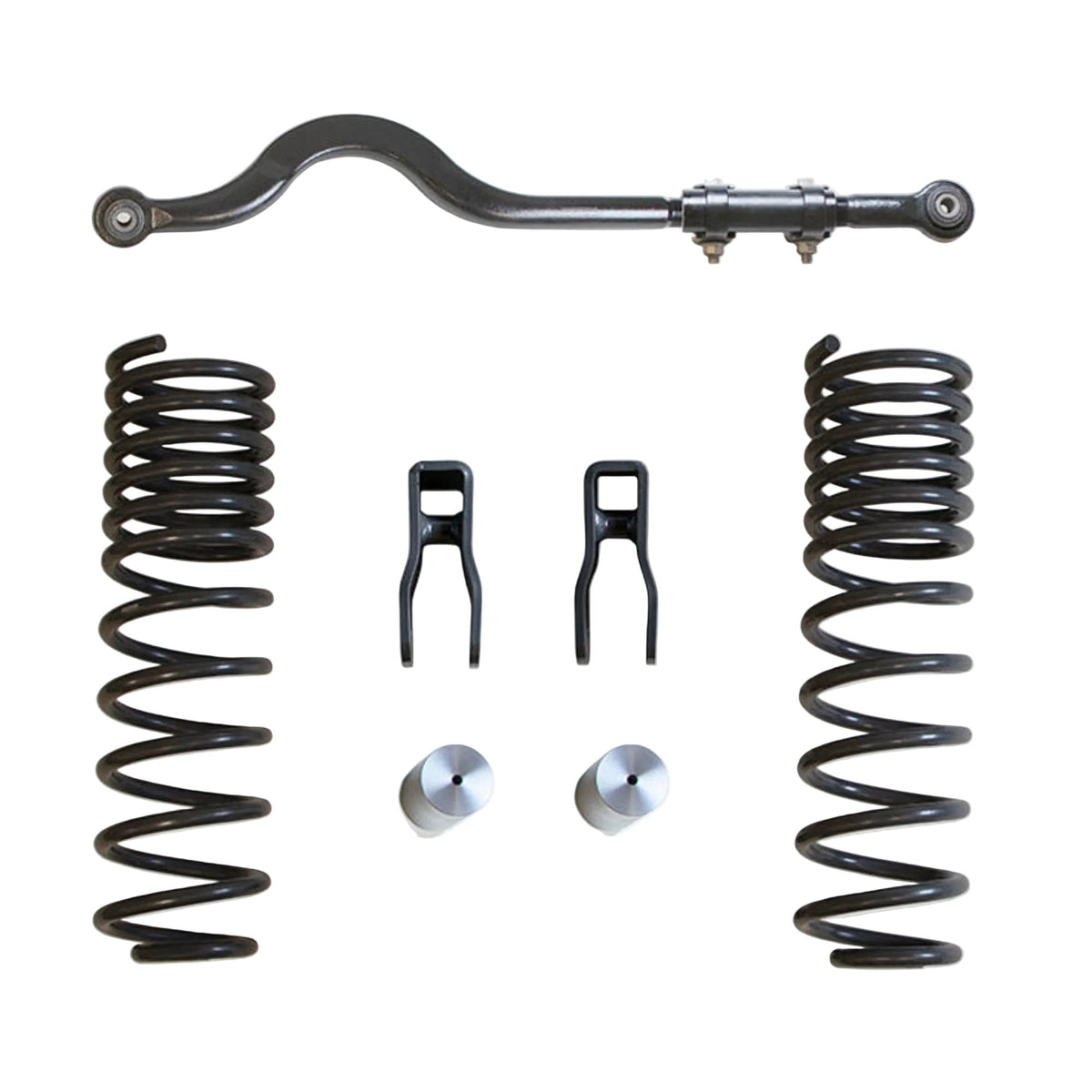

What's Included

Front 4.5" lift coil springs
Front bump stop extensions
Front shock extenders
Front track bar
Miscellaneous front suspension brackets
MaxTrac 949942E-1 Box 1 components

Vehicle Fitment

Fits

2020–2026 Jeep Gladiator
Compatible MaxTrac 4.5" lift system applications

Application

Box 1 of 2
Designed for use with Part #949942E-2
Associated complete kit: K949942E

Important Notes

Designed to be used in conjunction with MaxTrac Part #949942E-2.
Provides the components for a 4.5" front suspension lift.
This is Box 1 of 2 and is not a complete front and rear lift kit by itself.
Includes front coils, bump stop extensions, shock extenders, track bar, and miscellaneous brackets.
MaxTrac does not recommend using wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 949942E-1
Associated Rear Box: 949942E-2
Associated Complete Kit: K949942E
UPC: 706199414702
Kit Type: Lift / Level
Product Type: Front Lift Component Box
Box: 1 of 2
Position: Front
Front Lift: 4.5"
Coil Springs: Included
Bump Stop Extensions: Included
Shock Extenders: Included
Front Track Bar: Included
Miscellaneous Brackets: Included
Material: Steel
Color: Grey
Finish: Grey Powder Coat
Sold As: Combo
Weight: 60 lbs
Dimensions: 28" × 14" × 7"
Multiple Box Item: No
Unit of Measure: IN
Country of Origin: USA

Why Choose MaxTrac 949942E-1?

The MaxTrac 949942E-1 groups the essential front components of the Gladiator 4.5" suspension lift into one application-specific box. Instead of supplying only lift coils, the package adds the front track bar, shock extenders, bump stop extensions, and supporting brackets needed for the lifted front configuration.
When combined with 949942E-2, this box forms part of the complete K949942E front and rear suspension lift system.

Perfect For

Gladiator 4.5" front lift builds
K949942E suspension systems
949942E-2 rear box combinations
Front coil spring upgrades
Shock extender configurations
Replacement lift components
