MaxTrac 949931M-2 Gladiator 1.5" Rear Lift Box

Complete the Rear Suspension of Your Gladiator Lift System

Finish the rear portion of your 2020–2026 Jeep Gladiator suspension lift with the MaxTrac 949931M-2 Rear Lift Box. Designed as Box 2 of 2 for the compatible MaxTrac lift system, this package provides 1.5" of rear lift and combines the major rear suspension components needed for the lifted configuration.
The 949931M-2 includes rear lift coils, bump stop extensions, brake line brackets, extended sway bar end links, shock extenders, and installation hardware. The included shock extenders allow the compatible factory-style rear shock arrangement to be retained while supporting the increased suspension height.

Key Features

1.5" Rear Coil Spring Lift

Included rear coil springs provide 1.5" of rear suspension lift, increasing ride height while maintaining a coil-spring-based suspension configuration.

Rear Shock Extenders Included

The supplied rear shock extenders accommodate the increased suspension height without requiring replacement lift shocks as part of this box.

Extended Rear Sway Bar End Links

Included sway bar end links complement the lifted rear suspension configuration and replace the need to source these components separately.

Rear Bump Stop Extensions

The bump stop extensions are designed to accommodate the altered suspension height and travel of the lifted rear suspension.

Brake Line Brackets

Included brake line brackets help accommodate brake line positioning with the increased rear suspension height.

Installation Hardware Included

Application-specific mounting hardware and miscellaneous brackets are supplied with the major suspension components.

Box 2 of 2

The 949931M-2 contains the rear components only and is not a complete front and rear suspension lift kit by itself.

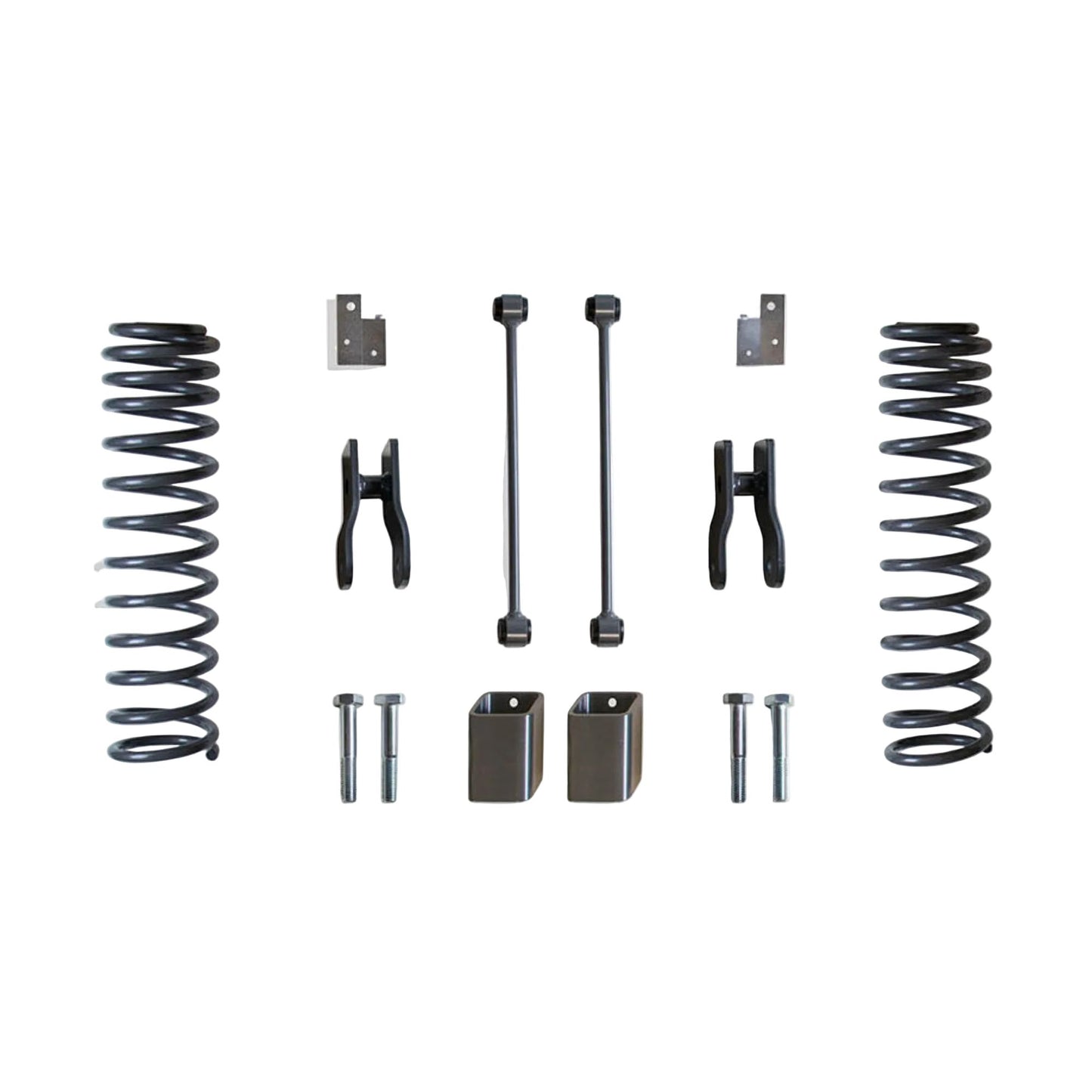

What's Included

Rear 1.5" lift coil springs
Rear bump stop extensions
Brake line brackets
Rear sway bar end links
Rear shock extenders
Miscellaneous brackets
Installation hardware
MaxTrac 949931M-2 Box 2 components

Vehicle Fitment

Fits

2020–2026 Jeep Gladiator
Compatible MaxTrac 3" lift system applications

Application

Box 2 of 2 for the compatible MaxTrac Gladiator lift configuration
Associated complete lift kit: #K949931M
Rear suspension lift height: 1.5"

Important Notes

This is Box 2 of 2 and is not a complete front and rear lift kit by itself.
Provides 1.5" of rear suspension lift.
Includes rear coils, bump stop extensions, brake line brackets, sway bar end links, shock extenders, miscellaneous brackets, and hardware.
Additional front suspension components are required to complete the full lift system.
MaxTrac does not recommend using wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 949931M-2
Associated Kit Part Number: K949931M
UPC: 706199414672
Kit Type: Lift / Level
Product Type: Rear Lift Component Box
Box: 2 of 2
Position: Rear
Rear Lift: 1.5"
Coil Springs: Included
Bump Stop Extensions: Included
Brake Line Brackets: Included
Sway Bar End Links: Included
Shock Extenders: Included
Installation Hardware: Included
Material: Steel
Color: Grey
Finish: Grey Powder Coat
Sold As: Combo
Weight: 55 lbs
Dimensions: 28" × 14" × 7"
Multiple Box Item: No
Origin Criterion: A
Unit of Measure: IN
Country of Origin: USA

Why Choose MaxTrac 949931M-2?

The MaxTrac 949931M-2 combines the major rear components of the Gladiator lift configuration into one application-specific box. Rather than supplying only rear coils, it adds the supporting bump stop extensions, brake line brackets, sway bar links, shock extenders, and hardware needed for the lifted rear suspension.
It's a practical choice for assembling, replacing, or servicing the rear portion of the compatible MaxTrac lift system without purchasing a complete front and rear kit.

Perfect For

Gladiator rear suspension lifts
1.5" rear coil lift applications
MaxTrac lift system components
Factory shock retention setups
Replacement rear lift components
Jeep JT suspension builds
