MaxTrac 949931M-1 Gladiator Mojave 3" Front Lift Box

Complete the Front Half of Your Mojave 3" Lift System

The MaxTrac 949931M-1 Front Lift Box contains the primary front suspension components used to create 3" of front lift on the 2020–2026 Jeep Gladiator Mojave. As Box 1 of 2 for the Mojave lift system, this package combines front lift coils, front bump stop extensions, front shock extenders, a front track bar, and supporting brackets into one application-specific assembly.
Rather than replacing the Mojave's factory shocks, the included front shock extenders accommodate the increased suspension height while the lift coils establish the 3" front ride height. The track bar and supporting components help complete the front suspension configuration for the lifted application.

Key Features

3" Mojave Front Lift Components

Designed around a 3" front suspension lift for 2020–2026 Jeep Gladiator Mojave applications.

Front Lift Coil Springs

Included front coil springs provide the primary front suspension height increase for the Mojave lift system.

Front Track Bar Included

A front track bar is supplied as part of the lifted suspension configuration.

Front Shock Extenders

Included shock extenders allow the factory front shock configuration to be retained with the increased suspension height.

Front Bump Stop Extensions

The supplied bump stop extensions accommodate the altered front suspension configuration created by the 3" lift.

Supporting Brackets Included

Application-specific miscellaneous brackets are packaged with the major suspension components to complete this portion of the lift system.

Box 1 of 2

The 949931M-1 is only the front component box and is not the complete K949931M suspension lift kit by itself.

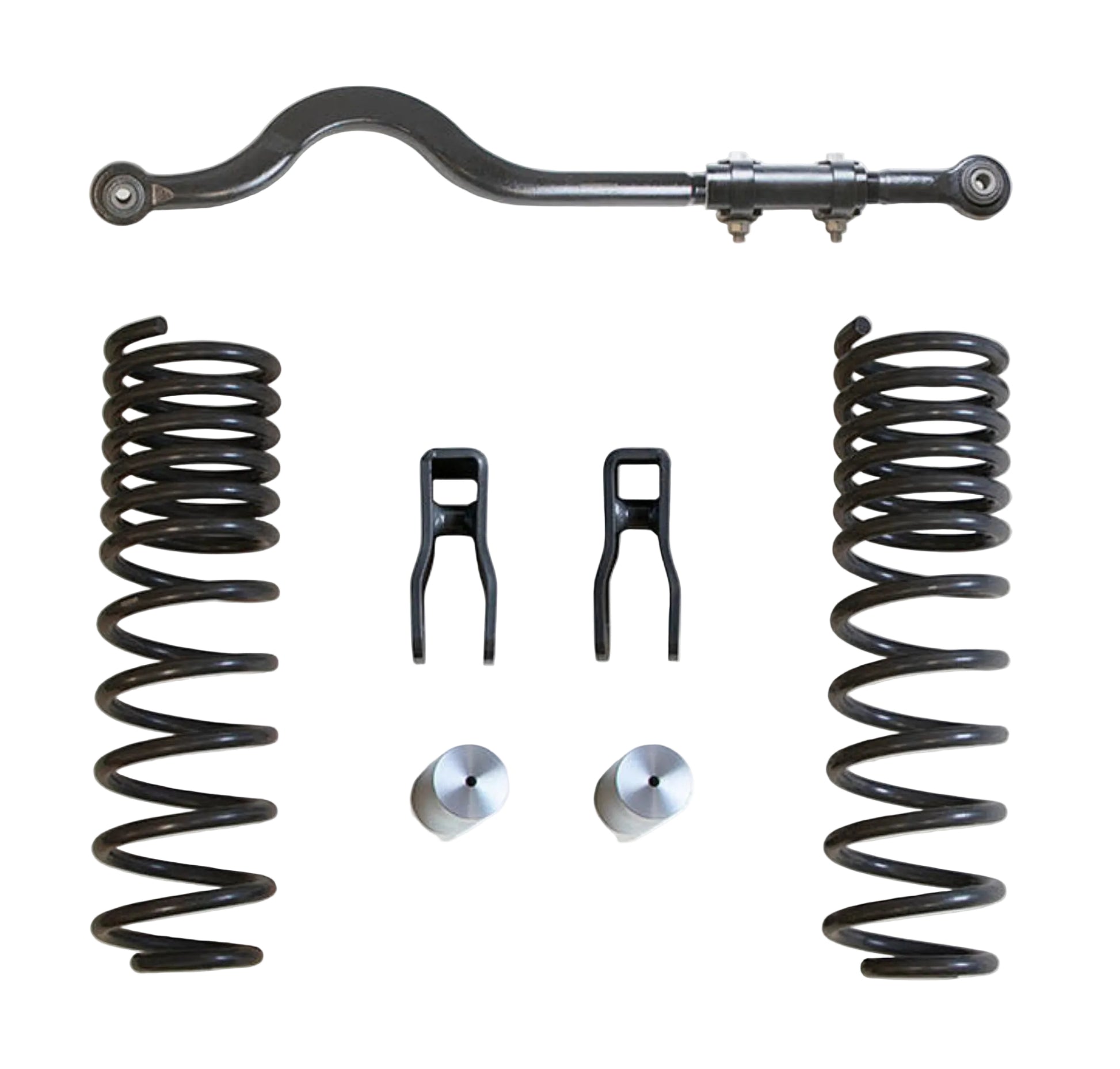

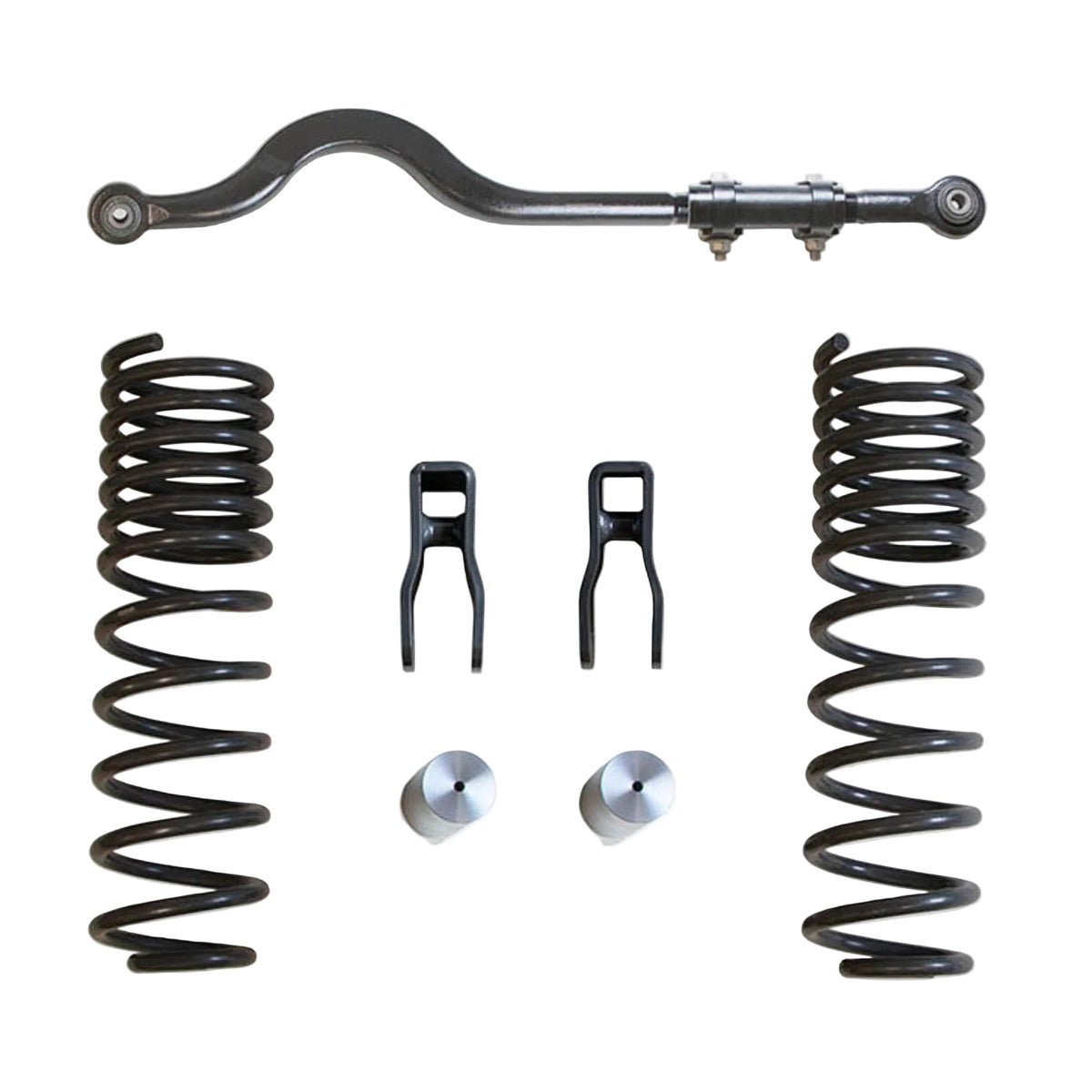

What's Included

Front 3" lift coil springs
Front bump stop extensions
Front shock extenders
Front track bar
Miscellaneous front suspension brackets
MaxTrac 949931M-1 Box 1 components

Vehicle Fitment

Fits

2020–2026 Jeep Gladiator Mojave
Front suspension applications using the compatible MaxTrac 3" Mojave lift system

Application

Box 1 of 2 for the MaxTrac Mojave lift configuration
Associated complete lift kit: #K949931M

Important Notes

This is Box 1 of 2 and is not a complete suspension lift kit by itself.
Designed for 3" front lift applications on Jeep Gladiator Mojave models.
Includes the front coils, bump stop extensions, shock extenders, track bar, and supporting brackets.
Additional components are required to complete the full front and rear lift system.
MaxTrac does not recommend using wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 949931M-1
Associated Kit Part Number: K949931M
UPC: 706199414511
Kit Type: Lift / Level
Product Type: Front Lift Component Box
Box: 1 of 2
Position: Front
Front Lift: 3"
Vehicle Configuration: Mojave
Coil Springs: Included
Bump Stop Extensions: Included
Shock Extenders: Included
Front Track Bar: Included
Miscellaneous Brackets: Included
Material: Steel
Color: Grey
Finish: Grey Powder Coat
Sold As: Combo
Weight: 60 lbs
Dimensions: 28" × 14" × 7"
Multiple Box Item: No
Origin Criterion: A
Unit of Measure: IN
Country of Origin: USA

Why Choose MaxTrac 949931M-1?

The 949931M-1 groups the major front suspension components of MaxTrac's Gladiator Mojave 3" lift system into a single replacement or component box. With lift coils, bump stop extensions, shock extenders, a track bar, and supporting brackets included, it is useful when assembling or servicing the front portion of the K949931M lift system without purchasing unrelated components.

Perfect For

Gladiator Mojave 3" front lifts
K949931M lift system components
Front suspension replacement parts
Factory shock retention
Coil spring lift applications
Mojave suspension builds
