MaxTrac 949842H Jeep Wrangler 4xe 4" Coil Spring Lift Kit

Build Your Wrangler 4xe Lift with the Shocks of Your Choice

Raise your 2021–2026 Jeep JL Wrangler 4xe Hybrid 4-door with the MaxTrac 949842H 4" Coil Spring Lift Kit. Built specifically for the 4xe platform, this suspension package delivers 4 inches of front lift and 2.5 inches of rear lift while supplying the supporting components needed to accommodate the increased suspension height.
The 949842H combines front and rear coil springs, front and rear bump stop extensions, brake line brackets, a rear track bar bracket, rear sway bar end links, and rear coil spacers. Shocks are intentionally not included, allowing you to select a compatible longer shock package or use MaxTrac 949800E shock extenders.

Key Features

4" Front / 2.5" Rear Lift

Provides 4" of front lift and 2.5" of rear lift for a significantly taller stance and increased suspension height on compatible Wrangler 4xe models.

Front & Rear Coil Springs

Uses dedicated front and rear lift coil springs as the foundation of the suspension lift.

Supporting Suspension Components Included

Front and rear bump stop extensions, brake line brackets, a rear track bar bracket, rear sway bar end links, and rear coil spacers are included to support the lifted configuration.

Rear Track Bar Correction

The included rear track bar bracket addresses the track bar mounting position as rear suspension height is increased.

Extended Rear Sway Bar Connection

Included rear sway bar end links accommodate the increased rear suspension height.

Choose Your Shock Configuration

This kit is supplied without shocks, giving you the flexibility to select compatible longer shocks or retain an appropriate shock configuration using MaxTrac 949800E shock extenders.

Wrangler 4xe-Specific Design

Engineered specifically for 2021–2026 Jeep JL Wrangler 4xe Hybrid 4-door models.

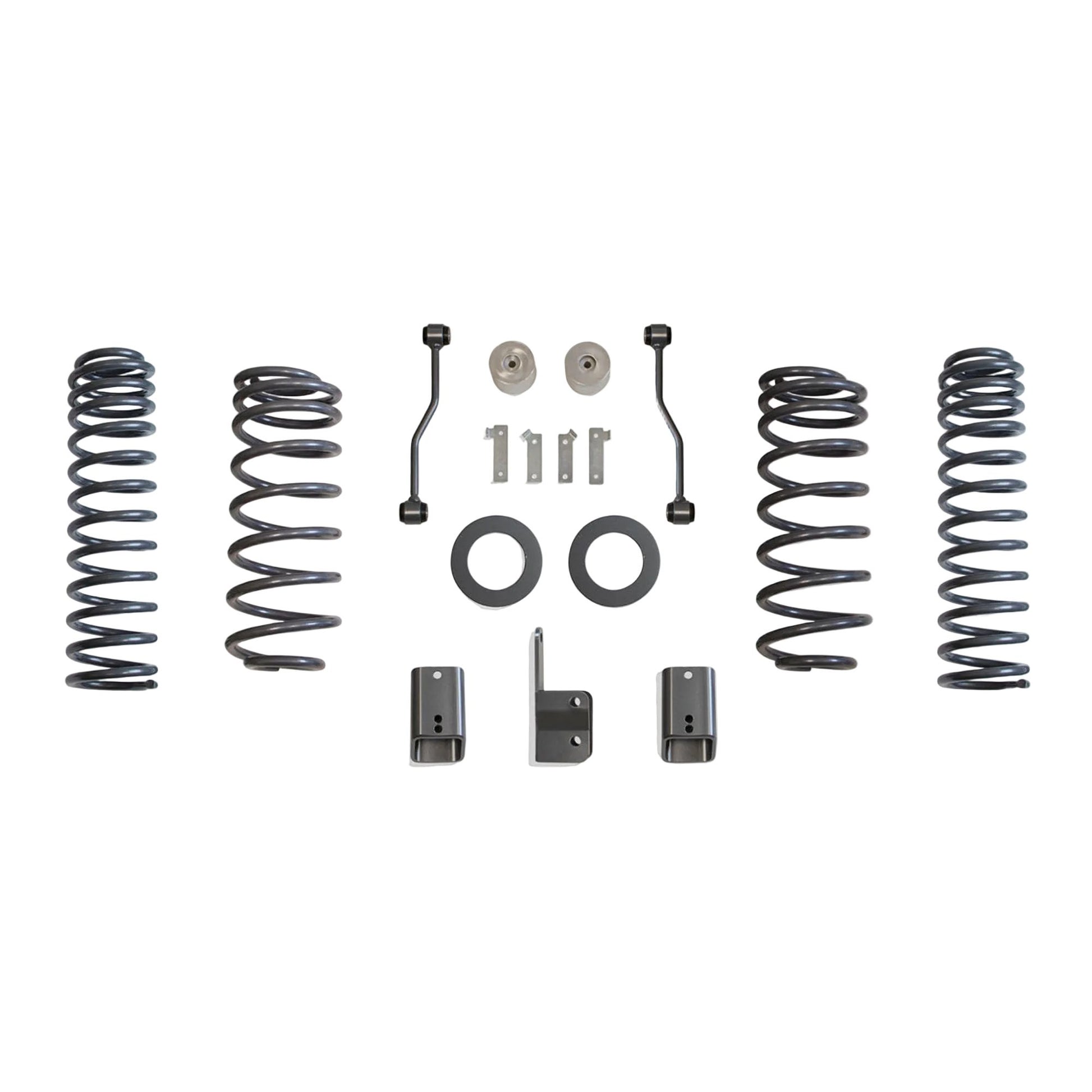

What's Included

Front coil springs
Rear coil springs
Front bump stop extensions
Rear bump stop extensions
Brake line brackets
Rear track bar bracket
Rear sway bar end links
Rear coil spacers
Shocks are not included

Vehicle Fitment

Fits

2021–2026 Jeep JL Wrangler 4xe Hybrid
4-door 4xe Hybrid models only

Does Not Fit

2-door Wrangler models
Non-4xe Wrangler applications

Important Notes

Longer shocks or MaxTrac 949800E shock extenders are required.
For compatible longer shock options, see MaxTrac 949832S, 949832V, 949832VR, or 949832F.
Fits 4-door 4xe Hybrid models only.
Shocks are not included with MaxTrac 949842H.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 949842H
UPC: 706199417055
Kit Type: Lift / Level
Product Type: Coil Spring Suspension Lift Kit
Position: Front & Rear
Front Lift: 4"
Rear Lift: 2.5"
Body Style: 4-Door
Powertrain: 4xe Hybrid
Shocks Included: No
Shock Extender Option: 949800E
Longer Shock Options: 949832S / 949832V / 949832VR / 949832F
Material: Steel
Color: Grey
Finish: Grey Powder Coat
Sold As: Kit
Weight: 70 lbs
Dimensions: 24" × 16" × 8"
Multiple Box Item: No
Origin Criterion: C
Unit of Measure: IN
Country of Origin: USA

Why Choose MaxTrac 949842H?

The 949842H is designed for Wrangler 4xe owners who want a complete coil-based suspension lift without being locked into a specific shock package. The kit provides the primary lift springs plus bump stop, brake line, track bar, sway bar, and rear coil spacer components while leaving the shock choice open for a customized suspension build.

Perfect For

Wrangler 4xe suspension builds
4" front lift applications
Custom shock configurations
4-door hybrid Jeeps
Coil spring suspension upgrades
Owners selecting shocks separately
