MaxTrac 947200-7 Radius Arm Drop Brackets Ram 2500/3500

Correct Radius Arm Positioning for Your 2.5" Lifted Ram HD

Maintain the suspension geometry needed for a properly configured 2.5-inch Ram HD lift with the MaxTrac 947200-7 Radius Arm Drop Bracket Kit. Designed for 2014–2026 Ram 2500 and 3500 4WD trucks, this Box 2 package includes heavy-duty radius arm drop brackets and the required installation hardware.
By relocating the factory radius arm mounting points, these brackets accommodate the increased suspension height created by the MaxTrac 2.5-inch lift system. The steel components are made in the USA and finished in durable grey powder coat. Additional MaxTrac component boxes are required to complete the lift kit.

Key Features

Radius Arm Mount Relocation

The radius arm drop brackets reposition the factory mounting locations to accommodate the suspension geometry associated with a 2.5-inch front lift.

Designed for a 2.5" Lift

Engineered specifically as part of MaxTrac's 2.5-inch Ram 2500/3500 4WD lift system.

Installation Hardware Included

Supplied with the necessary radius arm bracket hardware for installation as part of the complete MaxTrac suspension package.

Heavy-Duty Steel Construction

Fabricated from steel for the strength required in heavy-duty Ram 2500 and 3500 suspension applications.

Grey Powder-Coated Finish

A durable grey powder coat provides corrosion protection while matching other MaxTrac suspension components.

Made in the USA

Manufactured in the USA as a dedicated component of MaxTrac's Ram HD lift system.

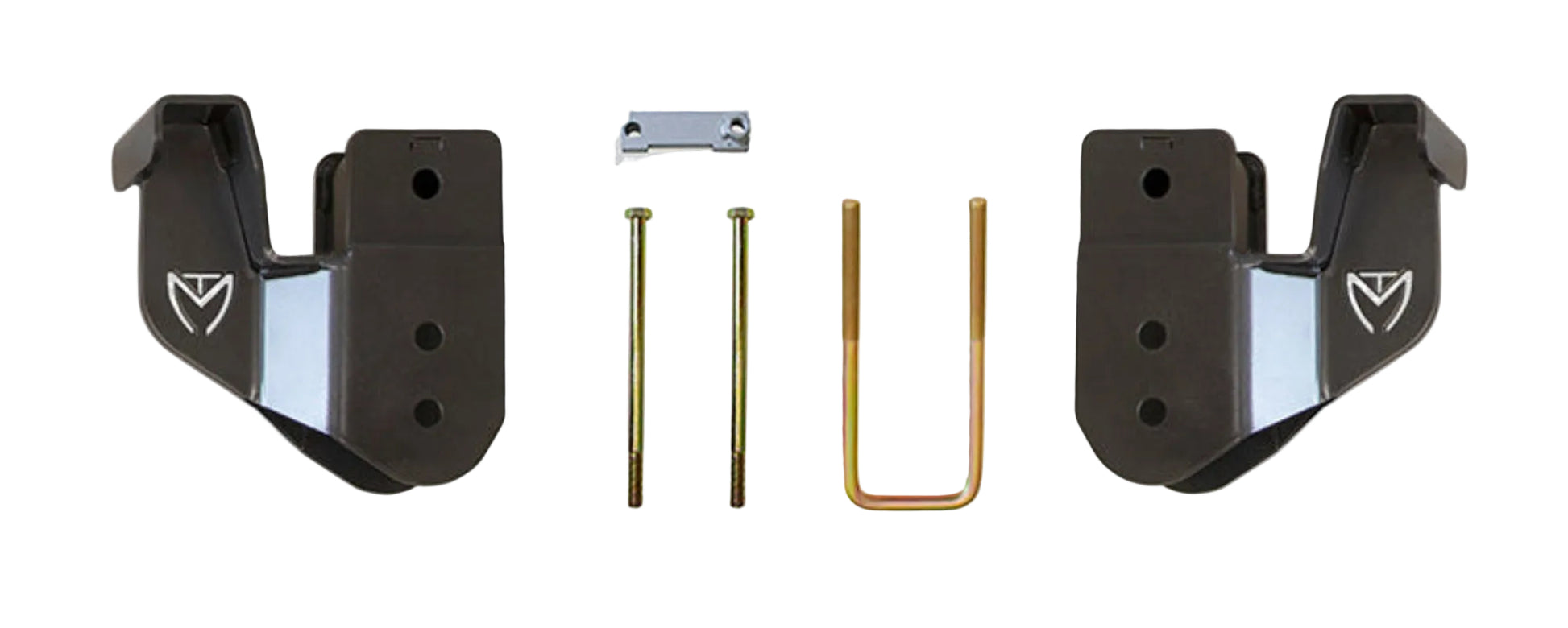

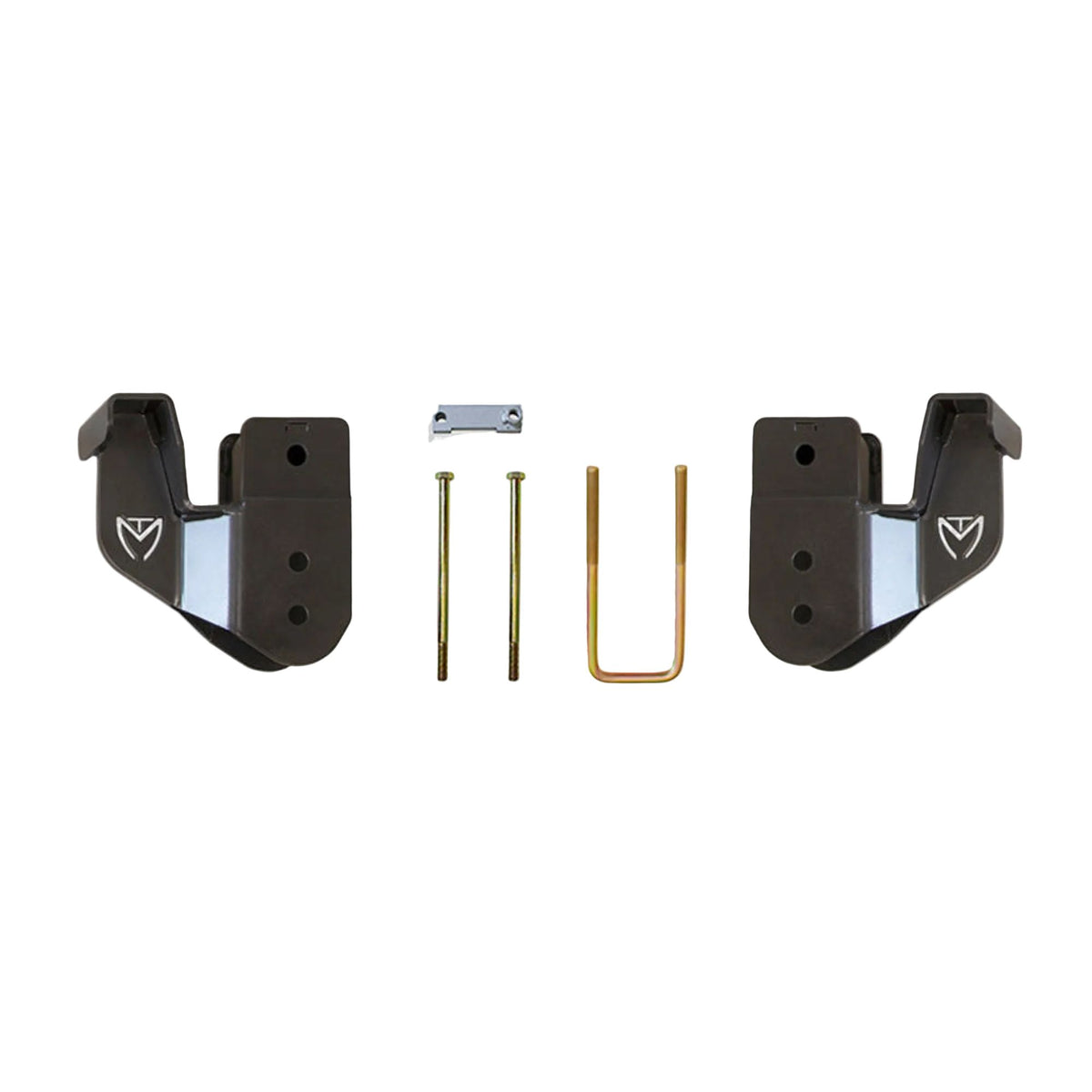

What's Included

Radius arm drop brackets
Installation hardware
MaxTrac 947200-7 Box 2 component package

Vehicle Fitment

Fits

2014–2026 Ram 2500 4WD
2014–2026 Ram 3500 4WD

Does Not Fit

Cab/Chassis "Fleet" models
Power Wagon models

Gas Model Note

MaxTrac states the lift system may fit gas models but has not been tested on them. Gas fitment should therefore be verified before installation.

Important Notes

Additional component boxes are required to make a complete 2.5" lift kit.
This listing is for the radius arm drop brackets and hardware only.
Does not fit Cab/Chassis "Fleet" models.
Does not fit Power Wagon models.
MaxTrac states the kit may fit gas models but has not been tested on them.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 947200-7
UPC: 706199415617
Kit Type: Lift / Level
Product Type: Radius Arm Drop Bracket Kit
Position: Front
Lift Height Option: 2.5"
Kit Design: Radius Arm Drop Brackets
Engine Type: Gas / Diesel
Drive Type: 4WD
Material: Steel
Color: Grey
Finish: Grey Powder Coat
Sold As: Combo
Weight: 40 lbs
Dimensions: 16" × 16" × 8"
Multiple Box Item: No
Origin Criterion: B
Unit of Measure: IN
Country of Origin: USA

Why Choose MaxTrac 947200-7?

Raising a radius-arm Ram HD changes the relationship between the axle, radius arms, and factory chassis mounting points. The 947200-7 provides purpose-built drop brackets that relocate those mounting points for MaxTrac's 2.5-inch lift configuration, making them an important component of the complete suspension system.

Perfect For

Ram 2500 2.5" lift systems
Ram 3500 4WD suspension builds
Radius arm geometry correction
MaxTrac Ram HD lift packages
Heavy-duty suspension projects
2014–2026 Ram applications
