MaxTrac 907255A 5.5" Rear Lift Kit Ram 2500 Air Ride

Complete the Rear of Your 8-Inch Lifted Ram 2500

Set up the rear suspension of your 2014–2026 Ram 2500 4WD for an 8-inch lift configuration with the MaxTrac 907255A 5.5" Rear Lift Box Kit. Built specifically for trucks equipped with factory rear Air Ride, this package raises the rear approximately 5.5 inches while retaining the factory air suspension system.
MaxTrac combines the rear air spring spacers with a track bar bracket, sway bar extensions, and bump stop extension brackets, providing the supporting components needed for the increased rear suspension height on compatible gas and diesel trucks.

Key Features

5.5" Rear Air Ride Lift

Rear air spring spacers provide approximately 5.5 inches of additional height while allowing compatible trucks to retain their factory rear Air Ride suspension.

Built for 8" Lift Configurations

The 907255A is designed as the rear box package for compatible MaxTrac 8-inch Ram 2500 lift configurations.

Track Bar Bracket

An included track bar bracket helps accommodate the altered track bar position created by the increased rear ride height.

Sway Bar Extensions

Matched sway bar extensions provide the additional length required for the raised rear suspension setup.

Bump Stop Extension Brackets

Included bump stop extension brackets reposition the bump stops to accommodate the increased suspension height.

Gas & Diesel Compatible

Designed for compatible Ram 2500 4WD trucks with either gas or diesel engines and factory rear Air Ride suspension.

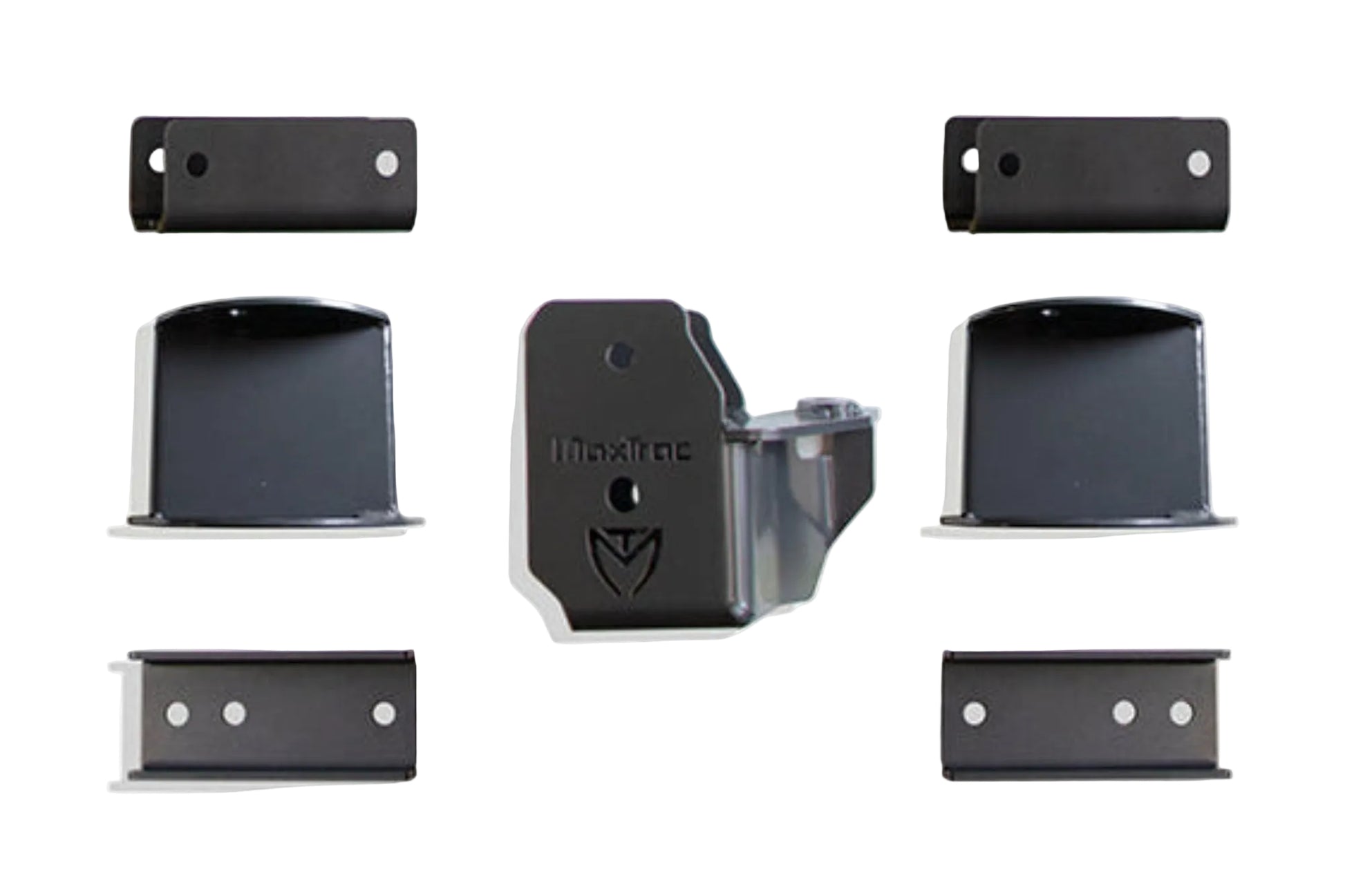

What's Included

5.5" rear air spring spacers
Track bar bracket
Sway bar extensions
Bump stop extension brackets
MaxTrac 907255A rear lift box kit

Vehicle Fitment

Fits

2014–2026 Ram 2500 4WD
Gas engine models
Diesel engine models
Factory rear Air Ride suspension

Important Notes

Fits factory rear Air Ride suspension models only.
Does not fit Cab/Chassis "Fleet" models.
Does not fit Power Wagon models.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 907255A
UPC: 706199415143
Kit Type: Lift / Level
Product Type: Rear Air Ride Lift Box Kit
Rear Lift: 5.5"
Lift Height Option: 8"
Position: Rear
Drive Type: 4WD
Engine Type: Gas / Diesel
Suspension Type: Factory Rear Air Ride
Material: Steel
Color: Grey
Finish: Grey Powdercoat
Sold As: Combo
Weight: 25 lbs
Dimensions: 16" × 16" × 8"
Multiple Box Item: No
Origin Criterion: B
Unit of Measure: IN
Country of Origin: USA

Why Choose the MaxTrac 907255A?

A large lift on a factory Air Ride Ram requires supporting hardware beyond the air spring spacers themselves. The 907255A combines the 5.5-inch spacers with track bar, sway bar, and bump stop correction components, creating a coordinated rear suspension package for compatible 8-inch lift configurations.

Perfect For

Ram 2500 factory Air Ride builds
8-inch lift configurations
5.5-inch rear suspension lifts
Gas and diesel 4WD trucks
Custom lifted pickups
Rear air spring spacer setups
