MaxTrac 907215A 1.5" Rear Lift Kit Ram 2500 Air Ride

Add Rear Height While Retaining Factory Air Ride

Raise the rear of your 2014–2026 Ram 2500 4WD without eliminating the factory air suspension with the MaxTrac 907215A 1.5" Rear Lift Box Kit. Designed specifically for trucks equipped with factory rear Air Ride, this package adds approximately 1.5 inches of rear height while providing the supporting components needed for the modified suspension position.
The kit combines rear air spring spacers with a track bar bracket, sway bar extensions, and bump stop extension brackets, making it a purpose-built rear suspension package for compatible gas and diesel Ram 2500 trucks.

Key Features

1.5" Rear Air Ride Lift

Rear air spring spacers provide approximately 1.5 inches of additional ride height while retaining the truck's factory rear Air Ride suspension.

Track Bar Correction Bracket

An included track bar bracket helps accommodate the altered rear suspension position created by the lift.

Sway Bar Extensions Included

Matched sway bar extensions provide the additional length needed for the raised rear suspension configuration.

Bump Stop Extension Brackets

Included bump stop extensions reposition the factory bump stop system for compatibility with the increased rear ride height.

Gas & Diesel Compatibility

Designed for compatible 2014–2026 Ram 2500 4WD trucks with either gas or diesel engines and factory rear Air Ride.

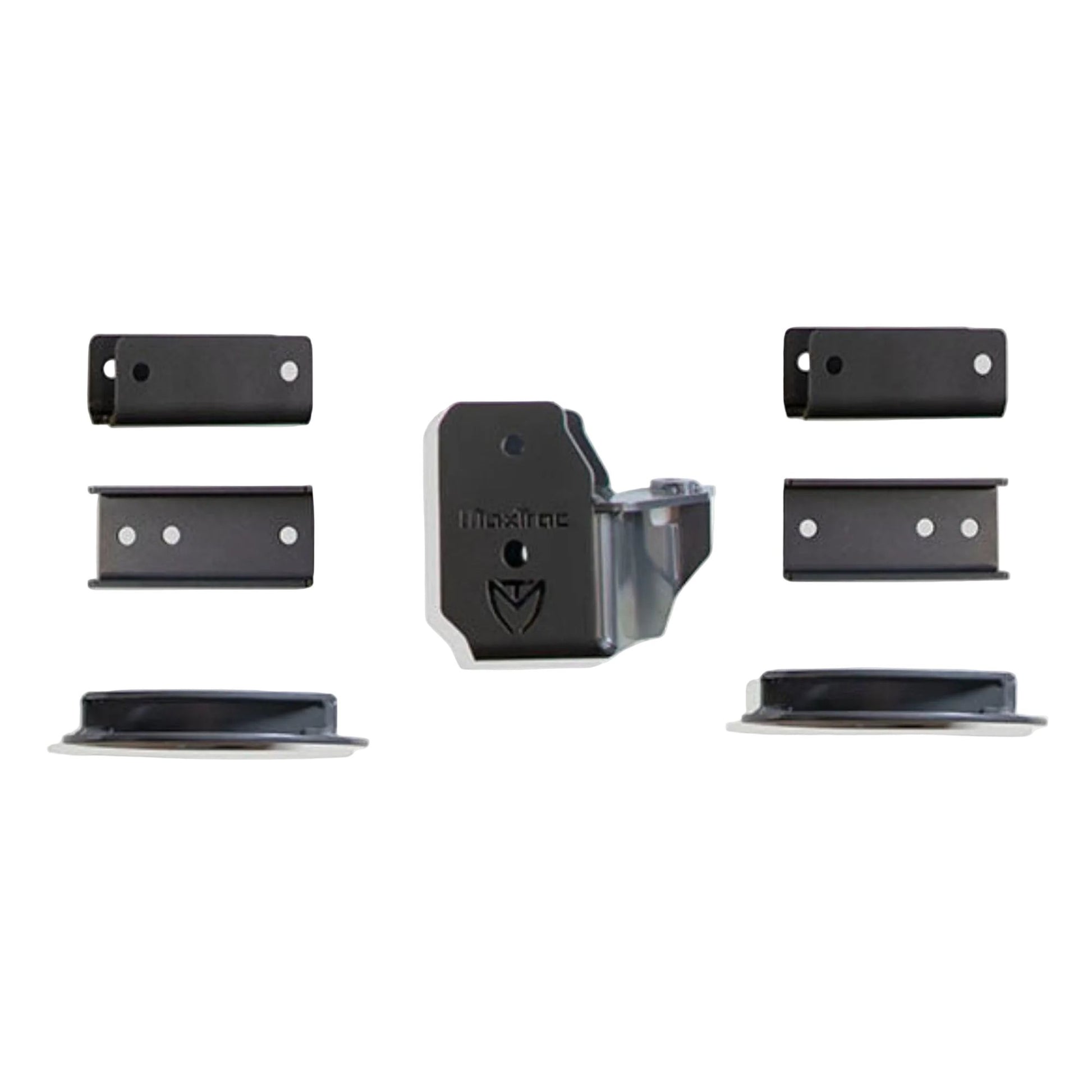

What's Included

1.5" rear air spring spacers
Track bar bracket
Sway bar extensions
Bump stop extension brackets
MaxTrac 907215A rear lift box kit

Vehicle Fitment

Fits

2014–2026 Ram 2500 4WD
Gas engine models
Diesel engine models
Factory rear Air Ride suspension only

Important Notes

Fits factory rear Air Ride suspension models only.
Does not fit Cab/Chassis "Fleet" model trucks.
Does not fit Power Wagon models.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 907215A
UPC: 706199415129
Kit Type: Lift / Level
Product Type: Rear Air Ride Lift Box Kit
Rear Lift: 1.5"
Lift Height Option: 4"
Position: Rear
Drive Type: 4WD
Engine Type: Gas / Diesel
Suspension Type: Factory Rear Air Ride
Material: Steel
Color: Grey
Finish: Grey Powdercoat
Sold As: Combo
Weight: 25 lbs
Dimensions: 16" × 16" × 8"
Country of Origin: USA

Why Choose the MaxTrac 907215A?

Lifting a factory Air Ride truck requires more than adding a basic spacer. The 907215A combines the 1.5-inch air spring spacers with track bar, sway bar, and bump stop correction components to create a coordinated rear suspension package specifically for compatible Ram 2500 Air Ride applications.

Perfect For

Ram 2500 factory Air Ride trucks
1.5-inch rear suspension lifts
Gas and diesel 4WD builds
Rear ride height upgrades
Air spring spacer applications
