MaxTrac 902740 4" Rear Lift Box Kit with Front Strut Spacers & Rear Shocks for 2019-2024 Ram 1500 2WD 6-Lug

Finish your Ram 1500 suspension build with the MaxTrac 902740 Rear Lift Box Kit. Designed specifically for 2019-2024 Ram 1500 2WD 6-lug trucks, this complete suspension package includes 3-inch front strut spacers, 4-inch rear lift coils, a rear track bar bracket, sway bar brackets, and a pair of MaxTrac rear shocks. When combined with the matching MaxTrac front lift components, this kit completes a full 7-inch suspension lift while maintaining excellent ride quality and suspension geometry.

Built from heavy-duty steel and finished in MaxTrac's durable grey powder coat, the 902740 delivers the strength, durability, and performance needed for daily driving, towing, and off-road adventures.

Key Features

Complete 7" Lift Companion Kit

Designed to work with the matching MaxTrac front lift system to create a complete 7-inch suspension lift.

3" Front Strut Spacers Included

Includes front strut spacers to achieve the proper front ride height and stance.

4" Rear Lift System

Heavy-duty rear lift coils provide 4 inches of rear lift while maintaining excellent ride quality.

Suspension Geometry Correction

Includes a rear track bar bracket and sway bar brackets to help maintain proper axle alignment and handling after lifting.

MaxTrac Rear Shocks Included

Includes (2) MaxTrac 2800SL-8 rear shocks specifically valved for lifted Ram applications.

Heavy-Duty Steel Construction

Manufactured from premium steel with a corrosion-resistant grey powder coat finish for years of dependable service.

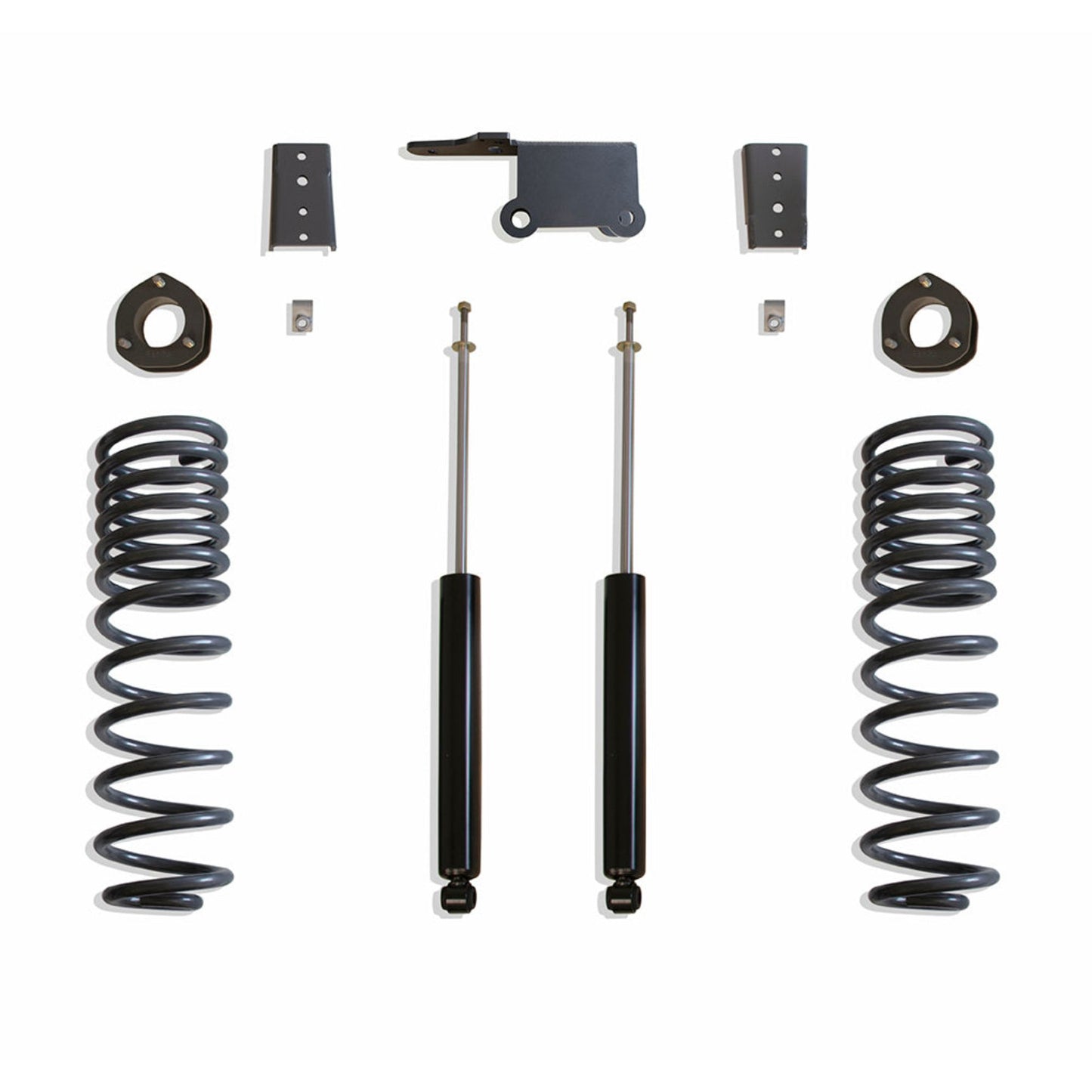

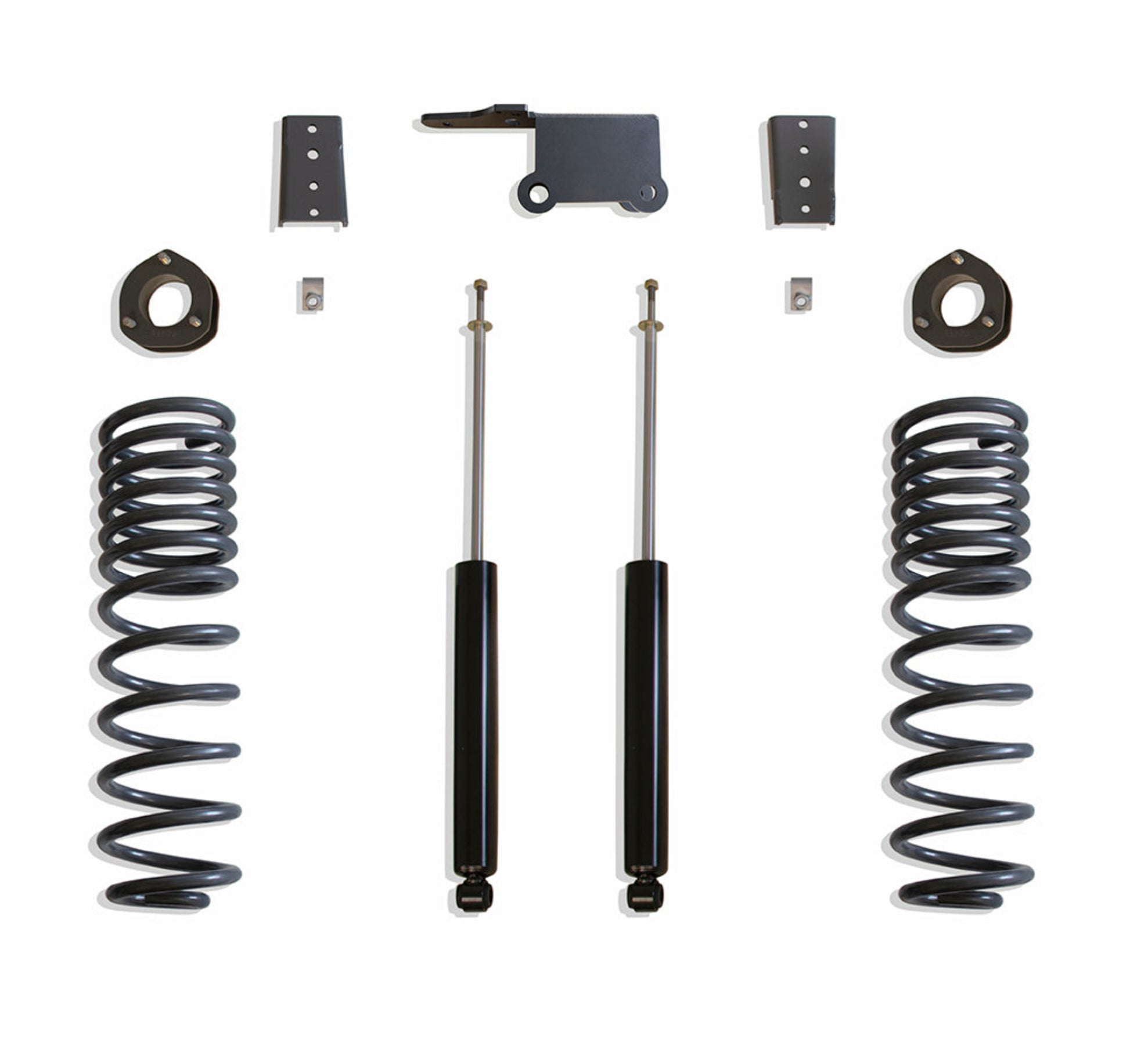

What's Included

• (2) 3" Front Strut Spacers
• (2) 4" Rear Lift Coils
• Rear Track Bar Bracket
• Rear Sway Bar Brackets
• (2) MaxTrac Rear Shocks (2800SL-8)
• Installation Hardware

Vehicle Fitment

Fits

• 2019-2024 Ram 1500 2WD 6-Lug Models

Does Not Fit

• 2019-2024 Ram 1500 Classic (5-Lug)
• 2025 and newer Ram 1500 models

Important Notes

• Designed to work with the matching MaxTrac front lift components to complete a 7-inch suspension lift.
• Models equipped with a two-piece driveshaft require MaxTrac Carrier Bearing Kit Part #612400.
• Replacement rear shocks are sold individually. Order quantity two if purchasing separately.
• Professional alignment is recommended after installation.

Wheel Recommendations

• Maximum recommended wheel width: 9 inches.
• Minimum recommended backspacing: 4.5 inches.
• Wheels outside these specifications may void the manufacturer warranty.

Why Choose the MaxTrac 902740?

The MaxTrac 902740 is a complete rear suspension solution engineered for late-model Ram 1500 trucks. By combining front strut spacers, rear lift coils, suspension correction brackets, and matched MaxTrac shocks, this kit delivers the proper ride height, improved handling, and the aggressive stance expected from a professionally engineered lift system.

Perfect For

• Completing a MaxTrac 7-inch lift
• Daily drivers
• Work trucks
• Off-road builds
• Larger tire upgrades
• Suspension performance improvements

Product Specifications

Part Number: 902740
UPC: 706199414160
Kit Type: Lift / Level
Rear Lift: 4"
Material: Steel
Color: Grey
Finish: Grey Powder Coat
Engine Compatibility: Gas, Diesel
Shock Details: Rear: 2800SL-8 (Qty. 2)
Sold As: Combo Kit
Weight: 65 lbs
Dimensions: 28" × 14" × 8"
Country of Origin: China
