MaxTrac 901030 GM SUV 3" Rear Lift Box Kit

Add 3" of Rear Lift with the Supporting Suspension Hardware

Raise the rear of your 2000–2006 GM SUV 2WD or 4WD with the MaxTrac 901030 3" Rear Lift Box Kit. Rather than supplying coil spacers alone, this package combines 3" rear lift coil spacers, a track bar relocation bracket, extended sway bar end links, and a pair of shock extenders for a more complete rear suspension lift.
Built around heavy-duty steel components with MaxTrac's grey powder-coated finish, the 901030 provides the supporting hardware needed to maintain a properly configured rear suspension at the increased ride height. It is designed for compatible GM SUVs without AutoRide suspension.

Key Features

3" Rear Coil Spacer Lift

Included 3" rear coil spacers increase rear ride height while retaining the vehicle's coil-spring suspension configuration.

Track Bar Relocation Bracket

The included track bar bracket helps accommodate the altered rear suspension geometry created by the 3" lift.

Extended Sway Bar End Links

Supplied rear sway bar end links account for the increased suspension height and help maintain proper sway bar positioning.

Pair of Shock Extenders

Includes two rear shock extenders, allowing compatible factory-length shocks to work with the increased rear suspension height.

Complete Rear Box Kit

Combines the major rear lift and supporting components into one package instead of requiring the coil spacers, track bar bracket, sway links, and shock extenders to be purchased separately.

USA-Made Components

Manufactured in the USA with steel construction and a durable grey powder-coated finish.

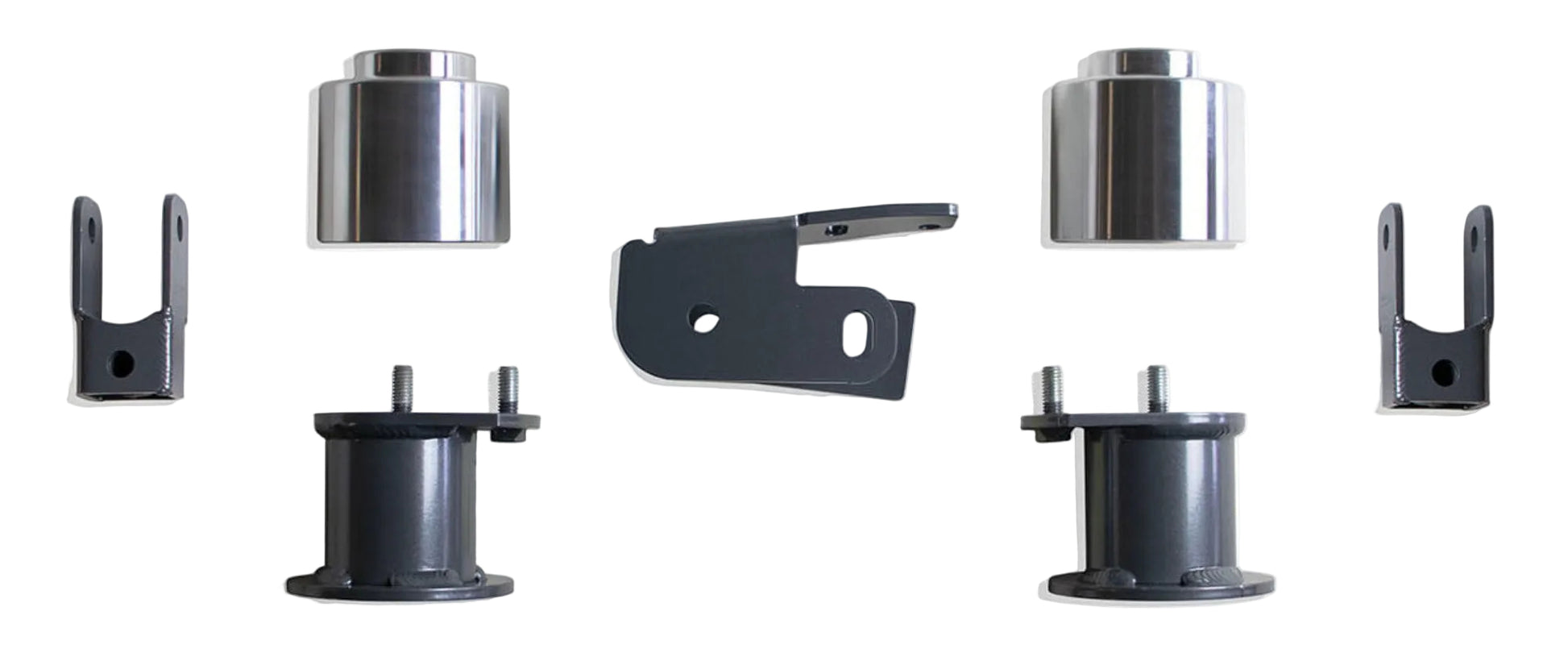

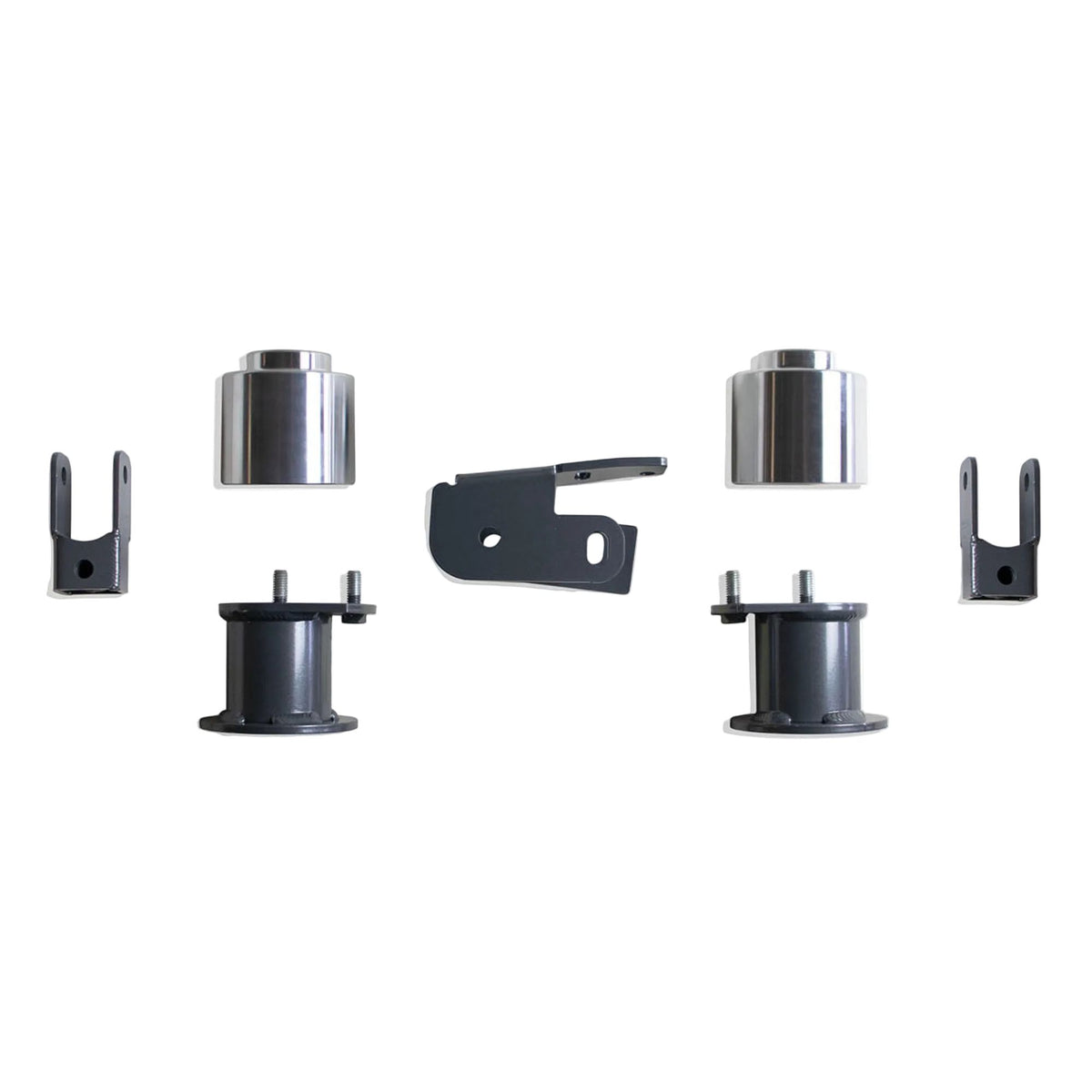

What's Included

3" rear lift coil spacers
Rear track bar relocation bracket
Extended rear sway bar end links
(2) Rear shock extenders
Installation hardware as supplied by MaxTrac

Vehicle Fitment

Fits

2000–2006 Chevrolet Tahoe 2WD / 4WD
2000–2006 Chevrolet Suburban 1500 2WD / 4WD
2000–2006 GMC Yukon 2WD / 4WD
2000–2006 GMC Yukon XL 1500 2WD / 4WD

Does Not Fit

Models equipped with AutoRide suspension

Important Notes

Provides approximately 3" of rear suspension lift.
Does not fit models equipped with AutoRide suspension.
Includes shock extenders rather than replacement rear shocks.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 901030
UPC: 706199417079
Tariff: 8708.80.1600
Kit Type: Lift / Level
Product Type: Rear Lift Box Kit
Position: Rear
Rear Lift: 3"
Drivetrain: 2WD / 4WD
Rear Coil Spacers: 3"
Track Bar Bracket: Included
Sway Bar End Links: Included
Shock Extenders: 2 Included
AutoRide Compatible: No
Material: Steel
Color: Grey
Finish: Grey Powder Coat
Sold As: Each
Weight: 30 lbs
Dimensions: 14" × 13" × 7"
Multiple Box Item: No
Origin Criterion: B
Unit of Measure: IN
Country of Origin: USA

Why Choose MaxTrac 901030?

The MaxTrac 901030 goes beyond a basic coil spacer lift by including the supporting components needed for a 3" rear suspension height increase. The track bar bracket addresses rear suspension positioning, extended sway bar links accommodate the new ride height, and the included shock extenders help retain compatible factory-length shocks.
For a 2000–2006 Tahoe, Suburban, Yukon, or Yukon XL without AutoRide, this package provides a convenient foundation for completing the rear portion of a MaxTrac lift system.

Perfect For

GM SUV rear lift builds
Tahoe suspension upgrades
Suburban 1500 lift setups
Yukon and Yukon XL builds
3" rear coil spacer lifts
2WD and 4WD applications
