MaxTrac 900240 Silverado Sierra 1500 2WD 4" Rear Lift Kit

Build a 3"/4" Lift Setup with Matched Rear Shocks

Raise your 2025–2026 Chevrolet Silverado 1500 or GMC Sierra 1500 2WD with the MaxTrac 900240 Lift Box Kit. This package combines 3" front lift strut spacers, 4" rear lift blocks, U-bolts, and two MaxTrac 2900LL-4 rear shocks, providing the supporting components needed to complete the corresponding MaxTrac suspension system.
Designed to work in conjunction with MaxTrac part number 701935, the 900240 helps create a complete 3" front / 4" rear lift configuration while pairing the increased rear ride height with appropriately sized MaxTrac shocks.

Key Features

4" Rear Lift

Includes 4-inch rear lift blocks designed to raise the rear suspension on compatible Silverado and Sierra 1500 2WD trucks.

3" Front Strut Spacers

Supplied 3" front lift strut spacers provide the front height component needed for the corresponding complete MaxTrac lift configuration.

Rear U-Bolts Included

Includes the required rear U-bolts for securing the lift blocks and rear axle assembly.

Two 2900LL-4 Rear Shocks

Supplied with two MaxTrac 2900LL-4 rear shocks matched to the increased rear suspension height.

Designed to Pair with 701935

MaxTrac specifies the 900240 for use in conjunction with part number 701935 to create the intended complete lift kit.

Coordinated Front & Rear Components

Combines the strut spacers, rear blocks, U-bolts, and shocks into one component box to simplify assembling the complete suspension system.

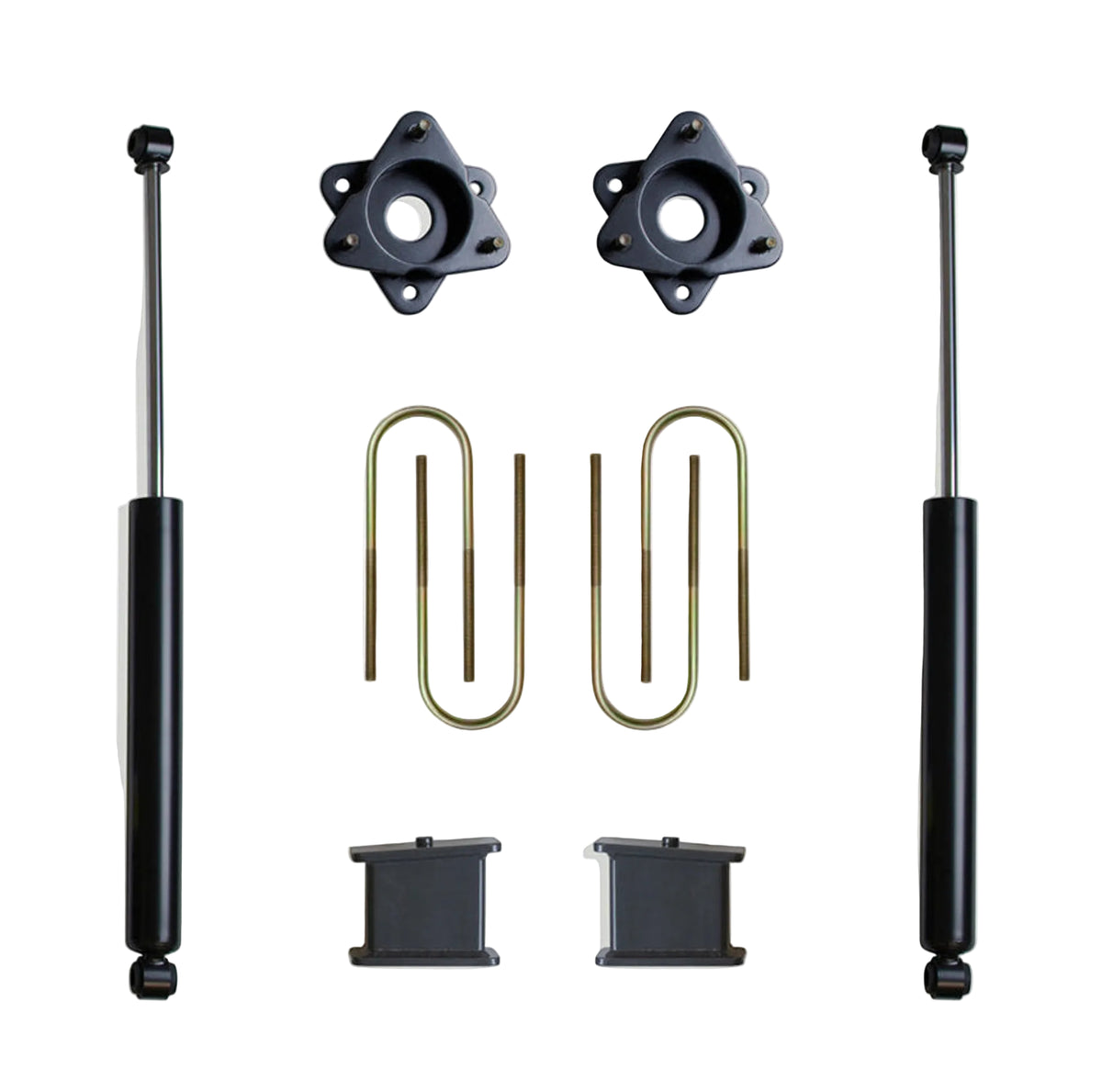

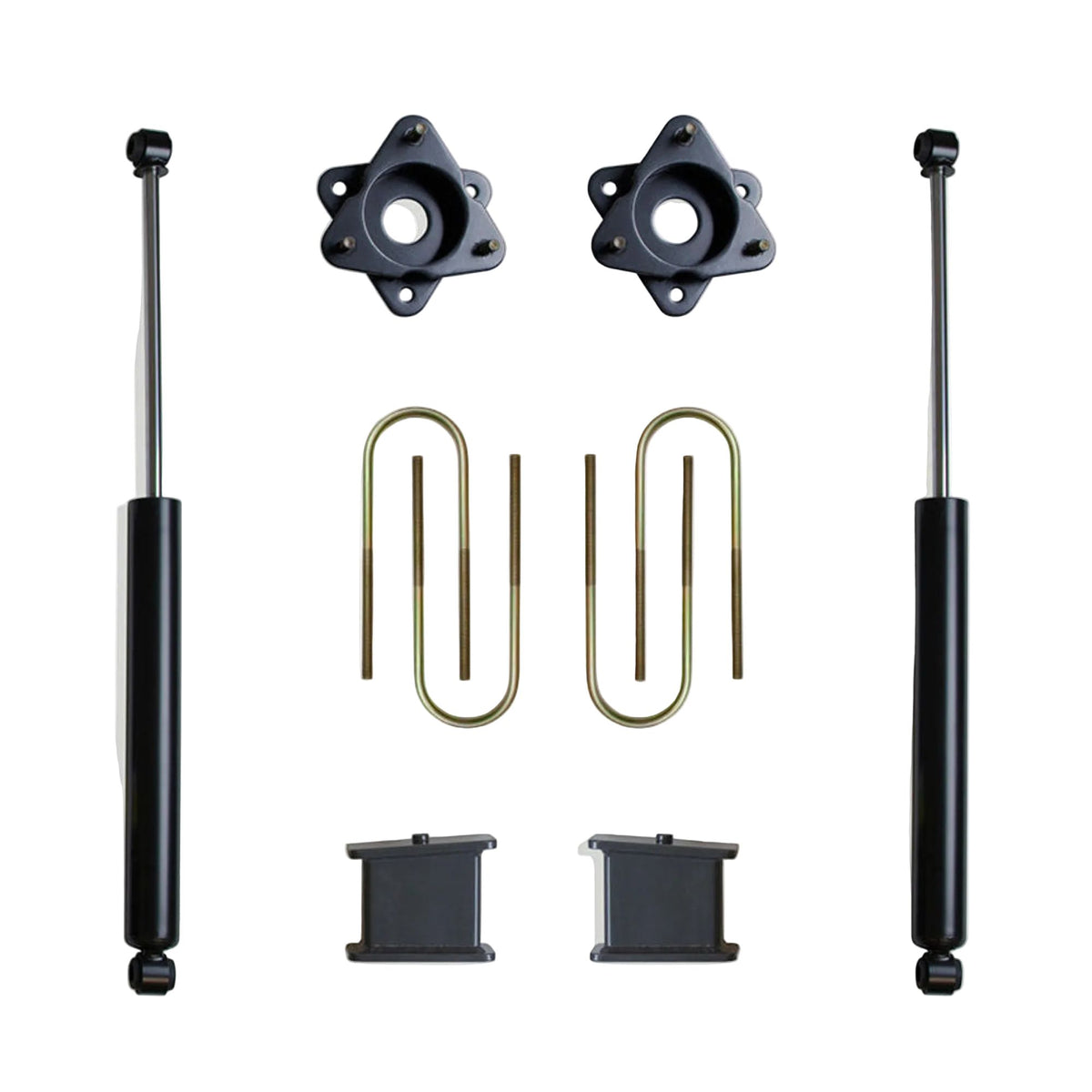

What's Included

3" front lift strut spacers
4" rear lift blocks
Rear U-bolts
(2) MaxTrac 2900LL-4 rear shocks
Installation hardware as supplied by MaxTrac

Vehicle Fitment

Fits

2025–2026 Chevrolet Silverado 1500 2WD
2025–2026 GMC Sierra 1500 2WD

Does Not Fit

Models equipped with a monoleaf rear spring

Important Notes

Designed to be used in conjunction with MaxTrac 701935 to create a complete lift kit.
Does not fit models equipped with a monoleaf rear spring.
Includes 3" front strut spacers and 4" rear lift blocks for the corresponding complete suspension configuration.
Includes two MaxTrac 2900LL-4 rear shocks.
When ordering replacement MaxTrac shocks separately, shocks are sold individually, so quantity 2 is required for a pair.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these recommendations will void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 900240
UPC: 706199417253
Tariff: 8708.80.1600
Kit Type: Lift / Level
Product Type: Lift Box Kit
Position: Front & Rear
Front Lift Spacer: 3"
Rear Lift: 4"
Drivetrain: 2WD
Front Strut Spacers: Included
Rear Lift Blocks: 4"
Rear U-Bolts: Included
Rear Shocks: 2900LL-4 ×2
Associated Part Number: 701935
Material: Steel
Color: Grey
Finish: Grey Powder Coat
Sold As: Each
Weight: 36 lbs
Dimensions: 28" × 10" × 6"
Multiple Box Item: No
Origin Criterion: B
Unit of Measure: IN
Country of Origin: China

Why Choose MaxTrac 900240?

The MaxTrac 900240 brings together several major components required for the corresponding Silverado/Sierra lift configuration. Instead of sourcing the 3" strut spacers, 4" rear blocks, U-bolts, and extended rear shocks individually, this box packages them together for a more coordinated installation.
Two 2900LL-4 rear shocks are included to accommodate the increased rear suspension height, while compatibility with MaxTrac 701935 makes the 900240 an integral part of the intended complete lift system.

Perfect For

2025–2026 Silverado 1500 2WD builds
2025–2026 Sierra 1500 lift projects
3" front / 4" rear lift configurations
MaxTrac 701935 suspension systems
Rear block and U-bolt upgrades
Lifted GM street-truck builds
