MaxTrac 833825-4 Ranger 4WD 2.5" Strut Spacers w/Diff Drop

Level Your Ford Ranger While Addressing Front Differential Geometry

Increase the front stance of your 2019–2023 Ford Ranger 4WD with the MaxTrac 833825-4 2.5" Front Strut Spacer Kit. Built specifically for four-wheel-drive Rangers, this package combines 2.5-inch front strut spacers with differential drop spacers, giving you the components needed to raise the front suspension while addressing the differential position.
Fabricated from steel and protected with a grey powder-coated finish, the kit works with the factory-style strut configuration and provides clearance for tires up to 31" × 10.50" on 8"-9" wide rims when properly configured.

Key Features

2.5" Front Suspension Lift

Provides 2.5 inches of front lift to reduce factory rake, increase front-end height, and give the Ranger a more aggressive stance.

Differential Drop Spacers Included

The included front differential drop spacers are specifically intended for the Ranger's 4WD drivetrain configuration when used with the increased front suspension height.

Retains Factory-Style Strut Setup

Achieves additional front height through the strut spacer configuration without requiring complete replacement lift strut assemblies.

Fabricated Steel Construction

Manufactured from steel for strength and durability in truck suspension applications.

Grey Powder-Coat Finish

A durable grey powder-coated finish helps protect the steel components from corrosion and road exposure.

Clears Up to 31" × 10.50" Tires

Provides clearance for tires up to 31" × 10.50" on 8"-9" wide rims with proper fitment. Fender trimming may be required.

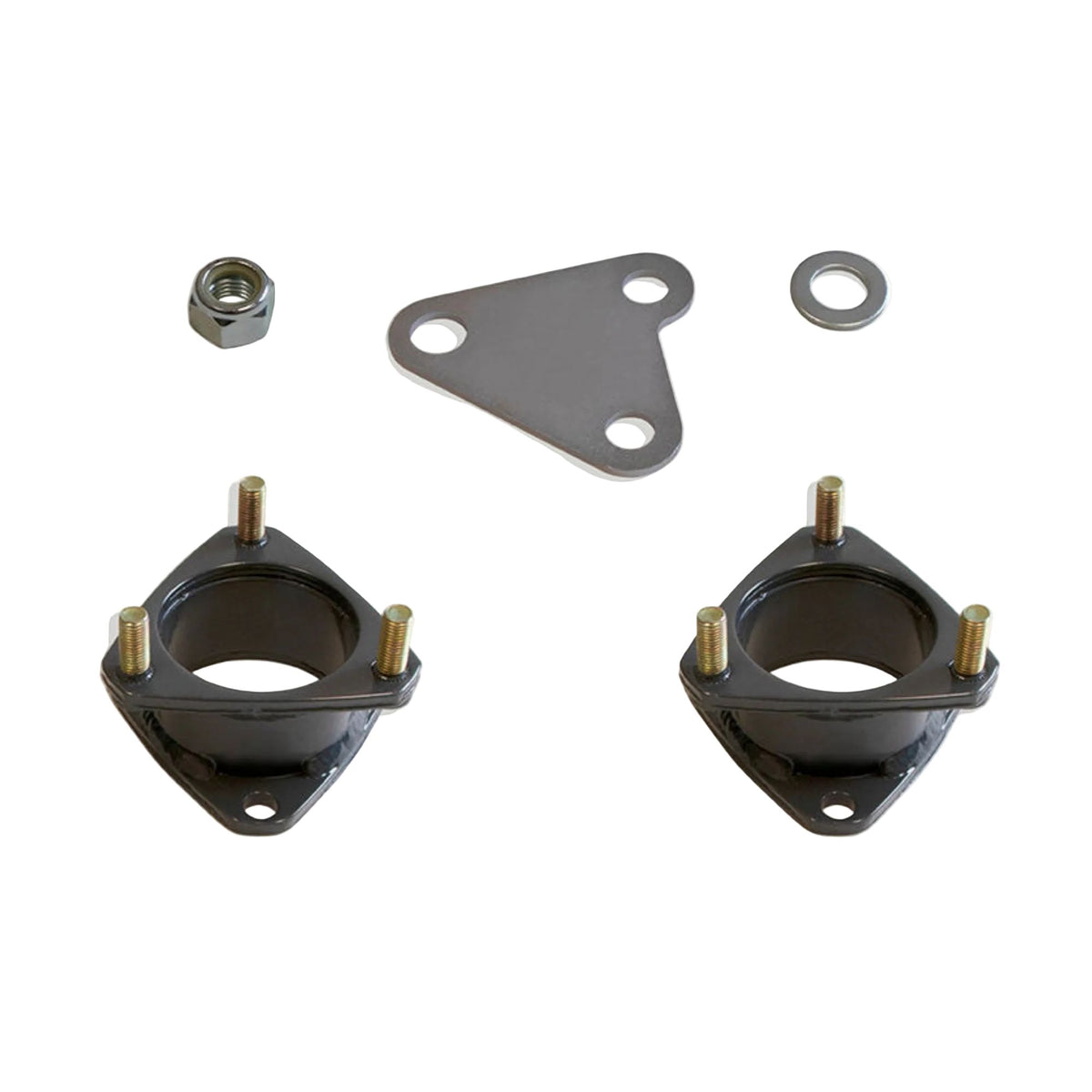

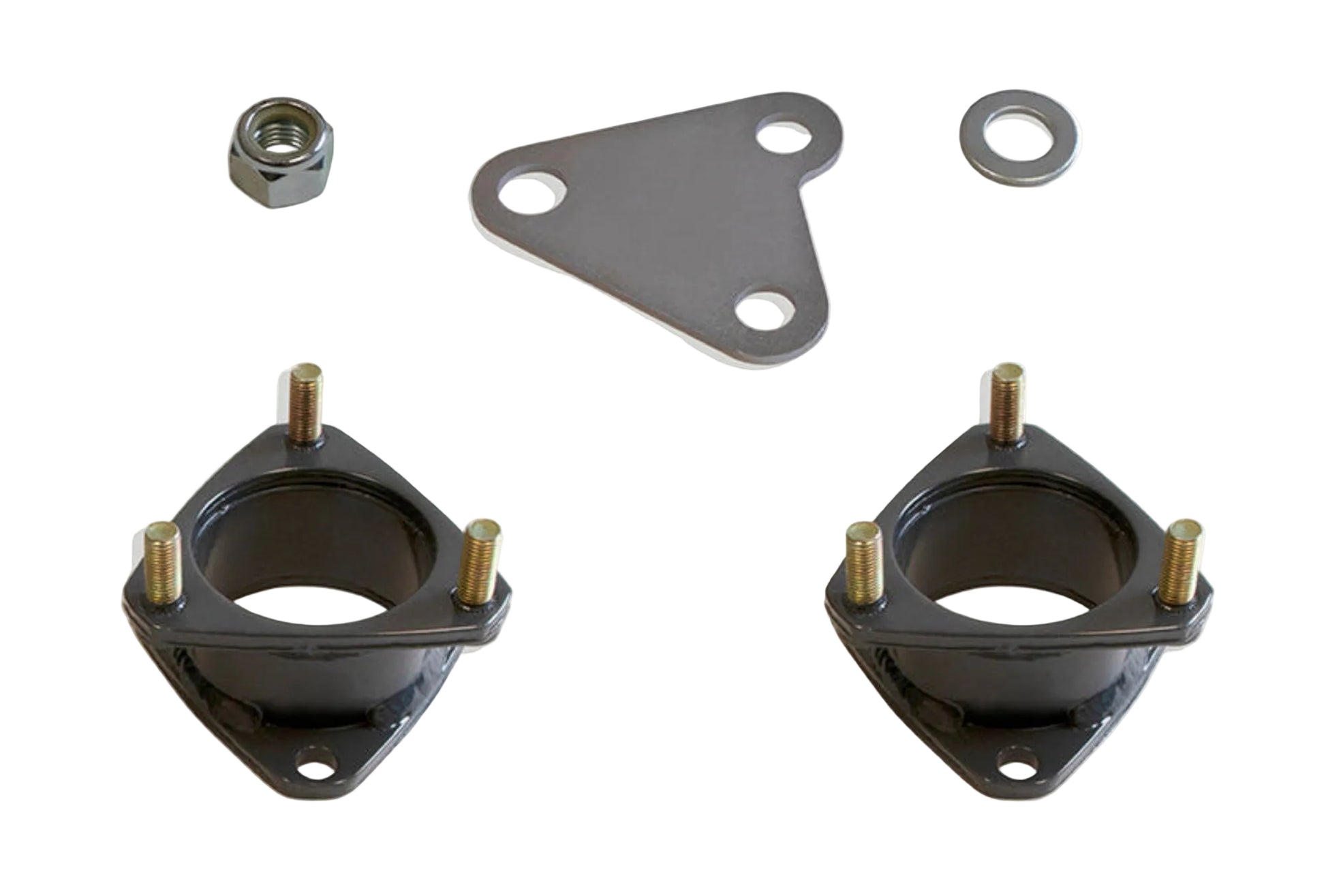

What's Included

2.5" front lift strut spacers
Front differential drop spacers
MaxTrac 833825-4 spacer set

Vehicle Fitment

Fits

2019–2023 Ford Ranger 4wd
Do you have a 2wd or 2024-25 4wd? Click Here

Important Notes

Designed specifically for 4WD Ford Ranger applications.
Provides 2.5" of front suspension lift.
Includes differential drop spacers for the 4WD front drivetrain.
Clears up to a 31" × 10.50" tire on an 8"-9" wide rim when properly configured.
Fender trimming may be required depending on tire size, wheel offset, backspacing, and vehicle configuration.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 833825-4
UPC: 706199413316
Kit Type: Lift / Level
Product Type: Front Strut Spacer & Differential Drop Kit
Position: Front
Front Lift: 2.5"
Drive Type: 4WD
Differential Drop Spacers: Included
Maximum Tire Size: Up to 31" × 10.50"
Recommended Rim Width: 8"-9"
Material: Steel
Color: Grey
Finish: Grey Powder Coat
Sold As: Set
Weight: 6 lbs
Dimensions: 14" × 7" × 4"
Multiple Box Item: No
Origin Criterion: B
Unit of Measure: IN
Country of Origin: China

Why Choose MaxTrac 833825-4?

The 833825-4 is built around the needs of a 4WD Ranger leveling application rather than supplying front spacers alone. By packaging the 2.5" strut spacers with the required differential drop components, MaxTrac provides a more complete front leveling solution for owners looking for additional height and tire clearance.

Perfect For

Ford Ranger 4WD leveling
2.5" front lift builds
Factory strut applications
Differential drop setups
31" tire upgrades
Front suspension leveling
