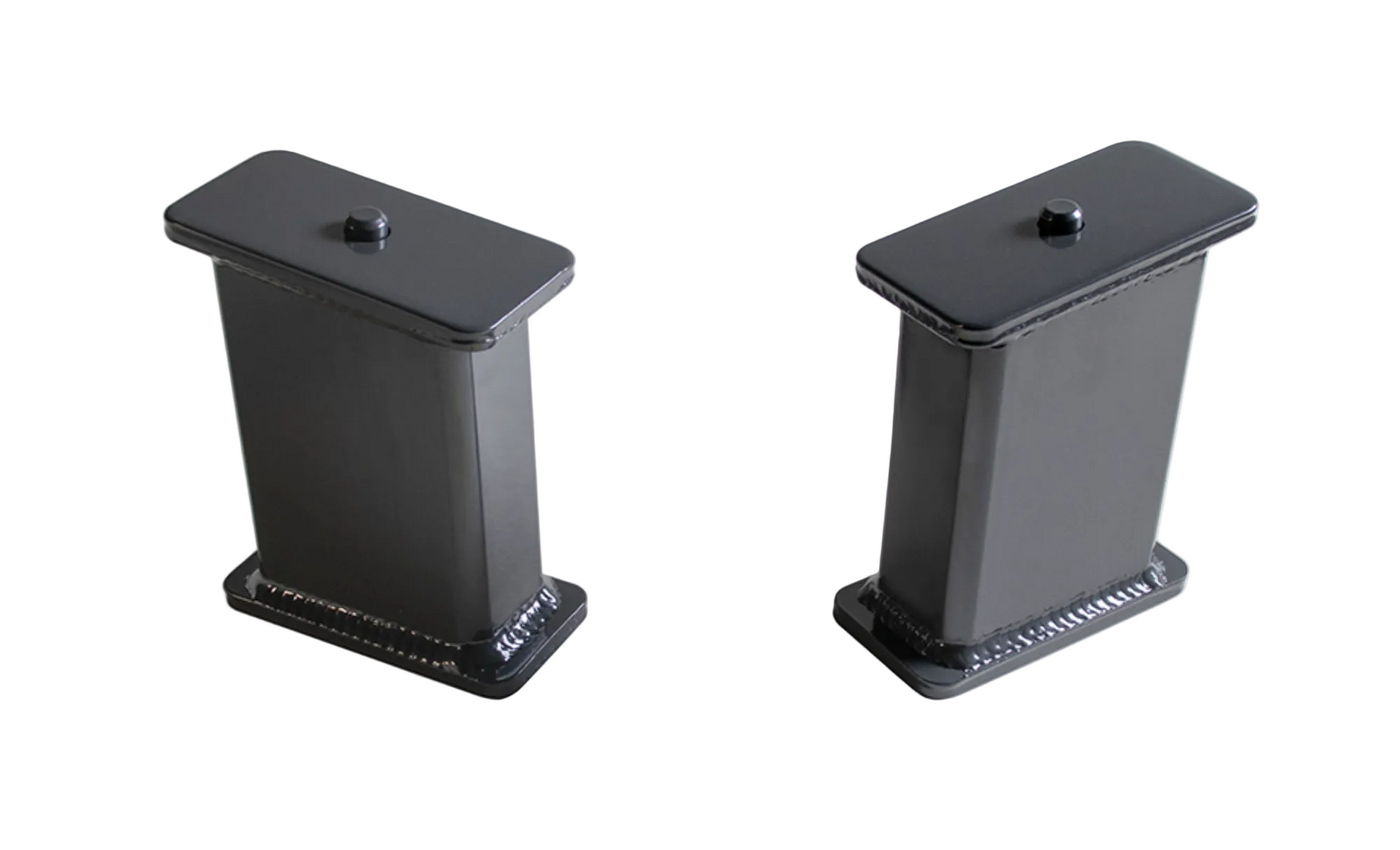

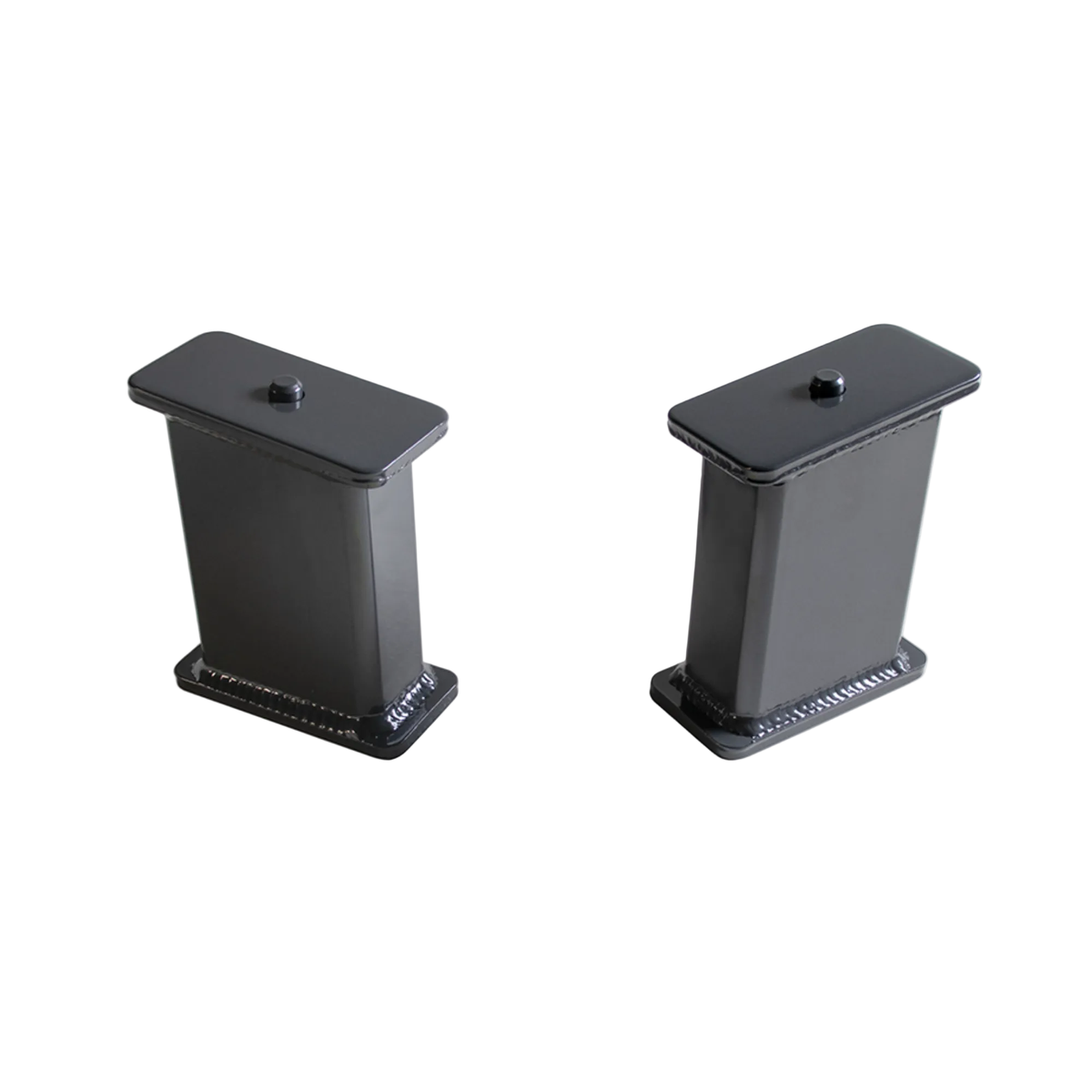

MaxTrac 810060 6" Steel Rear Lift Blocks with 6° Angle

Add Rear Lift with Built-In Driveline Positioning Options

Raise the rear suspension with the MaxTrac 810060 6" Lift Blocks, a heavy-duty pair of fabricated steel blocks designed for compatible leaf-spring suspension applications. Each block incorporates a 6-degree angle to support lifted suspension and driveline geometry while providing a durable alternative to cast-style blocks.
A standout feature is the dual center pin hole design, which gives installers the option of retaining the factory axle location or repositioning the axle forward to help improve driveline plunge. Finished in grey powder coat, these blocks are built for demanding lifted truck applications where strength and axle positioning flexibility matter.

Key Features

6" Steel Lift Blocks

Provides up to 6 inches of rear lift in applicable configurations using fabricated steel construction for strength and durability.

Built-In 6° Angle

Each block is manufactured with a 6-degree angle to accommodate driveline geometry in compatible lifted applications.

Dual Center Pin Holes

Two center pin mounting locations allow you to retain the factory axle position or move the axle forward to help improve driveline plunge.

Fabricated Steel Construction

Built from steel rather than a lightweight cast construction for a strong foundation between the rear axle and leaf springs.

Grey Powder-Coated Finish

A durable grey powder coat protects the steel and complements other MaxTrac suspension components.

Designed for Longer U-Bolts

The additional block height requires longer U-bolts, which are available separately and must be correctly sized for the vehicle.

What's Included

(2) MaxTrac 810060 6" rear lift blocks

Vehicle Fitment

Fits

Compatible leaf-spring rear suspension applications requiring MaxTrac 6" lift blocks

Does Not Fit

Models equipped with a monoleaf rear spring

Important Notes

Built with 6 degrees of angle.
Longer U-bolts are required and sold separately.
Do not stack lift blocks.
On applicable 2007–2018 models, the factory block is removed and the 810060 provides approximately 5" of net rear lift.
Does not fit models equipped with a monoleaf rear spring.
Dual center pin holes provide the option to retain the factory axle location or move the axle forward to help improve driveline plunge.
Always select U-bolts with the correct length, width, diameter, and axle configuration for the vehicle.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 810060
UPC: 706199414917
Kit Type: Lift / Level
Product Type: Rear Lift Blocks
Position: Rear
Block Height: 6"
Block Angle: 6 Degrees
Center Pin Design: Dual Hole
Material: Steel
Construction: Fabricated
Color: Grey
Finish: Grey Powder Coat
Sold As: Pair
Quantity: 2
Weight: 12 lbs
Dimensions: 11" × 6" × 3"
Multiple Box Item: No
Origin Criterion: B
Unit of Measure: IN
Country of Origin: Vietnam

Why Choose MaxTrac 810060?

The 810060 offers more than basic rear lift height. Its combination of fabricated steel construction, a built-in 6-degree angle, and dual center pin holes provides additional flexibility when setting up a lifted leaf-spring suspension. The alternate center pin location can also help address driveline plunge by allowing the axle to be moved forward when appropriate.

Perfect For

Rear suspension lift builds
Leaf-spring trucks
6" lift applications
Driveline geometry setup
Axle positioning adjustments
Custom MaxTrac suspension systems
