MaxTrac 515300 Extended Brake Lines 2004-2024 Nissan Titan 2WD

Give Your Lifted Titan the Extra Brake Line Length It Needs

Designed for 2004–2024 Nissan Titan 2WD models using compatible MaxTrac lift spindles, the MaxTrac 515300 Extended Front Brake Lines provide the additional hose length needed for the modified front suspension geometry. Each line measures 23.5 inches long and features stainless steel braided reinforcement for a strong, flexible brake hose assembly.
The 515300 uses a five-layer construction combining Teflon, Kevlar, vinyl, stainless steel, and an additional vinyl outer layer. These USA-made lines are D.O.T. compliant and supplied as a matched front pair. They are designed for standard Titan models and do not fit the Titan XD.

Key Features

23.5" Extended Length

Each front brake line measures approximately 23.5 inches long, providing additional hose length for compatible lifted Nissan Titan applications.

Designed for MaxTrac Lift Spindles

Intended specifically for use with MaxTrac front lift spindles, helping accommodate the increased brake hose travel created by the modified suspension.

Five-Layer Construction

Built with Teflon, Kevlar, vinyl, stainless steel, and vinyl layers for strength, flexibility, and exterior protection.

Stainless Steel Braided Reinforcement

Stainless steel reinforcement provides added strength while retaining the flexibility required throughout steering and suspension movement.

D.O.T. Compliant

Manufactured as D.O.T.-compliant brake lines for compatible automotive braking applications.

Made in the USA

Manufactured in the USA with a protective grey vinyl exterior finish.

What's Included

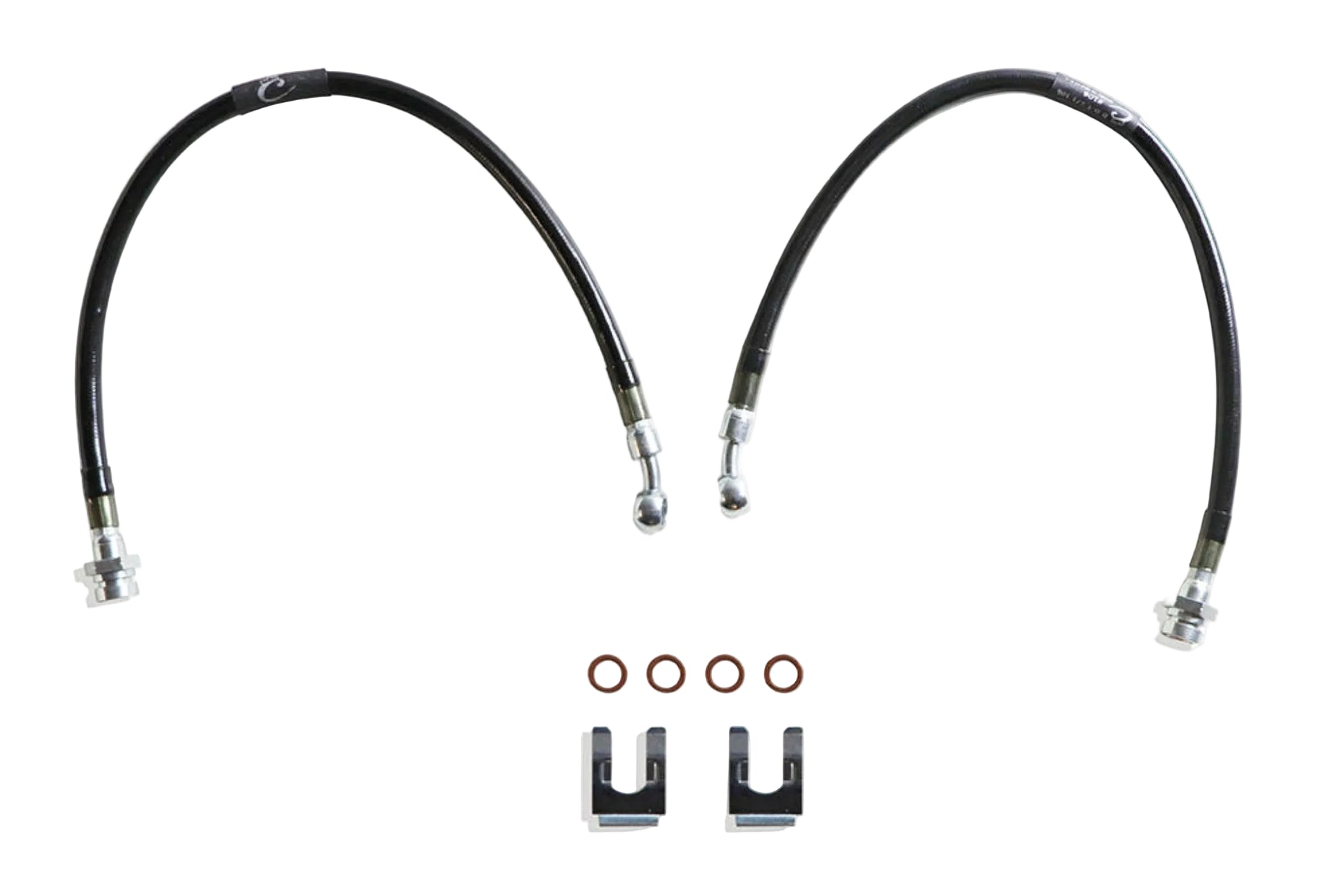

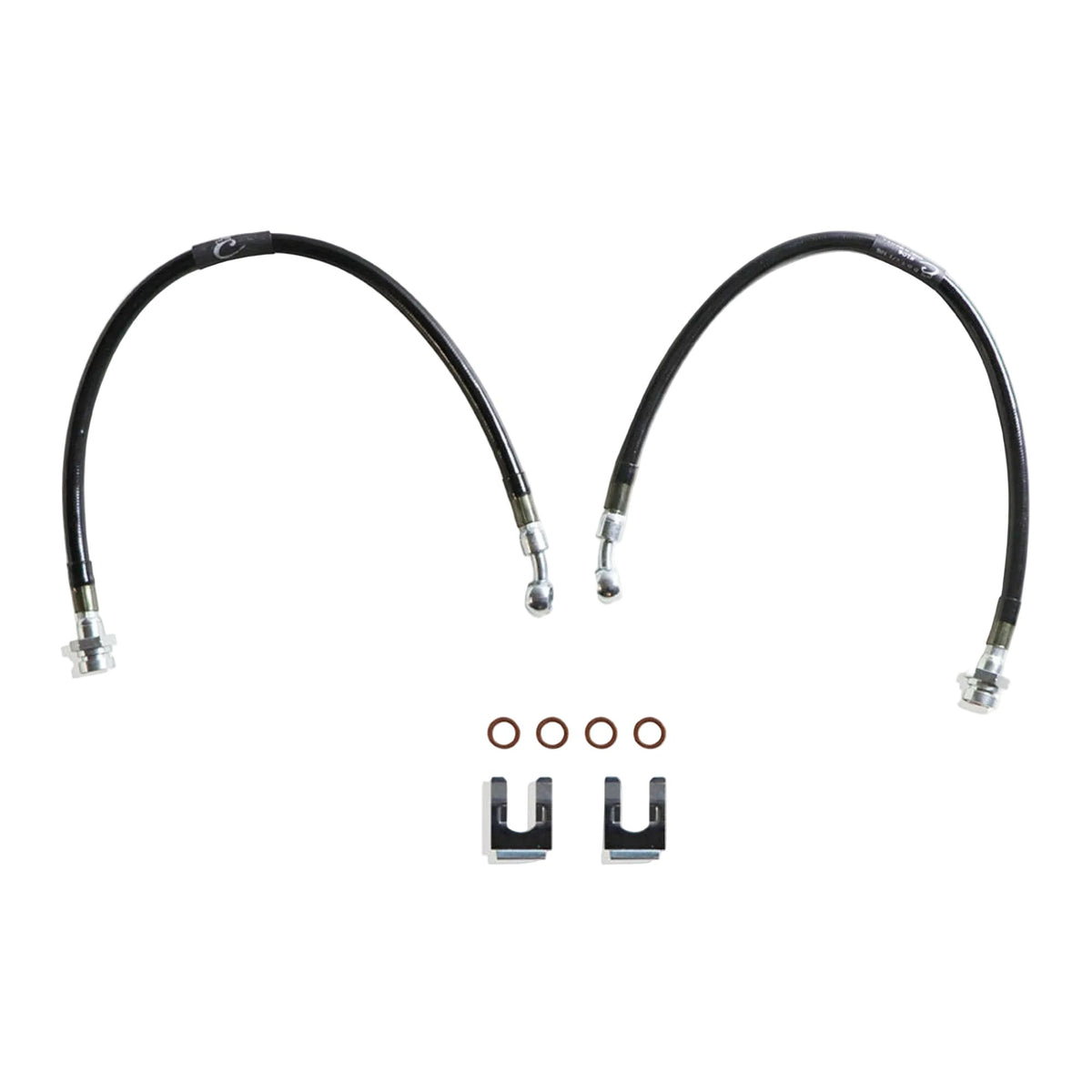

(2) 23.5" extended front brake lines
MaxTrac 515300 brake line pair

Vehicle Fitment

Fits

2004–2024 Nissan Titan 2WD
Applications using compatible MaxTrac lift spindles

Does Not Fit

Titan 4WD models
Titan XD models

Important Notes

D.O.T. compliant.
Intended for use with MaxTrac lift spindles.
Each brake line measures approximately 23.5" long.
Five-layer design consists of Teflon, Kevlar, vinyl, stainless steel, and an additional vinyl layer.
Does not fit Titan XD models.
Designed specifically for compatible 2WD applications.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 515300
UPC: 706199414054
Kit Type: Lift / Level
Product Type: Extended Front Brake Lines
Position: Front
Drive Type: 2WD
Length: 23.5"
Construction: 5-Layer
Reinforcement: Stainless Steel Braided
Compliance: D.O.T. Compliant
Material: Steel
Color: Grey
Finish: Grey Vinyl
Sold As: Pair
Weight: 1 lb
Dimensions: 9" × 4" × 3"
Multiple Box Item: No
Origin Criterion: A
Unit of Measure: IN
Country of Origin: USA

Why Choose MaxTrac 515300?

Installing lift spindles changes the distance the factory front brake hoses must travel during suspension and steering movement. The 515300 provides a 23.5-inch extended brake line solution specifically intended for compatible MaxTrac Titan spindle lifts, combining stainless braided reinforcement with a protective five-layer construction.

Perfect For

Titan 2WD spindle lifts
MaxTrac lift spindle installations
Extended front brake hose replacement
Lifted Nissan truck builds
2004–2024 Titan projects
Front suspension upgrades
