MaxTrac 513400 Extended Brake Lines 2009-2020 F-150 2WD

Get the Proper Brake Line Length for Your MaxTrac Spindle Lift

Keep brake hose routing compatible with your lifted front suspension using the MaxTrac 513400 Extended Front Brake Lines. Built for 2009–2020 Ford F-150 2WD models running compatible MaxTrac lift spindles, these 20-inch extended lines provide the additional length needed as the suspension and steering move through their normal range.
The 513400 lines feature a five-layer Teflon, Kevlar, vinyl, stainless steel, and vinyl construction and are D.O.T. compliant. MaxTrac also includes a threaded adapter to accommodate the fitting differences within the broad 2009–2020 model-year range.

Key Features

20" Extended Length

Each front brake line measures approximately 20 inches long, providing additional hose length for compatible lifted F-150 applications.

Designed for MaxTrac Lift Spindles

Purpose-built for use with MaxTrac front lift spindles on compatible Ford F-150 2WD trucks.

Five-Layer Construction

Features Teflon, Kevlar, vinyl, stainless steel, and an additional vinyl layer for a durable multi-layer brake hose design.

Stainless Steel Braided Reinforcement

Stainless steel reinforcement adds strength while retaining the flexibility needed during steering and suspension travel.

Threaded Adapter Included

An included threaded adapter accommodates the fitting differences found within the 2009–2020 model-year range.

D.O.T. Compliant

The 513400 brake lines are D.O.T. compliant and manufactured in the USA.

What's Included

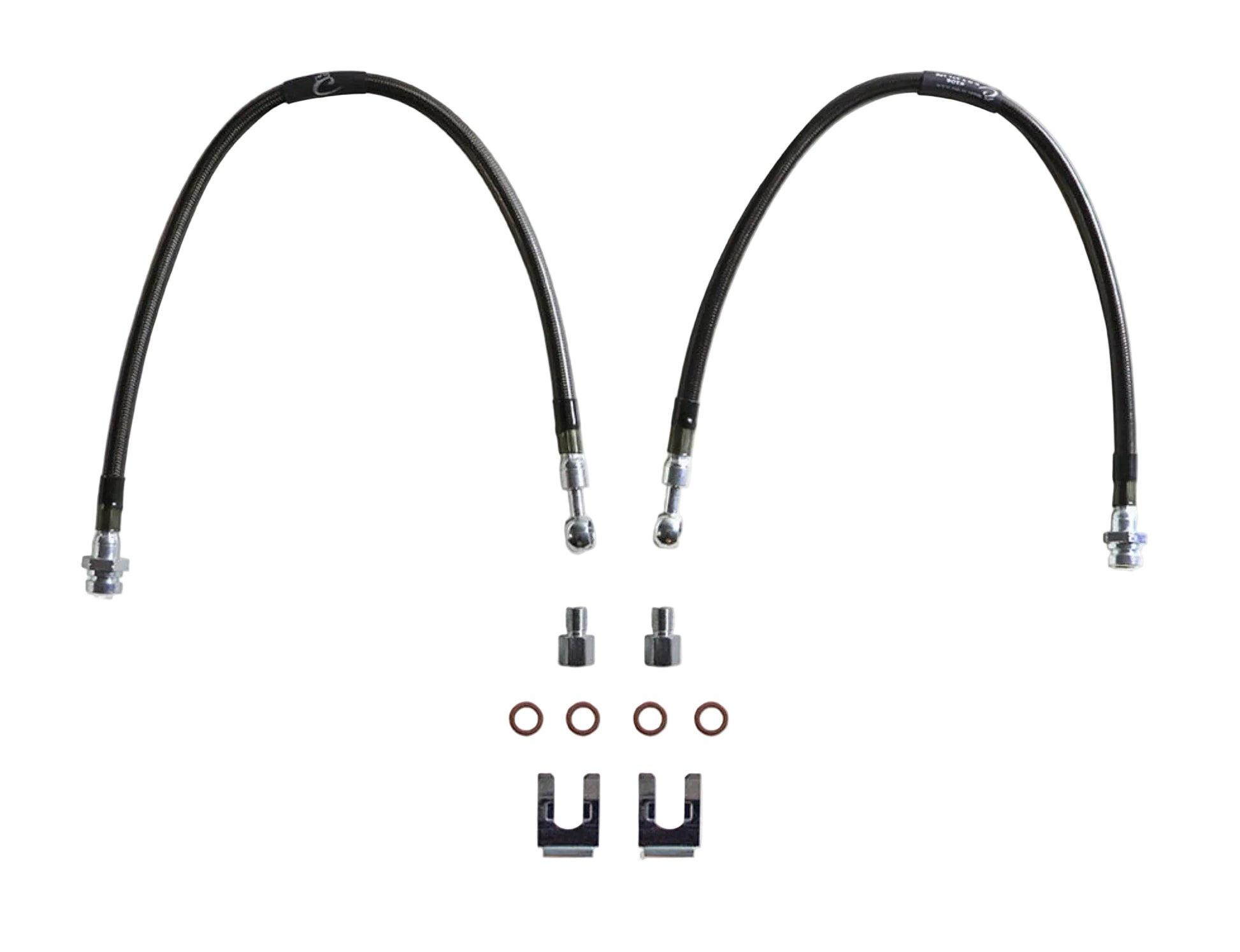

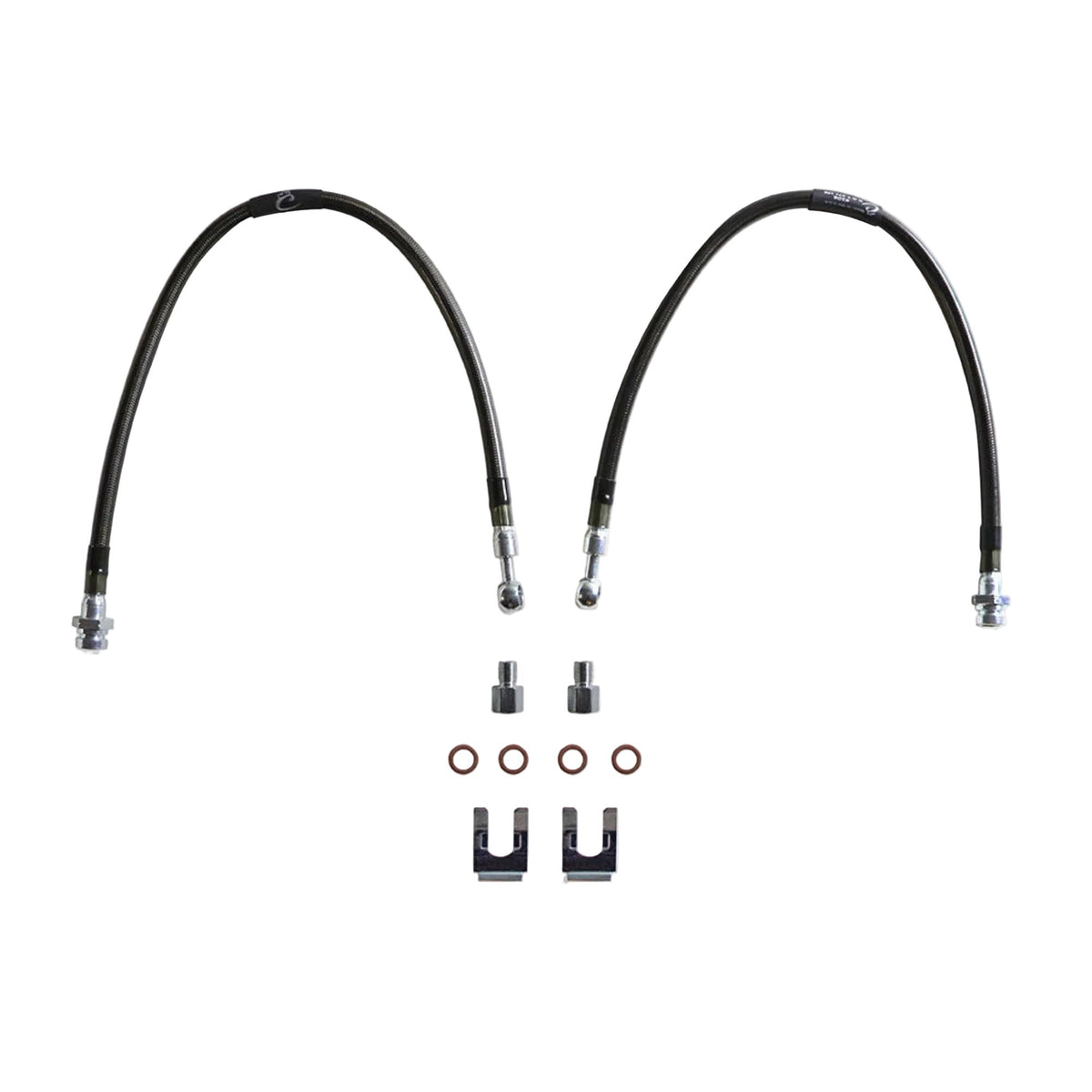

(2) 20" extended front brake lines
Threaded year-range adapter
MaxTrac 513400 brake line set

Vehicle Fitment

Fits

2009–2020 Ford F-150 2WD
Applications using compatible MaxTrac lift spindles

Does Not Fit

4WD models

Important Notes

D.O.T. compliant.
Intended for use with MaxTrac lift spindles.
Brake lines measure approximately 20" long.
Features five-layer Teflon, Kevlar, vinyl, stainless steel, and vinyl construction.
Includes a threaded adapter for the model-year fitment split.
Designed specifically for compatible F-150 2WD models.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 513400
UPC: 706199414047
Kit Type: Lift / Level
Product Type: Extended Front Brake Lines
Position: Front
Drive Type: 2WD
Length: 20"
Construction: 5-Layer
Reinforcement: Stainless Steel Braided
Compliance: D.O.T. Compliant
Adapter: Threaded Year-Range Adapter Included
Material: Steel
Color: Grey
Finish: Grey Vinyl
Sold As: Pair
Weight: 1 lb
Dimensions: 9" × 4" × 3"
Multiple Box Item: No
Origin Criterion: A
Unit of Measure: IN
Country of Origin: USA

Why Choose MaxTrac 513400?

Adding lift spindles changes the distance the factory front brake hoses need to accommodate. The MaxTrac 513400 combines a 20-inch extended length with stainless braided five-layer construction, plus the threaded adapter required to cover fitting differences across compatible 2009–2020 F-150 applications.

Perfect For

F-150 2WD spindle lifts
MaxTrac lift spindle installations
Extended front brake hose replacement
Lifted Ford suspension builds
2009–2020 F-150 projects
Front suspension upgrades
