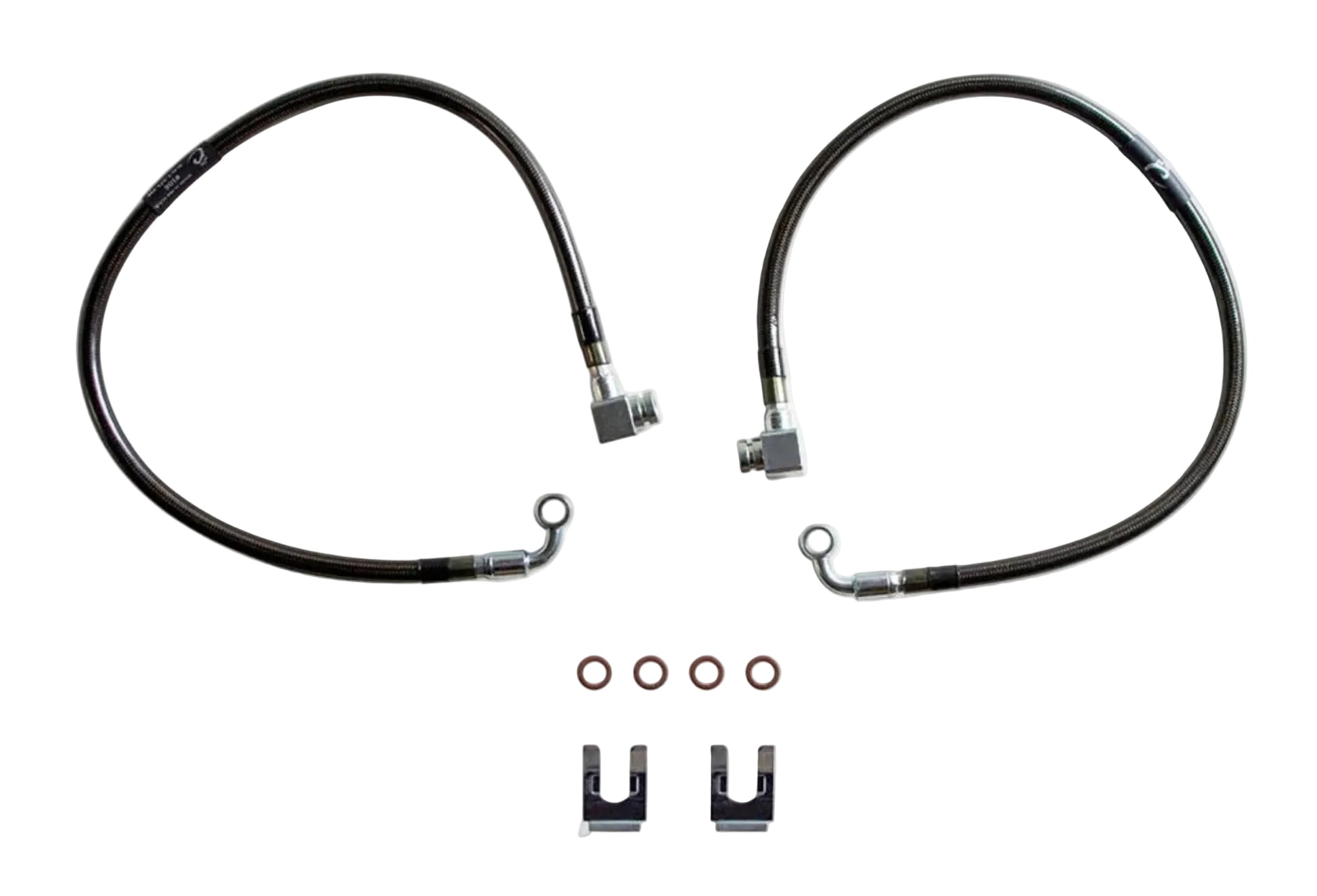

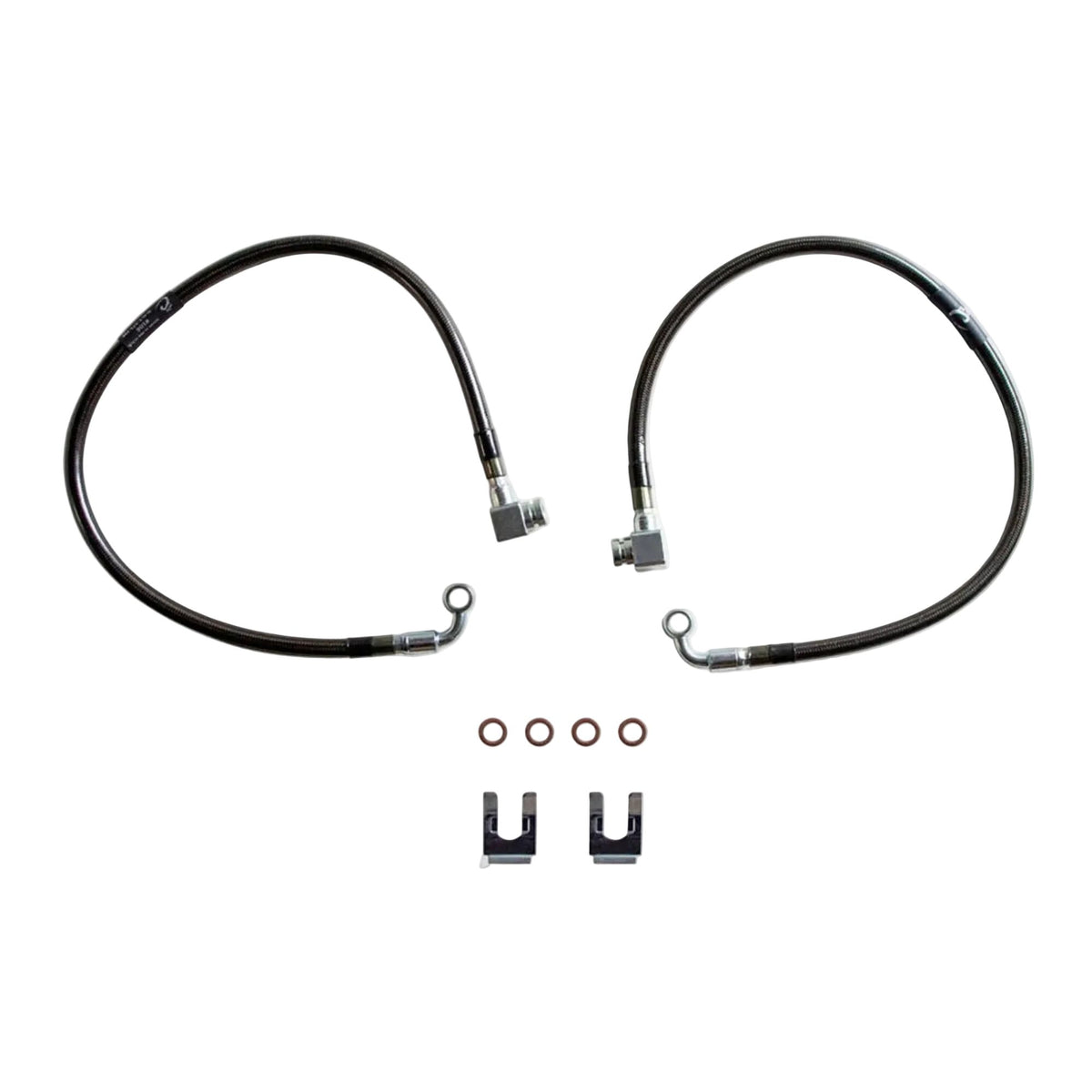

MaxTrac 512700 Extended Brake Lines 2019-2024 Ram 1500 2WD

Give Your 6-Lug Ram the Brake Line Length Needed for Lift Spindles

Designed specifically for the newer 2019–2024 Ram 1500 6-lug 2WD platform, the MaxTrac 512700 Extended Front Brake Lines provide the additional hose length required when installing compatible MaxTrac lift spindles. Each line measures 25 inches long and features stainless steel braided reinforcement for a durable lifted suspension setup.
These D.O.T.-compliant lines use MaxTrac's five-layer construction combining Teflon, Kevlar, vinyl, stainless steel, and an additional vinyl outer layer. Manufactured in the USA and supplied as a pair, the 512700 is specifically intended for 6-lug applications and does not fit 5-lug Ram Classic or 2025+ models.

Key Features

25" Extended Front Brake Lines

The 25-inch length provides additional brake hose reach for compatible lifted Ram 1500 front suspension applications.

6-Lug Ram 1500 Specific

Designed around the 2019–2024 Ram 1500 6-lug 2WD platform, helping distinguish it from the earlier 5-lug Classic configuration.

Designed for MaxTrac Lift Spindles

Intended for use with compatible MaxTrac front lift spindles, providing the additional brake hose length required by the modified suspension.

Five-Layer Construction

Features layers of Teflon, Kevlar, vinyl, stainless steel, and vinyl for strength, flexibility, and exterior protection.

D.O.T. Compliant

Manufactured as D.O.T.-compliant brake lines for compatible automotive braking applications.

Made in the USA

Manufactured in the USA with stainless braided reinforcement and a protective grey vinyl exterior.

What's Included

(2) 25" extended front brake lines
MaxTrac 512700 brake line pair

Vehicle Fitment

Fits

2019–2024 Ram 1500 6-Lug 2WD
Applications using compatible MaxTrac lift spindles

Does Not Fit

2025+ Ram 1500 models
5-lug Ram 1500 Classic models
4WD models

Important Notes

D.O.T. compliant.
Intended for use with MaxTrac lift spindles.
Each brake line measures approximately 25" long.
Five-layer construction consists of Teflon, Kevlar, vinyl, stainless steel, and an additional vinyl layer.
Will not fit 2025+ models.
Does not fit 5-lug Ram Classic models.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 512700
UPC: 706199414894
Kit Type: Lift / Level
Product Type: Extended Front Brake Lines
Position: Front
Drive Type: 2WD
Lug Configuration: 6-Lug
Length: 25"
Construction: 5-Layer
Reinforcement: Stainless Steel Braided
Compliance: D.O.T. Compliant
Material: Steel
Color: Grey
Finish: Grey Vinyl
Sold As: Pair
Weight: 1 lb
Dimensions: 9" × 4" × 3"
Multiple Box Item: No
Origin Criterion: A
Unit of Measure: IN
Country of Origin: USA

Why Choose MaxTrac 512700?

The newer 6-lug Ram 1500 uses a different platform than the 5-lug Classic, making correct brake line fitment important when installing lift spindles. The 512700 combines a 25-inch extended length, stainless braided reinforcement, and five-layer construction in a package specifically intended for compatible 2019–2024 Ram 1500 2WD lift spindle applications.

Perfect For

Ram 1500 6-lug spindle lifts
2019–2024 2WD suspension builds
MaxTrac lift spindle installations
Extended front brake hose replacement
Lifted Ram street trucks
New-body Ram 1500 projects
