MaxTrac 512100 Extended Brake Lines 2006-2024 Ram 1500 2WD

Add the Extra Brake Line Length Needed for Your Ram Lift Spindles

Designed for lifted 2006–2024 Ram 1500 5-lug 2WD trucks, the MaxTrac 512100 Extended Front Brake Lines provide the additional hose length needed when running compatible MaxTrac lift spindles. The 20-inch stainless steel braided lines are supplied as a matched front pair and are D.O.T. compliant.
MaxTrac uses a five-layer construction combining Teflon, Kevlar, vinyl, stainless steel, and an additional vinyl outer layer for strength, flexibility, and protection. Manufactured in the USA, the 512100 is a purpose-built supporting component for compatible Ram 1500 spindle lift applications.

Key Features

20" Extended Front Length

Each brake line measures approximately 20 inches long, providing additional length for compatible lifted Ram 1500 front suspension applications.

Designed for MaxTrac Lift Spindles

Engineered for use with MaxTrac front lift spindles, helping accommodate the increased brake hose travel created by the modified suspension.

Five-Layer Construction

Built with layers of Teflon, Kevlar, vinyl, stainless steel, and vinyl for a durable multi-layer brake hose design.

Stainless Steel Braided Reinforcement

Stainless steel reinforcement provides added strength while retaining the flexibility required during steering and suspension travel.

D.O.T. Compliant

Manufactured as D.O.T.-compliant brake lines for compatible automotive braking applications.

USA-Made

Manufactured in the USA with a protective grey vinyl exterior finish.

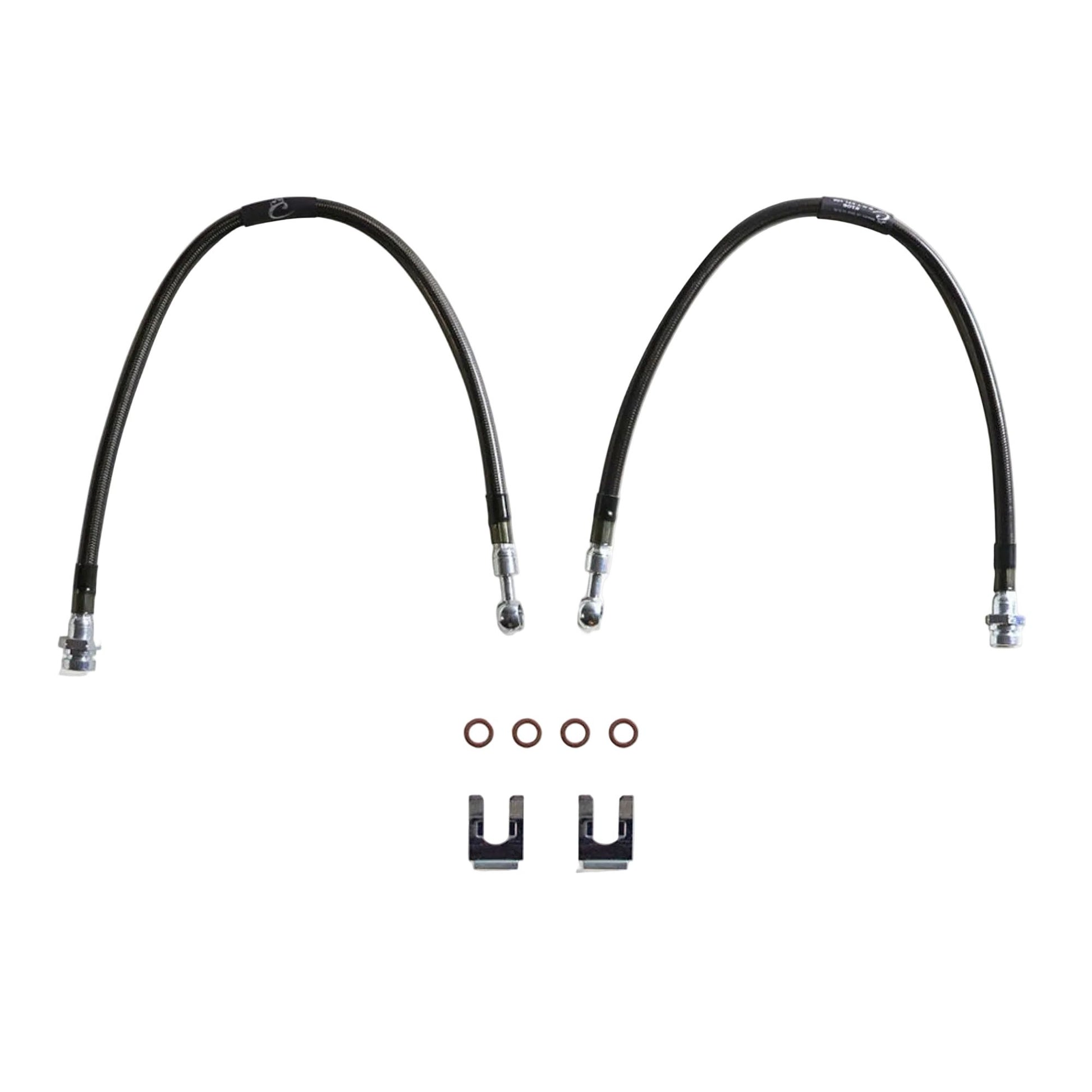

What's Included

(2) 20" extended front brake lines
MaxTrac 512100 brake line pair

Vehicle Fitment

Fits

2006–2024 Ram 1500 5-Lug 2WD
Applications using compatible MaxTrac lift spindles

Does Not Fit

4WD models
Applications that do not use the compatible 5-lug configuration

Important Notes

D.O.T. compliant.
Intended for use with MaxTrac lift spindles.
Brake lines measure approximately 20" long.
Five-layer construction consists of Teflon, Kevlar, vinyl, stainless steel, and an additional vinyl outer layer.
Designed for 5-lug Ram 1500 2WD applications.
MaxTrac does not recommend wheels wider than 9" or wheels with less than 4.5" backspacing. Using wheels outside these specifications may void applicable manufacturer warranties.

Product Specifications

Brand: MaxTrac Suspension
Part Number: 512100
UPC: 706199414023
Kit Type: Lift / Level
Product Type: Extended Front Brake Lines
Position: Front
Drive Type: 2WD
Lug Configuration: 5-Lug
Length: 20"
Construction: 5-Layer
Reinforcement: Stainless Steel Braided
Compliance: D.O.T. Compliant
Material: Steel
Color: Grey
Finish: Grey Vinyl
Sold As: Pair
Weight: 1 lb
Dimensions: 9" × 4" × 3"
Multiple Box Item: No
Origin Criterion: A
Unit of Measure: IN
Country of Origin: USA

Why Choose MaxTrac 512100?

A spindle lift changes the relationship between the front suspension and factory brake hoses. The MaxTrac 512100 provides a 20-inch extended brake line solution specifically intended for compatible Ram 1500 lift spindle installations, with stainless braided reinforcement and five-layer construction for a durable front brake hose setup.

Perfect For

Ram 1500 spindle lift builds
5-lug 2WD suspension projects
MaxTrac lift spindle installations
Extended front brake hose replacement
Lifted Ram street trucks
2006–2024 applications
